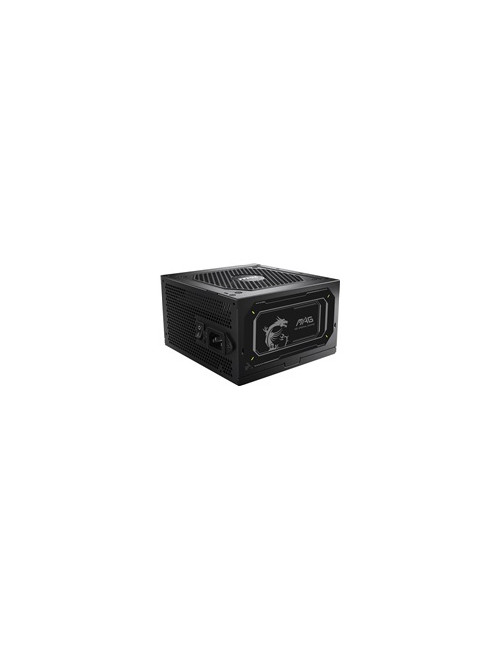

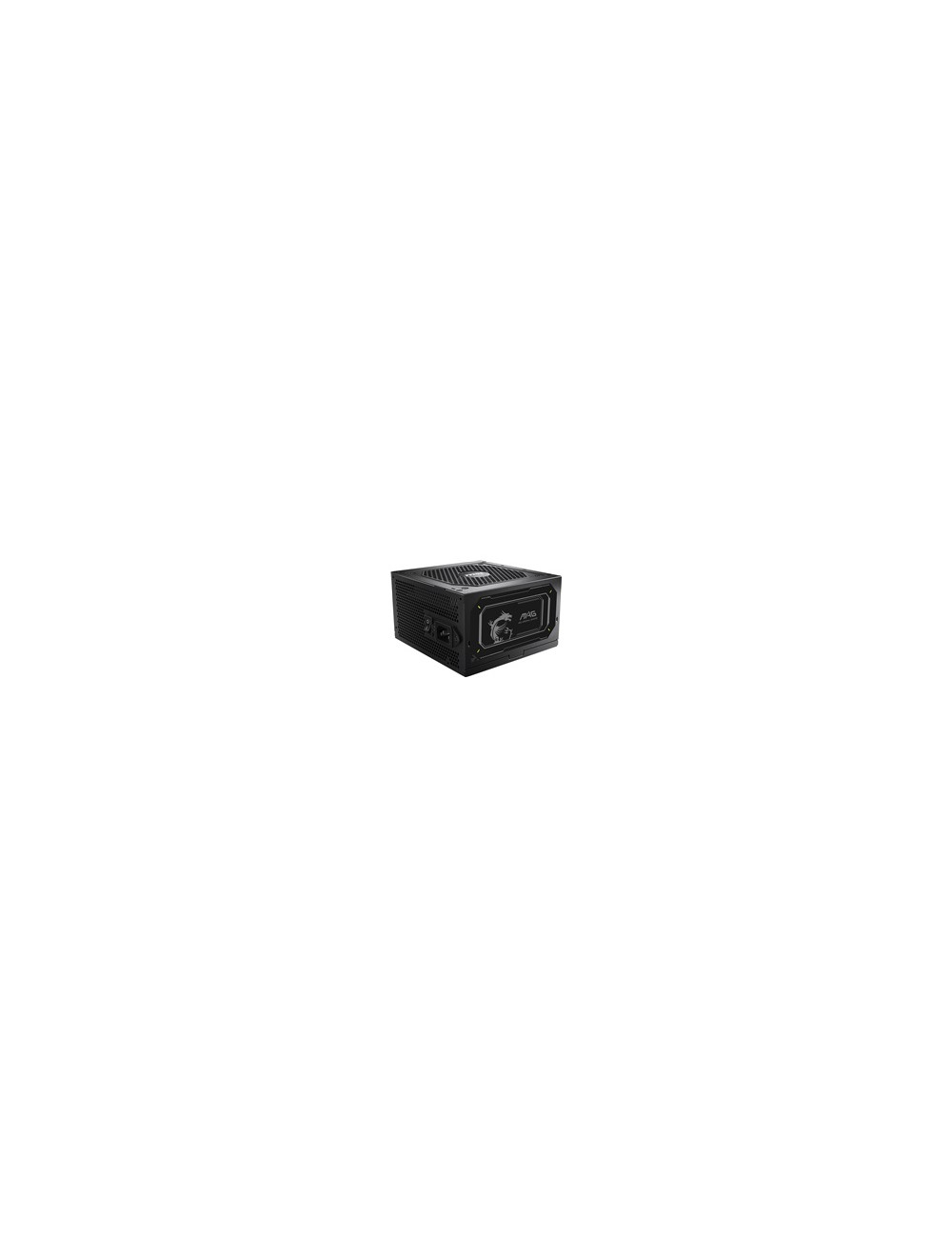

MSI MAG A750GL PCIE5 II 750W GOLD PSU
    MSI

    MSI MAG A750GL PCIE5 II 750W GOLD PSU

    100,32 €
    Su mokesčiais
    The MSI MAG A750GL PCIE5 II power supply delivers reliable performance with a robust power output of 750 watts, ideal for gaming and high-performance PCs. Equipped with fully modular cables, including a detachable 2 pin section and various connector types such as 8 pin PCI Express and 12+4 pin PCI Express 5.0, this power supply ensures easy installation and efficient cable management. Additionally, it features advanced protection mechanisms including overheat, overcurrent, and short-circuit protection, enhancing the durability and safety of your system. With 80 PLUS Gold certification, it operates with efficiency, ensuring that energy consumption is minimized while delivering stable power to your components. The 120 mm cooling fan and fluid dynamic bearing technology help maintain optimal
    Kiekis

    Išsaugoti prekę Pridėti į palyginimą
    • 750 watts power output for reliable performance
    • Fully modular design for easy installation
    • 80 PLUS Gold certification for energy efficiency
    • Multiple protection features for enhanced safety
    • Efficient cooling with a 120 mm fan

    Prekė detaliau

    MAG A750GL PCIE5 II
    27 Prekės

    Charakteristikos

    Dimensions (WxDxH)
    15 cm x 14 cm x 8.6 cm
    Device type
    Power supply - active Power Factor Correction (PFC) - internal
    Input voltage
    AC 100-240 V
    Output current
    +3.3V - 20 A +5V - 20 A -12V - 0.3 A +12V - 62 A +5VSB - 2.5 A
    PRODUCT DESCRIPTION
    MSI MAG A750GL PCIE5 II - power supply - 750 Watt
    Cooling System
    120 mm fan
    80 PLUS certification
    80 PLUS GOLD
    Specification Compliance
    ATX12V 3.1/ EPS12V
    Power Capacity
    750 Watt
    Output connectors
    1 x power 24 pin ATX 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 1 x 12+4 pin PCI Express 5.0 power 3 x 8 pin PCI Express power with detachable 2 pin section 8 x 15 pin Serial ATA power 5 x 4 PIN internal power
    Modular Cable Management
    Yes
    Cybenetics Certification
    Cybenetics Gold

    Greitas palyginimas

    Prekė
    		 Power Supply|CHIEFTEC|PPG-850-C|850 Watts|Efficiency 80 PLUS GOLD|PFC Active|PPG-850-C Power Supply|CHIEFTEC|PPG-850-C|850 Watts|Efficiency 80 PLUS GOLD|PFC Active|PPG-850-C Power Supply|XILENCE|750 Watts|Efficiency 80 PLUS GOLD|PFC Active|XN335 Power Supply|XILENCE|750 Watts|Efficiency 80 PLUS GOLD|PFC Active|XN335 CASE PSU ATX3.1 750W/GP-UD750GM PG5 V2 GIGABYTE Power Supply|GIGABYTE|UD750GM PG5 ICE|ATX 3.1|750 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 100000 hours|GP-UD750GMPG5ICE Power Supply|GIGABYTE|UD750GM PG5 ICE|ATX 3.1|750 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 100000 hours|GP-UD750GMPG5ICE
    Prieinamumas
    Kaina
    88,33 €
    88,37 €
    88,46 €
    88,46 €
    Aprašymas
    		 PPG-850-C|ATX 3.1|850 Watts|Cooling System 13.5cm fan|80 PLUS GOLD|PFC Active|Colour Black XN335 | XP750R12.ARGB | For gaming/Illuminated fan | ATX 2.52 | 750 Watts | Cooling System 12cm fan | 80 PLUS GOLD | PFC Active 750 W | 100 - 240 V | Efficiency 90 % | 80 PLUS certification 80 PLUS Gold | PC | ATX | Fan diameter 120 mm | Weight 2.34 kg | Package type Box | UD750GM PG5 ICE
    Colour
    		 Black Black
    Garantija
    		 24 24 36 36
    Category Code
    		 PSU PSU PSU
    Unit Box Height
    		 0.215 0.21
    Unit Box Length
    		 0.255 0.12
    Unit Box Width
    		 0.115 0.255
    Unit Net Weight
    		 2 kg
    Vendor Homepage
    		 www.chieftec.eu/products-detail/626/VEGA_M/628/PPG-850-C www.xilence.net/en/power-supplies/225 www.gigabyte.com/Power-Supply/GP-UD750GM-PG5-V2 https://www.gigabyte.com/Power-Supply/GP-UD750GM-PG5-ICE kf
    Cooling System
    		 13.5cm fan 12cm fan 12cm fan
    Dimensions
    		 150 mm x 150 mm x 85 mm 150 x 140 x 86mm
    PFC
    		 Active Active Active
    PSU
    		 ATX 3.1 ATX 2.52 ATX 3.1
    PSU Output Power
    		 850 Watts 750 Watts 750 Watts
    Efficiency
    		 80 PLUS GOLD 80 PLUS GOLD 80 PLUS GOLD
    Model name
    		 PPG-850-C XN335 | XP750R12.ARGB UD750GM PG5 V2 UD750GM PG5 ICE
    MTBF
    		 100000 hours
    PSU features
    		 For gaming/Illuminated fan
    MODEL
    		 ATX 850W GP-UD750GM PG5 V2
    CnCode (CnCode)
    		 85044095
    Units per Shipping Box
    		 1 5 5
    Product Net Weight
    		 1.7 kg 2 kg
    Unit Calculated Weight
    		 2.05 kg 2.5 kg 2.53 kg
    Unit Calculated Volume
    		 0.00414 cubm 0.007812 cubm 0.007986 cubm
    CnCode
    		 85044095 85044095
    Summary
    		 GIGABYTE UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin
    Weight & dimensions (Weight)
    		 2340 g
    Weight & dimensions (Width)
    		 150 mm
    Weight & dimensions (Depth)
    		 140 mm
    Weight & dimensions (Height)
    		 86 mm
    Packaging data (Package width)
    		 618 mm
    Packaging data (Package depth)
    		 269 mm
    Packaging data (Package height)
    		 211 mm
    Packaging data (Package weight)
    		 2500 g
    Design (Product colour)
    		 White
    Packaging data (Package type)
    		 Box
    Power (AC input frequency)
    		 50/60 Hz
    Power (AC input voltage)
    		 100 - 240 V
    Power (Input current)
    		 12 - 6.5 A
    Design (Cooling type)
    		 Active
    Design (Number of fans)
    		 1 fan(s)
    Design (Fan diameter)
    		 120 mm
    Power (Combined power (+12V))
    		 750 W
    Power (Combined power (+3.3V))
    		 105 W
    Power (Combined power (+5V))
    		 105 W
    Power (Combined power (+5Vsb))
    		 15 W
    Power (Combined power (-12V))
    		 3.6 W
    Power (Max output current (+12V))
    		 62.5 A
    Power (Max output current (+3.3V))
    		 20 A
    Power (Max output current (+5V))
    		 20 A
    Power (Max output current (+5Vsb))
    		 3 A
    Power (Max output current (-12V))
    		 0.3 A
    Power (Power protection features)
    		 Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
    Power (Total power)
    		 750 W
    Ports & interfaces (Cabling type)
    		 Fully-Modular
    Ports & interfaces (Motherboard power cable length)
    		 610 mm
    Ports & interfaces (Motherboard power connector)
    		 20+4 pin ATX
    Ports & interfaces (Number of SATA power connectors)
    		 8
    Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
    		 3
    Performance (80 PLUS certification)
    		 80 PLUS Gold
    Performance (Mean time between failures (MTBF))
    		 100000 h
    Performance (Power supply unit (PSU) form factor)
    		 ATX
    Performance (Purpose)
    		 PC
    Design (On/off switch)
    		 Yes
    Logistics data (Warranty period)
    		 5 year(s)
    Power (Efficiency)
    		 90 %
    Ports & interfaces (CPU power cable length)
    		 650 mm
    Ports & interfaces (CPU power connector (4+4 pin))
    		 Yes
    Ports & interfaces (PCI Express power cable length)
    		 600 mm
    Ports & interfaces (PCI Express power connectors (6+2 pin))
    		 4
    Performance (Bearing technology)
    		 HYB
    Power (Hold time)
    		 16 ms
    Power (Power factor)
    		 0.9
    Power (Power Factor Correction (PFC) type)
    		 Active
    Ports & interfaces (Floppy drive power connector)
    		 1
    Ports & interfaces (Number of EPS connectors)
    		 2
    Ports & interfaces (PCI Express connector)
    		 Yes
    Ports & interfaces (PCI Express power connectors (12+4 pin))
    		 1
    Ports & interfaces (PCI Express power connectors (12+4 pin) cable length)
    		 700 mm
    Performance (ATX version)
    		 3.1
