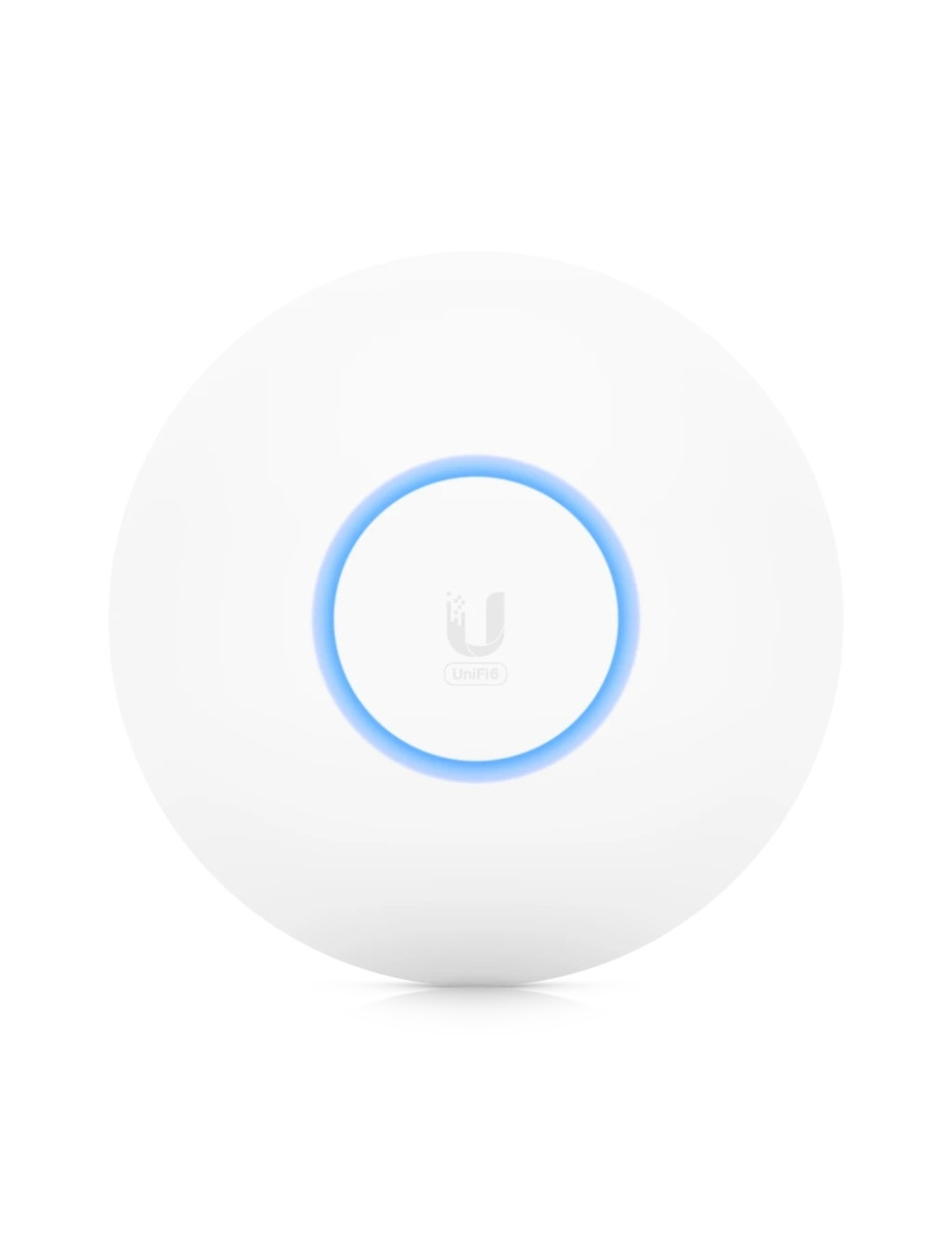

Ubiquiti U6 Lite access point

Compact, ceiling-mounted WiFi 6 AP with 4 spatial streams ideal for smaller offices.
Dimensions
Ø160 x 33 mm
(Ø6.3 x 1.3")
WiFi Standard
WiFi 6
Spatial Streams
4
Coverage Area
115 m² (1,250 ft²)
Max. Client Count
300+
Uplink
GbE
Mounting
Ceiling, Wall
(Mounts Included)
Power Method
PoE
Performance
MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (SU-MIMO)
Max. Data Rate
5 GHz
1.2 Gbps (BW80)
2.4 GHz
300 Mbps (BW40)
Antenna Gain
5 GHz
3 dBi
2.4 GHz
2.8 dBi
Max. TX Power
5 GHz
23 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11ax (WiFi 6)
7.3 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80)
802.11ac (WiFi 5)
6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
Wireless Meshing
Yes
Band Steering
Yes
802.11v BSS Transition Management
Yes
802.11r Fast Roaming
Yes
802.11k Radio Resource Management (RRM)
Yes
Advanced Radio Management
Yes
Passpoint (Hotspot 2.0)
Yes
Captive Hotspot Portal
Custom Branding Landing Page
Yes
Voucher Authentication
Yes
Payment-Based Authentication
Yes
External Portal Server Support
Yes
Password Authentication
Yes
Guest Network Isolation
Yes
Private Pre-Shared Key (PPSK)
Yes
WiFi Speed Limiting
Yes
Client Device Isolation
Yes
WiFi Schedules
Yes
RADIUS over TLS (RadSec)
Yes
Dynamic RADIUS-assigned VLAN
Yes
Hardware
Max. Power Consumption
12W
Supported Voltage Range
44—57V DC
Networking Interface
(1) GbE RJ45 port
Weight
Device: 300 g (10.6 oz)
With mount: 315 g (11.1 oz)
Management
Ethernet
Bluetooth
Enclosure Material
Polycarbonate, aluminum
Mount Material
Polycarbonate, SGCC steel
LEDs
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz)
Certifications
CE, FCC, IC
NDAA Compliant
Yes
Operating Frequency
US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz

Worldwide:
2400 - 2483.5 MHz
5150 - 5725 MHz
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 6.0.45 and later
