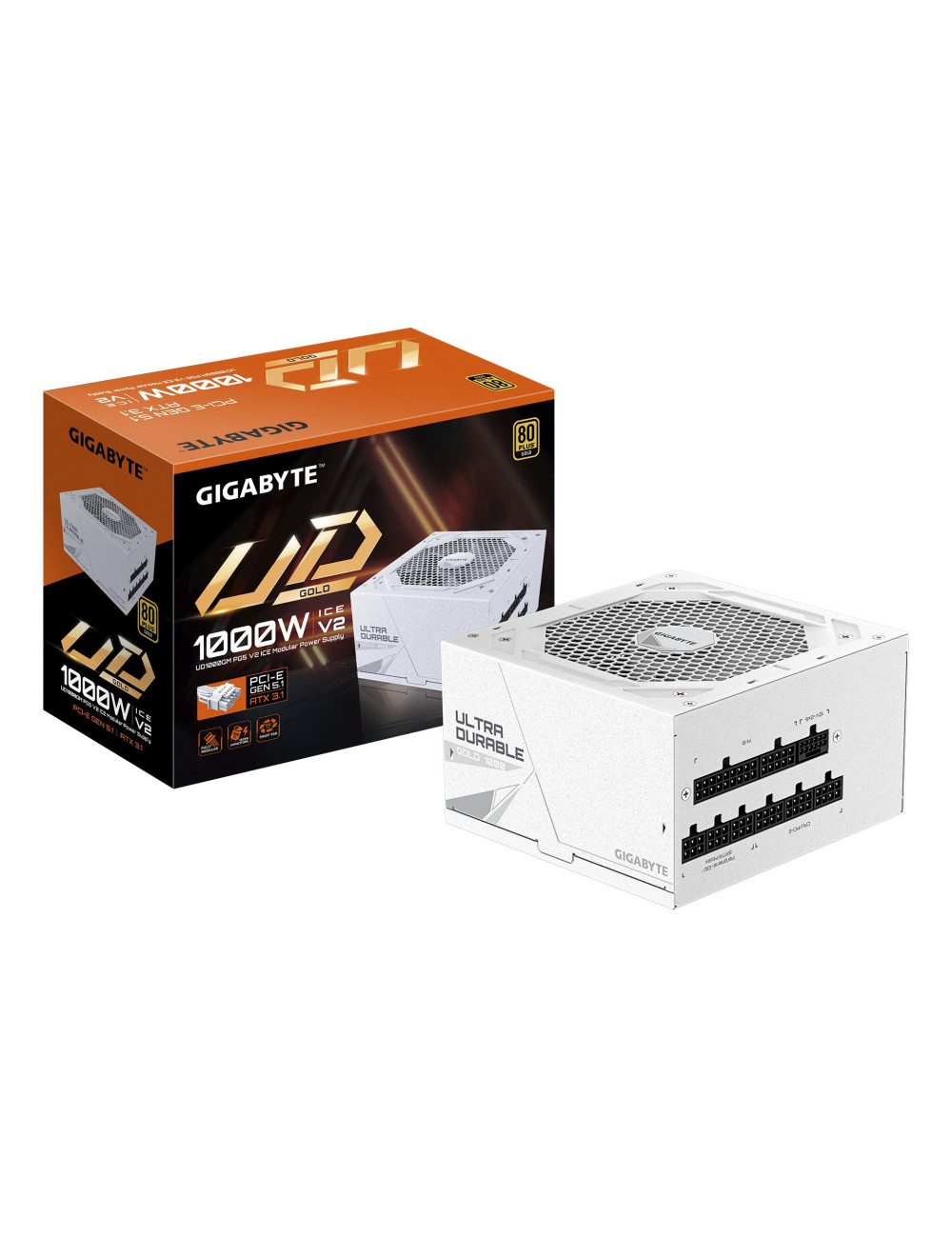

Power Supply|GIGABYTE|UD1000GM PG5 ICE|ATX 3.1|1000 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 100000 hours|GP-UD1000GMPG5ICE
    Gigabyte

    Power Supply|GIGABYTE|UD1000GM PG5 ICE|ATX 3.1|1000 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 100000 hours|GP-UD1000GMPG5ICE

    120,13 €
    Su mokesčiais
    1000 W | 100 - 240 V | Efficiency 90 % | 80 PLUS certification 80 PLUS Gold | PC | ATX | Fan diameter 120 mm | Weight 2.48 kg | Package type Box | UD1000GM PG5 ICE
    Kiekis

    Išsaugoti prekę Pridėti į palyginimą

    Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

    • Intel ATX 3.1 and PCIe Gen 5.1 ready
    • 80 PLUS Gold certified
    • Fully modular design
    • Powerful single +12V rail
    • Compact size
    • 100% Japanese capacitors
    • 120mm smart hydraulic bearing (HYB) fan
    • Optimized thermal solution
    • OVP/OPP/SCP/UVP/OCP/OTP protection

    Prekė detaliau

    GP-UD1000GM PG5 ICE
    30 Prekės

    Charakteristikos

    Garantija
    36
    Category Code
    PSU
    Unit Box Height
    0.215
    Unit Box Length
    0.12
    Unit Box Width
    0.26
    Vendor Homepage
    https://www.gigabyte.com/Power-Supply/GP-UD1000GM-PG5-ICE kf
    Model name
    UD1000GM PG5 ICE
    Units per Shipping Box
    5
    Unit Calculated Weight
    2.72 kg
    Unit Calculated Volume
    0.007812 cubm
    Summary
    GIGABYTE UD1000GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 p
    Weight & dimensions (Weight)
    2480 g
    Weight & dimensions (Width)
    150 mm
    Weight & dimensions (Depth)
    140 mm
    Weight & dimensions (Height)
    86 mm
    Packaging data (Package width)
    618 mm
    Packaging data (Package depth)
    269 mm
    Packaging data (Package height)
    211 mm
    Packaging data (Package weight)
    2640 g
    Design (Product colour)
    White
    Packaging data (Package type)
    Box
    Power (AC input frequency)
    50/60 Hz
    Power (AC input voltage)
    100 - 240 V
    Power (Input current)
    15 - 6.5 A
    Design (Cooling type)
    Active
    Design (Number of fans)
    1 fan(s)
    Design (Fan diameter)
    120 mm
    Power (Combined power (+12V))
    1000 W
    Power (Combined power (+3.3V))
    125 W
    Power (Combined power (+5V))
    125 W
    Power (Combined power (+5Vsb))
    15 W
    Power (Combined power (-12V))
    3.6 W
    Power (Max output current (+12V))
    83.3 A
    Power (Max output current (+3.3V))
    25 A
    Power (Max output current (+5V))
    25 A
    Power (Max output current (+5Vsb))
    3 A
    Power (Max output current (-12V))
    0.3 A
    Power (Power protection features)
    Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
    Power (Total power)
    1000 W
    Ports & interfaces (Cabling type)
    Fully-Modular
    Ports & interfaces (Motherboard power cable length)
    610 mm
    Ports & interfaces (Motherboard power connector)
    20+4 pin ATX
    Ports & interfaces (Number of SATA power connectors)
    8
    Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
    3
    Performance (80 PLUS certification)
    80 PLUS Gold
    Performance (Mean time between failures (MTBF))
    100000 h
    Performance (Power supply unit (PSU) form factor)
    ATX
    Performance (Purpose)
    PC
    Design (On/off switch)
    Yes
    Logistics data (Warranty period)
    10 year(s)
    Power (Efficiency)
    90 %
    Ports & interfaces (CPU power cable length)
    650 mm
    Ports & interfaces (CPU power connector (4+4 pin))
    Yes
    Ports & interfaces (PCI Express power cable length)
    600 mm
    Ports & interfaces (PCI Express power connectors (6+2 pin))
    4
    Performance (Bearing technology)
    HYB
    Power (Hold time)
    16 ms
    Power (Power factor)
    0.9
    Power (Power Factor Correction (PFC) type)
    Active
    Ports & interfaces (Floppy drive power connector)
    1
    Ports & interfaces (Number of EPS connectors)
    2
    Ports & interfaces (PCI Express connector)
    Yes
    Ports & interfaces (PCI Express power connectors (12+4 pin))
    1
    Ports & interfaces (PCI Express power connectors (12+4 pin) cable length)
    700 mm
    Performance (ATX version)
    3.1

    Greitas palyginimas

    Prekė
    		 Power Supply|ENDORFY|ATX|PC|100 - 240 V|750 W|EY7A013 Power Supply|ENDORFY|ATX|PC|100 - 240 V|750 W|EY7A013 Power Supply|LIAN LI|EDGE GOLD 850|850 Watts|Efficiency 80 PLUS GOLD|PFC Active|G9P.EG0850G.W000.EU Power Supply|LIAN LI|EDGE GOLD 850|850 Watts|Efficiency 80 PLUS GOLD|PFC Active|G9P.EG0850G.W000.EU Power Supply|ADATA|XPG CORE REACTOR II|850 Watts|Efficiency 80 PLUS GOLD|COREREACTORII850G-BKCEU Power Supply|ADATA|XPG CORE REACTOR II|850 Watts|Efficiency 80 PLUS GOLD|COREREACTORII850G-BKCEU PN750-M WH 750W | Deepcool
    Prieinamumas
    Kaina
    111,21 €
    111,33 €
    112,05 €
    112,36 €
    Aprašymas
    		 750 W | 100 - 240 V | 80 PLUS certification 80 PLUS Gold | PC | ATX | Fan diameter 120 mm EDGE GOLD 850|Braided cables|L-shape|ATX 3.1|850 Watts|Cooling System 12cm fan|80 PLUS GOLD|PFC Active|Colour White XPG CORE REACTOR II | For gaming | ATX 3.0 | 850 Watts | Cooling System 12cm fan | 80 PLUS GOLD | Colour Black PN750-M WH 750W | Deepcool
    Warranty
    		 24 month(s)
    Net weight
    		 2.20 kg
    Gross weight
    		 2.60 kg
    WEEE tax
    		 Yes
    Packing quantity
    		 1.00 pc(s)
    Volume (m3)
    		 0.01 m
    Tare weight (kg)
    		 0.40 kg
    Gross depth (mm)
    		 300.00 mm
    Gross width (mm)
    		 116.00 mm
    Gross height (mm)
    		 194.00 mm
    WEE classification
    		 CL109:6:2017-04-01
    Embeeded battery
    		 No
    Colour
    		 White Black
    Palette Qty
    		 128 pc(s)
    Garantija
    		 24 24 36
    Category Code
    		 PSU PSU PSU
    Unit Box Height
    		 0.095 0.21
    Unit Box Length
    		 0.27 0.34
    Unit Box Width
    		 0.22 0.16
    Vendor Homepage
    		 https://endorfy.com/en/product/supremo-fm6-750-w/ lian-li.com/product/edge-gold/ www.xpg.com/us/xpg/pc-components-core-reactor-ii?tab desc
    Cooling System
    		 12cm fan 12cm fan
    Dimensions
    		 (D)182 mm X (W)86 mm X (H)150 mm 140 x 150 x 86mm
    PFC
    		 Active
    PSU
    		 ATX 3.1 ATX 3.0
    PSU Output Power
    		 850 Watts 850 Watts
    Efficiency
    		 80 PLUS GOLD 80 PLUS GOLD
    Model name
    		 EDGE GOLD 850 XPG CORE REACTOR II
    PSU features
    		 Braided cables For gaming
    Design features
    		 L-shape
    MODEL
    		 EG0850G COREREACTORII850G-BKCEU
    CnCode (CnCode)
    		 85044095
    Producer
    		 Deepcool
    Units per Shipping Box
    		 6 1 6
    Product Net Weight
    		 2 kg 3 kg
    Unit Calculated Weight
    		 2.8 kg 3.85 kg 4 kg
    Unit Calculated Volume
    		 0.006815 cubm 0.01452 cubm 0 cubm
    CnCode
    		 85044095 85044095
    Summary
    		 ENDORFY Supremo FM6 750 W. Total power: 750 W, AC input voltage: 100 - 240 V, Input current: 13 - 65 A. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 560 mm. Purpose: PC, Power supply unit (PSU) f
    Weight & dimensions (Width)
    		 140 mm
    Weight & dimensions (Depth)
    		 150 mm
    Weight & dimensions (Height)
    		 87 mm
    Design (Product colour)
    		 Black
    Power (AC input voltage)
    		 100 - 240 V
    Packaging data (Manual)
    		 Yes
    Power (Input current)
    		 13 - 65 A
    Design (Cooling type)
    		 Active
    Design (Number of fans)
    		 1 fan(s)
    Design (Fan diameter)
    		 120 mm
    Design (Illumination)
    		 No
    Logistics data (Country of origin)
    		 China
    Certificates (Compliance certificates)
    		 CE/Federal Communications Commission (FCC)/RoHS/UKCA/WEEE
    Power (Combined power (+12V))
    		 744 W
    Power (Combined power (+3.3V))
    		 100 W
    Power (Combined power (+5V))
    		 20 W
    Power (Combined power (+5Vsb))
    		 15 W
    Power (Combined power (-12V))
    		 3.6 W
    Power (Max output current (+12V))
    		 62 A
    Power (Max output current (+3.3V))
    		 20 A
    Power (Max output current (+5V))
    		 20 A
    Power (Max output current (+5Vsb))
    		 3 A
    Power (Max output current (-12V))
    		 0.3 A
    Power (Power protection features)
    		 Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Under voltage
    Power (Total power)
    		 750 W
    Ports & interfaces (Cabling type)
    		 Fully-Modular
    Ports & interfaces (Motherboard power cable length)
    		 600 mm
    Ports & interfaces (Motherboard power connector)
    		 24-pin ATX
    Ports & interfaces (Peripheral (Molex) power cable length)
    		 560 mm
    Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
    		 1
    Ports & interfaces (SATA power cable length)
    		 560 mm
    Performance (80 PLUS certification)
    		 80 PLUS Gold
    Performance (Mean time between failures (MTBF))
    		 100000 h
    Performance (Power supply unit (PSU) form factor)
    		 ATX
    Performance (Purpose)
    		 PC
    Design (On/off switch)
    		 Yes
    Ports & interfaces (PCI Express power connectors (6+2 pin))
    		 3
    Power (Power Factor Correction (PFC) type)
    		 Active
    Ports & interfaces (Number of EPS connectors)
    		 2
    Performance (ATX version)
    		 3.1
    Ports & interfaces (EPS power connector (4+4 pin))
    		 Yes
    Ports & interfaces (Number of SATA power cables)
    		 2
    Technical details (Doesn't contain)
    		 Cadmium/Lead/Mercury
    Long Description
    		 ENDORFY Supremo FM6 750 W. Total power: 750 W, AC input voltage: 100 - 240 V, Input current: 13 - 65 A. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 560 mm. Purpose: PC, Power supply unit (PSU) f
    Bullet Points
    		 ul li Ready for latest ATX 3.1 standards /li li 80 PLUS Gold supreme performance and reliability /li li Silence first /li li Premium-class capacitors made in Japan /li li Reliable 120 mm Fluctus fan /li li Fully modular cabling /li li Protection feature p

    Panašios prekės

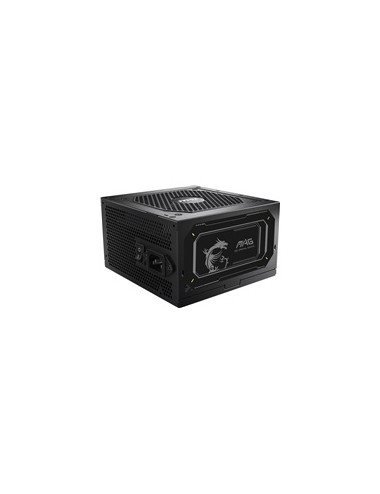

    MSI MAG A750GL PCIE5 750W POWER SUPPLY
    MSI

    MSI MAG A750GL PCIE5 750W POWER SUPPLY

    107,72 €
    The MPG gaming power supply can support the NVIDIA GeForce RTX and AMD GPUs. Prepared for the highest of requirements, the MPG power supply's IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
      CHIEFTEC PSU 400W 12CM ATX12V V2.3 80+
      CHIEFTEC

      CHIEFTEC PSU 400W 12CM ATX12V V2.3 80+

      43,66 €
      Today, system integrators do not only require for their PC assembly line, a durable and quality-promising chassis but a highly reliable power supply source as well. Chieftec's power supply units of the Smart Series fulfill these and more requirements.
        CORSAIR RMx Series RM1000x 1000 Watt PSU
        Corsair

        CORSAIR RMx Series RM1000x 1000 Watt PSU

        189,42 €
        Corsair RMx series power supplies give you extremely tight voltage control, quiet operation, Gold-certified efficiency, and a fully modular cable set. Built with all Japanese 105°C capacitors, they're a great choice for high performance PCs where reliability is essential. 80 PLUS Gold efficiency reduces operating cost and excess heat, and Zero RPM fan mode ensures virtual silence at low and medium loads. And, the fully modular DC cables make builds and upgrades easy, with clean, great-looking results.
          CHIEFTEC Task 600W certified 80Plus
          CHIEFTEC

          CHIEFTEC Task 600W certified 80Plus

          56,97 €
          The Chieftec TASK Series PSUs are true to their name, and take on any task they are required for without any trouble. These power supplies will also serve excellently for builds inside larger cases.

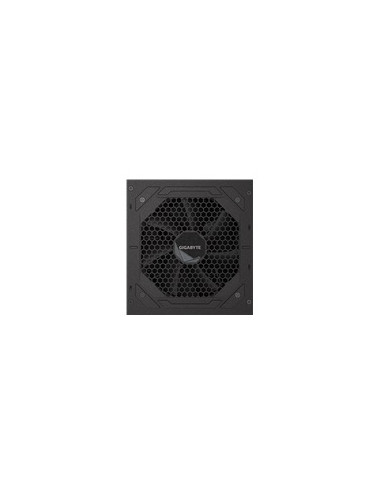

            GIGABYTE GP-UD750GM PG5 V2 750W 80+ Gold
