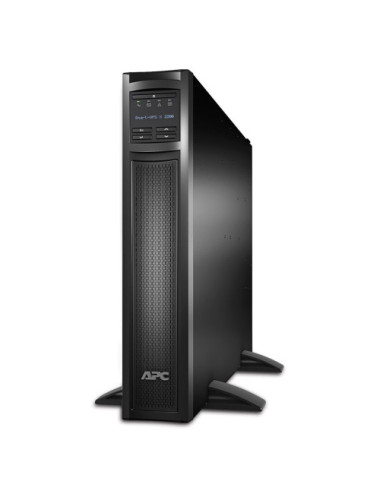

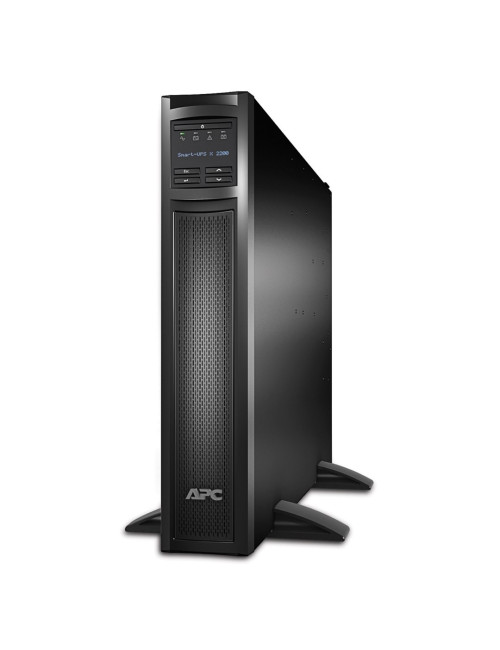

APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC, SmartSlot, Extended runtime

Product Details

Reference ZASAPCUPS0131

In stock 3 Items

Data sheet

Cable length

1.83 m

Width

432 mm

Height

85 mm

Depth

667 mm

Weight

37.3 kg

Package height

243 mm

Package width

596 mm

Cables included

RS-232, USB cable

Storage relative humidity (H-H)

0 - 95%

Manual

Yes

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-15 - 45 °C

Form factor

Rackmount/Tower

USB port

Yes

LED indicators

Battery replacement

Battery technology

Sealed Lead Acid (VRLA)

Battery life (max)

5 year(s)

Battery capacity

702 VAh

Battery recharge time

3 h

Output power

1980 W

Input frequency

50/60 Hz

Response time

4 ms

Efficiency

98.1%

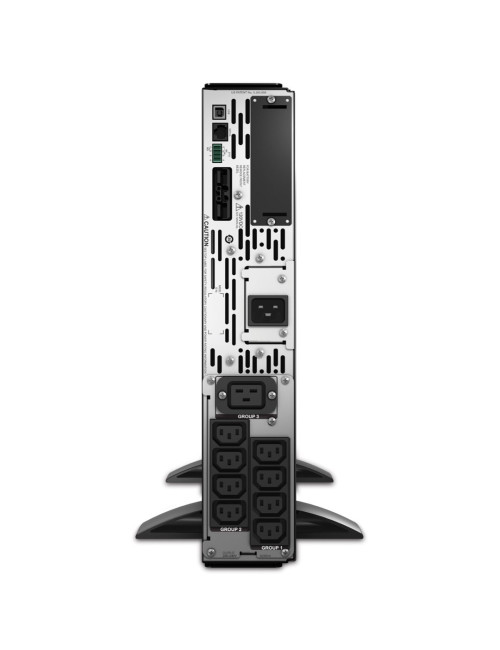

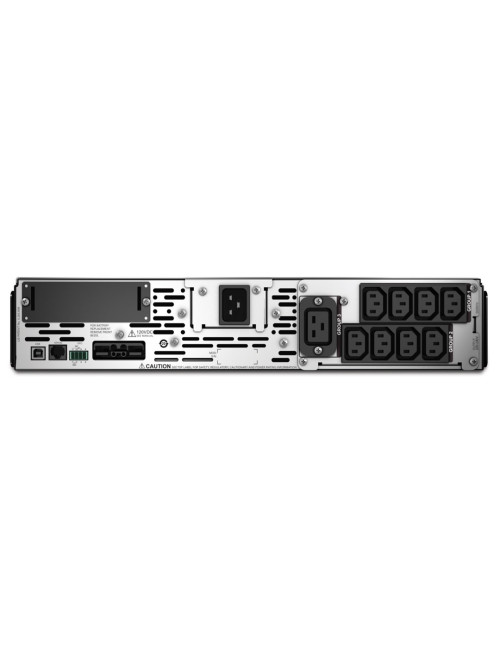

AC outlets quantity

9 AC outlet(s)

Output power capacity

2.2 kVA

Output operation voltage (max)

240 V

Waveform

Sine

Auto-restart

Yes

AC outlet types

C13 coupler

Audible alarm(s)

Yes

Output operation voltage (min)

208 V

UPS topology

Line-Interactive

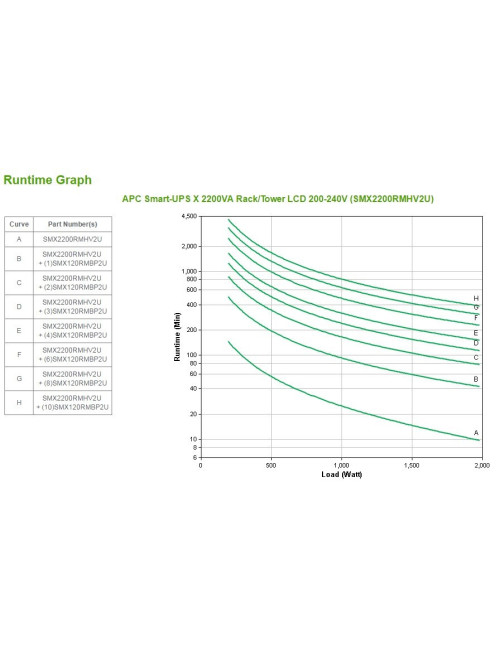

Typical backup time at full load

9.8 min

Automatic Voltage Regulation (AVR)

Yes

Automatic battery test

Yes

Typical backup time at half load

25.3 min

Surge protection

Yes

Nominal input voltage

230 V

Nominal output voltage

230 V

Output frequency regulation

50/60 Hz

Operating altitude

0 - 3000 m

Noise Level

55 dB

Surge energy rating

645 J

Power plug

C20 coupler

Non-operating altitude

0 - 15000 m

Product colour

Black

Harmonized System (HS) code

85078000

Sustainability certificates

Green Premium

Hot-swap battery

Yes

Compliance certificates

RoHS

Total carbon footprint (kg of CO2e)

2715.94

Hold time (max)

10 ms

Hold time (min)

2 ms

Number of output IEC jumpers

2

SmartSlot

Yes

Emergency Power Off (EPO)

Yes

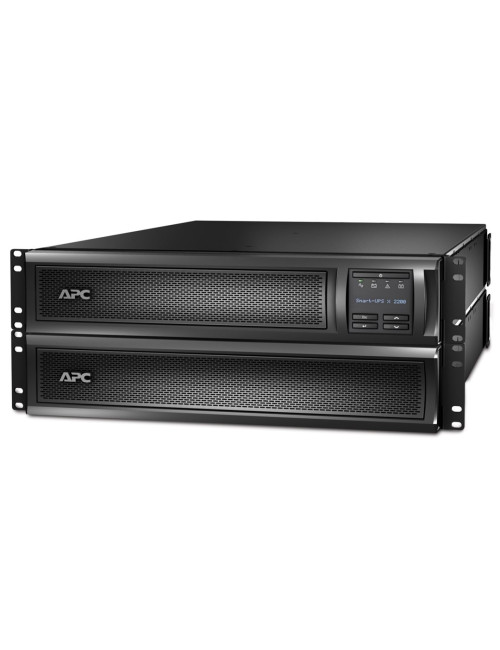

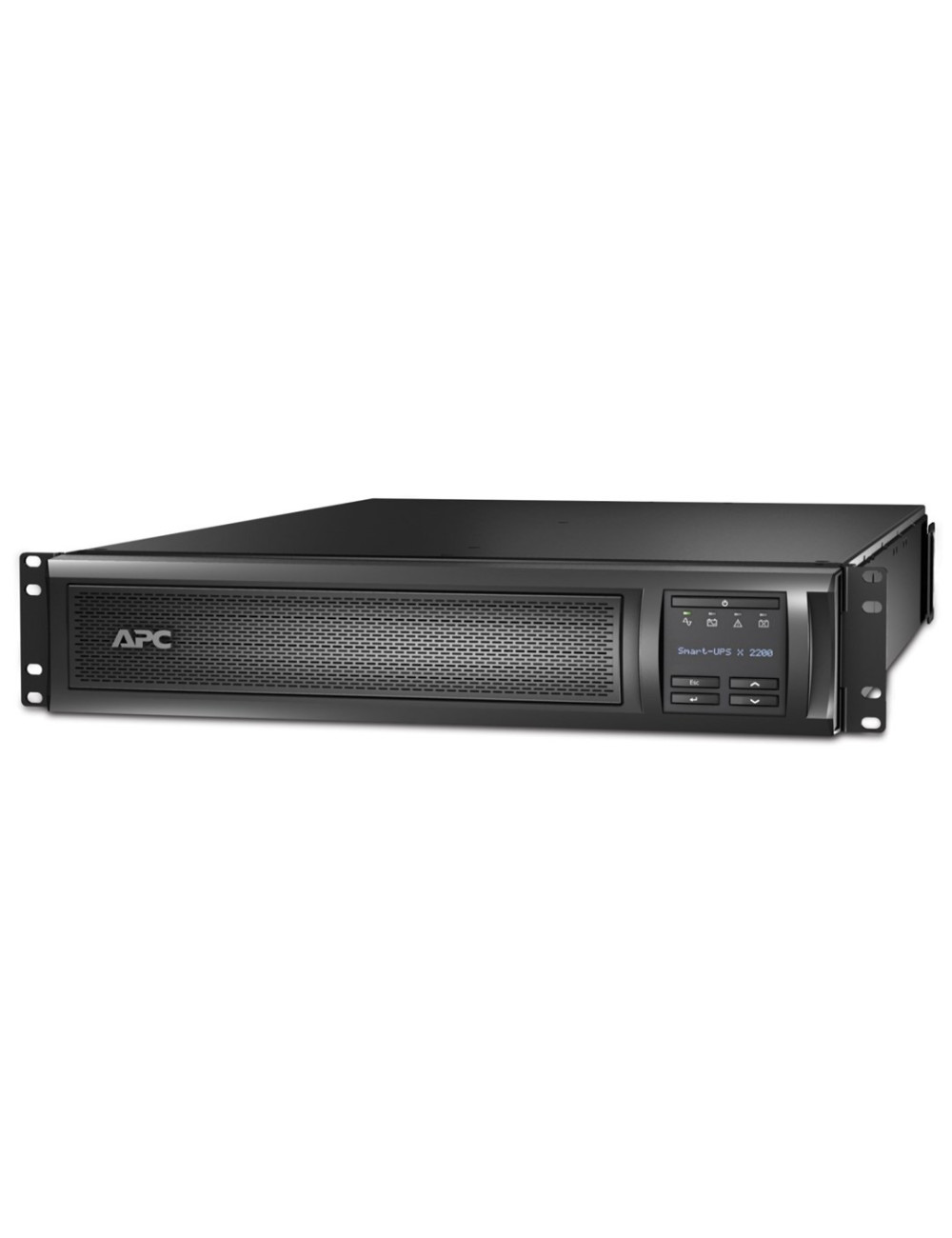

Rack capacity

2U

Rack mount kit

Yes

Management card included

No

Warnings

Do not disassemble the unit housing, there may be a risk of electric shock.

SmartConnect port

No
