ENERGENIE

    Gembird EG-UPS-036 uninterruptible power supply (UPS) Line-Interactive 3 kVA 1800 W 6 AC outlet(s)

    €188.97
    Tax included
    Quantity
      Last items in stock

    Add to favorites Add to compare

    Product Details

    ZSIEEEUPS0022
    1 Item

    Data sheet

    Package type
    Box
    Width
    220 mm
    Height
    125 mm
    Depth
    400 mm
    Weight
    19 kg
    Package height
    150 mm
    Package width
    300 mm
    Number of batteries supported
    4
    Cables included
    Input power cable, USB cable
    Operating temperature (T-T)
    0 - 40 °C
    Operating relative humidity (H-H)
    20 - 90%
    Form factor
    Compact
    USB port
    Yes
    Battery technology
    Sealed Lead Acid (VRLA)
    Battery capacity
    7 Ah
    Output power
    1800 W
    Input frequency
    50/60 Hz
    USB 2.0 ports quantity
    1
    Response time
    10 ms
    Display type
    LCD
    Ethernet LAN (RJ-45) ports
    1
    Input operation voltage (min)
    162 V
    Power protection features
    Short circuit
    Cold start
    Yes
    AC outlets quantity
    6 AC outlet(s)
    Output power capacity
    3 kVA
    Output operation voltage (max)
    220 V
    Waveform
    Sine
    AC outlet types
    Type F
    Input operation voltage (max)
    295 V
    Audible alarm(s)
    Yes
    Battery voltage
    12 V
    UPS topology
    Line-Interactive
    Typical backup time at full load
    20 min
    Automatic Voltage Regulation (AVR)
    Yes
    Typical backup time at half load
    8 min
    Surge protection
    Yes
    Noise Level
    45 dB
    Power plug
    C14 coupler
    Product colour
    Black
    Sustainability compliance
    Yes
    USB port type
    USB Type-B
    Charging current
    1.2 A
    Customs product code (TARIC)
    8504408590
    Compliance certificates
    RoHS
    Number of type F outputs
    3
    Battery recharge time (90%)
    8 h
    Warnings
    Do not disassemble the unit housing, there may be a risk of electric shock.

    Quick Compare

    Product

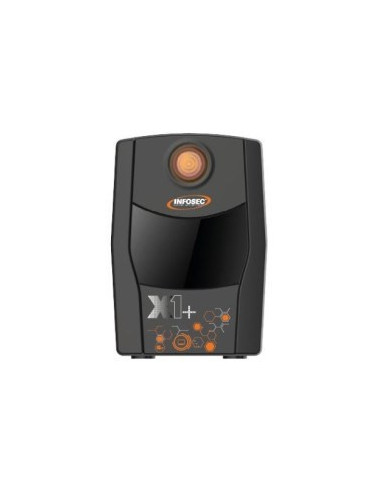

    		 Infosec X4 600 RM Plus uninterruptible power supply (UPS) Line-Interactive 0.6 kVA 360 W 6 AC outlet(s) Schneider Electric APC Easy UPS | BVX1600LI-GR | 1600 VA | 900 W Schneider Electric APC Easy UPS | BVX1600LI-GR | 1600 VA | 900 W Orvaldi ID2K0CH uninterruptible power supply (UPS) Line-Interactive 2 kVA 1200 W UPS|EATON|900 Watts|1600 VA|Wave form type Pure sinewave|LineInteractive|Phase 1phase|Desktop/pedestal|5E1600UD UPS|EATON|900 Watts|1600 VA|Wave form type Pure sinewave|LineInteractive|Phase 1phase|Desktop/pedestal|5E1600UD
    Availability
    Price
    €177.33
    €179.14
    €180.11
    €183.53
    Description
    		 Schneider Electric APC Easy UPS | BVX1600LI-GR | 1600 VA | 900 W 900 Watts | 1600 VA | Wave form type Pure sinewave | Topology LineInteractive | Phase 1phase | Output power connector type IEC 320 C13 | Colour Black
    Warranty
    		 24 month(s)
    Producer product name
    		 BVX1600LI-GR
    Net weight
    		 10.20 kg
    Gross weight
    		 11.20 kg
    WEEE tax
    		 Yes
    Packing quantity
    		 1.00 pc(s)
    Volume (m3)
    		 0.03 m
    Tare weight (kg)
    		 1.00 kg
    Gross depth (mm)
    		 297.00 mm
    Gross width (mm)
    		 235.00 mm
    Gross height (mm)
    		 495.00 mm
    WEE classification
    		 CL109:5:2017-04-01
    Paper/Pasteboard
    		 800.00 g
    Embeeded battery
    		 Yes
    Colour
    		 Black
    TI weight (kg)
    		 4.30 kg
    Width
    		 440 mm 135 mm
    Height
    		 88 mm 208 mm
    Depth
    		 230 mm 343 mm
    Plastic (No PET)
    		 200.00 g
    Composition of battery
    		 CL127:KT:2016-12-09
    Classification of battery
    		 CL126:NE:2016-12-09
    Type of battery
    		 Accumulator
    Weight
    		 6.5 kg 11 g
    Special features
    		 AVR corrects voltage fluctuations to ensure reliable power supply LED display allows easy reading of device status and power conditions Cold start function allows the UPS to restart even when there is no power source
    Producer product family
    		 APC Easy UPS
    Number of batteries supported
    		 2
    Cables included
    		 Input power cable, Output power cable
    Manual
    		 Yes
    Operating temperature (T-T)
    		 0 - 40 °C
    Operating relative humidity (H-H)
    		 0 - 90%
    Form factor
    		 Rackmount Compact
    USB port
    		 Yes Yes
    Battery technology
    		 Sealed Lead Acid (VRLA)
    Battery capacity
    		 7 Ah 9 Ah
    Capacity
    		 1600 VA
    Palette Qty
    		 50 pc(s)
    Battery recharge time
    		 6 h
    Output power
    		 360 W 1200 W
    Input frequency
    		 50/60 Hz 50/60 Hz
    USB 2.0 ports quantity
    		 1
    Display type
    		 LCD LCD
    Ethernet LAN (RJ-45) ports
    		 2
    Garantija
    		 24
    Category Code
    		 UPW
    Unit Box Height
    		 0.315
    Unit Box Length
    		 0.46
    Unit Box Width
    		 0.25
    Vendor Homepage
    		 www.eaton.com/content/dam/eaton/products/backup-power-ups-surge-it-power-distribution/backup-power-ups/eaton_5e_ups/eaton-5e-ups---emea/eaton-dpq-5egen2-ups-datasheet-en-gb.pdf
    Dimensions
    		 330 x 180 x 133mm
    Input operation voltage (min)
    		 162 V 220 V
    Power protection features
    		 Overload
    Cold start
    		 Yes
    AC outlets quantity
    		 6 AC outlet(s)
    Output power capacity
    		 0.6 kVA 2 kVA
    Output operation voltage (max)
    		 220 V
    Waveform
    		 Pseudo sine Pseudo sine
    Auto-restart
    		 Yes
    AC outlet types
    		 Type F
    Input operation voltage (max)
    		 268 V 240 V
    Battery voltage
    		 12 V 24 V
    UPS topology
    		 Line-Interactive Line-Interactive Line-Interactive
    Typical backup time at full load
    		 10 min
    Automatic Voltage Regulation (AVR)
    		 Yes
    Typical backup time at half load
    		 9 min
    Output voltage regulation
    		 -10 - 10%
    MODEL
    		 5E1600UD
    Output frequency
    		 50 Hz
    Mounting Type (Desktop/pedestal)
    		 Yes
    Noise Level
    		 45 dB
    Maximum current
    		 16 A
    Product colour
    		 Black Black
    USB port type
    		 USB Type-B
    Producer
    		 Schneider Electric
    Crest factor
    		 3:1
    Number of input phases
    		 1
    Number of output phases
    		 1
    Warnings
    		 Keep away from sources of fire and water.
    Units per Shipping Box
    		 1
    Product Net Weight
    		 9.3 kg
    Unit Calculated Weight
    		 10.5 kg
    Unit Calculated Volume
    		 0.036225 cubm
    Output power capacity, W
    		 900 Watts
    Output power capacity, VA
    		 1600 VA
    Wave form type
    		 Pure sinewave
    Topology
    		 LineInteractive
    Phase
    		 1phase
    Output power connector type
    		 IEC 320 C13
    Communication ports (USB)
    		 1
    Buttons: (On/Off)
    		 YES
