DIGITUS

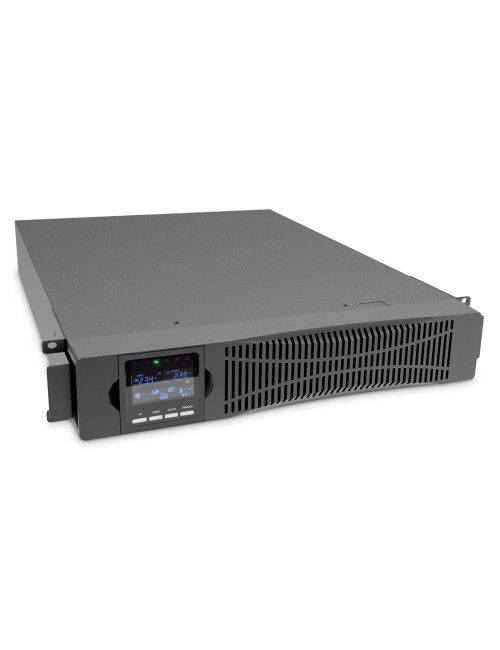

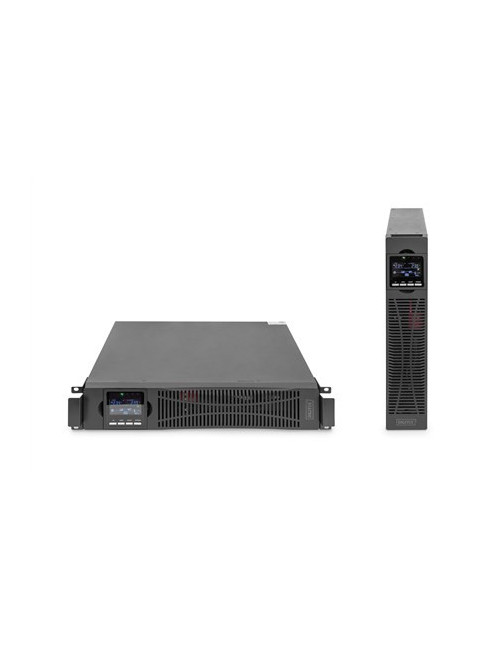

DIGITUS OnLine UPS, rack/tower, 3000VA, 3000W, LCD, 8 x C13, 1 x C19, RS-232, USB, SNMP card (optional), relay card (optional)

€663.05

Tax included

Product Details
Quick Compare

Product Details

Brand DIGITUS

Reference WLONONWCRATIR

In stock 30 Items

Data sheet

Width: 440 mm
Height: 86.5 mm
Depth: 600 mm
Weight: 26 kg
Package height: 200 mm
Package width: 555 mm
Number of batteries supported: 6
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 90%
Storage temperature (T-T): -25 - 55 °C
Form factor: Rackmount
USB port: Yes
Battery capacity: 9 Ah
Battery recharge time: 4 h
Output power: 3000 W
Display type: LCD
Input operation voltage (min): 208 V
AC outlets quantity: 9 AC outlet(s)
Output power capacity: 3 kVA
AC outlet types: C13 coupler
Input operation voltage (max): 240 V
Battery voltage: 12 V
UPS topology: Double-conversion (Online)
Typical backup time at full load: 3 min
Automatic Voltage Regulation (AVR): Yes
Typical backup time at half load: 9 min
Operating altitude: 0 - 1500 m
Serial interface type: RS-232
Maximum current: 16 A
Power plug: C20 coupler
Product colour: Black
Safety: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
Serial interface: Yes
Package volume: 82064.5 cm³
UK Trade Tariff code: 85044085
Size (imperial): 48.3 cm (19")
Power factor: 1
Emergency Power Off (EPO) connector: Yes
Efficiency (On-line mode): 93%
Efficiency (ECO mode): 98%
Warnings: Do not disassemble the unit housing, there may be a risk of electric shock.
