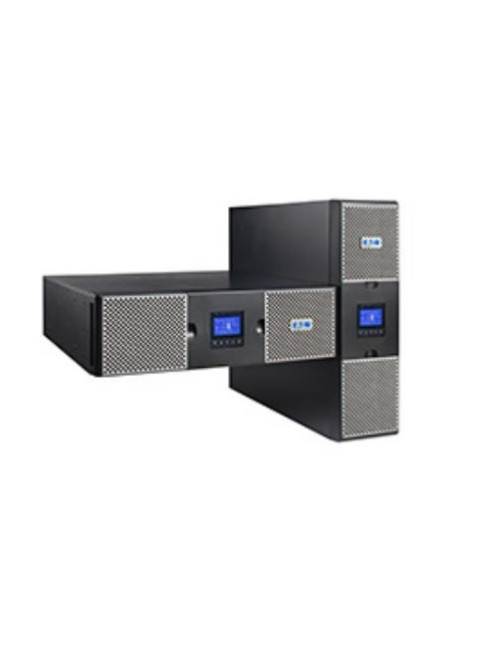

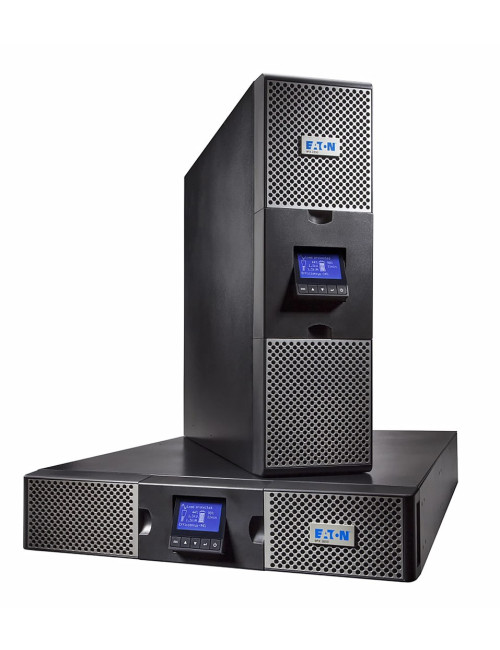

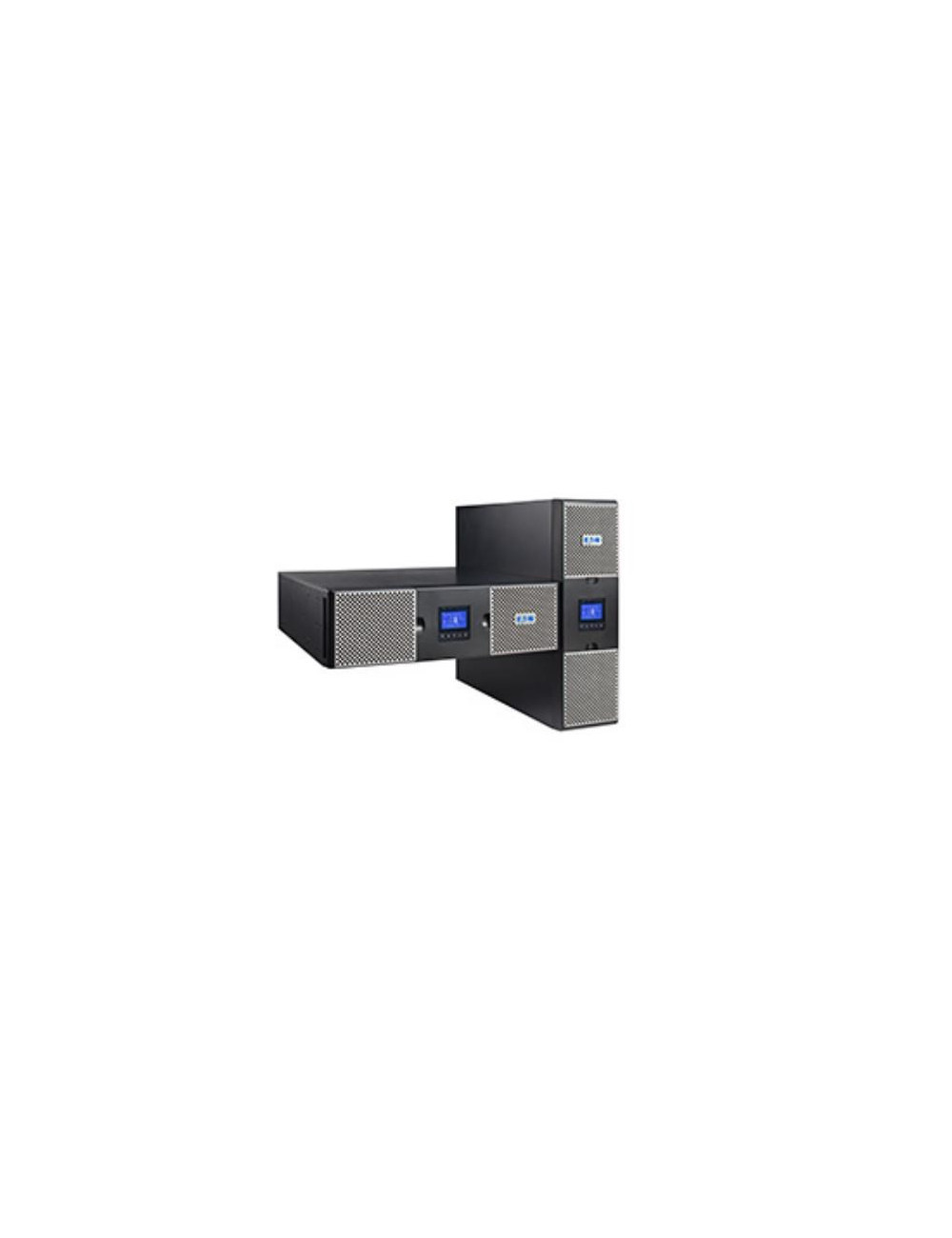

Eaton 9PX2200IRTN uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 2200 W 10 AC outlet(s)

Product Details

Reference WLONONWCRMUP6

In stock 14 Items

Data sheet

Width

440 mm

Height

86.5 mm

Depth

605 mm

Weight

25 kg

Operating temperature (T-T)

0 - 40 °C

Form factor

Rackmount/Tower

USB port

Yes

LED indicators

Yes

Battery technology

Sealed Lead Acid (VRLA)

Output power

2200 W

Input frequency

40/70 Hz

USB 2.0 ports quantity

1

Display type

LCD

Efficiency

93.5%

Input operation voltage (min)

176 V

AC outlets quantity

10 AC outlet(s)

Output power capacity

2.2 kVA

Output operation voltage (max)

240 V

Waveform

Pure sine

AC outlet types

C13 coupler

Input operation voltage (max)

276 V

Output operation voltage (min)

200 V

UPS topology

Double-conversion (Online)

Automatic battery test

Yes

Typical backup time at half load

10 min

Nominal input voltage

230 V

Nominal output voltage

230 V

RS-232 ports

1

Output frequency

50/60 Hz

Noise Level

40 dB

Power plug

C20 coupler

Product colour

Black

Harmonized System (HS) code

85078000

Sustainability certificates

ENERGY STAR

Safety

IEC/EN 62040-1, UL 1778, CSA 22.2

Hot-swap battery

Yes

Power factor

1

Rack capacity

2U

Rack mount kit

Yes

Number of input phases

1

Management card included

Yes
