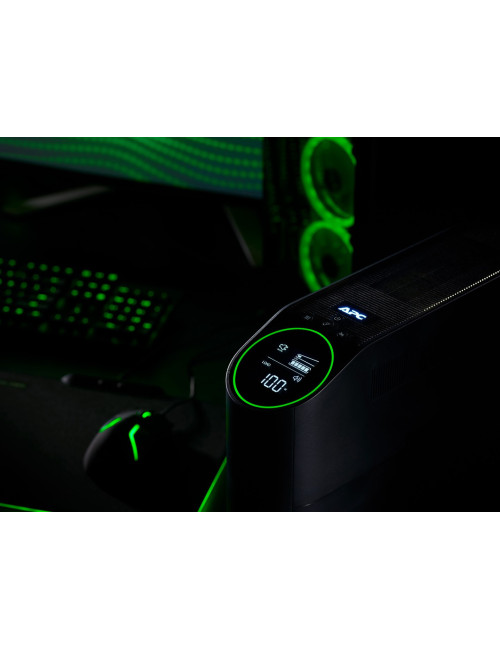

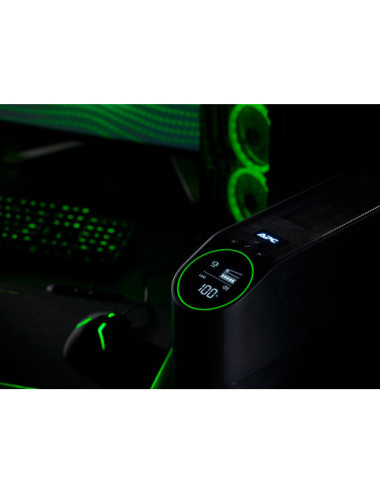

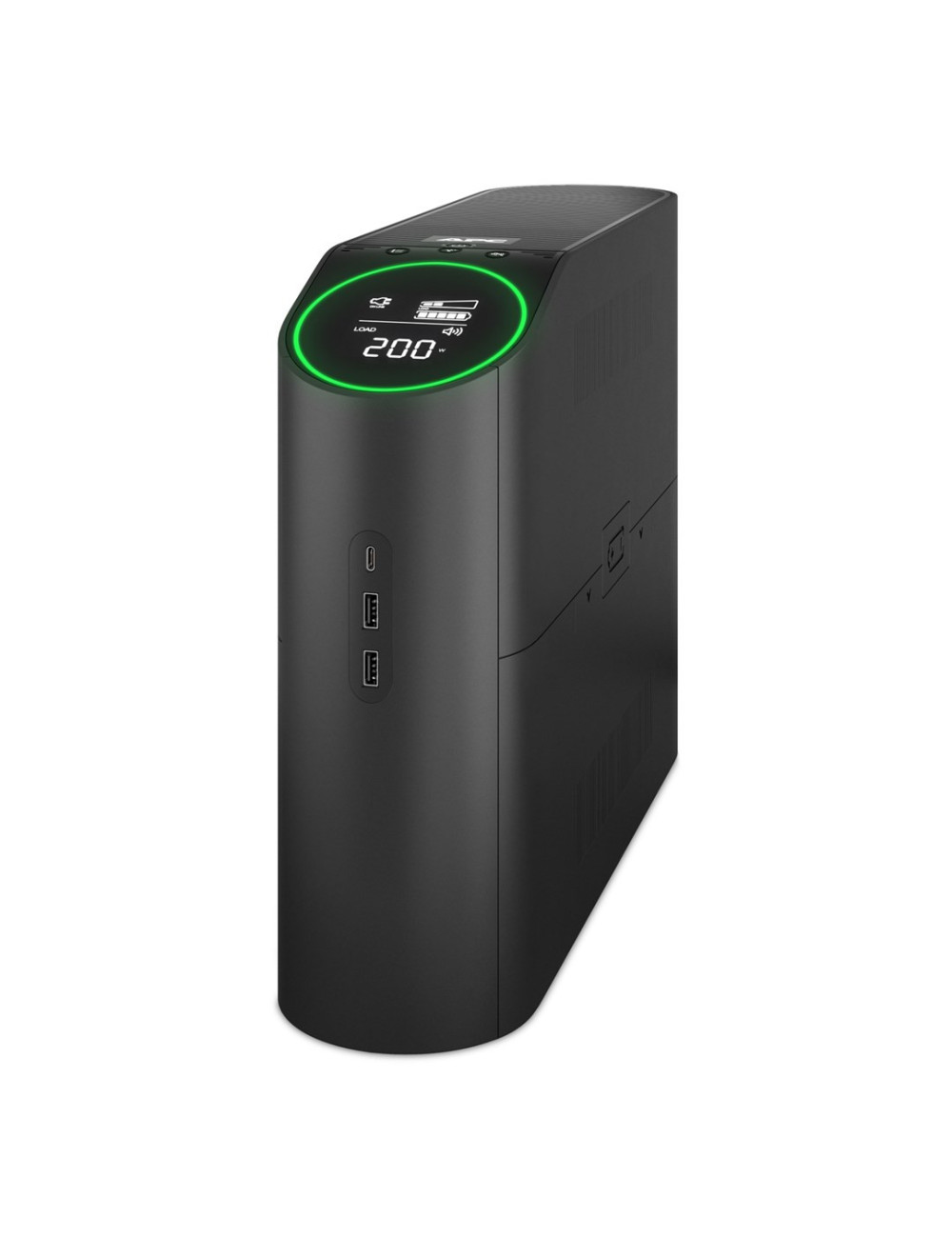

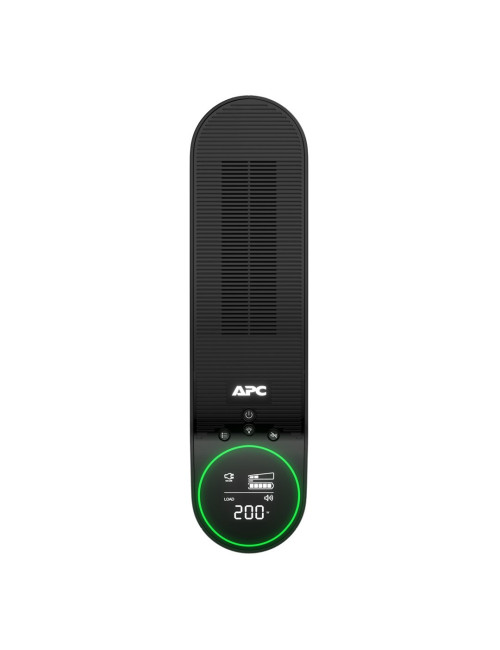

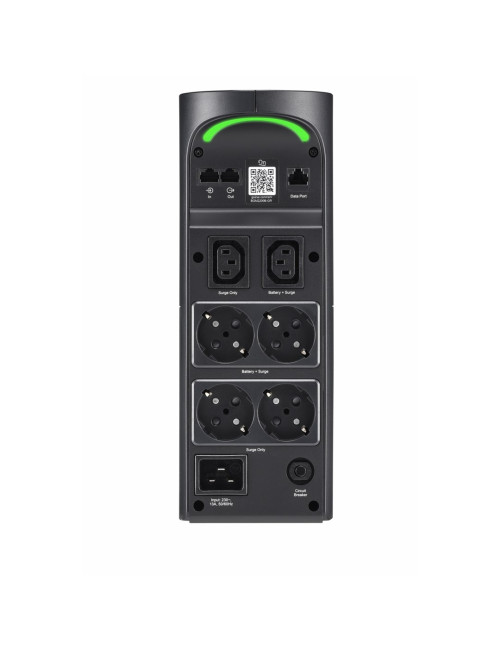

    APC Back-UPS Pro BGM2200B-GR - 2200VA/1320W, 4x Schuko & 2x C13 outlets, 3x USB charger, USB dataport

    €526.22
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    WLONONWCRCREP
    3 Items

    Data sheet

    Cable length
    1.52 m
    Width
    104.1 mm
    Height
    292.1 mm
    Depth
    408.9 mm
    Weight
    12.3 kg
    Package depth
    480 mm
    Package height
    155 mm
    Package width
    355 mm
    Package weight
    14.5 kg
    Number of batteries supported
    1
    Cables included
    USB cable
    Storage relative humidity (H-H)
    0 - 95%
    Manual
    Yes
    Operating temperature (T-T)
    0 - 40 °C
    Operating relative humidity (H-H)
    0 - 95%
    Storage temperature (T-T)
    -15 - 40 °C
    Form factor
    Tower
    USB port
    Yes
    Battery technology
    Sealed Lead Acid (VRLA)
    Battery life (max)
    5 year(s)
    Battery recharge time
    16 h
    Output power
    1320 W
    Input frequency
    50/60 Hz
    Response time
    8 ms

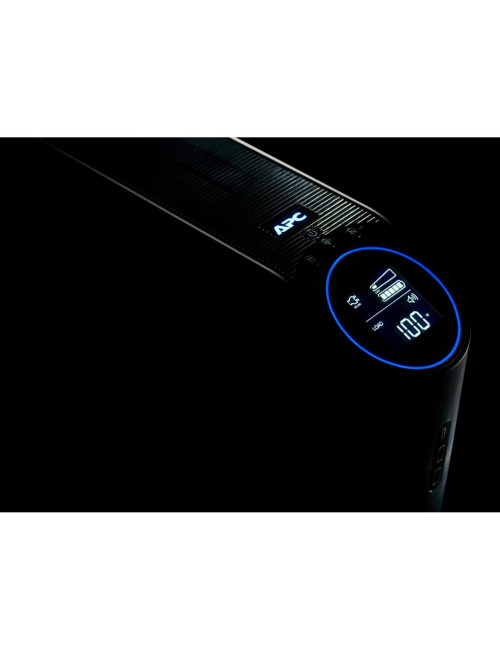

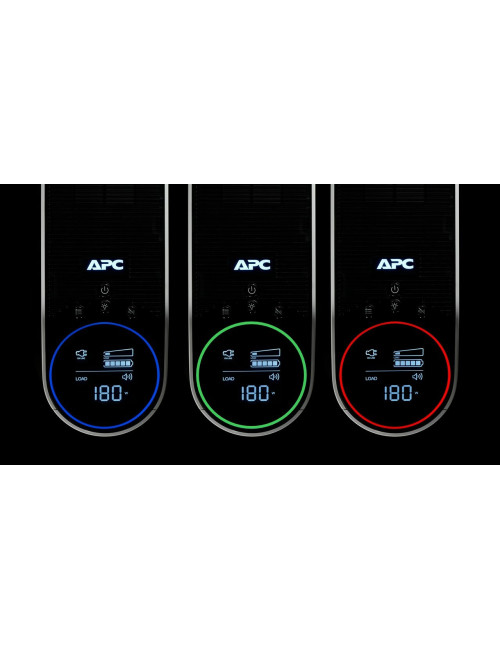

    Display type
    LCD
    Input operation voltage (min)
    168 V
    Cold start
    Yes
    AC outlets quantity
    6 AC outlet(s)
    Output power capacity
    2.2 kVA
    Output operation voltage (max)
    230 V
    Waveform
    Sine
    AC outlet types
    Type F
    Input operation voltage (max)
    302 V
    Audible alarm(s)
    Yes
    Battery voltage
    24 V
    UPS topology
    Line-Interactive
    Cabling technology
    10/100/1000Base-T(X)

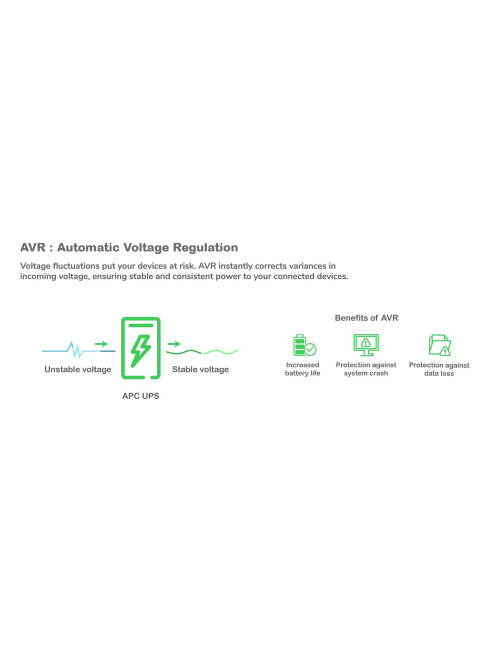

    Automatic Voltage Regulation (AVR)
    Yes
    Automatic battery test
    Yes
    Surge protection
    Yes
    Operating altitude
    0 - 3048 m
    International Protection (IP) code
    IP20
    Serial interface type
    RJ-45
    Output frequency
    60 Hz
    Noise Level
    45 dB
    Maximum current
    12 A
    Surge energy rating
    1080 J
    Power plug
    Type F
    Non-operating altitude
    0 - 3048 m
    Product colour
    Black
    Sustainability certificates
    Green Premium
    Audible alarm modes
    Alarm when on battery, Low battery alarm, Overload alarm
    Surge protection features
    Network
    Rack capacity
    0U
    EMI/RFI noise filtering
    Yes
    Warnings
    Do not disassemble the unit housing, there may be a risk of electric shock.
