Dell

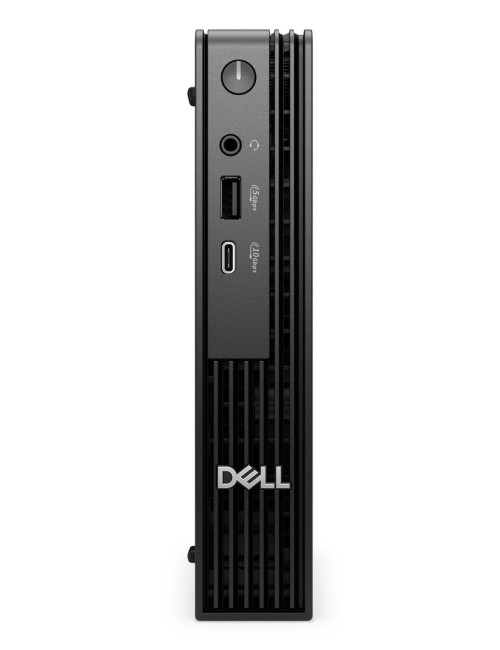

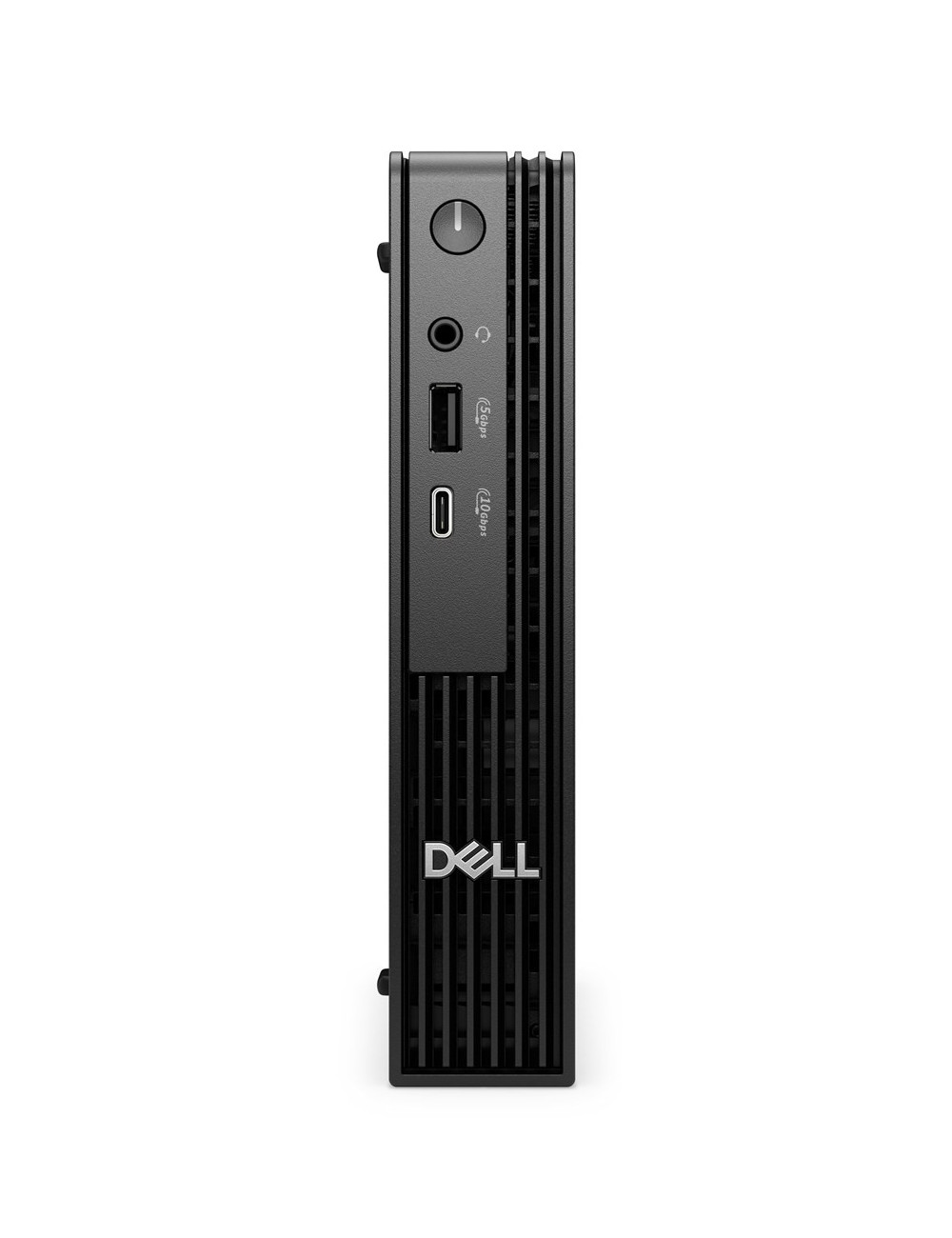

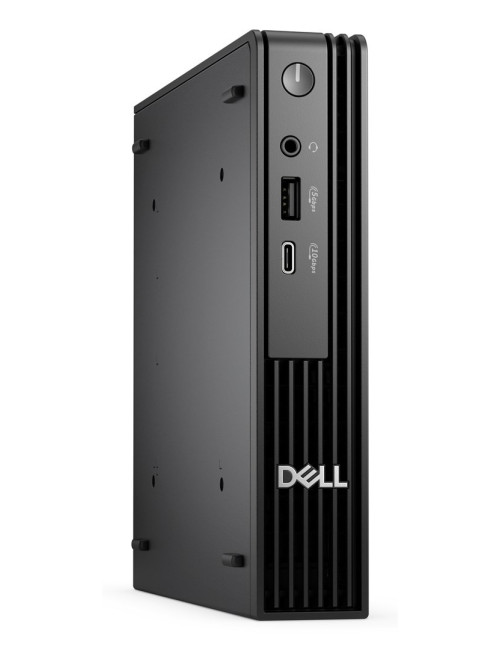

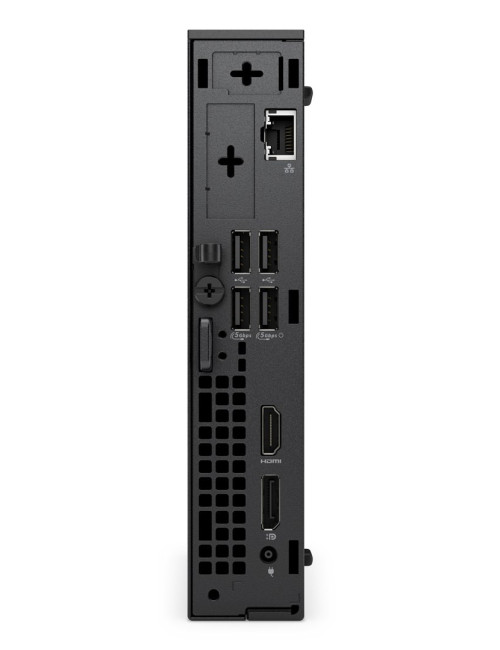

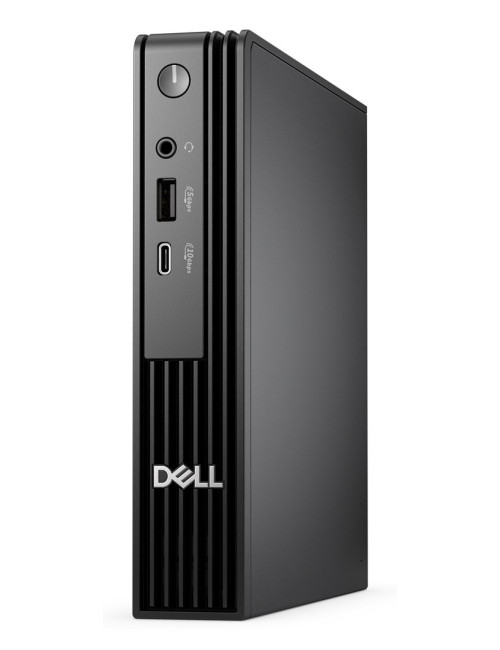

    Dell Pro Micro QCM1250 i5-14500T Complete System

    €820.92
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    WLONONWCROOYM
    14 Items

    Data sheet

    Width
    36 mm
    Height
    182 mm
    Depth
    178 mm
    Weight
    1.16 kg
    Product type
    Mini PC
    Storage relative humidity (H-H)
    5 - 95%
    Operating temperature (T-T)
    10 - 35 °C
    Operating relative humidity (H-H)
    20 - 80%
    Storage temperature (T-T)
    -40 - 65 °C
    Optical drive type
    No
    Bluetooth
    Yes
    Power supply
    90 W
    SSD form factor
    M.2
    Operating shock
    40 G
    Operating vibration
    0.26 G
    Display included
    No
    Internal memory type
    DDR5-SDRAM
    Memory slots
    2x SO-DIMM
    Processor family
    Intel® Core™ i5
    Non-ECC
    Yes
    Processor model
    i5-14500T
    Processor threads
    20
    Processor cores
    14
    Processor boost frequency
    4.8 GHz
    HDMI ports quantity
    1
    DisplayPorts quantity
    1
    Wi-Fi
    Yes
    Internal memory
    8 GB
    Wi-Fi standards
    802.11b
    Operating system installed
    Windows 11 Pro
    Audio system
    High Definition Audio
    USB 2.0 ports quantity
    2
    Cable lock slot
    Yes
    Placement supported
    Horizontal/Vertical
    HDMI version
    2.1
    DisplayPort version
    1.4a
    Ethernet LAN (RJ-45) ports
    1
    Chassis type
    Micro PC
    Storage media
    SSD
    Memory layout (slots x size)
    1 x 8 GB
    Operating system architecture
    64-bit
    Total storage capacity
    512 GB
    Maximum internal memory
    64 GB
    MOTHERBOARD CHIPSET
    Intel® Q870
    SSD Capacity
    512 GB
    Power supply input frequency
    50 / 60 Hz
    Cabling technology
    10/100/1000Base-T(X)
    DC-in jack
    Yes
    Ethernet LAN data rates
    10
    Ethernet LAN
    Yes
    Cable lock slot type
    Kensington
    Operating altitude
    -15.2 - 3048 m
    Antenna type
    2x2
    NVMe
    Yes
    Processor cache
    24 MB
    Non-operating shock
    105 G
    Non-operating vibration
    1.37 G
    Non-operating altitude
    -15.2 - 10668 m
    Product colour
    Black
    Market positioning
    Business
    Sustainability certificates
    EPEAT Gold
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
    3
    Memory channels
    Single-channel
    Processor manufacturer
    Intel
    Processor generation
    Intel® Core™ i5 (14th gen)
    Processor cache type
    Smart Cache
    On-board graphics card
    Yes
    On-board graphics card model
    Intel UHD Graphics 770
    Discrete graphics card model
    Not available
    Discrete graphics card
    No
    Trusted Platform Module (TPM) version
    2.0
    Trusted Platform Module (TPM)
    Yes
    Top Wi-Fi standard
    Wi-Fi 6E (802.11ax)
    Audio chip
    Realtek ALC3204
    Total SSDs capacity
    512 GB
    Number of SSDs installed
    1
    SSD interface
    PCI Express 4.0
    Combo headphone/mic port
    Yes
    WLAN controller manufacturer
    Intel
    USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
    1
    On-board graphics card family
    Intel® UHD Graphics
    WLAN controller model
    Intel Wi-Fi 6E AX211
    Intel® vPro™ Platform Eligibility
    Yes
    Trial software
    Activate Your Microsoft 365 For A 30 Day Trial
    Efficient-core base frequency
    1.2 GHz
    On-board GPU manufacturer
    Intel
    Number of storage drives installed
    1
    Number of processors installed
    1
    Power supply input voltage
    100 - 240 V
    LAN controller
    Intel WGI219LM
    Performance cores
    6
    Performance-core base frequency
    1.7 GHz
    Maximum turbo power
    92 W
    Processor base power
    35 W
    Efficient cores
    8
    Performance-core Max Turbo Frequency
    4.8 GHz
    Efficient-core Max Turbo Frequency
    3.4 GHz
    PAIA version
    GaBi version 1, 2024
    Number of front USB ports
    2
    Number of rear USB ports
    4
    Number of front audio ports
    1
    AI software frameworks supported by NPU
    OpenVINO
    Carbon emissions, logistics (kg of CO2e)
    2.1728
    Carbon emissions, end-of-life (kg of CO2e)
    0.54
    Total carbon footprint (kg of CO2e)
    77.6
    Carbon emissions, manufacturing (kg of CO2e)
    41.516
    Carbon emissions, energy usage (kg of CO2e)
    33.4456
    Memory data transfer rate
    4800 MT/s
    Antenna design
    Internal
