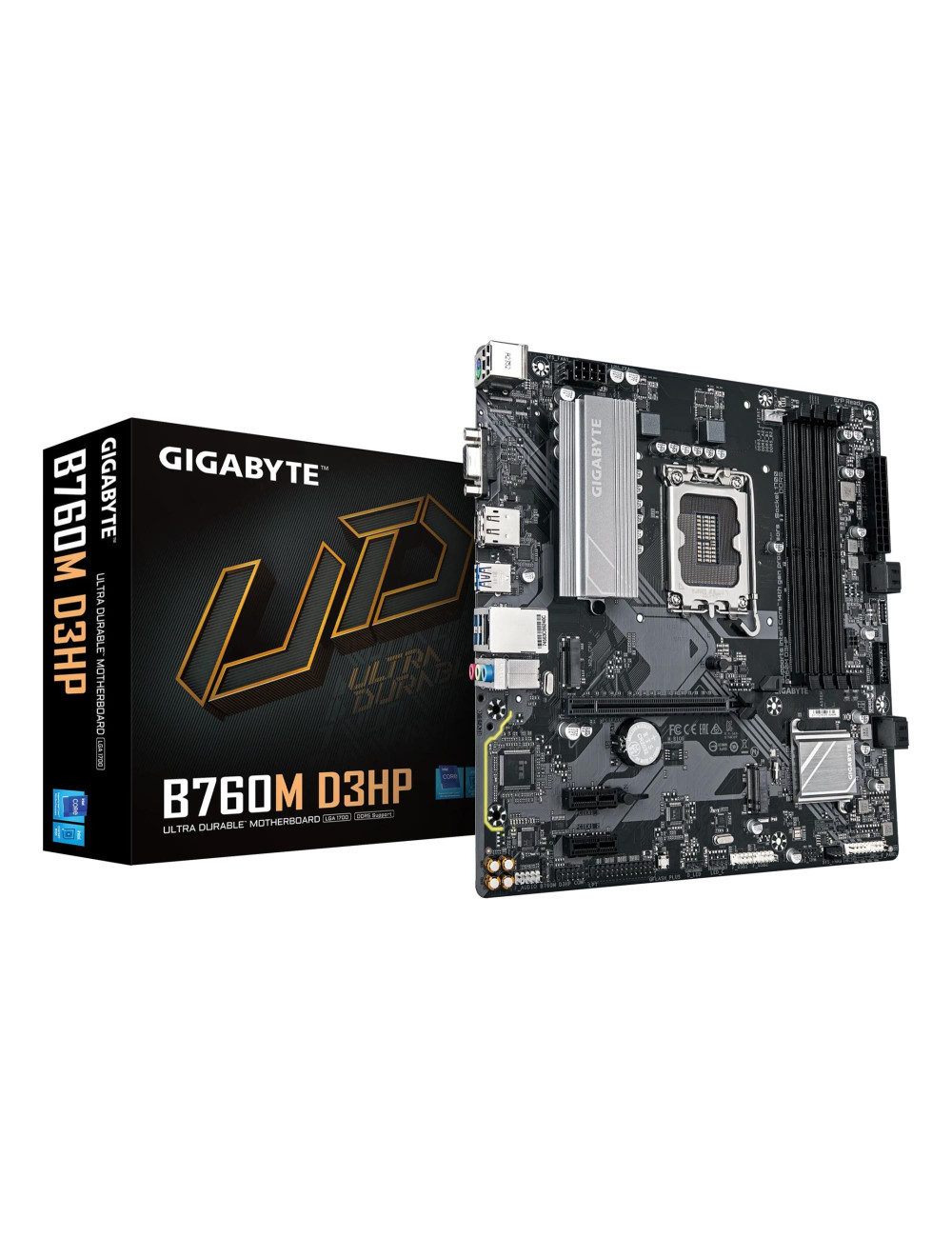

Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2x

Product Details

Reference B760M D3HP 1.0

In stock 50 Items

Data sheet

Garantija

36

Category Code

MBI

Unit Box Height

0.055

Unit Box Length

0.27

Unit Box Width

0.27

Vendor Homepage

https://www.gigabyte.com/

MODEL

B760M D3HP

Units per Shipping Box

10

Unit Calculated Weight

0.985 kg

Unit Calculated Volume

0.004783 cubm

Summary

GIGABYTE B760M D3HP Motherboard - Intel Core 14th Gen CPUs, 4+1+1 Phases VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron , Intel Core i3

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Weight & dimensions (Width)

244 mm

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

35 mm

Packaging data (Package width)

270 mm

Packaging data (Package depth)

268 mm

Packaging data (Package height)

68 mm

Packaging data (Package weight)

1210 g

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Battery (Battery type)

CR2032

Logistics data (Products per shipping (inner) case)

1 pc(s)

Other features (Weight)

720 g

Packaging content (Batteries included)

Yes

Processor (Processor manufacturer)

Intel

Memory (Maximum internal memory)

256 GB

Memory (Memory channels)

Dual-channel

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speeds)

4400/4800/5200/5600 MHz

Memory (Supported memory types)

DDR5-SDRAM

Features (Component for)

PC

Battery (Battery weight)

3 g

Network (LAN controller)

Realtek RTL8111H

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

Intel B760 Express

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

micro ATX

Features (PC health monitoring)

Fan/Temperature/Voltage/Water cooling

Features (Power source type)

ATX

Features (Product colour)

Brown

Features (Windows operating systems supported)

Windows 10/Windows 11

Processor (Compatible processor series)

Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel Celeron

Processor (Processor socket)

LGA 1700

Processor (Supported processor sockets)

LGA 1700

Memory (ECC сompatibility)

ECC & Non-ECC

Memory (Maximum internal memory per slot)

64 GB

Memory (Supported memory clock speed (max))

5600 MHz

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

6

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (DirectX version)

12.0

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2304 pixels

Graphics (Parallel processing technology support)

Not supported

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of chassis fan connectors)

3

Internal I/O (Number of CPU fan connectors)

1

Internal I/O (Number of EPS power connectors (8-pin))

1

Internal I/O (Number of RGB LED pin headers)

2

Internal I/O (Number of SATA III connectors)

4

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

2

Rear panel I/O ports (DisplayPort version)

1.2

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Line-in)

Yes

Network (Ethernet interface type)

Gigabit Ethernet

Expansion slots (1st M.2 highest PCI Express generation)

4.0

Expansion slots (1st M.2 largest key size)

2280

Expansion slots (2nd M.2 highest PCI Express generation)

4.0

Expansion slots (2nd M.2 largest key size)

2280

Expansion slots (Number of M.2 (M) slots)

2

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

BIOS (ACPI version)

5.0

BIOS (BIOS memory size)

128 Mbit

BIOS (BIOS type)

UEFI AMI

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Battery (Number of battery cells)

1

Packaging content (Bundled software)

Norton Internet Security

Packaging content (Screws included)

Yes

Technical details (Warranty period)

3 year(s)

Internal I/O (12V power connector)

Yes

Internal I/O (Serial port headers)

1

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (PS/2 ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

2

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

3

Internal I/O (Parallel connector)

Yes

Internal I/O (S/PDIF out connector)

Yes

Rear panel I/O ports (VGA (D-Sub) ports quantity)

1

Expansion slots (PCI Express x1 (Gen 3.x) slots)

2
