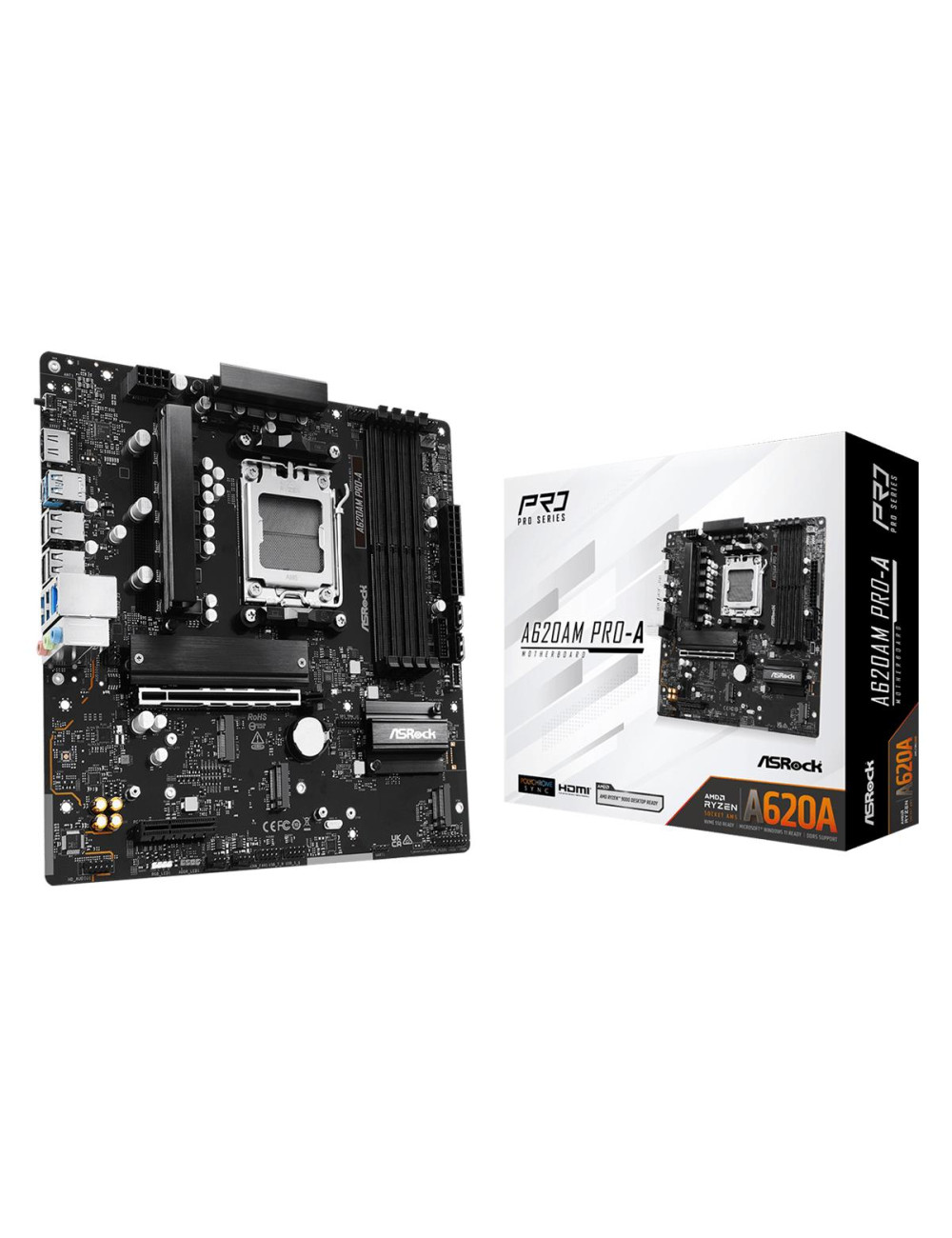

Mainboard|ASROCK|AMD A620A|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|A620AMPRO-A
    Asrock

    Mainboard|ASROCK|AMD A620A|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|A620AMPRO-A

    €96.96
    Tax included
    AMD A620A | SAM5 | Micro-ATX | DDR5 | 8000 MHz | Memory slots 4 | Video Depending on CPU | Audio Realtek ALC897 | LAN 2.5 Gigabit | RAID SATA 0, 1; NVMe 0, 1, 10 | TPM Header
    Quantity

    Add to favorites Add to compare

    A620AM Pro-A
    Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.

    • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
    • 6+2+1 Phase Power Design, Dr.MOS
    • 4 x DDR5 DIMMs
    • Supports Dual Channel, up to 8000+ (OC)
    • 1 PCIe 4.0 x16, 1 PCIe 3.0 x4, 1 M.2 Key E for WiFi
    • Graphics Output Options: 1 HDMI
    • Realtek ALC897 7.1 CH HD Audio Codec
    • 2 Hyper M.2 (PCIe Gen4x4)
    • 1 Ultra M.2 (PCIe Gen3x4)
    • 2 SATA3
    • 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
    • 5 USB 3.2 Gen1 (3 Rear, 2 Front)
    • 8 USB 2.0 (4 Rear, 4 Front)
    • Realtek 2.5G LAN
    • Supports BIOS Flashback

    Product Details

    A620AM PRO-A
    9 Items

    Data sheet

    Form factor
    Micro-ATX
    Memory type
    DDR5
    Memory slots
    4
    Chipset
    AMD A620A
    Garantija
    36
    RAID
    SATA 0, 1 NVMe 0, 1, 10
    SOCKET
    SAM5
    Category Code
    MBA
    Frequency speed
    8000 MHz
    Vendor Homepage
    www.asrock.com/MB/AMD/A620AM%20Pro-A/index.asp
    Interface (SATA)
    Yes
    Input/Output connectors (HDMI)
    1
    Integrated audio
    Realtek ALC897
    Integrated LAN
    2.5 Gigabit
    Integrated video
    Depending on CPU
    Expansion slots (M.2)
    1
    Input/Output connectors (RJ45)
    1
    TPM
    Header
    Input/Output connectors (USB 2.0)
    4
    Interface (USB 2.0)
    Yes
    Input/Output connectors (Audio-In)
    2
    Input/Output connectors (Audio-Out)
    1
    Expansion slots (PCI-Express 4.0 16x)
    1
    Input/Output connectors (USB 3.2)
    3
    Included Accessories
    - 1 x I/O Shield - 2 x SATA Data Cables - 4 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket
    Expansion slots (PCI-Express 3.0 4x)
    1
    Interface (USB 3.2)
    Yes
    MODEL
    A620AM Pro-A
    Interface (USB-C)
    Yes
    Input/Output connectors (USB-C)
    1
    Product Net Weight
    0.7 kg
    Unit Calculated Weight
    1.15 kg
    Unit Calculated Volume
    0.005702 cubm
    CnCode
    84733020
