- Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
- 8 Power Phase Design, Digi Power
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- AMD CrossFireX™
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
- 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
- 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)
- Realtek Gigabit LAN
Product Details

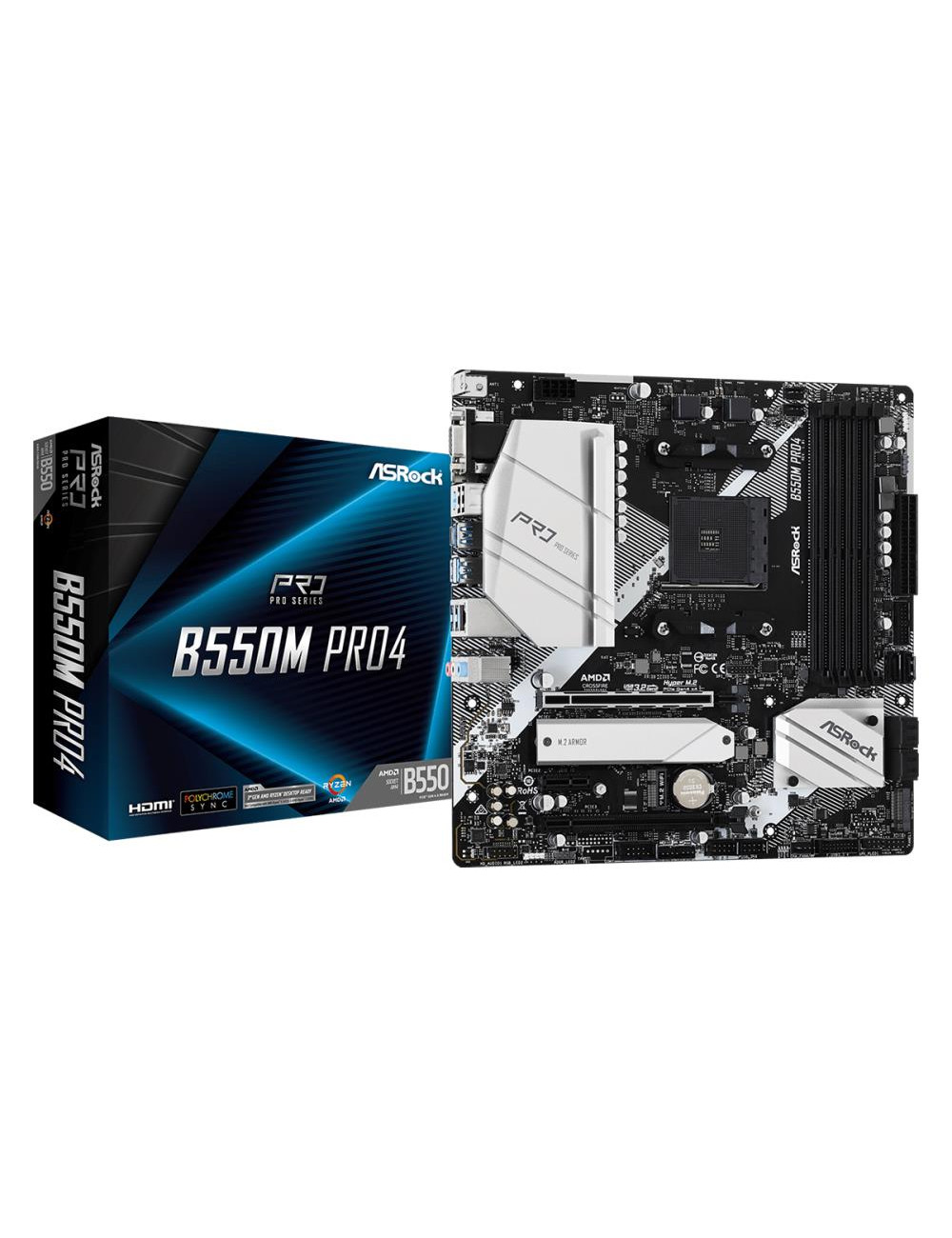

B550MPRO4
6 Items
Data sheet
- Form factor
- Micro-ATX
- Memory type
- DDR4
- Memory slots
- 4
- Chipset
- AMD B550
- Garantija
- 36
- RAID
- SATA 0, 1, 10
- SOCKET
- SAM4
- Category Code
- MBA
- Frequency speed
- 2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666/4733 MHz
- Unit Box Height
- 0.26
- Unit Box Length
- 0.06
- Unit Box Width
- 0.28
- Vendor Homepage
- www.asrock.com/mb/AMD/B550M%20Pro4/
- Interface (SATA 3.0)
- Yes
- Input/Output connectors (Audio port)
- 3
- Input/Output connectors (HDMI)
- 1
- Integrated audio
- Realtek ALC1200
- Integrated LAN
- Gigabit
- Integrated video
- Depending on CPU
- Expansion slots (M.2)
- 1
- Input/Output connectors (PS/2)
- 1
- Input/Output connectors (RJ45)
- 1
- Interface (Serial)
- Yes
- Input/Output connectors (USB 2.0)
- 2
- Interface (USB 2.0)
- Yes
- Expansion slots (PCI-Express 3.0 16x)
- 1
- Input/Output connectors (DisplayPort)
- 1
- Expansion slots (PCI-Express 3.0 1x)
- 1
- Expansion slots (PCI-Express 4.0 16x)
- 1
- Input/Output connectors (USB 3.2)
- 5
- Input/Output connectors (15pin D-sub)
- 1
- Included Accessories
- - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets
- Interface (USB 3.2)
- Yes
- Input/Output connectors (USB-C)
- 1
- Units per Shipping Box
- 20
- Product Net Weight
- 1.1 kg
- Unit Calculated Weight
- 1.39 kg
- Unit Calculated Volume
- 0.005011 cubm
- CnCode
- 84733020
