Mainboard|MSI|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|3xPCI-Express 16x|4xM.2|1xHDMI|1xAudio-In|1xAudio-Out|4xUSB 2.0|5xUS
    MSI

    Mainboard|MSI|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|3xPCI-Express 16x|4xM.2|1xHDMI|1xAudio-In|1xAudio-Out|4xUSB 2.0|5xUS

    €382.34
    Tax included
    AMD X870E|SAM5|ATX|DDR5|8400/8266/8200/8000/7950/7900/7800/7600/7500/7467/7400/7200/7000/6800/6666/6600/6400/6200/6000/5800/5600/5500/5400/5333/5300/5200/5133/5100/5066/5000/4933/4866/4800 MHz|Memory slots 4|3xPCI-Express 16x|4xM.2|1xHDMI|1xAudio-In|1xAudio-Out|4xUSB 2.0|5xUSB 3.2|3xUSB-C|1xOptical S/PDIF|1xRJ45|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|SATA 3.0|Video Depending on CPU|Audio|LAN 5 Gigabit|RAID SATA 0, 1, 5, 10|TPM Header
    Quantity

    Add to favorites Add to compare

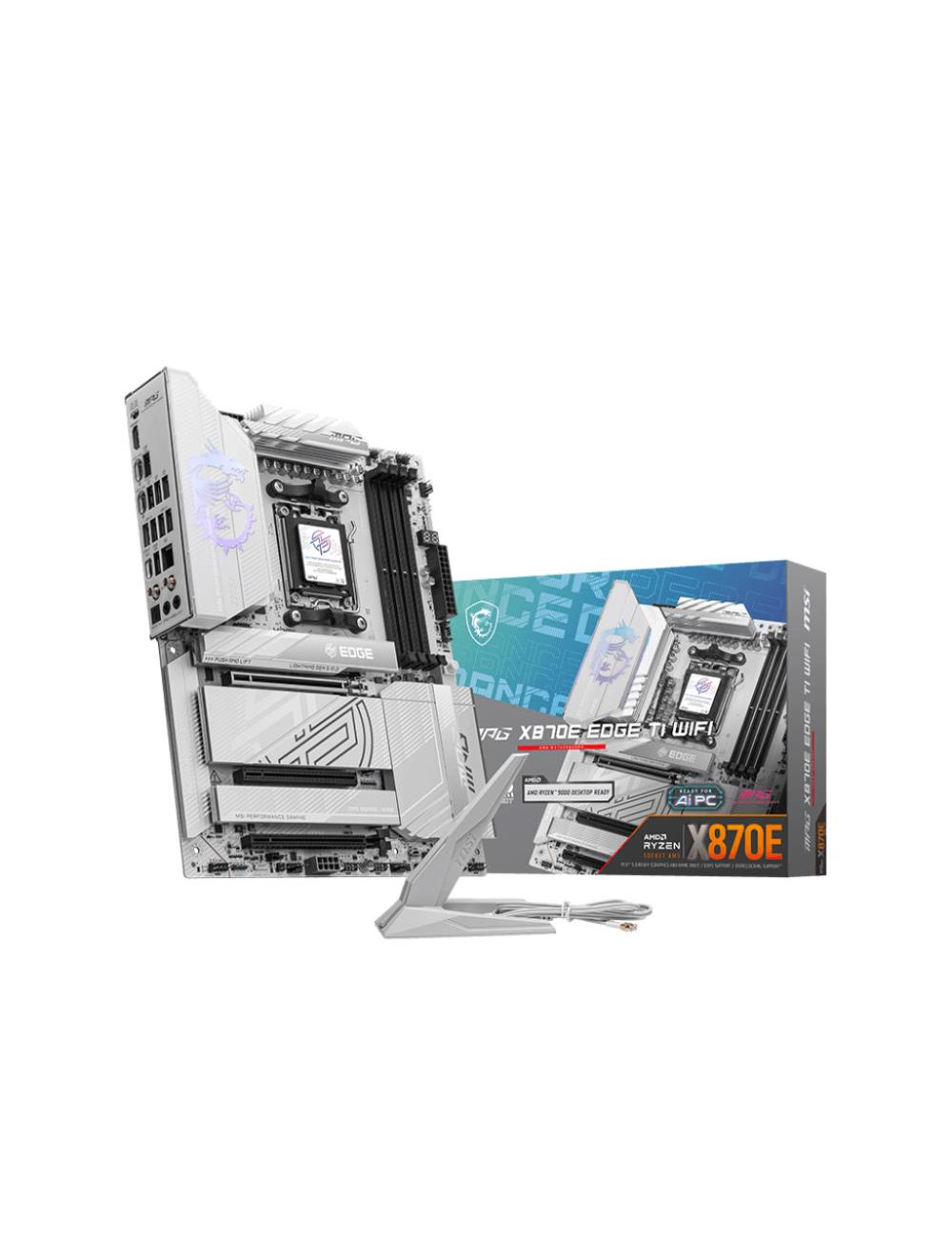

    MPG X870E EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, USB4, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme X870E ATX motherboard for AMD Ryzen™ 9000 series processors.

    Product Details

    MPG X870E EDGE TI WIFI
    10 Items

    Data sheet

    Form factor
    ATX
    Memory type
    DDR5
    Memory slots
    4
    Chipset
    AMD X870E
    Garantija
    36
    RAID
    SATA 0, 1, 5, 10
    SOCKET
    SAM5
    Category Code
    MBA
    Frequency speed
    4800/4866/4933/5000/5066/5100/5133/5200/5300/5333/5400/5500/5600/5800/6000/6200/6400/6600/6666/6800/7000/7200/7400/7467/7500/7600/7800/7900/7950/8000/8200/8266/8400 MHz
    Unit Box Height
    0.275
    Unit Box Length
    0.345
    Unit Box Width
    0.075
    Vendor Homepage
    www.msi.com/Motherboard/MPG-X870E-EDGE-TI-WIFI
    Interface (SATA 3.0)
    Yes
    Interface (SATA)
    Yes
    Input/Output connectors (HDMI)
    1
    Integrated audio
    Yes
    Integrated LAN
    5 Gigabit
    Integrated video
    Depending on CPU
    Expansion slots (M.2)
    4
    Expansion slots (PCI-Express 16x)
    3
    Input/Output connectors (RJ45)
    1
    TPM
    Header
    Input/Output connectors (USB 2.0)
    4
    Interface (USB 2.0)
    Yes
    Input/Output connectors (Audio-In)
    1
    Input/Output connectors (Audio-Out)
    1
    Interface (Bluetooth)
    Yes
    Input/Output connectors (Optical S/PDIF)
    1
    Input/Output connectors (USB 3.2)
    5
    Interface (WiFi)
    Yes
    Interface (USB 3.2)
    Yes
    MODEL
    MPG X870E EDGE TI WIFI
    Interface (USB-C)
    Yes
    Input/Output connectors (USB-C)
    3
    Units per Shipping Box
    1
    Product Net Weight
    1.8 kg
    Unit Calculated Weight
    2.41 kg
    Unit Calculated Volume
    0.007116 cubm

    Quick Compare

    Product
    		 ASUS ROG STRIX X870-A GAMING WIFI AM5 MB MSI MPG X870E EDGE TI WIFI MSI MPG X870E EDGE TI WIFI Asus ROG STRIX B850-E GAMING WIFI | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SA Asus ROG STRIX B850-E GAMING WIFI | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SA MSI MPG X870E EDGE TI WIFI | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2 MSI MPG X870E EDGE TI WIFI | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2
    Availability
    Price
    €374.92
    €376.07
    €385.08
    €385.47
    Description
    		 ASUS ROG STRIX X870-A GAMING WIFI AM5 MB The MSI MPG X870E EDGE TI WIFI motherboard is engineered to support AMD's Ryzen 7000/8000/9000 Series processors, providing a strong computing foundation. Equipped with four DIMM slots, this motherboard supports DDR5 SDRAM with speeds of up to 4200 MHz (overclocked), ensuring that high-performance memory configurations can be utilized. Integrated connectivity options include five USB 3.2 Gen 2 ports, USB-C 3.2 Gen 2, and a 5 Gigabit Ethernet network connection, enhancing data transfer rates and connectivity versatility for modern computing needs.
    With its advanced features, including MSI Audio Boost 5 for an enhanced audio experience and a dual-side M.2 Shield FROZR for better thermal management, this motherboard is designed for DIY enthusiasts and performance seekers. The MSI Mystic L     		Asus ROG STRIX B850-E GAMING WIFI | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 MSI MPG X870E EDGE TI WIFI | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
    Warranty
    		 36 month(s) 36 month(s)
    Producer product name
    		 ROG STRIX B850-E GAMING WIFI MPG X870E EDGE TI WIFI
    Net weight
    		 0.78 kg 1.67 kg
    Gross weight
    		 0.88 kg 2.12 kg
    WEEE tax
    		 Yes Yes
    Packing quantity
    		 1.00 pc(s)
    Volume (m3)
    		 0.01 m 0.01 m
    Tare weight (kg)
    		 0.10 kg 0.45 kg
    Gross depth (mm)
    		 305.00 mm 342.00 mm
    Gross width (mm)
    		 250.00 mm 268.00 mm
    Gross height (mm)
    		 100.00 mm 70.00 mm
    WEE classification
    		 CL109:5:2017-04-01 CL109:6:2017-04-01
    Paper/Pasteboard
    		 80.00 g 359.00 g
    Embeeded battery
    		 No Yes
    TI weight (kg)
    		 0.02 kg
    Plastic (No PET)
    		 20.00 g 90.00 g
    Composition of battery
    		 CL127:KT:2016-12-09
    Classification of battery
    		 CL126:NE:2016-12-09
    Type of battery
    		 Accumulator
    Product type
    		 Motherboard - ATX
    Palette Qty
    		 113 pc(s) 269 pc(s)
    Supported hard disk drive interfaces
    		 SATA, M.2 SATA, M.2
    Processor family
    		 AMD AMD
    Supported memory types
    		 DDR5 DDR5
    Processor socket
    		 1 x Socket AM5 AM5 AM5
    Number of SATA connectors
    		 4 4
    PRODUCT DESCRIPTION
    		 MSI MPG X870E EDGE TI WIFI - motherboard - ATX - Socket AM5 - AMD X870E
    Audio
    		 HD Audio (8-channel)
    Chipset Type
    		 AMD X870E
    Compatible Processors
    		 (supports Ryzen 7000/8000/9000 Series)
    Max RAM Size
    		 256 GB
    RAM Supported
    		 4 DIMM slots - DDR5, non-ECC, unbuffered
    Storage Ports
    		 4 x SATA-600 (RAID), 4 x M.2
    USB / FireWire Ports
    		 2 x USB4 + 1 x USB-C 3.2 Gen 2 + 5 x USB 3.2 Gen 2 + 4 USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
    LAN
    		 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
    Producer
    		 Asus MSI
