IIYAMA

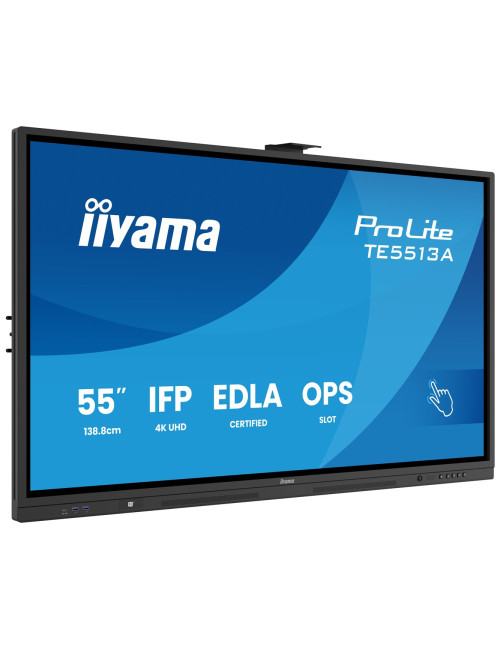

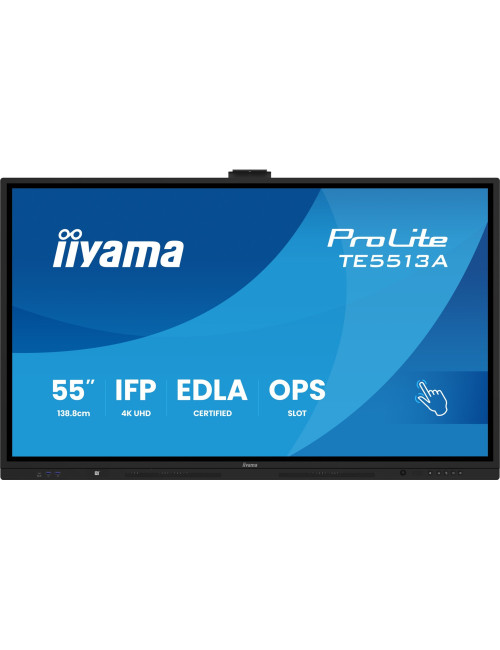

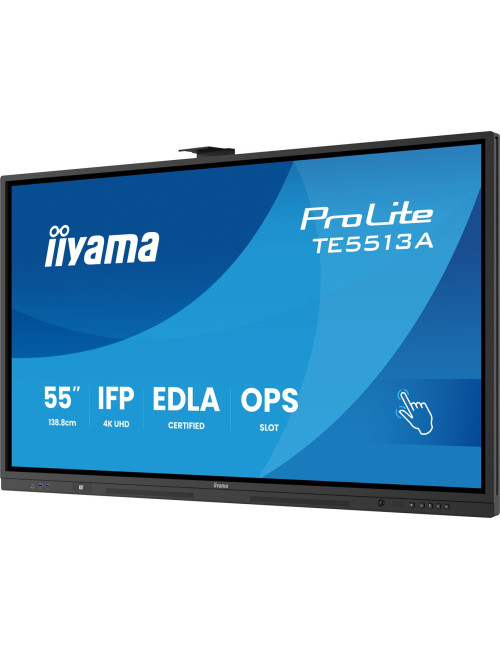

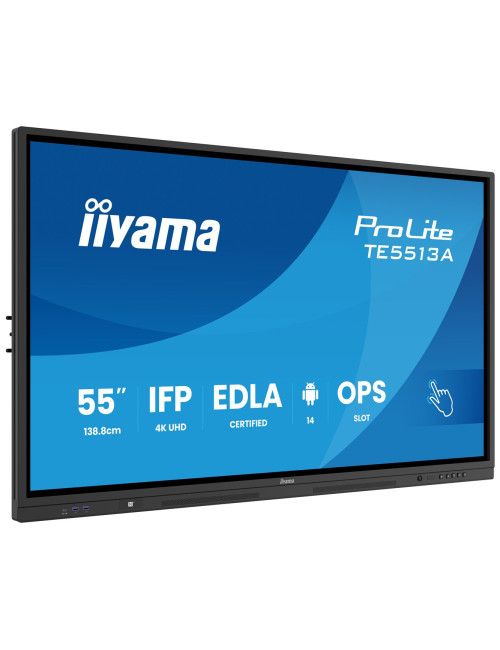

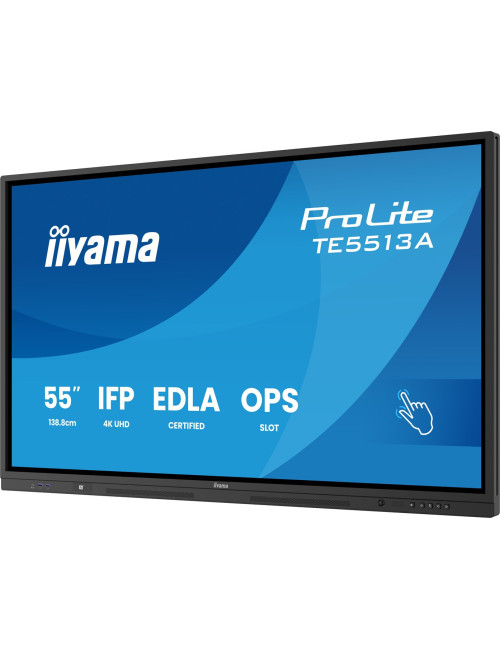

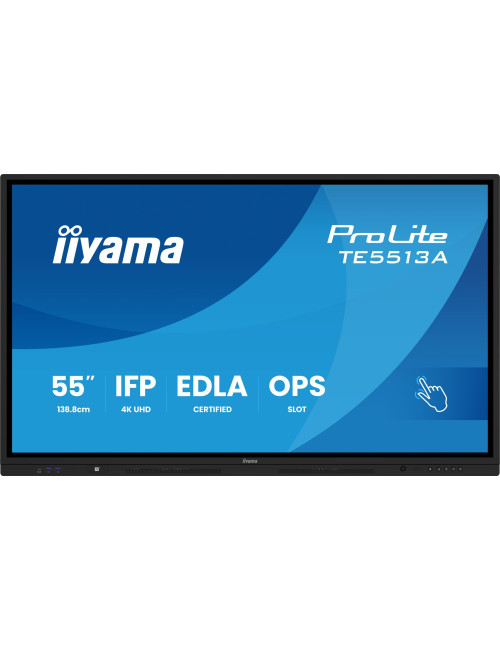

IIYAMA 138.8cm(55") TE5513A-B2AG 16:9 Touch 2xHDMI+DP+2xUSBC (Speditionsversand)

€1,483.43
Tax included
Quantity

Product Details

WLONONWCRPNCS
8 Items

Data sheet

Purpose
Education
Width
1267 mm
Height
765.5 mm
Depth
117.5 mm
Weight
28.7 kg
Cables included
HDMI
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
USB port
Yes
Bluetooth
Yes
Bluetooth version
5.0
Power supply type
Internal
Quick start guide
Yes
Mean time between failures (MTBF)
50000 h
HDMI ports quantity
3
DisplayPorts quantity
1
Wi-Fi
Yes
Internal memory
8 GB
Compatible memory cards
MicroSD (TransFlash)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Operating system installed
Android
Internal storage capacity
128 GB
Display diagonal
138.7 cm (54.6")
Operating system version
14
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
6
Power consumption (typical)
126 W
HDCP
Yes
Display brightness
500 cd/m²
Response time
8 ms
HD type
4K Ultra HD
Contrast ratio (typical)
1200:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Native aspect ratio
16:9
Built-in speaker(s)
Yes

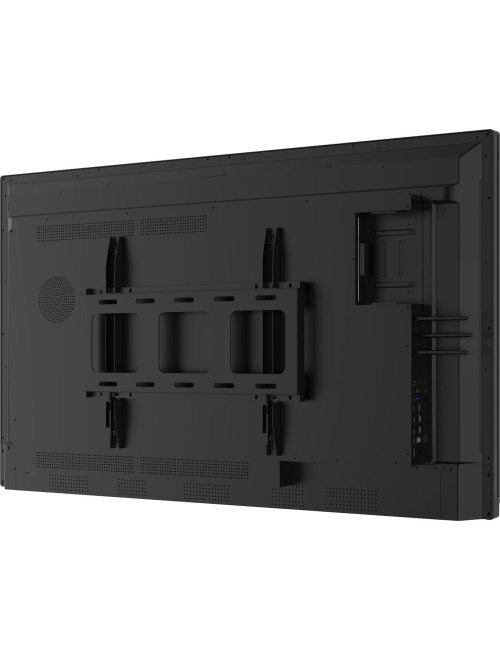

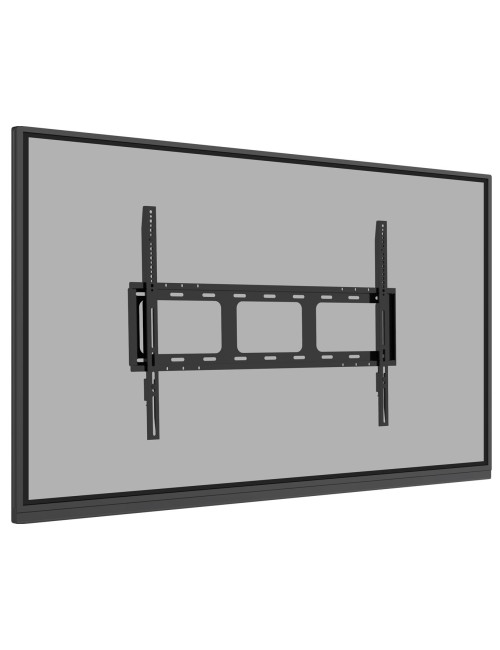

VESA mounting
Yes
Horizontal scan range
30 - 135 kHz
RMS rated power
60 W
On Screen Display (OSD) languages
LAT
Power consumption (standby)
0.4 W
Placement supported
Indoor
Panel type
IPS
HDMI version
2.0
DisplayPort version
1.2
Touchscreen
Yes
Display number of colours
1.07 billion colours
Power consumption (off)
0.3 W
Pixel pitch
0.315 x 0.315 mm
Display diagonal (metric)
138.8 cm
Ethernet LAN (RJ-45) ports
2
Touchscreen technology
PureTouch-IR
Ethernet LAN data rates
1000
Ethernet LAN
Yes
USB connector type
USB Type-C
AC input voltage
100 - 240 V
Brightness
500 cd/m²
AC input frequency
50/60 Hz
RS-232C
Yes
Number of built-in speakers
2
On Screen Display (OSD)
Yes
Orientation
Horizontal
Built-in processor
Yes
Product colour
Black
Energy consumption (SDR) per 1000 hours
126 kWh
Energy efficiency class (SDR)
G
Display resolution
3840 x 2160 pixels
Surface hardness
7H

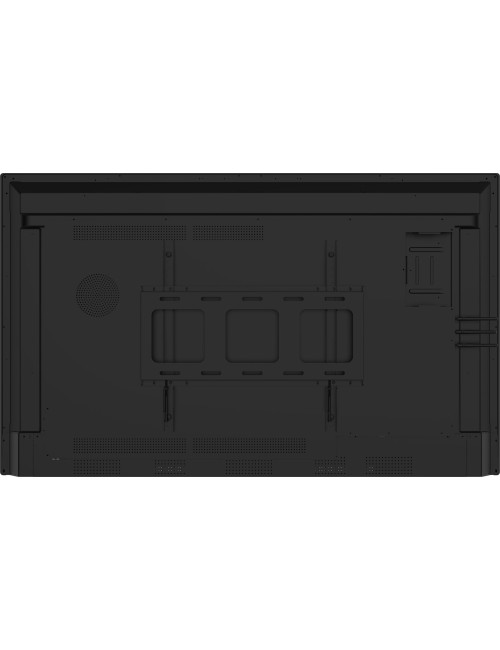

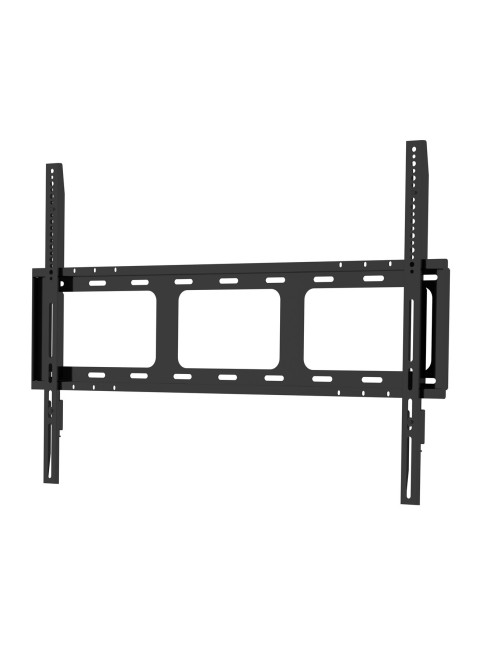

Panel mounting interface
400 x 400 mm
Sustainability certificates
ErP
Energy efficiency scale
A to G
Anti-glare screen
Yes
Energy efficiency class (HDR)
Not available
Number of OSD languages
13
HDCP version
2.2
Active display area (W x H)
1209.6 x 680.4 mm
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery up to
100 W
Warranty period
5 year(s)
Remote control included
Yes
USB 2.0 Type-B ports quantity
1
Audio in (mini jack)
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
On-board graphics card model
Mali-G52 MC3
Processor architecture
ARM Cortex-A53+Cortex-A72
Glass thickness
3.2 mm
Number of simultaneous touchpoints
40
OPS slot
1
HDMI output ports quantity
1
Product design
Interactive flat panel
Operating hours (hours/days)
24/7
Computer system
Yes
HDMI input ports quantity
2

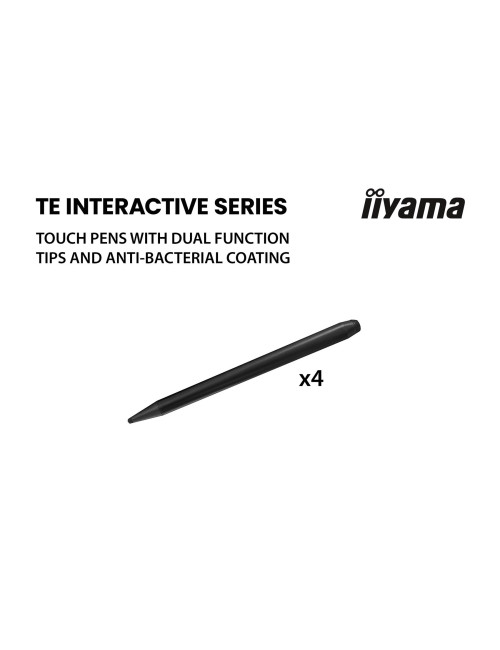

Stylus pen
Yes
Audio Return Channel (ARC)
Yes
OPS module slot
Yes
Compliance certificates
WEEE
Display depth
117.5 mm
Display weight
28.7 kg
Display height
765.5 mm
Display width
1267 mm
Number of stylus pens
4
Bezel colour
black
USB Power Delivery (USB PD)
Yes
Positioning accuracy
1 mm
Playback media
Y
