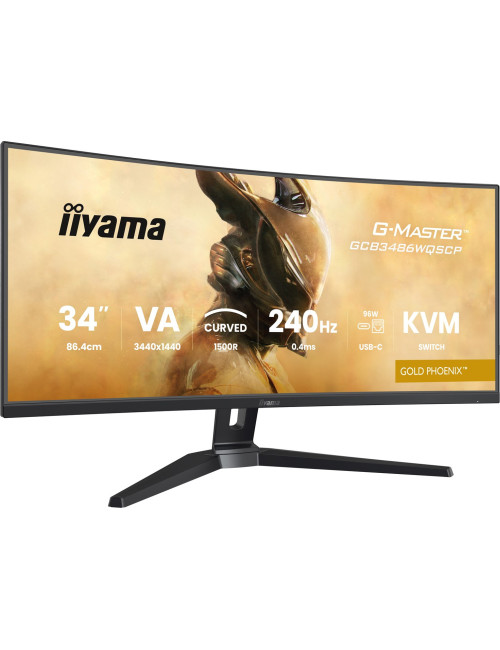

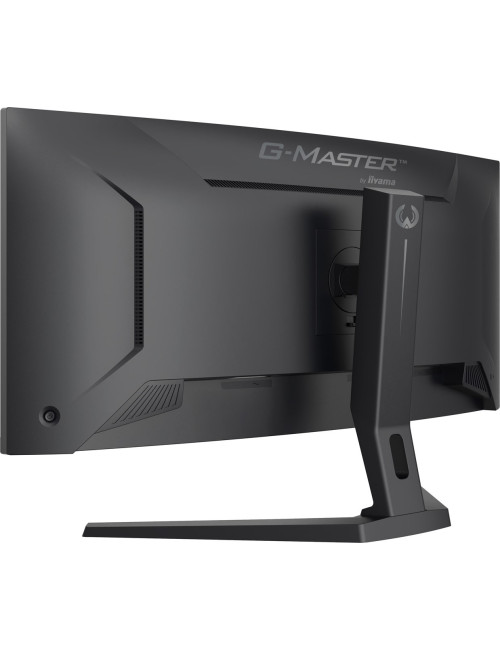

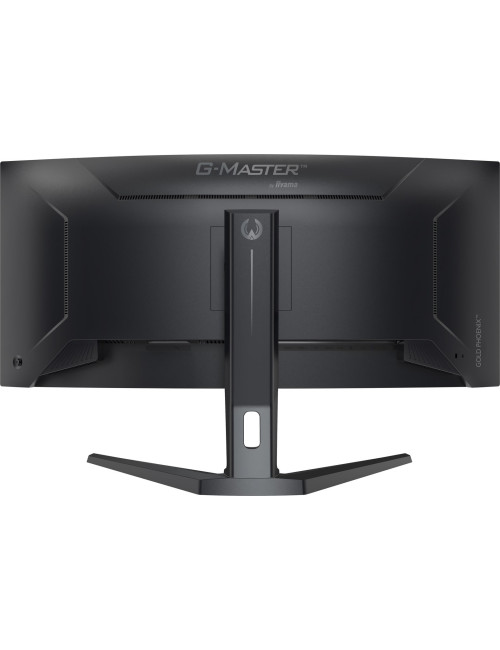

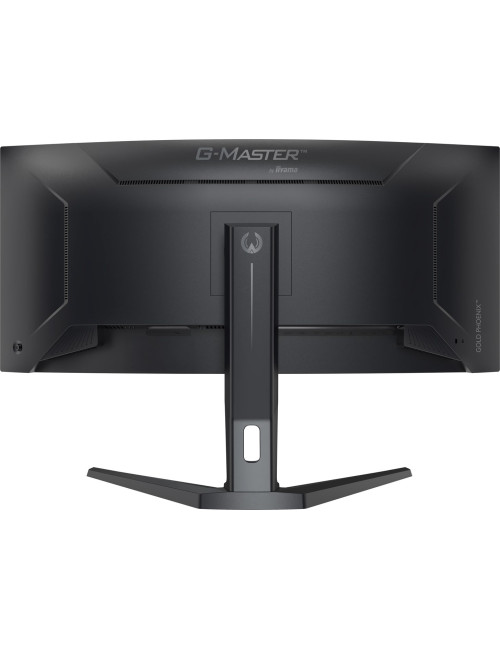

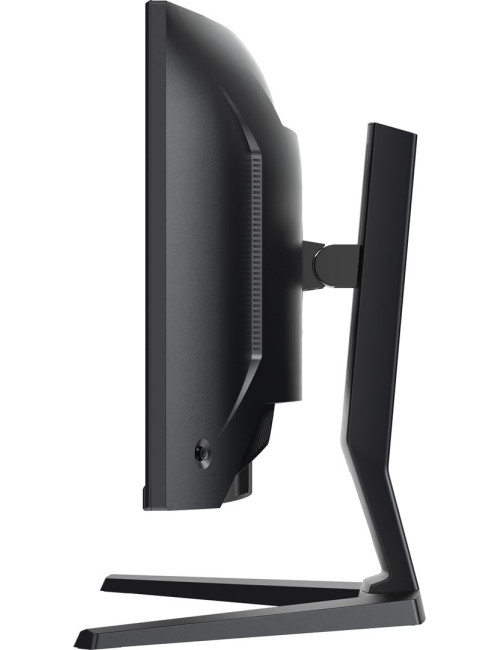

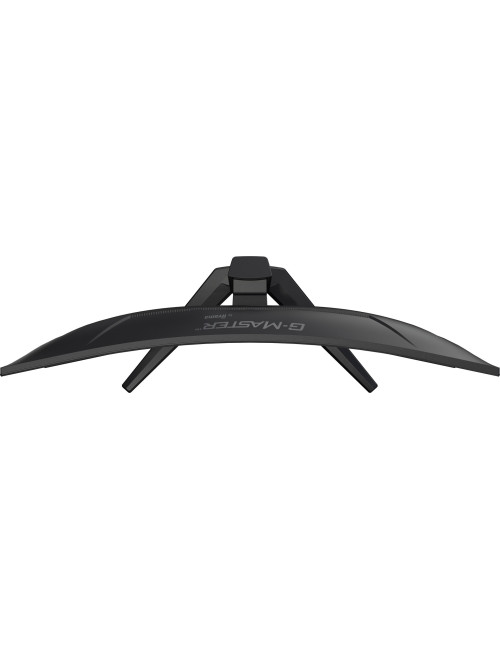

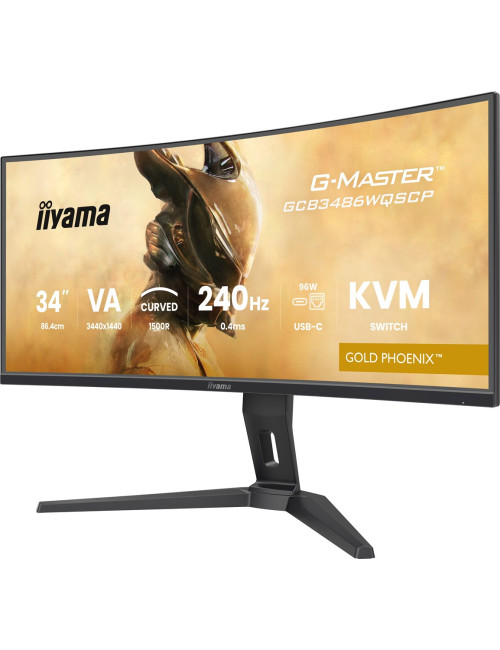

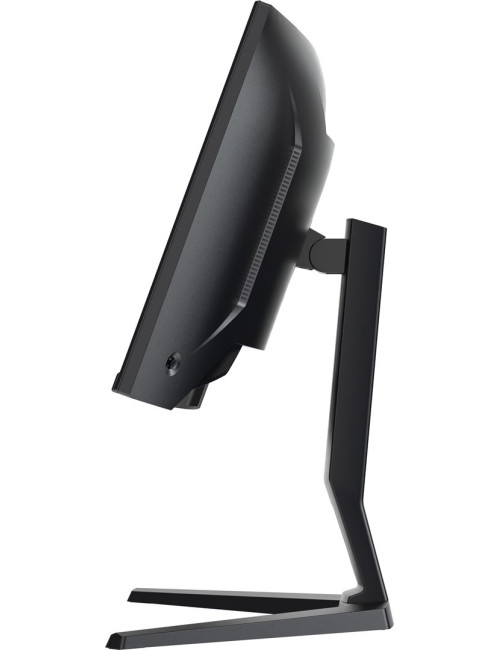

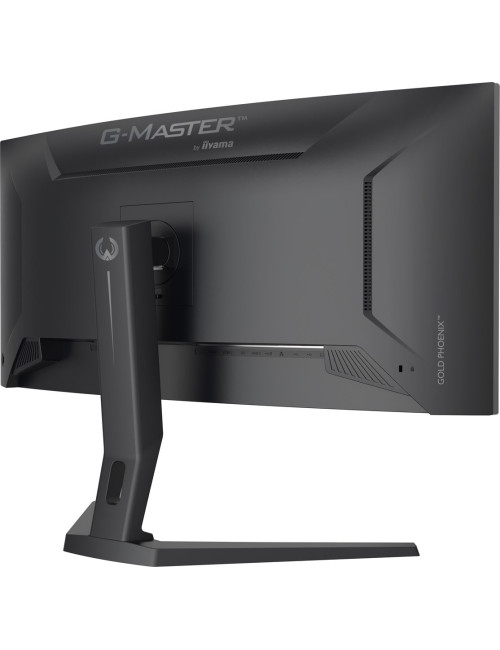

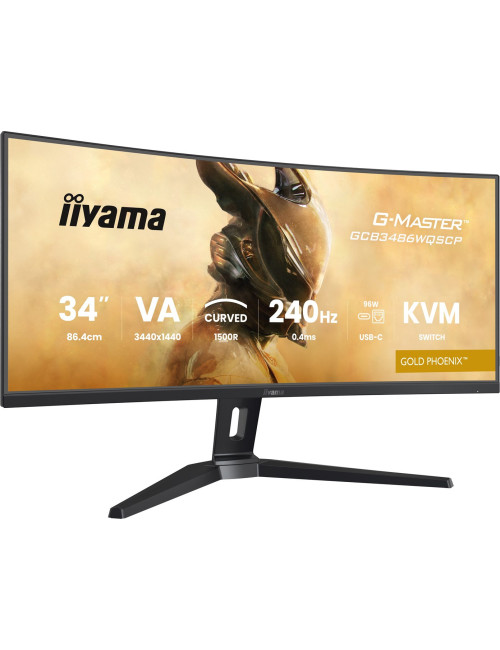

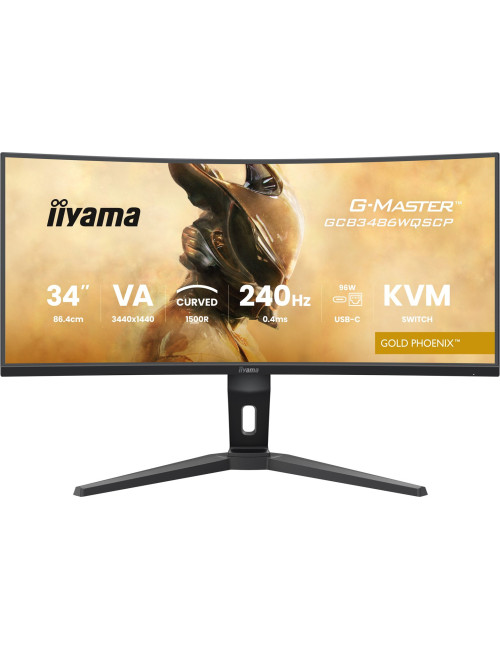

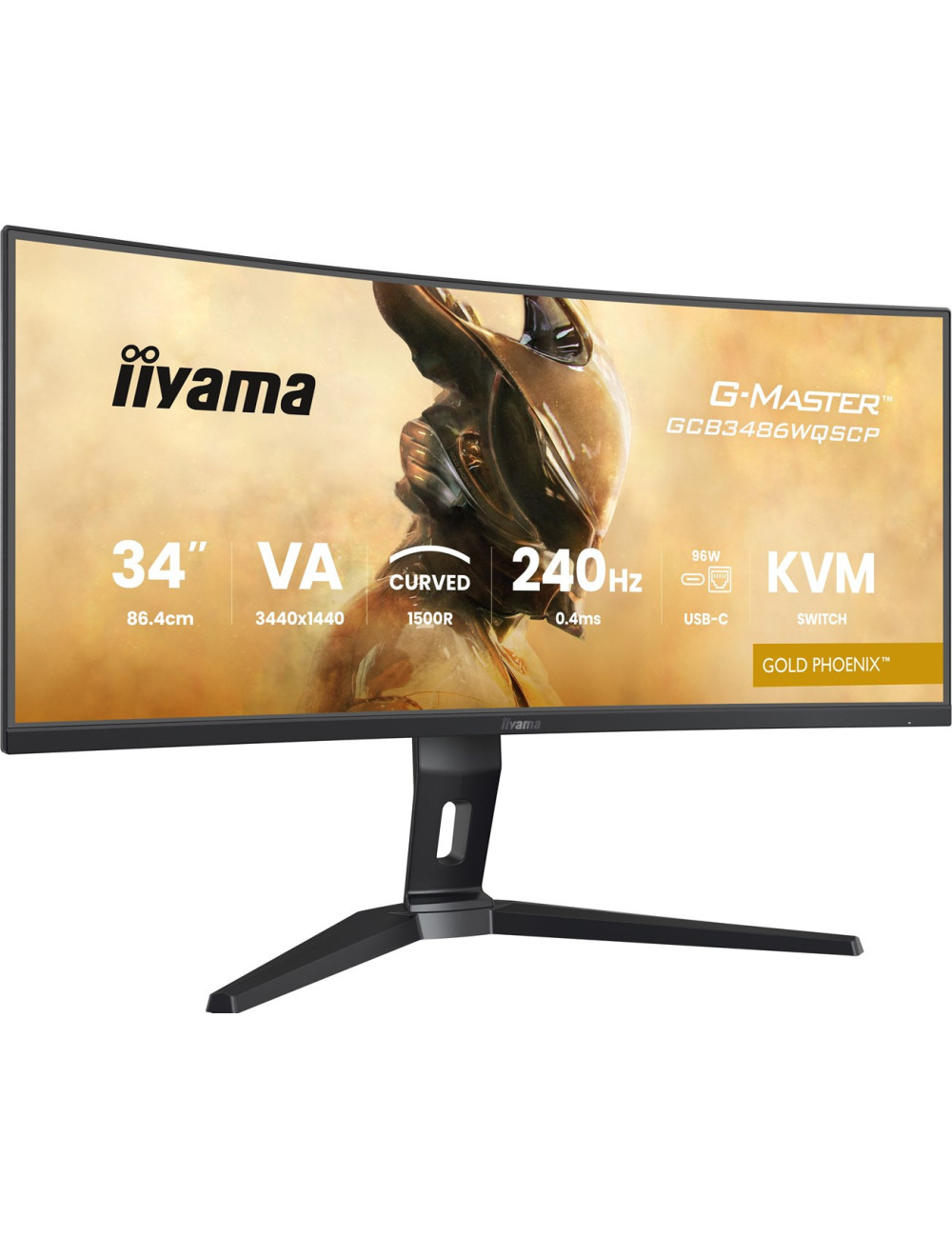

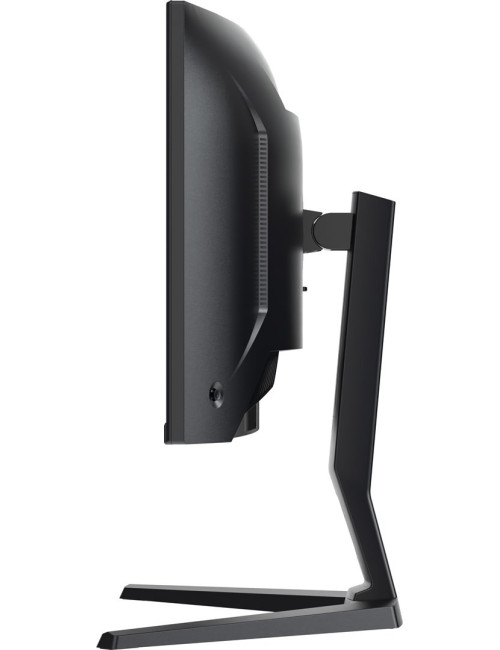

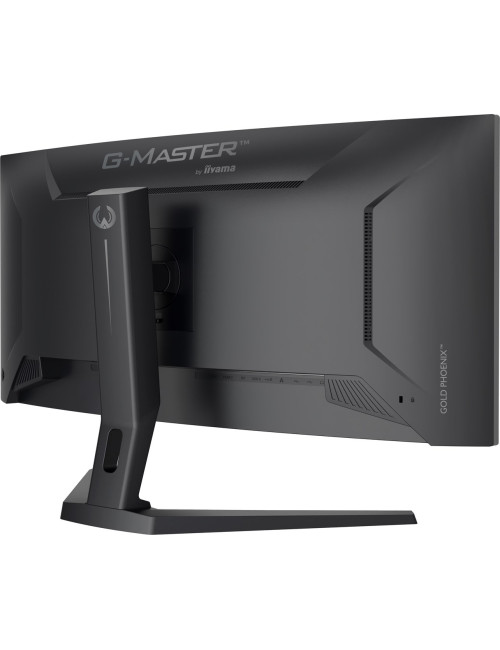

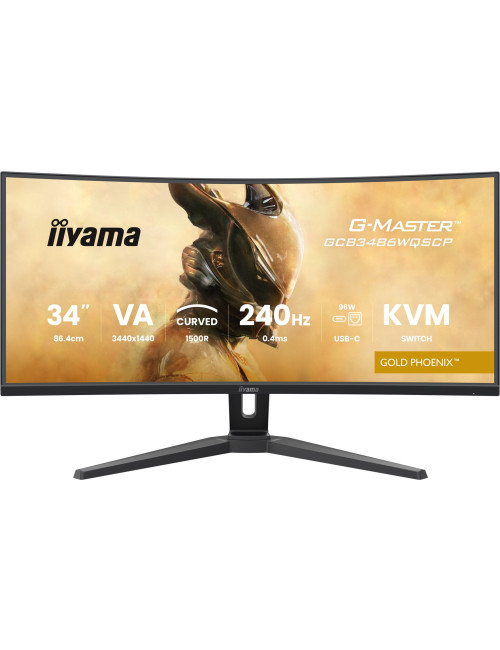

Product Details
Data sheet
- Package type
- Box
- Width
- 808 mm
- Depth
- 275 mm
- Weight
- 8 kg
- Package depth
- 190 mm
- Package height
- 490 mm
- Package width
- 982 mm

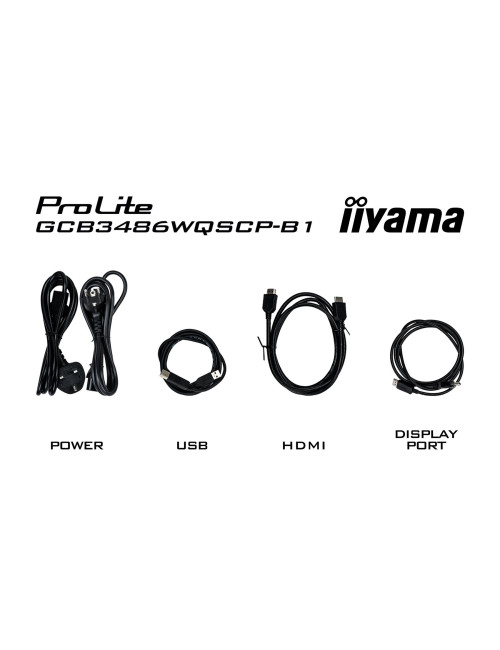

- Cables included
- USB Type-C
- LED indicators
- Power
- Headphone out
- Yes
- Power supply type
- Internal
- Quick start guide
- Yes
- HDMI ports quantity
- 2
- DisplayPorts quantity
- 1
- Display diagonal
- 86.4 cm (34")
- Power cable length
- 1.85 m
- Power consumption (typical)
- 52 W
- HDCP
- Yes
- Response time
- 0.4 ms
- HD type
- UltraWide Quad HD
- Contrast ratio (typical)
- 4000:1
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Native aspect ratio
- 21:9
- Built-in speaker(s)
- Yes
- VESA mounting
- Yes
- Swivelling
- Yes
- Tilt adjustment
- Yes
- Height adjustment
- YES
- Cable lock slot
- Yes
- Horizontal scan range
- 24 - 360 kHz
- Viewable size, horizontal
- 79.7 cm
- Viewable size, vertical
- 33.4 cm
- USB hub version
- 3.2 Gen 1 (3.1 Gen 1)
- Number of upstream ports
- 4
- USB Type-A downstream ports quantity
- 2
- RMS rated power
- 10 W
- Swivel angle range
- 89 - 89°
- On Screen Display (OSD) languages
- Spanish
- Power consumption (standby)
- 0.5 W
- Width (with stand)
- 808 mm
- Depth (with stand)
- 275 mm
- Height (with stand)
- 544.5 mm
- Panel type
- VA
- Maximum refresh rate
- 240 Hz
- HDMI version
- 2.1
- Number of speakers
- 2
- HDMI
- Yes
- Touchscreen
- No
- Display number of colours
- 16.7 million colours
- Power consumption (off)
- 0.3 W
- Pixel pitch
- 0.232 x 0.232 mm
- Display diagonal (metric)
- 86.4 cm
- Ethernet LAN (RJ-45) ports
- 1
- USB Type-C downstream ports quantity
- 1
- USB upstream port type
- USB Type-C
- Ethernet LAN
- Yes
- AC input voltage
- 100 - 240 V
- Cable lock slot type
- Kensington
- AC input frequency
- 50 Hz
- Supported graphics resolutions
- 3440 x 1440
- Cable management
- Yes
- Stand included
- Yes
- Colour depth
- 8 bit
- Wall mountable
- Yes
- Screen shape
- Curved
- Built-in USB hub
- Yes
- Product colour
- Black
- Market positioning
- Gaming
- Energy consumption (SDR) per 1000 hours
- 31.7 kWh
- Energy efficiency class (SDR)
- F
- Width (without stand)
- 808 mm
- Weight (with stand)
- 8 kg
- Height (without stand)
- 414.5 mm
- Depth (without stand)
- 275 mm
- Flicker-free technology
- Yes
- AMD FreeSync
- Yes
- Low Blue Light technology
- Yes
- Display resolution
- 3440 x 1440 pixels
- Display brightness (typical)
- 500 cd/m²
- Tilt angle range
- 18.5 - 3.5°
- Panel mounting interface
- 100 x 100 mm
- Sustainability certificates
- EPEAT Bronze
- sRGB coverage (typical)
- 99%
- High Dynamic Range (HDR) supported
- Yes
- AMD FreeSync type
- FreeSync Premium
- Screen curvature rating
- 1500R
- Energy efficiency class (HDR)
- G
- Energy consumption (HDR) per 1000 hours
- 51.6 kWh
- High Dynamic Range (HDR) technology
- High Dynamic Range (HDR) 400
- NTSC coverage (typical)
- 72%
- Number of OSD languages
- 10
- Display brightness (peak)
- 500 cd/m²
- VESA Adaptive Sync support
- Yes
- Number of USB Type-C upstream ports quantity
- 1
- DisplayPort cable length
- 1.85 m
- HDMI cable length
- 1.85 m
- USB Power Delivery up to
- 95 W
- Colour name
- Black
- USB cable length
- 1.5 m
- Built-in KVM switch
- Yes
- Compliance certificates
- EAC
- DisplayPort out version
- 1.4
- Response time (MPRT)
- 0.4 ms
- USB Power Delivery (USB PD)
- Yes
- Adjustable height (max)
- 13 cm
- Number of downstream ports
- 3
