IIYAMA

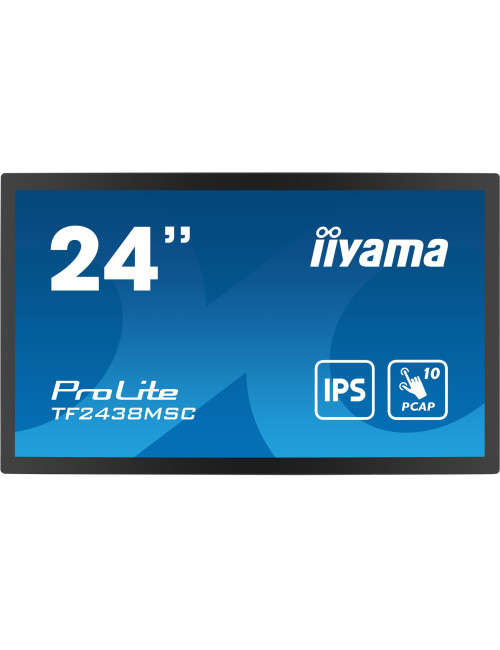

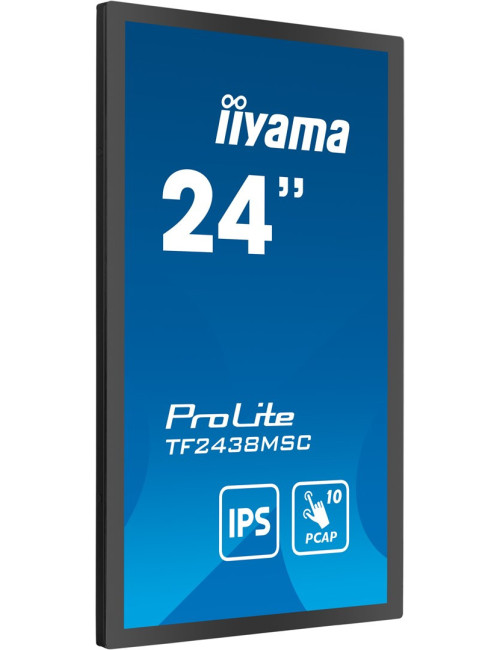

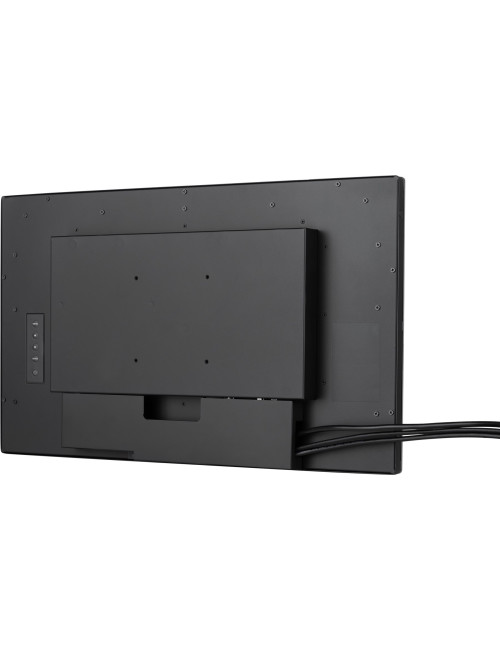

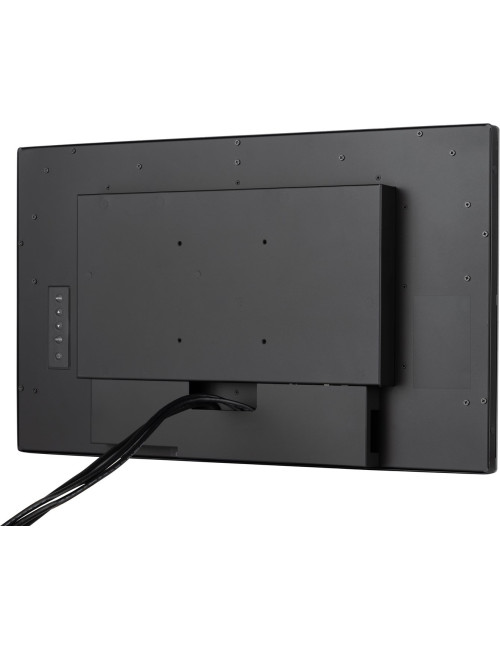

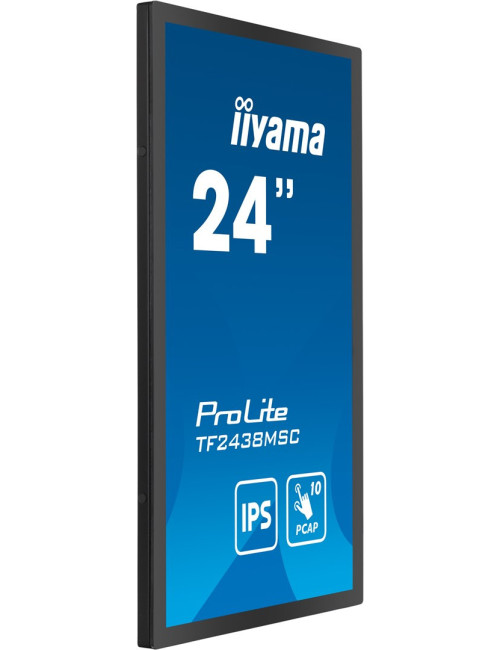

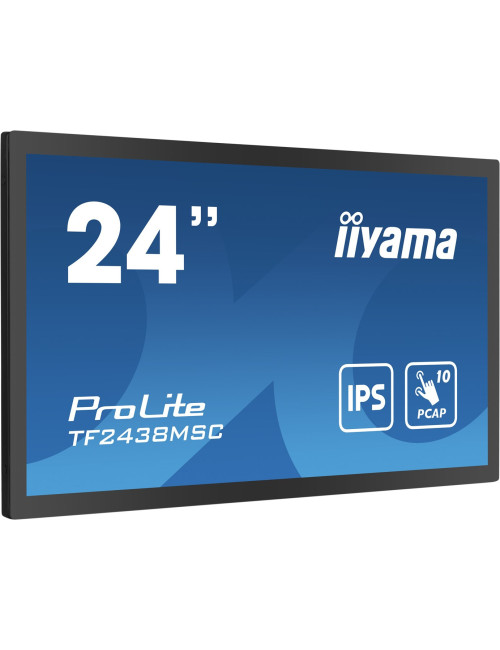

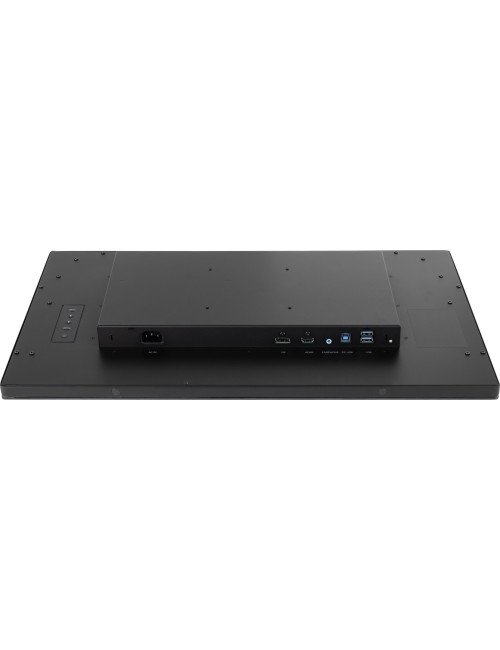

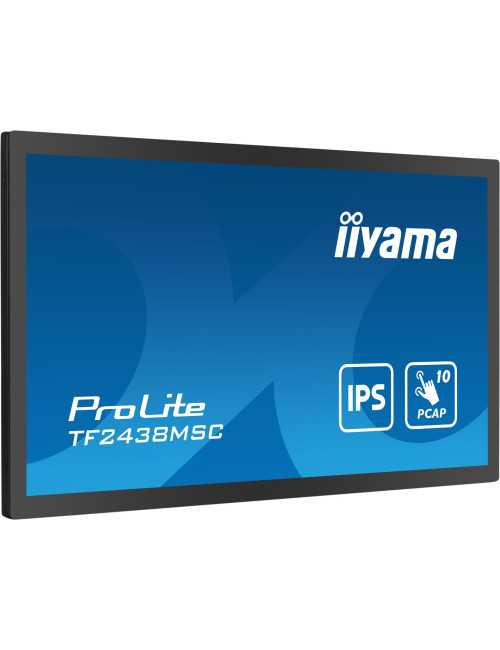

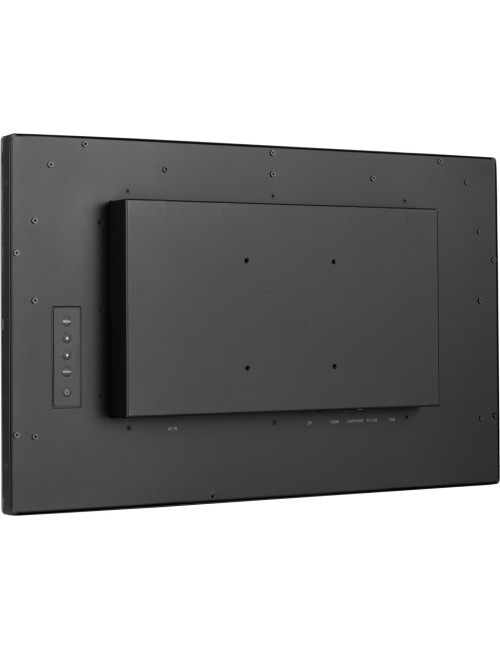

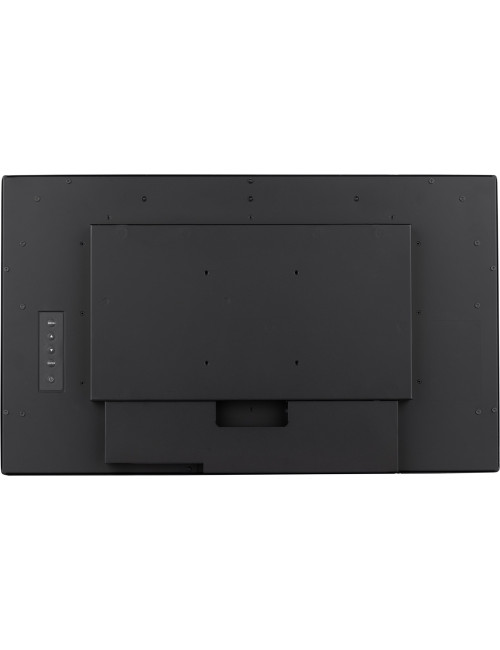

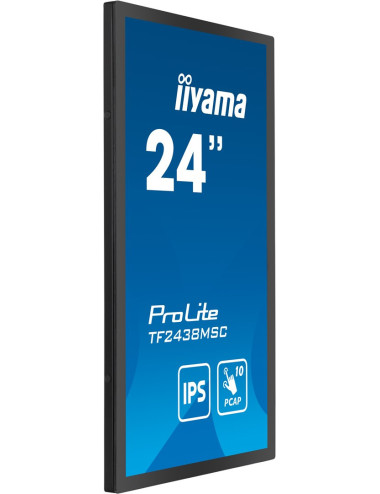

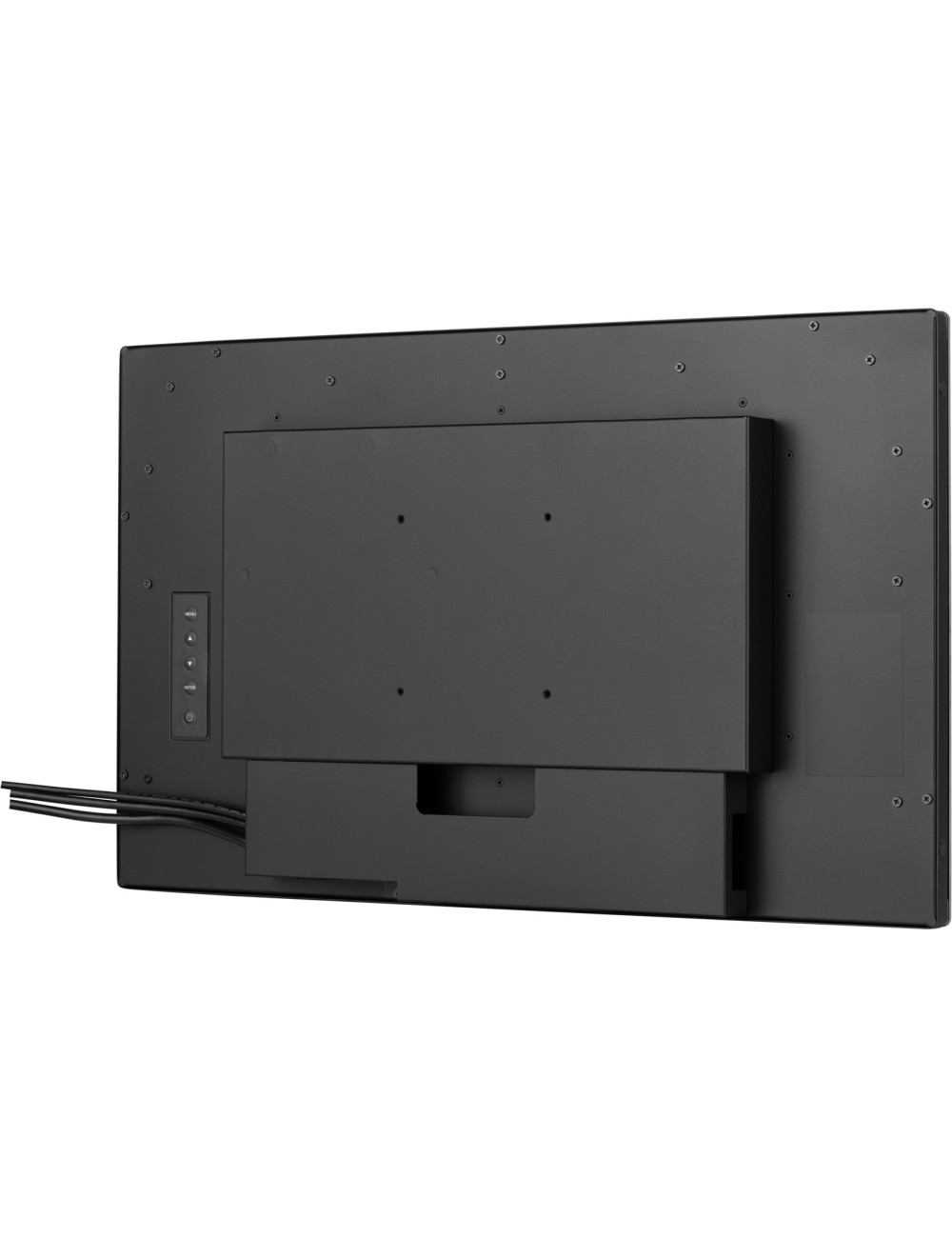

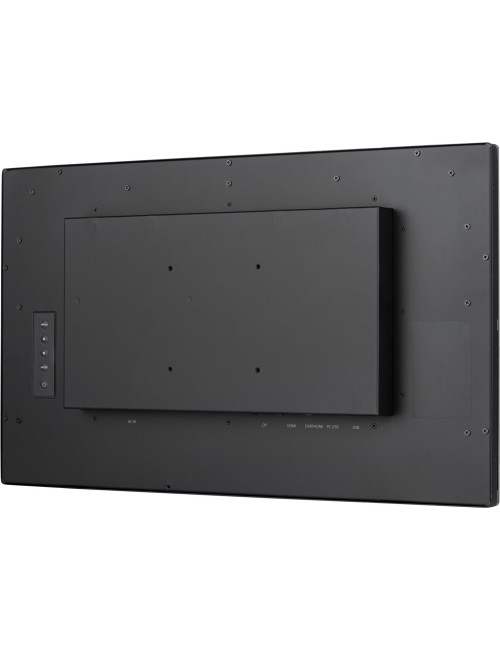

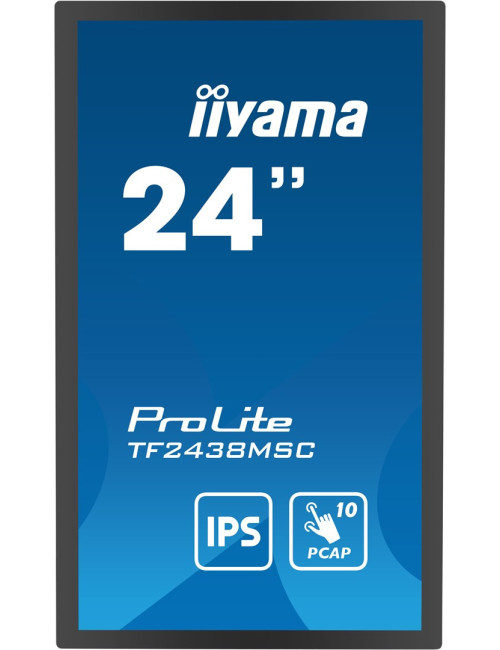

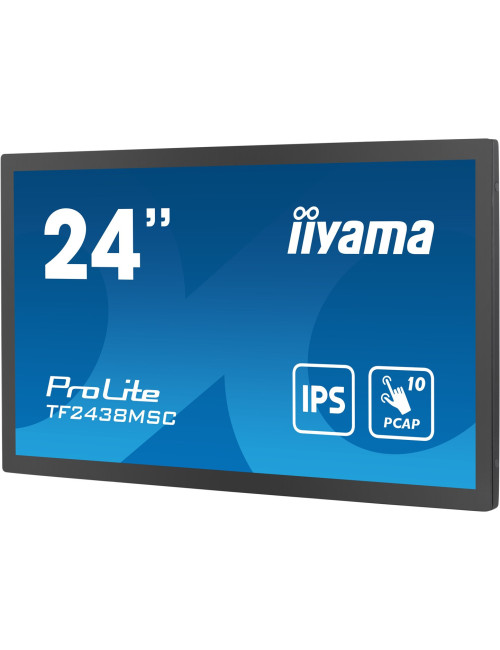

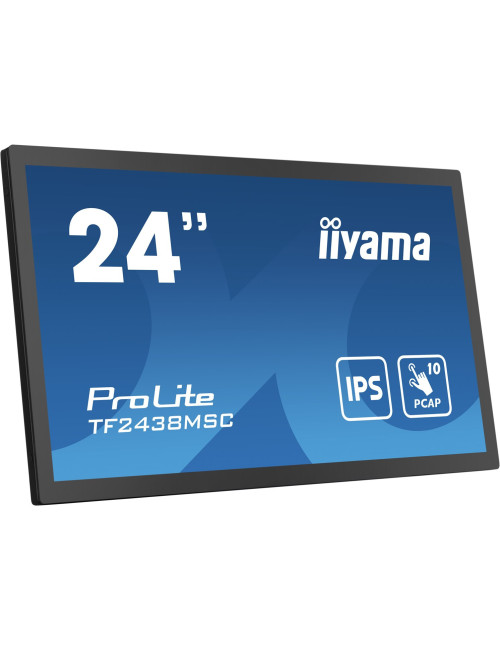

    iiyama 23.8” 10pt Optical Bonded PCAP Open Frame Touch monitor with IPS panel technology, edge-to-edge glass design, anti-fin

    €605.03
    Tax included
    Quantity

    Product Details

    WLONONWCREKL5
    3 Items

    Data sheet

    Width
    561.5 mm
    Height
    337 mm
    Depth
    47.5 mm
    Weight
    6.5 kg
    Package depth
    115 mm
    Package height
    409 mm
    Package width
    635 mm
    Package weight
    8.1 kg

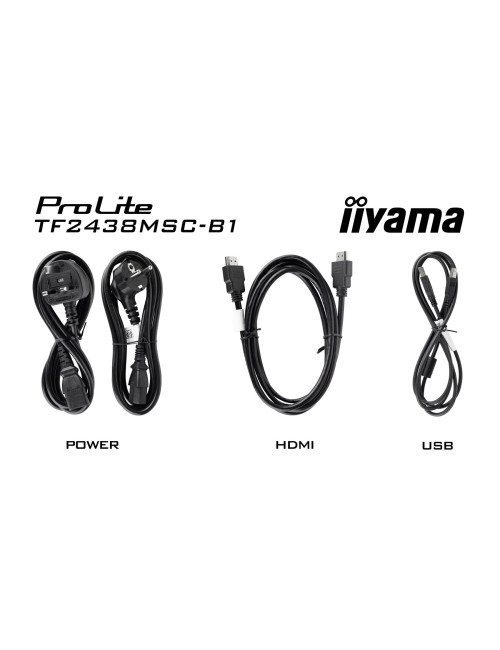

    Cables included
    USB
    Power supply type
    Internal
    Quick start guide
    Yes

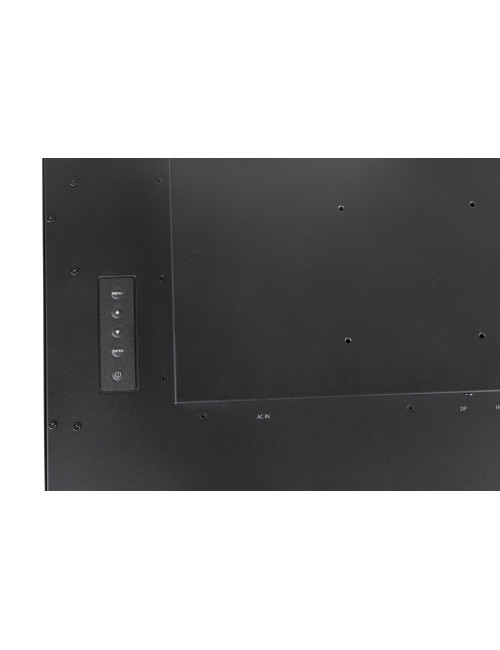

    Control panel

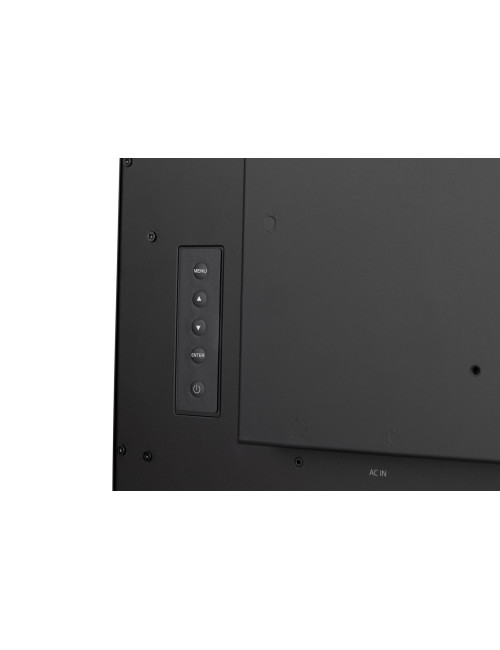

    Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power
    Mean time between failures (MTBF)
    50000 h
    HDMI ports quantity
    1
    DisplayPorts quantity
    1
    Display technology
    LED
    Wi-Fi
    No
    Display diagonal
    60.5 cm (23.8")
    USB version
    3.2 Gen 1 (3.1 Gen 1)
    USB ports quantity
    2
    Power cable length
    1.8 m
    Power consumption (typical)
    22 W
    HDCP
    Yes
    Display brightness
    525 cd/m²
    Response time
    5 ms
    HD type
    Full HD
    Contrast ratio (typical)
    1000:1
    Viewing angle, horizontal
    178°
    Viewing angle, vertical
    178°
    Native aspect ratio
    16:9
    Built-in speaker(s)
    Yes
    VESA mounting
    Yes
    Horizontal scan range
    30 - 83 kHz
    Viewable size, horizontal
    52.7 cm
    Viewable size, vertical
    29.6 cm
    USB hub version
    3.2 Gen 1 (3.1 Gen 1)
    RMS rated power
    4 W
    On Screen Display (OSD) languages
    Polish
    Power consumption (standby)
    0.8 W
    Width (with stand)
    561.5 mm
    Depth (with stand)
    47.5 mm
    Height (with stand)
    337 mm
    Placement supported
    Indoor
    Panel type
    IPS
    Maximum refresh rate
    60 Hz
    Number of speakers
    2
    DVI port
    No
    Touchscreen
    Yes
    Display number of colours
    16.7 million colours
    Power consumption (off)
    0.3 W
    Pixel pitch
    0.275 x 0.275 mm
    Display diagonal (metric)
    60.5 cm
    Touchscreen technology
    Projected capacitive system
    Ethernet LAN
    No
    AC input voltage
    100 - 240 V
    Brightness
    525 cd/m²
    AC input frequency
    50/60 Hz
    International Protection (IP) code
    IP1X
    Cable management
    Yes
    On Screen Display (OSD)
    Yes
    Built-in processor
    No
    Built-in USB hub
    Yes
    Product colour
    Black
    Energy consumption (SDR) per 1000 hours
    15.4 kWh
    Energy efficiency class (SDR)
    E
    Weight (with stand)
    6.5 kg
    Flicker-free technology
    Yes
    Low Blue Light technology
    Yes
    Display resolution
    1920 x 1080 pixels
    Display brightness (typical)
    600 cd/m²
    Surface hardness
    7H
    Panel mounting interface
    100 x 100 mm
    Sustainability certificates
    ErP
    Energy efficiency class (HDR)
    Not available
    Front bezel colour
    Black
    HDMI cable length
    1.5 m
    Bezel width (bottom)
    2.03 cm
    Bezel width (side)
    1.73 cm
    Bezel width (top)
    2.03 cm
    Active display area (W x H)
    527 x 296.5 mm
    Glass thickness
    3.6 mm
    Number of simultaneous touchpoints
    10
    USB Touch port
    Yes
    USB cable length
    1.5 m
    Touch method
    stylus, finger, glove (latex)
    Compliance certificates
    cTUVus
    Response time measurement type
    GTG (Gray to Gray)
    Number of downstream ports
    2
