- Connect your notebook with one USB-C cable
- Built-in KVM switch to easily switch between sources
- IPS LED wide view technology for image and color accuracy
- CrystalClear images with UltraWide QHD
- DisplayHDR 400 for more lifelike and outstanding visuals
- Built-in stereo speakers for multimedia
- PowerSensor saves energy costs
- Tilt, swivel and height-adjust for an ideal viewing position
- LightSensor for the perfect brightness with minimal power
Product Details
Data sheet
- Colour
- Black
- Weight
- 13.94 kg
- Device type
- LED-backlit LCD monitor - 40"
- Features
- KVM Switch, USB 3.2 Gen 1/USB-C hub, USB PD 100 Watt
- Voltage
- AC 100-240 V (50/60 Hz)
- Response time
- 4 ms (grey-to-grey)
- Panel type
- IPS
- Aspect ratio
- 21:9
- Pixel pitch
- 0.26925 mm
- Contrast ratio
- 1200:1 / 50000000:1 (dynamic)
- PRODUCT DESCRIPTION

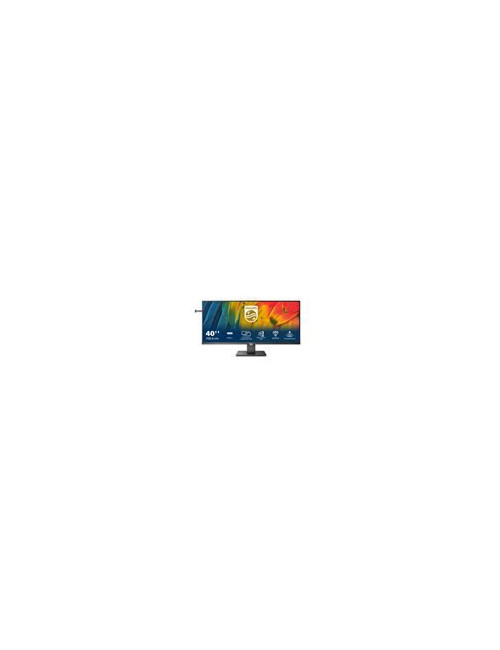

- Philips 40B1U5600 - 5000 Series - LED monitor - 40" - HDR
- Native resolution
- WQHD 3440 x 1440 (DisplayPort: 120 Hz, HDMI: 100 Hz, USB-C: 120 Hz)
- Brightness
- 500 cd/m
- Manufacturer Warranty
- 3-year warranty
- Energy Class
- Class F
- Power Consumption (On mode)
- 39 W
- Colour Support
- 16.7 million colours (8-bit)
- Input Connectors
- HDMI, DisplayPort, USB-C
- Display Position Adjustments
- Height, swivel, tilt
- Compliant Standards
- Plug and Play, FCC Class B certified, TUV GS, ICES-003, SEMKO, CB, TUV Ergo, DDC/CI, cETLus, CU-EAC, HDCP 2.2, HDCP 1.4, USB Power Delivery 3.0, 2012/19/EU, EAEU RoHS
- HDR Capable
- DisplayHDR 400
- Environmental Standards
- TCO Certified Edge Displays, TCO Certified Displays 9, ENERGY STAR Qualified
- Screen Coating
- Anti-glare, 3H Hard Coating, Haze 25%
- Colour Gamut
- 102% NTSC (CIE 1976), 121% sRGB (CIE 1931)
- Dimensions (WxDxH) - with stand (highest position)
- 94.4 cm x 28 cm x 62.8 cm
- KVM Switch
- USB
