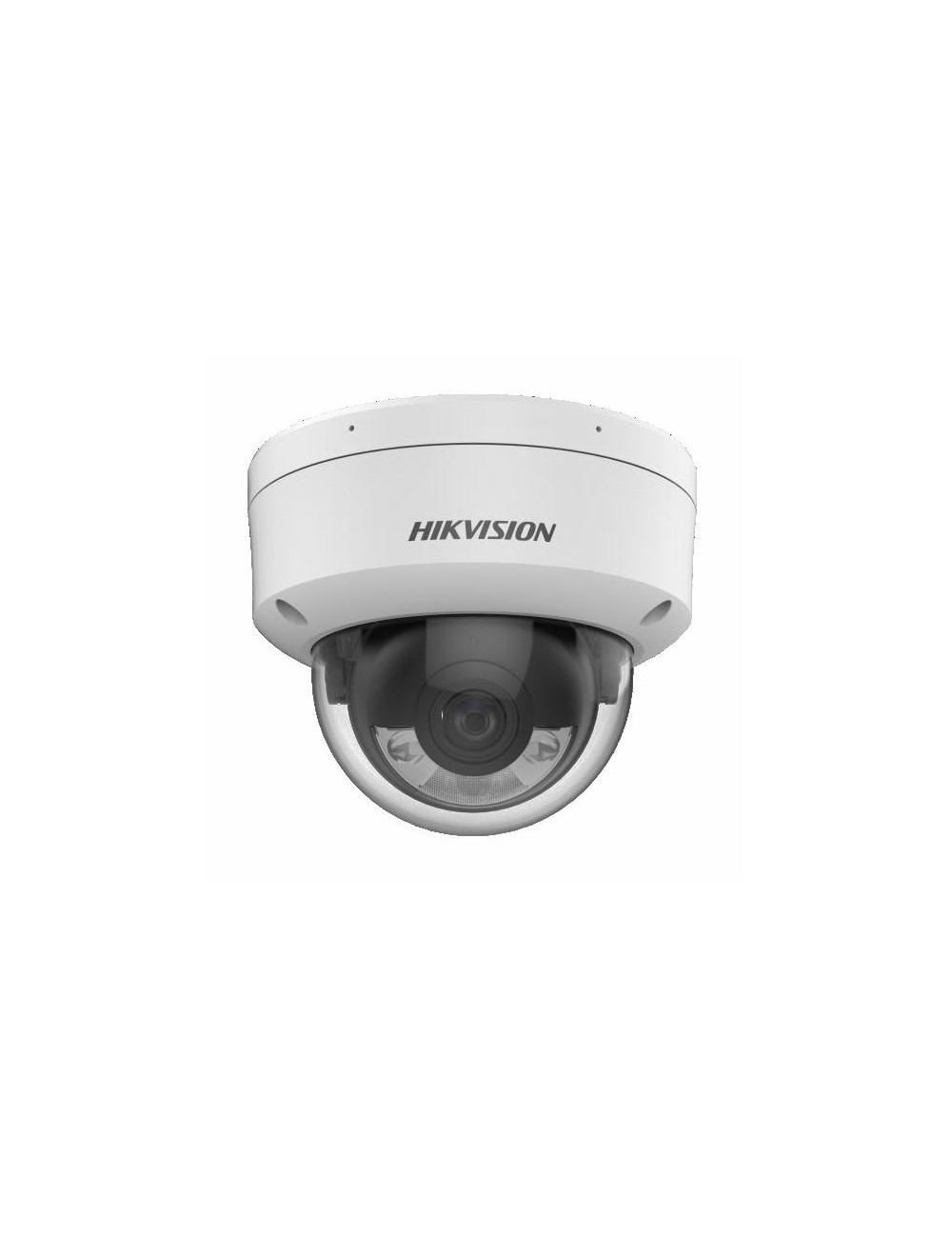

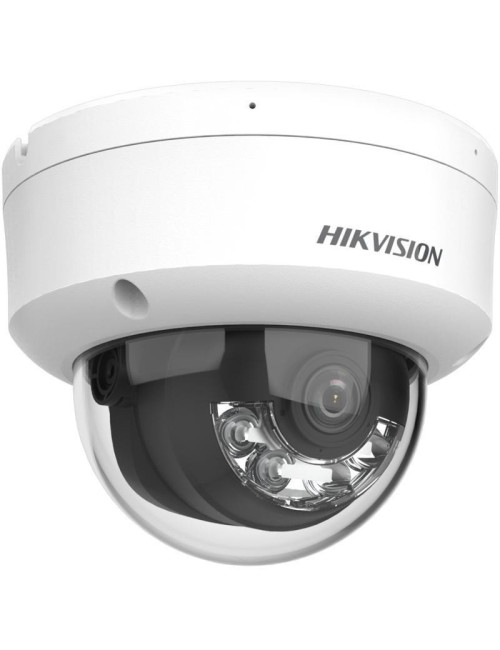

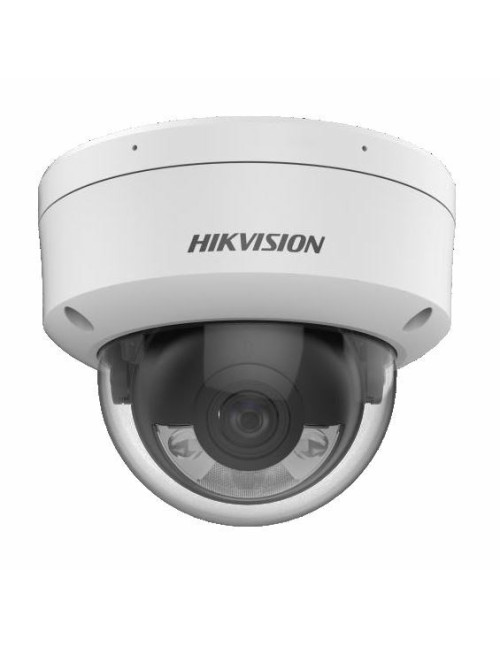

HIKVISION IP CAMERA DS-2CD2143G2-LI(2.8MM)

Product Details

Reference WLONONWCRFGTW

In stock 88 Items

Data sheet

Type

IP security camera

Height

100.1 mm

Connectivity technology

Wired

Weight

600 g

Package depth

150 mm

Package height

141 mm

Package width

150 mm

Package weight

820 g

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Ceiling/wall

Form factor

Dome

Bluetooth

No

Bit rate

32 Kbps - 8 Mbps

Noise reduction

Yes

Protection features

Vandal proof

Sensor type

CMOS

Wi-Fi

No

Audio formats supported

MP3

Signal-to-Noise Ratio (SNR)

52 dB

Power consumption (max)

7 W

Maximum resolution

2680 x 1520 pixels

Placement supported

Outdoor

Ethernet LAN (RJ-45) ports

1

Number of languages

33

Audio output channels

1.0 channels

Housing material

Metal

Networking standards

IEEE 802.1x

Security algorithms

HTTPS

Ethernet LAN

Yes

Supported graphics resolutions

2688 x 1520

Diameter

12.1 cm

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of Users

32 user(s)

Web-based management

Yes

Quality of Service (QoS) support

Yes

Reset button

Yes

Password protection

Yes

Languages support

Multi

Frame Rate

30 fps

Product colour

White

Tilt angle range

0 - 75°

Sustainability compliance

Yes

Fixed focal length

2.8 mm

Voice codecs

G.722.1

LED type

White

Night vision

Yes

Total megapixels

4 MP

Fixed focus

Yes

Optical sensor size

25.4 / 2.9 mm (1 / 2.9")

Minimum illumination

0 lx

Pan range

0 - 355°

Dynamic range

120 dB

Lens viewing angle, diagonal

355°

Video compression formats

M-JPEG

Angle of rotation

355°

DC output current

0.6 A

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Night vision distance

30 m

Number of lenses

1

Privacy protection

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

75°

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1

Lens viewing angle, horizontal

102°

Number of sensors

1

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Heartbeat

Yes

Anti-flicker

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Active tampering alarm

Yes

Alarm input/output

Yes

Terminal block port

Yes

IP address filtering

Yes

Intelligent Video Surveillance (IVS) system features

Face detection

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Live view

Yes

Power consumption (Power over Ethernet (PoE))

8.5 W

HTTPS encryption

Yes

Behavior analysis

Intrusion detection, Line crossing detection

Image quality adjustment

Sharpness

IK code

IK10

Digest authentication

Yes

Password reset via email

Yes

Number of simultaneous live view channels

6 channels

User access level

Administrator, Operator, User

Audio input channels

1.0 channels

Detect distance

67 m

Observe distance

26 m

Recognize distance

13 m

Identify distance

6 m

Pixel counter

Yes

Human and vehicle targets classification

Yes

Client interoperability

iVMS-4200, Hik-Connect, Hik-Central

Bit rate range

8 - 320 Kbit/s

Alarm output channels

1

Alarm input channels

1

Compliance certificates

UL

Sample rates

8 - 48 kHz

Automatic Network Replenishment (ANR)

Yes

Network access storage (NAS)

Yes

Warnings

The product contains electronic components; do not dispose of with the normal household waste.

Audit log

Yes

Flash log

Yes
