Product Details
Data sheet
- Plug and Play
- Yes
- Package type
- Box
- Package depth
- 162 mm
- Package height
- 480 mm
- Package width
- 825 mm
- Package weight
- 10 kg
- Cables included
- USB Type-C
- Storage relative humidity (H-H)
- 5 - 93%
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 10 - 85%
- Storage temperature (T-T)
- -25 - 55 °C
- Headphone out
- Yes
- Power supply type
- Internal
- Quick start guide
- Yes
- Audio output
- Yes
- Mean time between failures (MTBF)
- 30000 h
- HDMI ports quantity
- 2
- DisplayPorts quantity
- 1
- Display technology
- LCD
- Display diagonal
- 68.6 cm (27")
- Backlight type
- W-LED
- Power cable length
- 1.8 m
- Built-in camera
- No
- LED backlight
- Yes
- Power consumption (max)
- 206 W
- Power consumption (typical)
- 25.45 W
- Response time
- 4 ms
- HD type
- 4K Ultra HD
- Contrast ratio (typical)
- 1300:1
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Native aspect ratio
- 16:9
- Built-in speaker(s)
- Yes
- VESA mounting
- Yes

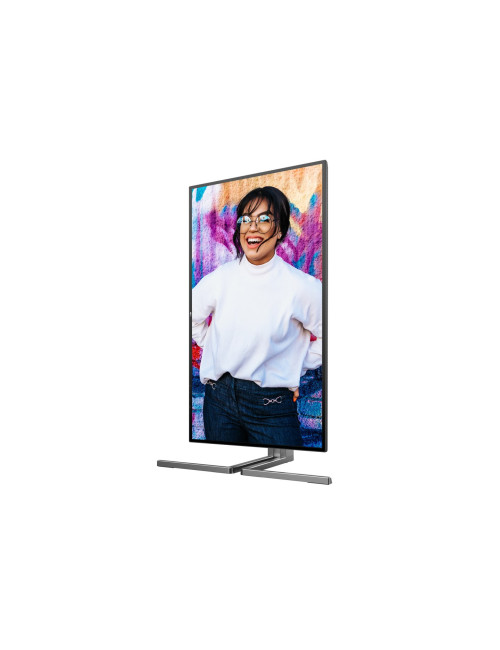

- Swivelling
- Yes
- Tilt adjustment
- Yes
- Height adjustment
- YES
- Cable lock slot
- Yes
- Horizontal scan range
- 30 - 140 kHz
- Vertical scan range
- 23 - 75 Hz
- Viewable size, horizontal
- 59.7 cm
- Viewable size, vertical
- 33.6 cm
- DDC/CI
- Yes
- USB hub version
- 3.2 Gen 2 (3.1 Gen 2)
- Number of upstream ports
- 2
- USB Type-A downstream ports quantity
- 4
- RMS rated power
- 6 W
- Swivel angle range
- -30 - 30°

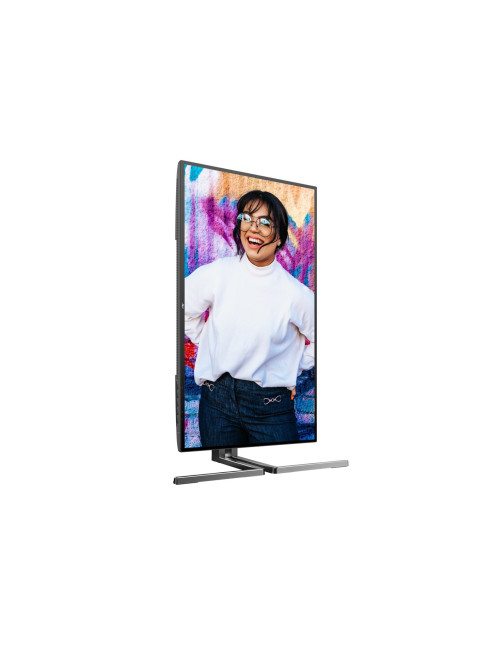

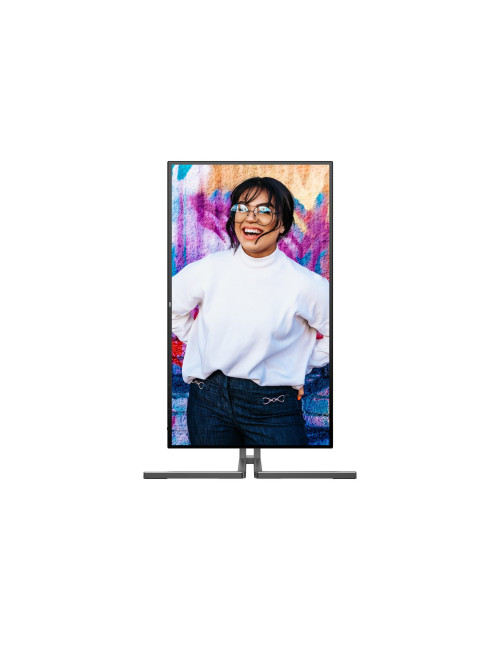

- Pivot
- YES
- Pivot angle
- -90 - 90°
- Power consumption (standby)
- 0.3 W
- Width (with stand)
- 612.7 mm
- Depth (with stand)
- 238.4 mm
- Height (with stand)
- 543.6 mm
- Panel type
- Nano IPS
- Maximum refresh rate
- 60 Hz
- HDMI version
- 2.0
- DisplayPort version
- 1.4
- Contrast ratio (dynamic)
- 50000000:1
- Number of speakers
- 2
- HDMI
- Yes
- Touchscreen
- No
- Display number of colours
- 1.073 billion colours
- Power consumption (off)
- 0.3 W
- Pixel pitch
- 0.1554 x 0.1554 mm
- Pixel density
- 163 ppi
- Display diagonal (metric)
- 68.6 cm
- Input current
- 3 A
- USB Type-C downstream ports quantity
- 1
- USB upstream port type
- USB Type-C
- AC (power) in
- Yes
- Ethernet LAN
- Yes
- Headphone outputs
- 1
- AC input voltage
- 100 - 240 V
- Cable lock slot type
- Kensington
- AC input frequency
- 50/60 Hz
- Digital horizontal frequency
- 30 - 140 kHz
- Operating altitude
- 0 - 5000 m
- Colour Gamut
- 98%
- Stand included
- Yes
- Screen shape
- Flat
- Built-in USB hub
- Yes
- Non-operating altitude
- 0 - 12192 m
- Feet colour
- Grey
- Product colour
- Black
- Market positioning
- Graphics design
- Detachable stand
- Yes
- Energy consumption (SDR) per 1000 hours
- 26 kWh
- Energy efficiency class (SDR)
- F
- Weight (with stand)
- 6.54 kg
- Height (without stand)
- 51.2 mm
- Flicker-free technology
- Yes
- Low Blue Light technology
- Yes
- Display resolution
- 3840 x 2160 pixels
- Display brightness (typical)
- 400 cd/m²
- Digital vertical frequency
- 23 - 75 Hz
- Surface hardness
- 3H
- Tilt angle range
- -6.5 - 23°
- Panel mounting interface
- 100 x 100 mm
- Sustainability certificates
- EPEAT Gold
- Weight (without stand)
- 4.85 kg
- sRGB coverage (typical)
- 135.2%
- High Dynamic Range (HDR) supported
- Yes
- Energy efficiency scale
- A to G
- Anti-glare screen
- Yes
- Energy efficiency class (HDR)
- G
- Energy consumption (HDR) per 1000 hours
- 60 kWh
- High Dynamic Range (HDR) technology
- DisplayHDR 400
- VESA Adaptive Sync support
- Yes
- DisplayPort cable length
- 1.8 m
- Front bezel colour
- Black/Silver
- Frameless design
- Yes
- HDMI cable length
- 1.8 m
- Fast charging
- Yes
- Doesn't contain
- PVC/BFR
- Picture-in-Picture
- Yes
- USB Type-C DisplayPort Alternate Mode
- Yes
- USB Power Delivery up to
- 96 W
- Bezel thickness type
- Frameless
- Haze rate
- 25%
- Warranty period
- 3 year(s)
- Built-in KVM switch
- Yes
- Local dimming
- Yes
- Colour gamut standard
- DCI-P3
- Response time measurement type
- GTG (Gray to Gray)
- USB Power Delivery (USB PD)
- Yes
- Adjustable height (max)
- 15 cm
