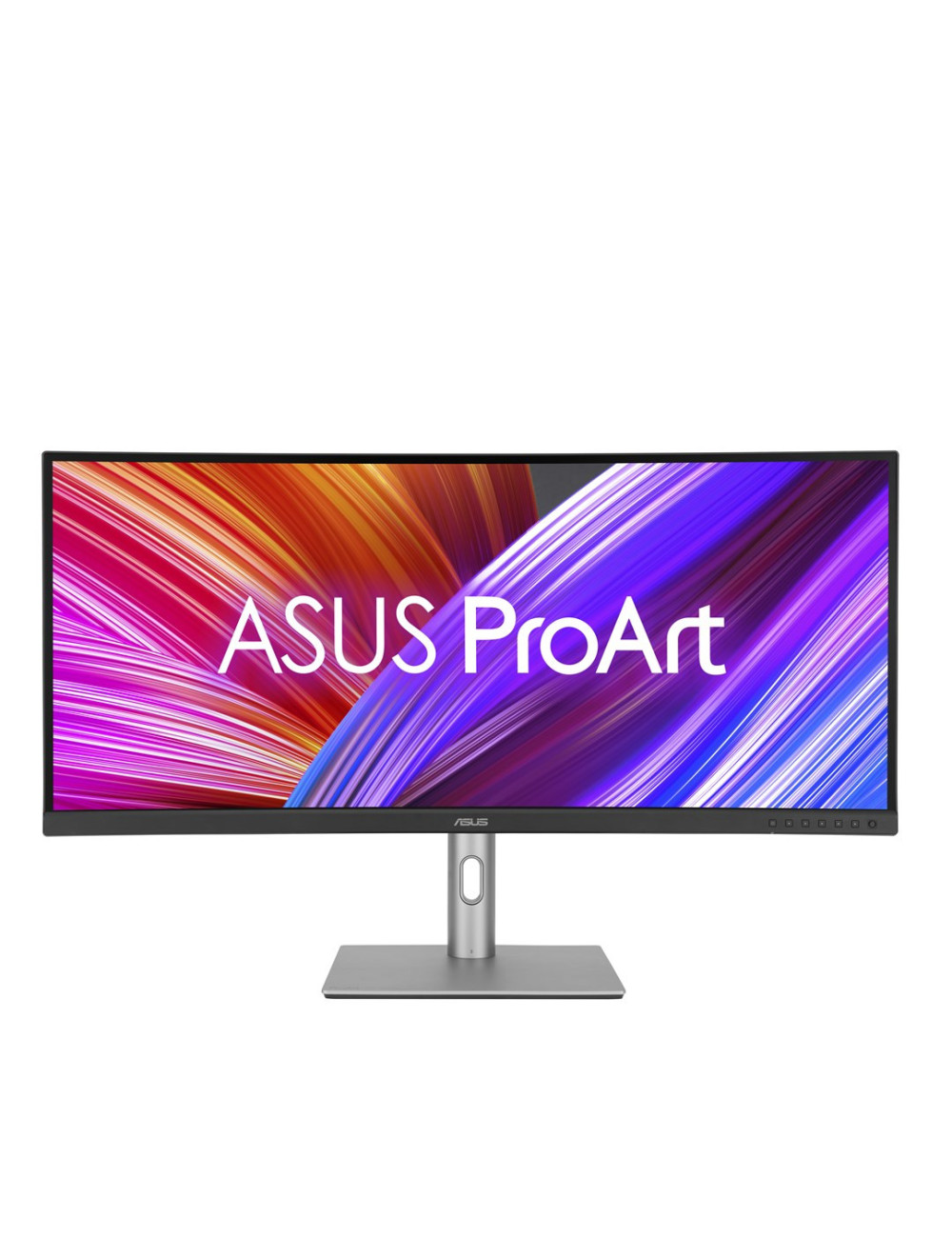

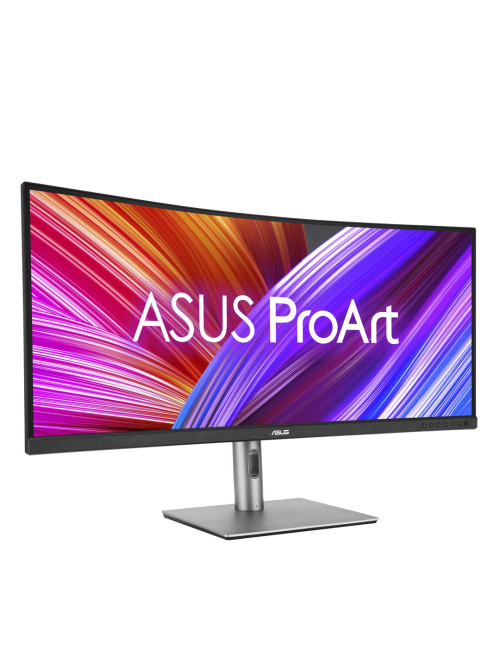

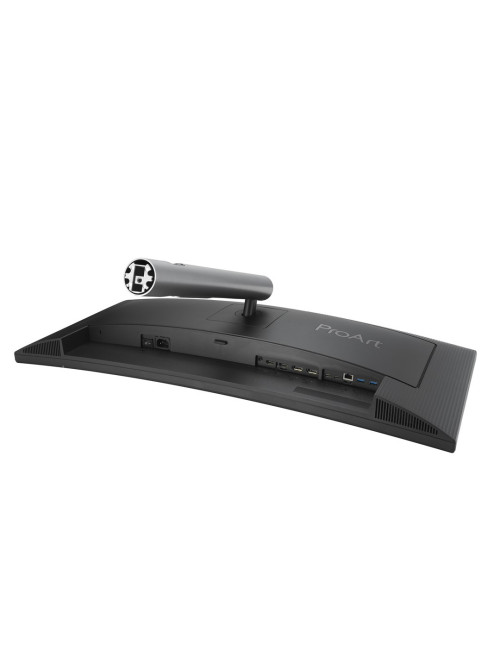

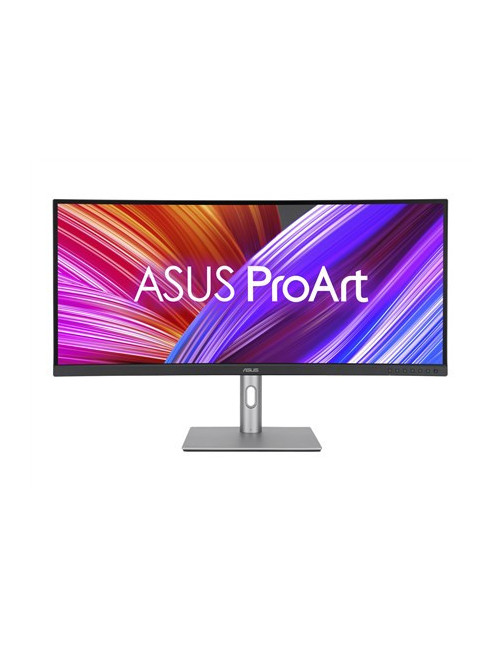

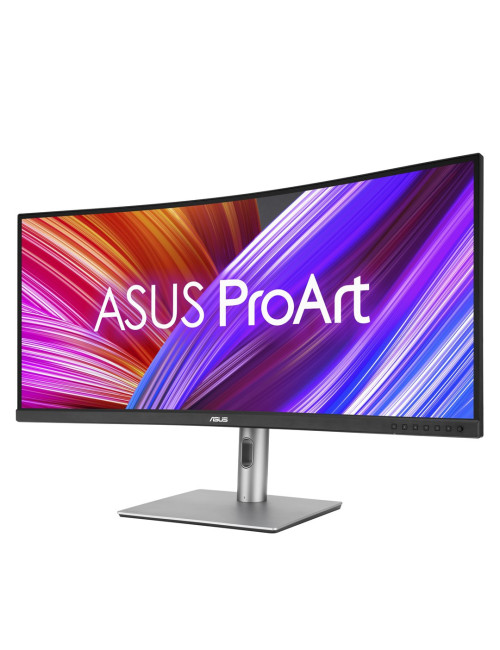

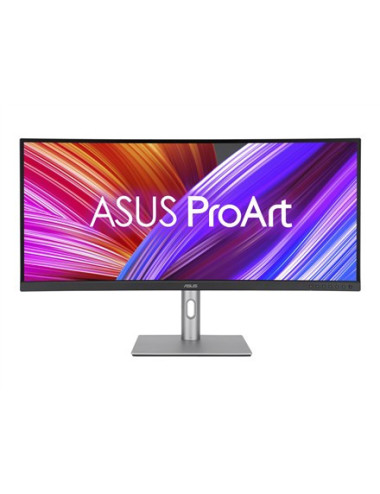

Product Details
Data sheet
- Package type
- Box
- Package depth
- 520 mm
- Package height
- 1900 mm
- Package width
- 1080 mm
- Package weight
- 16.3 kg
- Headphone connectivity
- 3.5 mm
- Headphone out
- Yes
- HDMI ports quantity
- 2
- DisplayPorts quantity
- 2
- Display technology
- LCD
- Display diagonal
- 86.6 cm (34.1")
- Backlight type
- LED
- Built-in camera
- No
- Power consumption (typical)
- 26.9 W
- HDCP
- Yes
- Response time
- 5 ms
- HD type
- UltraWide Quad HD
- Contrast ratio (typical)
- 1000:1
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Native aspect ratio
- 21:9
- Built-in speaker(s)
- Yes
- VESA mounting
- Yes
- Swivelling
- Yes

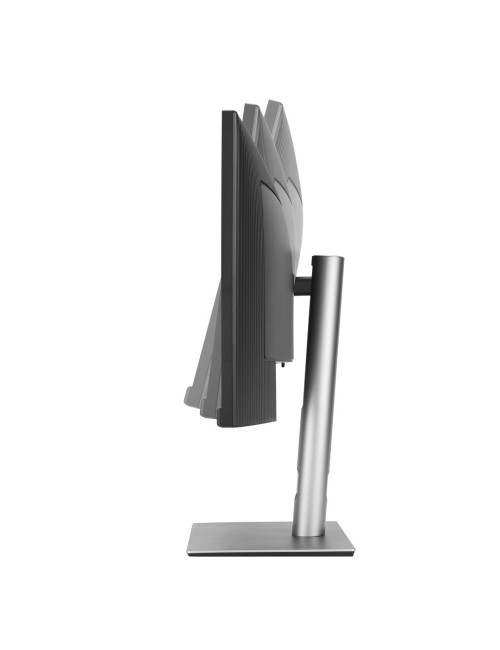

- Tilt adjustment
- Yes
- Height adjustment
- YES
- Cable lock slot
- Yes
- Viewable size, horizontal
- 80 cm
- Viewable size, vertical
- 33.5 cm
- USB hub version
- 3.2 Gen 1 (3.1 Gen 1)
- Number of upstream ports
- 1
- USB Type-A downstream ports quantity
- 2
- RMS rated power
- 4 W
- NVIDIA G-SYNC
- No
- Swivel angle range
- 15 - -15°
- Width (with stand)
- 817.2 mm
- Depth (with stand)
- 240 mm
- Height (with stand)
- 569.2 mm
- Panel type
- IPS
- Display surface
- Matt
- Maximum refresh rate
- 60 Hz
- HDMI version
- 2.0
- DisplayPort version
- 1.4
- Number of speakers
- 2
- HDMI
- Yes
- Touchscreen
- No
- Display number of colours
- 1.073 billion colours
- Pixel pitch
- 0.2325 x 0.2325 mm
- Ethernet LAN (RJ-45) ports
- 1
- USB Type-C downstream ports quantity
- 1
- USB upstream port type
- USB Type-C
- Ethernet LAN
- Yes
- Headphone outputs
- 1
- AC input voltage
- 100 - 240 V
- Cable lock slot type
- Kensington
- Power consumption (PowerSave)
- 0.5 W
- AC input frequency
- 50/60 Hz
- Digital horizontal frequency
- 15 - 135 kHz
- Stand included
- Yes
- Wall mountable
- Yes

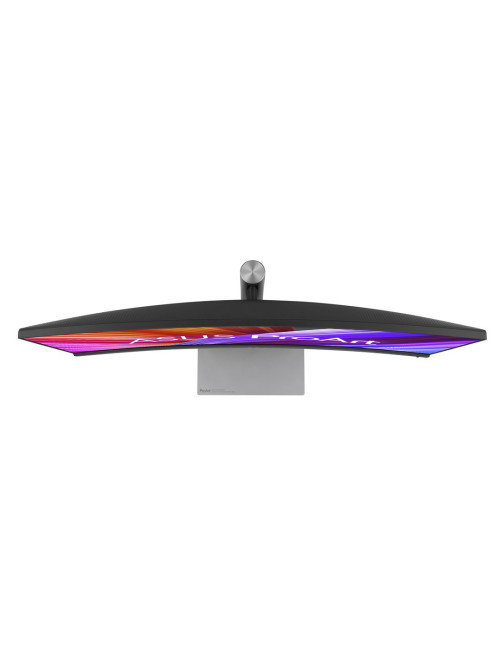

- Screen shape
- Curved
- Built-in USB hub
- Yes
- Feet colour
- Black
- Product colour
- Black
- Market positioning
- Graphics design
- Energy consumption (SDR) per 1000 hours
- 26 kWh
- Energy efficiency class (SDR)
- E
- Width (without stand)
- 817.2 mm
- Weight (with stand)
- 10.8 kg
- Height (without stand)
- 369.7 mm
- Depth (without stand)
- 91.7 mm
- Flicker-free technology
- Yes
- AMD FreeSync
- No
- Low Blue Light technology
- Yes
- Display resolution
- 3440 x 1440 pixels
- Display brightness (typical)
- 300 cd/m²
- Digital vertical frequency
- 48 - 60 Hz
- Tilt angle range
- 23 - -5°
- Panel mounting interface
- 100 x 100 mm
- Sustainability certificates
- ENERGY STAR
- Weight (without stand)
- 7.8 kg
- sRGB coverage (typical)
- 100%
- High Dynamic Range (HDR) supported
- Yes
- Energy efficiency scale
- A to G
- Screen curvature rating
- 3800R
- Energy efficiency class (HDR)
- G
- Energy consumption (HDR) per 1000 hours
- 44 kWh
- High Dynamic Range (HDR) technology
- High Dynamic Range 10 (HDR10)
- HDCP version
- 2.2
- VESA Adaptive Sync support
- Yes
- Number of USB Type-C upstream ports quantity
- 1
- USB Type-C DisplayPort Alternate Mode
- Yes
- USB Power Delivery up to
- 96 W
- Sustainability compliance
- Yes
- European Product Registry for Energy Labelling (EPREL) code
- 1583863
- USB Power Delivery (USB PD)
- Yes
- Adjustable height (max)
- 13 cm
