Product Details
Data sheet
- Plug and Play
- Yes
- Package weight
- 13.4 kg
- Cables included
- USB Type-C to USB Type-C
- Storage relative humidity (H-H)
- 5 - 90%
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 20 - 80%
- Storage temperature (T-T)
- -20 - 60 °C
- LED indicators
- Yes
- Headphone out
- No
- Power supply type
- Internal
- Quick start guide
- Yes
- HDMI ports quantity
- 1
- DisplayPorts quantity
- 1
- Display technology
- LCD
- Wi-Fi
- No
- Display diagonal
- 80 cm (31.5")
- Backlight type
- LED
- Built-in camera
- No
- Power consumption (max)
- 180 W
- Power consumption (typical)
- 30.6 W
- Maximum resolution
- 3840 x 2160 pixels
- HDCP
- Yes
- Response time
- 8 ms
- HD type
- 4K Ultra HD
- Contrast ratio (typical)
- 1000:1
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Native aspect ratio
- 16:9
- Built-in speaker(s)
- No
- VESA mounting
- Yes
- Swivelling
- Yes
- Tilt adjustment
- Yes

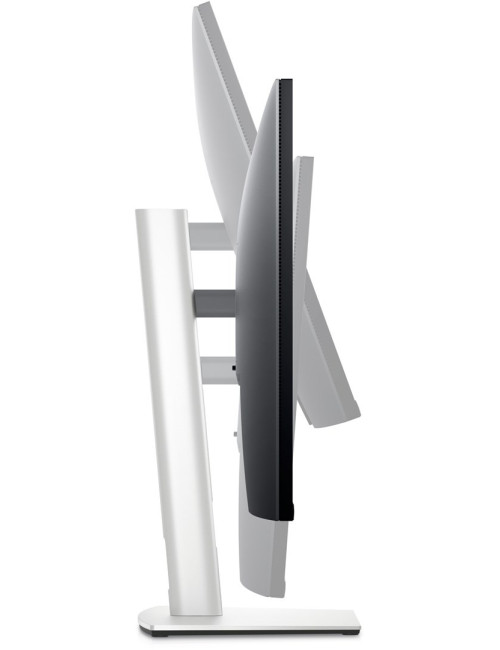

- Height adjustment
- YES
- Cable lock slot
- Yes
- Horizontal scan range
- 30 - 140 kHz
- Vertical scan range
- 24 - 75 Hz
- Viewable size, horizontal
- 69.7 cm
- Viewable size, vertical
- 39.2 cm
- Number of upstream ports
- 1
- USB Type-A downstream ports quantity
- 4
- NVIDIA G-SYNC
- No

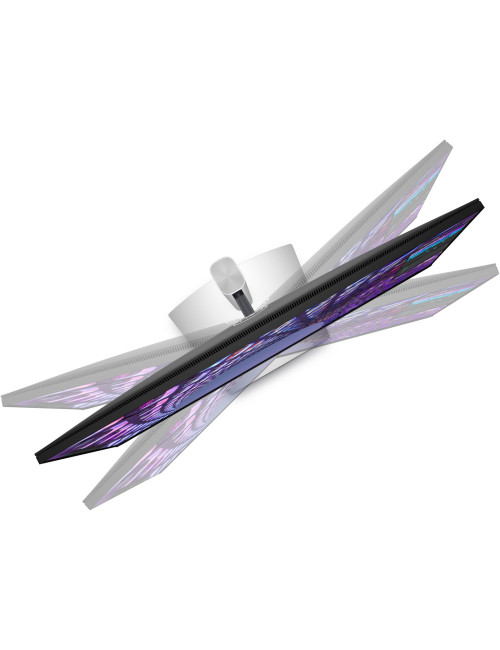

- Swivel angle range
- -30 - 30°
- Pivot
- YES
- Pivot angle
- -90 - 90°
- Power consumption (standby)
- 0.3 W
- Width (with stand)
- 712.4 mm
- Depth (with stand)
- 233.2 mm
- Height (with stand)
- 468.7 mm
- Panel type
- IPS
- Maximum refresh rate
- 60 Hz
- HDMI version
- 2.0
- DisplayPort version
- 1.4
- HDMI
- Yes
- RJ-45 ports quantity
- 1
- Touchscreen
- No
- Display number of colours
- 1.07 billion colours
- Power consumption (off)
- 0.3 W
- Pixel pitch
- 0.18159 x 0.18159 mm
- Pixel density
- 139.87 ppi
- Display diagonal (metric)
- 80 cm
- Input current
- 2.3 A
- USB upstream port type
- USB Type-C
- AC (power) in
- Yes
- AC input voltage
- 100 - 240 V
- Cable lock slot type
- Kensington
- AC input frequency
- 50 - 60 Hz
- Operating altitude
- 0 - 5000 m
- On Screen Display (OSD)
- Yes
- Supported video modes
- 2160p
- Colour Gamut
- 99%
- Screen shape
- Flat
- Non-operating altitude
- 0 - 12192 m
- Feet colour
- Silver
- Heavy metals free
- Hg (mercury)
- Product colour
- Black
- Market positioning
- Business
- Detachable stand
- Yes
- Energy consumption (SDR) per 1000 hours
- 31 kWh
- Energy efficiency class (SDR)
- F
- Width (without stand)
- 712.4 mm
- Weight (with stand)
- 9.9 kg
- Height (without stand)
- 417.2 mm
- Depth (without stand)
- 56.2 mm
- Flicker-free technology
- Yes
- AMD FreeSync
- No
- Low Blue Light technology
- Yes
- Display resolution
- 3840 x 2160 pixels
- Display brightness (typical)
- 350 cd/m²
- Surface hardness
- 3H
- Tilt angle range
- -5 - 21°
- Panel mounting interface
- 100 x 100 mm
- Harmonized System (HS) code
- 85285210
- Sustainability certificates
- ENERGY STAR
- Weight (without stand)
- 5.28 kg
- Response time (fast)
- 5 ms
- High Dynamic Range (HDR) supported
- No
- Energy efficiency scale
- A to G
- Anti-glare screen
- Yes
- Energy efficiency class (HDR)
- Not available
- Display brightness (peak)
- 350 cd/m²
- Number of USB Type-C upstream ports quantity
- 1
- DisplayPort cable length
- 1.8 m
- Front bezel colour
- Black
- Bezel width (bottom)
- 1.74 cm
- Bezel width (side)
- 7.55 mm
- Bezel width (top)
- 7.57 mm
- Dell Display Manager (DDM) compatibility
- Yes
- Doesn't contain
- PVC/BFR
- USB Power Delivery up to
- 90 W
- Power management
- Yes
- USB cable length
- 1 m
- Dell ComfortView technology
- Yes
- PAIA version
- 1.3.1, 2022
- Colour gamut standard
- sRGB
- European Product Registry for Energy Labelling (EPREL) code
- 1126365
- Compliance certificates
- RoHS
- Carbon emissions, logistics (kg of CO2e)
- 66.5
- Carbon emissions, end-of-life (kg of CO2e)
- 7.8
- Total carbon footprint (kg of CO2e)
- 752
- Carbon emissions, manufacturing (kg of CO2e)
- 445.43
- Total carbon emissions, standard deviation (kg of CO2e)
- 188
- Carbon emissions, energy usage (kg of CO2e)
- 231
- USB Power Delivery (USB PD)
- Yes
- Adjustable height (max)
- 15 cm
