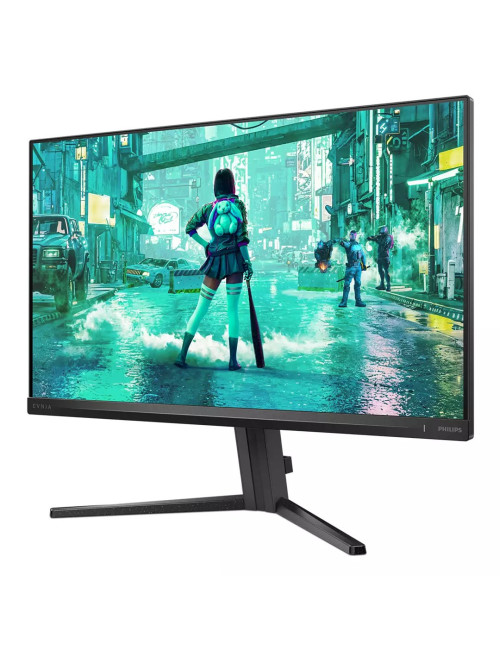

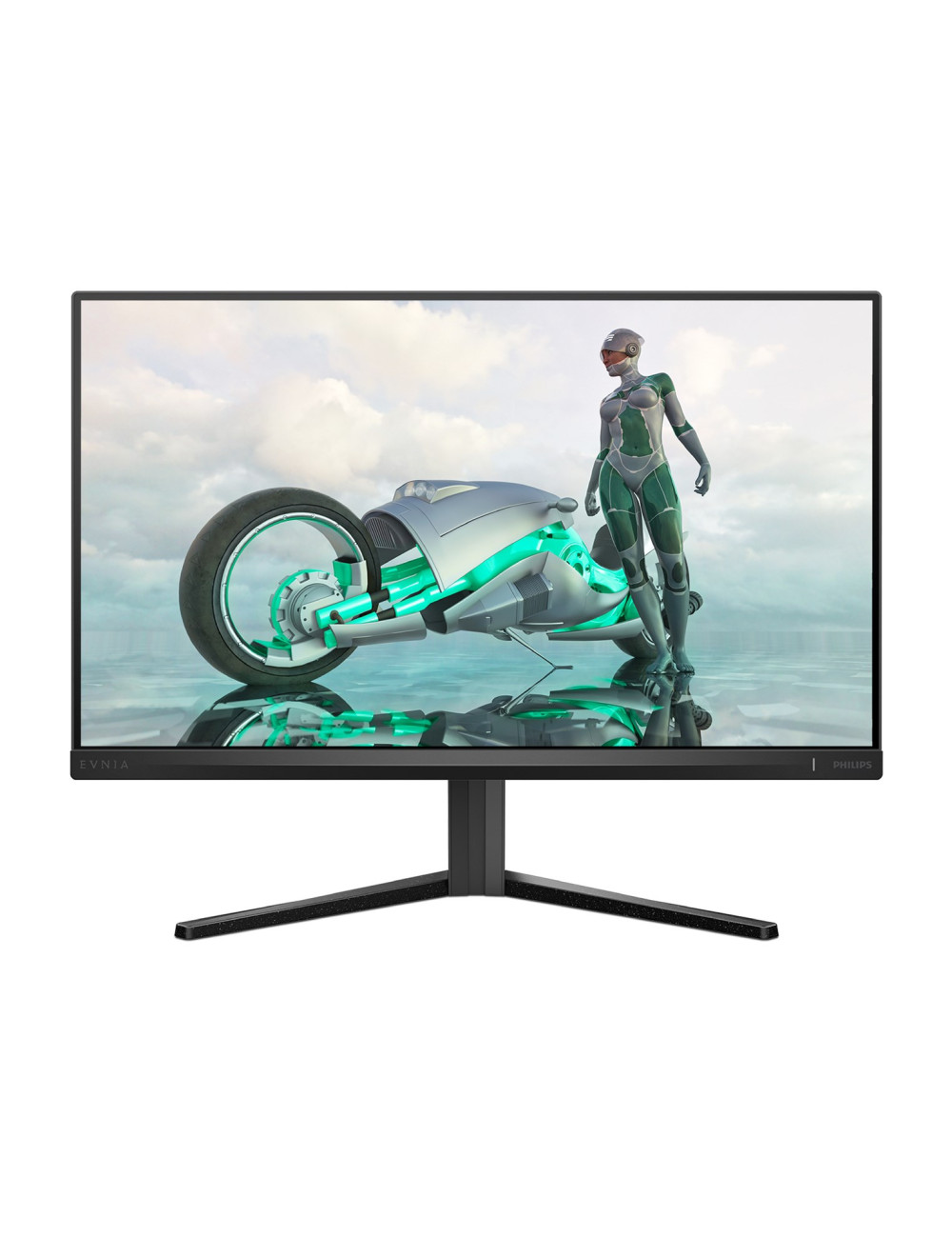

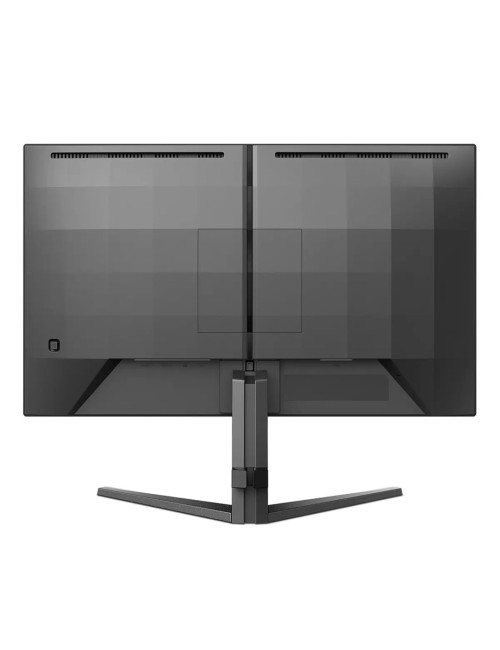

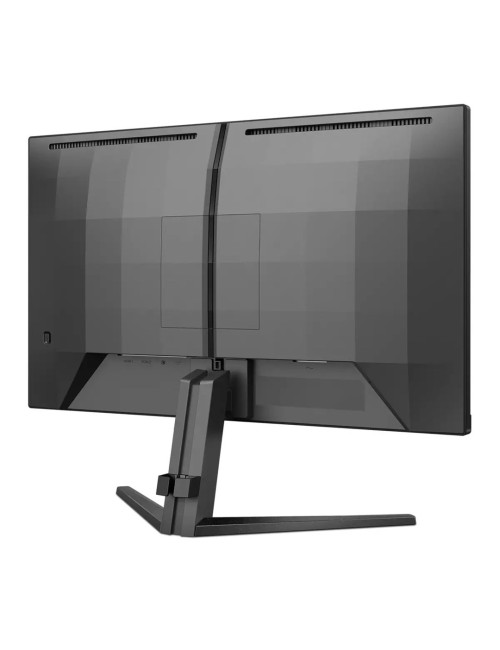

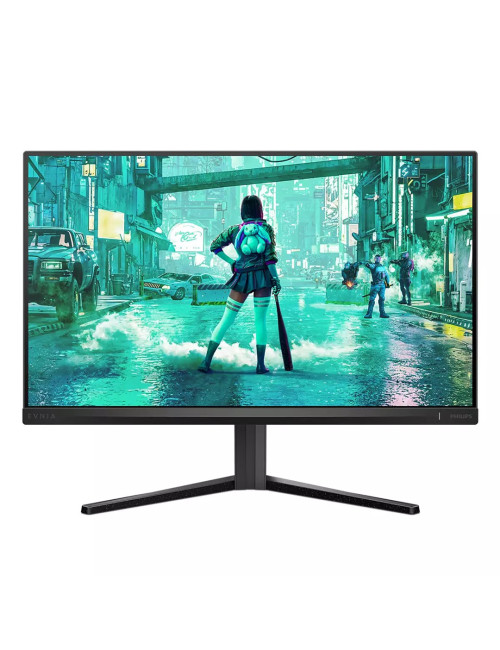

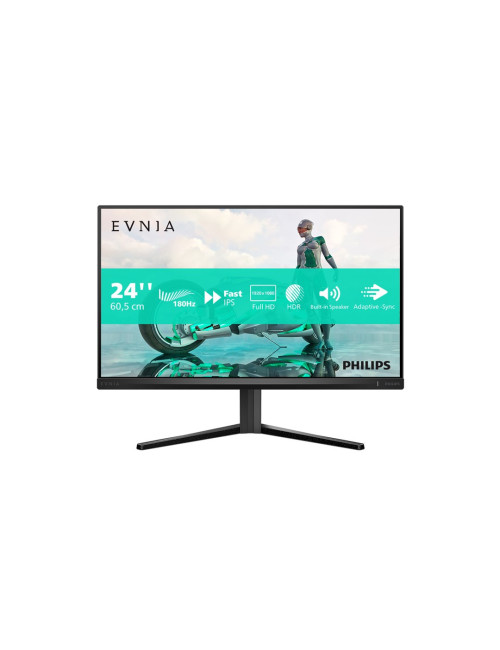

Product Details
Data sheet
- Plug and Play
- Yes
- Package depth
- 126 mm
- Package height
- 395 mm
- Package width
- 610 mm
- Package weight
- 5.51 kg
- Cables included
- HDMI
- Manual
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 20 - 80%
- Storage temperature (T-T)
- -20 - 60 °C
- LED indicators
- Operation
- Power supply type
- Internal
- Audio output
- Yes
- Mean time between failures (MTBF)
- 50000 h

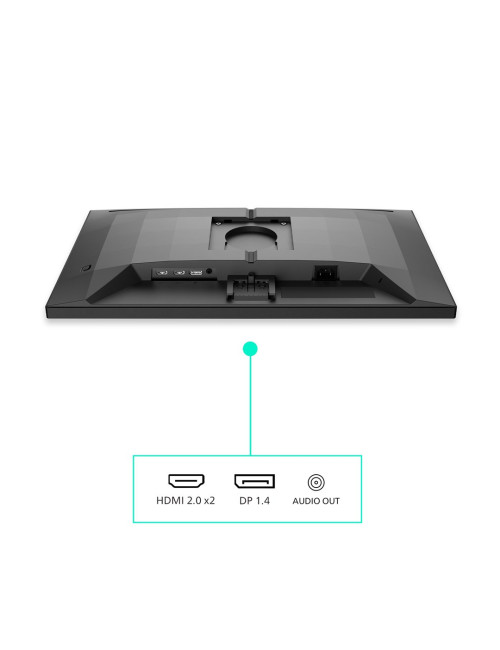

- HDMI ports quantity
- 2
- DisplayPorts quantity
- 1
- Display technology
- LCD
- Display diagonal
- 60.5 cm (23.8")
- Backlight type
- W-LED
- Built-in camera
- No
- LED backlight
- Yes
- Power consumption (typical)
- 18.7 W
- HDCP
- Yes
- Response time
- 1 ms
- HD type
- Full HD
- Contrast ratio (typical)
- 1000:1
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Native aspect ratio
- 16:9
- Built-in speaker(s)
- Yes
- VESA mounting
- Yes
- Tilt adjustment
- Yes
- Cable lock slot
- Yes
- Horizontal scan range
- 30 - 200 kHz
- Vertical scan range
- 48 - 180 Hz
- Viewable size, horizontal
- 52.7 cm
- Viewable size, vertical
- 29.6 cm
- DDC/CI
- Yes
- RMS rated power
- 4 W
- On Screen Display (OSD) languages
- Turkish
- Power consumption (standby)
- 0.5 W
- Width (with stand)
- 540 mm
- Depth (with stand)
- 195 mm
- Height (with stand)
- 433 mm
- Panel type
- IPS
- Maximum refresh rate
- 180 Hz
- HDMI version
- 2.0
- DisplayPort version
- 1.4
- Number of speakers
- 2
- HDMI
- Yes
- Touchscreen
- No
- Display sRGB
- Yes
- Display number of colours
- 16.7 million colours
- Power consumption (off)
- 0.3 W
- Pixel pitch
- 0.2745 x 0.2745 mm
- Pixel density
- 93 ppi
- Display diagonal (metric)
- 60.5 cm
- AC input voltage
- 100 - 240 V
- Cable lock slot type
- Kensington
- AC input frequency
- 50/60 Hz
- Operating altitude
- 0 - 3658 m
- On Screen Display (OSD)
- Yes
- Colour Gamut
- 93%
- Stand included
- Yes
- Screen shape
- Flat
- Built-in USB hub
- No
- Non-operating altitude
- 3658 - 12192 m
- Product colour
- Black
- Market positioning
- Gaming
- Width (without stand)
- 540 mm
- Weight (with stand)
- 3.38 kg
- Height (without stand)
- 325 mm
- Depth (without stand)
- 55 mm
- Flicker-free technology
- Yes
- Low Blue Light technology
- Yes
- Display resolution
- 1920 x 1080 pixels
- Display brightness (typical)
- 300 cd/m²
- Surface hardness
- 3H

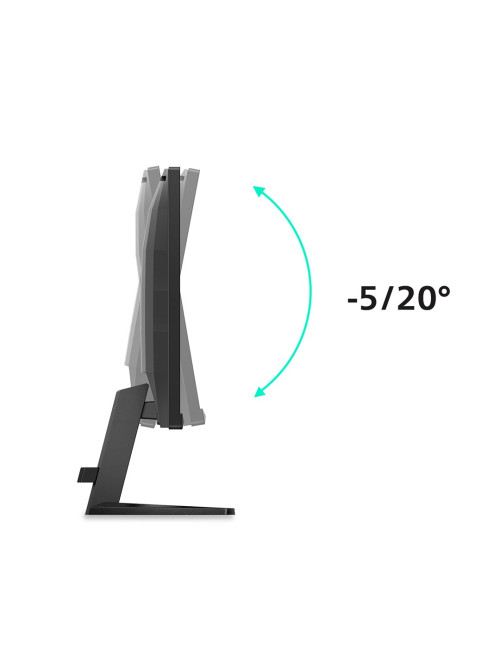

- Tilt angle range
- -5 - 20°
- Panel mounting interface
- 100 x 100 mm
- Weight (without stand)
- 2.77 kg
- Response time (fast)
- 0.5 ms
- sRGB coverage (typical)
- 126%
- High Dynamic Range (HDR) supported
- Yes
- Anti-glare screen
- Yes
- Dynamic contrast ratio marketing name
- Mega Infinity DCR
- High Dynamic Range (HDR) technology
- High Dynamic Range 10 (HDR10)
- NTSC coverage (typical)
- 113%
- HDCP version
- 1.4/2.2
- Adobe RGB coverage
- 110%
- Recyclable packaging material
- 100%
- Exterior finish type
- Textured
- Component video sync
- Separate sync
- EasyRead mode
- Yes
- Low input lag
- Yes
- Haze rate
- 25%
- Regulatory Approvals
- CB, TUV/ISO 9241-307, TUV-BAUART, EAC, BSMI, CE marking, UKCA, EMV, FCC, ICES-003, MEPS, PSB, E-standby, KC
- LowBlue mode
- Yes
- Picture enhancement
- SmartImage game
- SmartResponse
- 1 ms
- Sustainability compliance
- Yes
- Colour name
- Charcoal
- Post-consumer recycled plastic
- 85%
- Colour gamut standard
- DCI-P3
- Compliance certificates
- RoHS
- Response time measurement type
- GTG (Gray to Gray)
- Warnings
- Place the monitor on a flat and stable surface to avoid tipping and damage.
