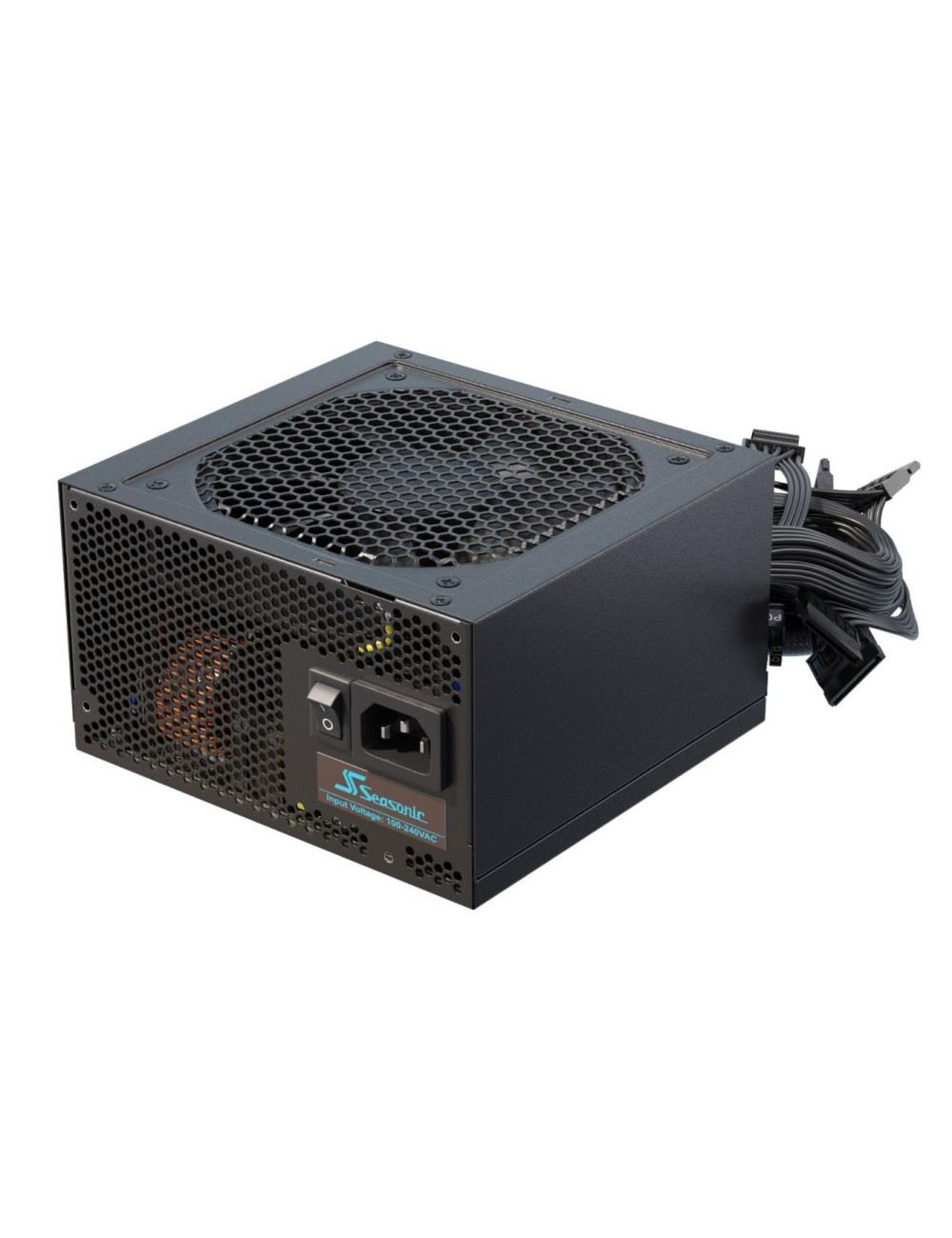

Power Supply|SEASONIC|ATX|PC|100 - 240 V|750 W|G12GC-750
    SEASONIC

    Power Supply|SEASONIC|ATX|PC|100 - 240 V|750 W|G12GC-750

    €84.70
    Tax included
    750 W | 100 - 240 V | 80 PLUS certification 80 PLUS Gold | Supported motherboard form factors ATX | PC | ATX | Fan diameter 120 mm
    Quantity

    Add to favorites Add to compare

    Product Details

    SEASONIC
    G12 GC-750
    100 Items

    Data sheet

    Garantija
    60
    Category Code
    PSU
    Unit Box Height
    0.185
    Unit Box Length
    0.275
    Unit Box Width
    0.12
    Units per Shipping Box
    5
    Unit Calculated Weight
    2.68 kg
    Unit Calculated Volume
    0.007812 cubm
    Logistics data (Harmonized System (HS) code)
    84733020
    Weight & dimensions (Width)
    150 mm
    Weight & dimensions (Depth)
    140 mm
    Weight & dimensions (Height)
    86 mm
    Design (Product colour)
    Black
    Power (AC input voltage)
    100 - 240 V
    Certificates (Certification)
    Energy Star, RoHS, WEEE, ErP Lot 6, REACH
    Operational conditions (Operating temperature (T-T))
    0 - 50 C
    Power (Input current)
    10 A
    Design (Fan diameter)
    120 mm
    Power (Combined power (+12V))
    744 W
    Power (Combined power (+3.3V))
    100 W
    Power (Combined power (+5V))
    100 W
    Power (Combined power (+5Vsb))
    12.5 W
    Power (Combined power (-12V))
    3.6 W
    Power (Max output current (+12V))
    62 A
    Power (Max output current (+3.3V))
    15 A
    Power (Max output current (+5V))
    15 A
    Power (Max output current (+5Vsb))
    2.5 A
    Power (Max output current (-12V))
    0.3 A
    Power (Total power)
    750 W
    Ports & interfaces (Cabling type)
    Non-Modular
    Ports & interfaces (Motherboard power connector)
    20+4 pin ATX
    Ports & interfaces (Number of SATA power connectors)
    6
    Ports & interfaces (PCI Express power connectors (8-pin))
    2
    Ports & interfaces (Peripheral (Molex) power cable length)
    690 mm
    Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
    3
    Ports & interfaces (SATA power cable length)
    690 mm
    Performance (80 PLUS certification)
    80 PLUS Gold
    Performance (Mean time between failures (MTBF))
    100000 h
    Performance (Power supply unit (PSU) form factor)
    ATX
    Performance (Purpose)
    PC
    Performance (Supported motherboard form factors)
    ATX
    Ports & interfaces (PCI Express power cable length)
    700 mm
    Performance (Bearing technology)
    Sleeve
    Performance (Silent mode)
    Yes
    Safety regulation & standards (Safety)
    cTUVus, TUV, CB, CCC, BSMI, CE, FCC
    Power (Power Factor Correction (PFC) type)
    Active
    Ports & interfaces (PCI Express connector)
    Yes
    Ports & interfaces (PCI Express power connectors (6-pin))
    2
