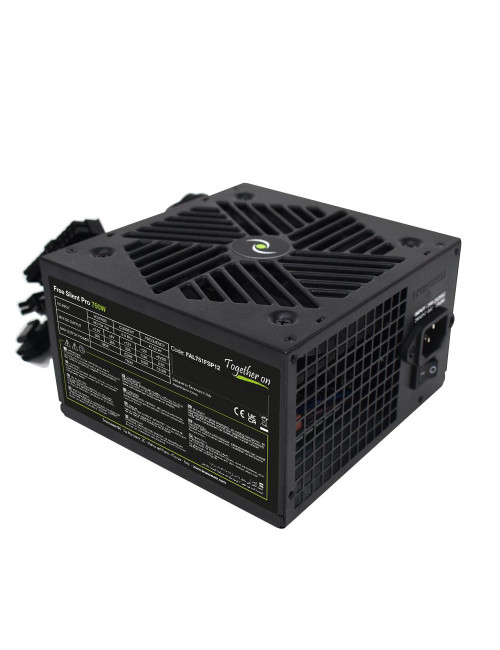

Power Supply|TECNOWARE|ATX|PC|180 - 264 V|750 W|FAL751FSP12
    TECNOWARE

    Power Supply|TECNOWARE|ATX|PC|180 - 264 V|750 W|FAL751FSP12

    €45.13
    Tax included
    750 W | 180 - 264 V | Efficiency 85 % | PC | ATX | Fan diameter 120 mm | Weight 1 kg
    Quantity

    Add to favorites Add to compare

    Internal power supply for personal computer, 750W power, input voltage 230 Vac, 50/60 Hz, conforms to ATX 12V v.2.31 specifications, main switch, surge protection, overload protection, short circuit protection, high MTBF, high reliability, quiet operation, 12 cm silent fan, temperature control of the fan speed, Flat type connection cables from 500mm to 800mm, 1 x 20+4-pin connector, 1 x 12V 4+4-pin connector, 2 x 6+2 PCI-E connector, 2 x molex connectors, 4 x Sata connector, dimensions 150x140x86 mm, weight 1.0 Kg, black color, CE certification, Rohs.

    • Internal Power Supply for Computers
    • High Efficiency (>85%) and High Operation Noise
    • Active PFC >0.9
    • Dimensions: 140x86x150 mm (WxHxD)
    • Input voltage 230 Vac 50Hz
    • Temperature control of the fan speed
    • Flat connection cables from 500mm to 800mm
    • Surge protection
    • Overload protection
    • Short circuit protection

    Product Details

    TECNOWARE
    FAL751FSP12
    50 Items

    Data sheet

    Garantija
    24
    Category Code
    PSU
    Vendor Homepage
    https://www.tecnoware.com/en-US/Dettaglio/Articolo/850
    Units per Shipping Box
    1
    Unit Calculated Weight
    2.2 kg
    Unit Calculated Volume
    0.0045 cubm
    CnCode
    85044095
    Summary
    Tecnoware FAL751FSP12. Total power: 750 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diam
    Weight & dimensions (Weight)
    1000 g
    Weight & dimensions (Width)
    150 mm
    Weight & dimensions (Depth)
    140 mm
    Weight & dimensions (Height)
    86 mm
    Design (Product colour)
    Black
    Power (AC input frequency)
    47 - 63 Hz
    Power (AC input voltage)
    180 - 264 V
    Operational conditions (Operating temperature (T-T))
    0 - 40 C
    Operational conditions (Storage temperature (T-T))
    -15 - 40 C
    Design (Cooling type)
    Active
    Design (Number of fans)
    1 fan(s)
    Design (Fan diameter)
    120 mm
    Power (Max output current (+12V))
    52 A
    Power (Max output current (+3.3V))
    26 A
    Power (Max output current (+5V))
    26 A
    Power (Max output current (+5Vsb))
    2.5 A
    Power (Max output current (-12V))
    0.8 A
    Power (Power protection features)
    Overload/Short circuit/Surge protection
    Power (Total power)
    750 W
    Ports & interfaces (Motherboard power connector)
    24-pin ATX
    Ports & interfaces (Number of SATA power connectors)
    4
    Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
    2
    Performance (80 PLUS certification)
    No
    Performance (Power supply unit (PSU) form factor)
    ATX
    Performance (Purpose)
    PC
    Design (On/off switch)
    Yes
    Power (Efficiency)
    85 %
    Ports & interfaces (CPU power connector (4+4 pin))
    Yes
    Ports & interfaces (PCI Express power connectors (6+2 pin))
    2
    Power (Power Factor Correction (PFC) type)
    Active
    Performance (ATX version)
    2.31
