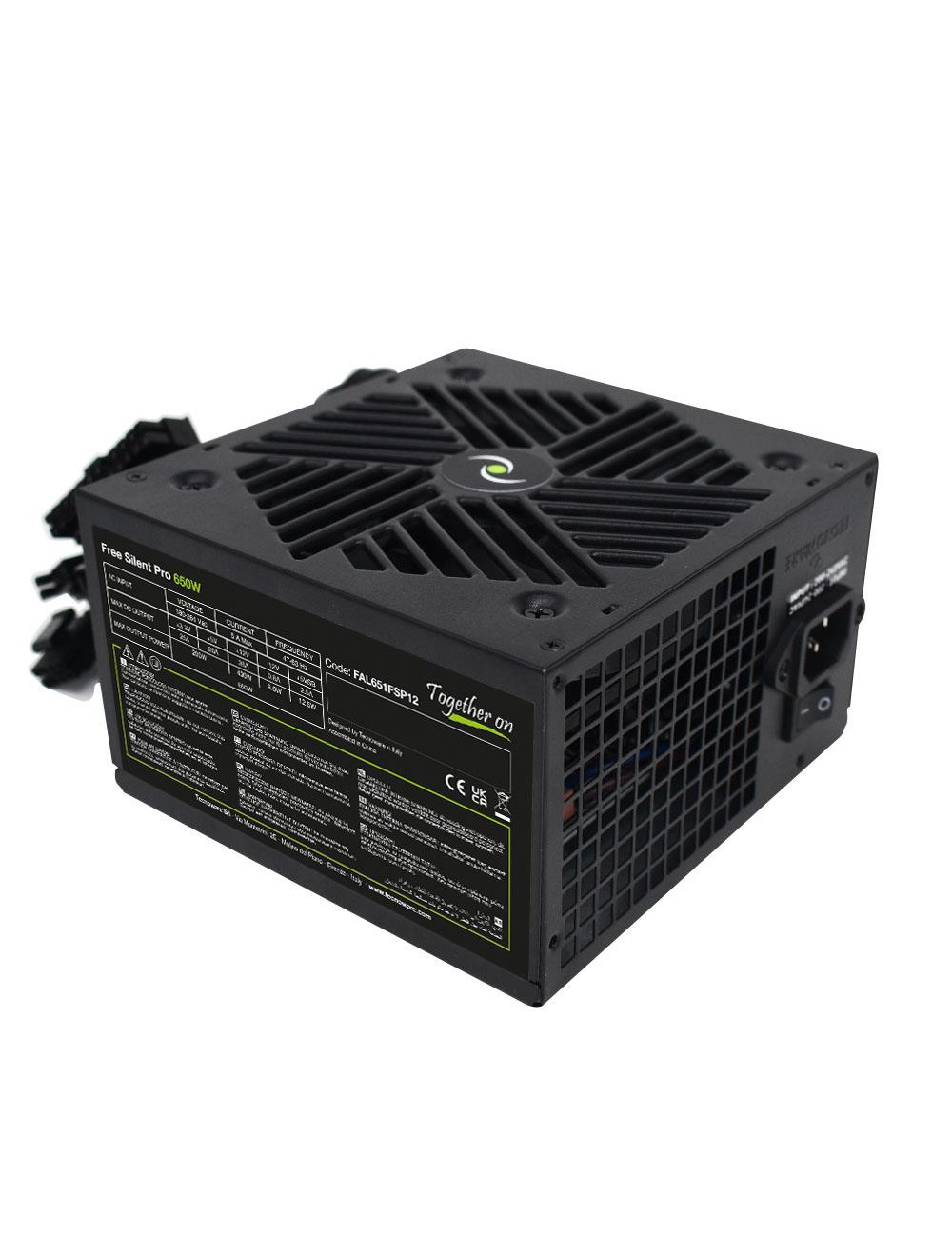

Power Supply|TECNOWARE|ATX|PC|180 - 264 V|650 W|FAL651FSP12
    TECNOWARE

    Power Supply|TECNOWARE|ATX|PC|180 - 264 V|650 W|FAL651FSP12

    €37.30
    Tax included
    650 W | 180 - 264 V | Efficiency 85 % | PC | ATX | Fan diameter 120 mm | Weight 1 kg
    Quantity

    Add to favorites Add to compare

    Internal power supply for personal computer, power 650W, input voltage 230 Vac, 50/60 Hz, conforms to ATX 12V v.2.31 specifications, main switch, surge protection, overload protection, short circuit protection, high MTBF, high reliability, quiet operation, 12 cm silent fan, temperature control of fan speed, Flat type connection cables from 500mm to 800mm, 1 x 20+4-pin connector, 1 x 12V 4+4-pin connector, 1 x 6+2 PCI-E connector, 2 x Molex connectors, 4 x Sata connector, dimensions 150x140x86 mm, weight 1.0 Kg, black color, CE certification, RoHS.

    • Internal Power Supply for Computers
    • High Efficiency (>85%) and High Operation Noise
    • Active PFC >0.9
    • Dimensions: 140x86x150 mm (WxHxD)
    • Input voltage 230 Vac 50Hz
    • Temperature control of the fan speed
    • Flat connection cables from 500mm to 800mm
    • Surge protection
    • Overload protection
    • Short circuit protection

    Product Details

    TECNOWARE
    FAL651FSP12
    50 Items

    Data sheet

    Garantija
    24
    Category Code
    PSU
    Vendor Homepage
    https://www.tecnoware.com/en-US/Dettaglio/Articolo/849
    Units per Shipping Box
    1
    Unit Calculated Weight
    2 kg
    Unit Calculated Volume
    0.004 cubm
    CnCode
    85044095
    Summary
    Tecnoware FAL651FSP12. Total power: 650 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diam
    Weight & dimensions (Weight)
    1000 g
    Weight & dimensions (Width)
    150 mm
    Weight & dimensions (Depth)
    140 mm
    Weight & dimensions (Height)
    86 mm
    Design (Product colour)
    Black
    Power (AC input frequency)
    47 - 63 Hz
    Power (AC input voltage)
    180 - 264 V
    Operational conditions (Operating temperature (T-T))
    0 - 40 C
    Operational conditions (Storage temperature (T-T))
    -15 - 40 C
    Design (Cooling type)
    Active
    Design (Number of fans)
    1 fan(s)
    Design (Fan diameter)
    120 mm
    Power (Max output current (+12V))
    26 A
    Power (Max output current (+3.3V))
    25 A
    Power (Max output current (+5V))
    26 A
    Power (Max output current (+5Vsb))
    2.5 A
    Power (Max output current (-12V))
    0.8 A
    Power (Power protection features)
    Overload/Short circuit/Surge protection
    Power (Total power)
    650 W
    Ports & interfaces (Motherboard power connector)
    24-pin ATX
    Ports & interfaces (Number of SATA power connectors)
    4
    Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
    2
    Performance (80 PLUS certification)
    No
    Performance (Power supply unit (PSU) form factor)
    ATX
    Performance (Purpose)
    PC
    Design (On/off switch)
    Yes
    Power (Efficiency)
    85 %
    Ports & interfaces (CPU power connector (4+4 pin))
    Yes
    Ports & interfaces (PCI Express power connectors (6+2 pin))
    1
    Power (Power Factor Correction (PFC) type)
    Active
    Performance (ATX version)
    2.31

    Quick Compare

    Product
    		 Power Supply|TECNOWARE|500 Watts|MTBF 100000 hours|FAL506FS12B Power Supply|TECNOWARE|500 Watts|MTBF 100000 hours|FAL506FS12B Kioxia EXCERIA 2.5" 480 GB Serial ATA III TLC SSD CASE PSU ATX2.3 350W/XN050 XILENCE CASE PSU ATX2.3 350W/XN050 XILENCE Power Supply|TECNOWARE|FAL551FSP12|ATX 2.01|550 Watts|FAL551FSP12 Power Supply|TECNOWARE|FAL551FSP12|ATX 2.01|550 Watts|FAL551FSP12
    Availability
    Price
    €25.50
    €26.62
    €30.19
    €31.48
    Description
    		 FREE SILENT 500W|ATX 2.1|500 Watts|Cooling System 12cm fan|MTBF 100000 hours ATX 2.31|350 Watts|Cooling System 12cm fan|PFC Passive FAL551FSP12 | ATX 2.01 | 550 Watts | Cooling System 12cm fan | Colour Black
    Colour
    		 Black
    Garantija
    		 24 24 24
    Category Code
    		 PSU PSU PSU
    Unit Box Height
    		 0.098 0.1 0.1
    Unit Box Length
    		 0.2 0.23 0.2
    Unit Box Width
    		 0.155 0.165 0.16
    Unit Net Weight
    		 0.88 kg 1.2 kg
    Vendor Homepage
    		 https://www.tecnoware.com/en-US/Dettaglio/Articolo/299 www.xilence.de/en/products/power-supplies/redwing-series.html www.tecnoware.com/en-US/Dettaglio/Articolo/883
    Cooling System
    		 12cm fan 12cm fan 12cm fan
    Dimensions
    		 150x140x85 mm 140X86X150 mm
    PFC
    		 Passive
    PSU
    		 ATX 2.1 ATX 2.31 ATX 2.01
    PSU Output Power
    		 500 Watts 350 Watts 550 Watts
    Model name
    		 FREE SILENT 500W FAL551FSP12
    MTBF
    		 100000 hours
    CnCode (CnCode)
    		 85044095
    Units per Shipping Box
    		 1
    Product Net Weight
    		 0.8 kg
    Unit Calculated Weight
    		 1 kg
    Unit Calculated Volume
    		 0.0032 cubm
    CnCode
    		 85044095

    In the same category

    MSI MAG A650GL PSU 650W
    MSI

    MSI MAG A650GL PSU 650W

    €89.58
    The MPG gaming power supply can support the NVIDIA GeForce RTX and AMD GPUs. Prepared for the highest of requirements, the MPG power supply's IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
      MSI MAG A550BN 550W Power Supply
      MSI

      MSI MAG A550BN 550W Power Supply

      €57.23
      MAG A550BN provides players with a safe, reliable, and efficient entry-level power supply option. Its core features include 80 PLUS Bronze certification, DC to DC circuit design, 12V single rail, active PFC, and low-noise fan. The MAG A550BN will be one of the best choices for players who are just getting started with looking into DIY computers. After installation, gamers can immediately enjoy a reliable performance experience without additional settings.

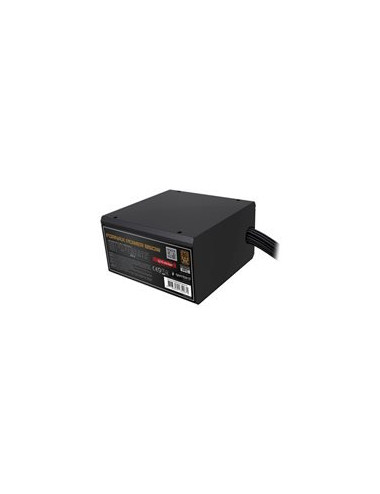

        GEMBIRD Power supply unit 850W active PF
