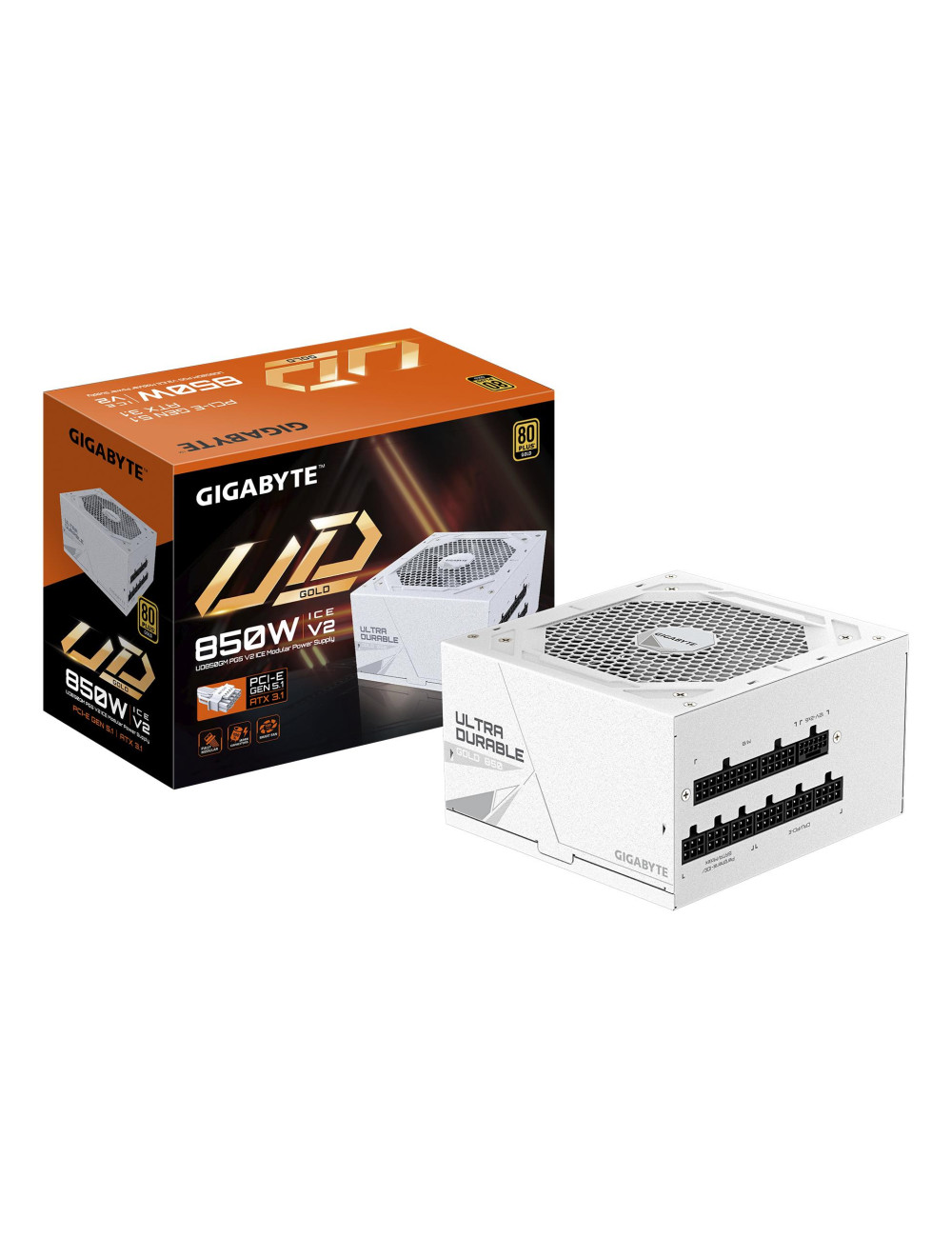

Power Supply|GIGABYTE|UD850GM PG5 ICE?|ATX|PC|100 - 240 V|850 W|GP-UD850GMPG5ICE
    Gigabyte

    Power Supply|GIGABYTE|UD850GM PG5 ICE?|ATX|PC|100 - 240 V|850 W|GP-UD850GMPG5ICE

    €101.13
    Tax included
    850 W | 100 - 240 V | Efficiency 90 % | 80 PLUS certification 80 PLUS Gold | PC | ATX | Fan diameter 120 mm | Weight 2.4 kg | Package type Box | UD850GM PG5 ICE​
    Quantity

    Add to favorites Add to compare

    Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

    • Intel ATX 3.1 and PCIe Gen 5.1 ready
    • 80 PLUS Gold certified
    • Fully modular design
    • Powerful single +12V rail
    • Compact size
    • 100% Japanese capacitors
    • 120mm smart hydraulic bearing (HYB) fan
    • Optimized thermal solution
    • OVP/OPP/SCP/UVP/OCP/OTP protection

    Product Details

    GP-UD850GM PG5 ICE
    50 Items

    Data sheet

    Garantija
    36
    Category Code
    PSU
    Unit Box Height
    0.118
    Unit Box Length
    0.254
    Unit Box Width
    0.212
    Vendor Homepage
    https://www.gigabyte.com/Power-Supply/GP-UD850GM-PG5-ICE kf
    Model name
    UD850GM PG5 ICE
    Units per Shipping Box
    5
    Unit Calculated Weight
    2.62 kg
    Unit Calculated Volume
    0.007865 cubm
    CnCode
    85044095
    Summary
    GIGABYTE UD850GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, UK Plug. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin
    Weight & dimensions (Weight)
    2400 g
    Weight & dimensions (Width)
    150 mm
    Weight & dimensions (Depth)
    140 mm
    Weight & dimensions (Height)
    86 mm
    Packaging data (Package width)
    618 mm
    Packaging data (Package depth)
    269 mm
    Packaging data (Package height)
    211 mm
    Packaging data (Package weight)
    2560 g
    Design (Product colour)
    White
    Packaging data (Package type)
    Box
    Power (AC input frequency)
    50/60 Hz
    Power (AC input voltage)
    100 - 240 V
    Power (Input current)
    12 - 6.5 A
    Design (Cooling type)
    Active
    Design (Number of fans)
    1 fan(s)
    Design (Fan diameter)
    120 mm
    Power (Combined power (+12V))
    850 W
    Power (Combined power (+3.3V))
    105 W
    Power (Combined power (+5V))
    105 W
    Power (Combined power (+5Vsb))
    15 W
    Power (Combined power (-12V))
    3.6 W
    Power (Max output current (+12V))
    70.8 A
    Power (Max output current (+3.3V))
    20 A
    Power (Max output current (+5V))
    20 A
    Power (Max output current (+5Vsb))
    3 A
    Power (Max output current (-12V))
    0.3 A
    Power (Power protection features)
    Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
    Power (Total power)
    850 W
    Ports & interfaces (Cabling type)
    Fully-Modular
    Ports & interfaces (Motherboard power cable length)
    610 mm
    Ports & interfaces (Motherboard power connector)
    20+4 pin ATX
    Ports & interfaces (Number of SATA power connectors)
    8
    Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
    3
    Performance (80 PLUS certification)
    80 PLUS Gold
    Performance (Mean time between failures (MTBF))
    100000 h
    Performance (Power supply unit (PSU) form factor)
    ATX
    Performance (Purpose)
    PC
    Design (On/off switch)
    Yes
    Logistics data (Warranty period)
    10 year(s)
    Power (Efficiency)
    90 %
    Ports & interfaces (CPU power cable length)
    650 mm
    Ports & interfaces (CPU power connector (4+4 pin))
    Yes
    Ports & interfaces (PCI Express power cable length)
    600 mm
    Ports & interfaces (PCI Express power connectors (6+2 pin))
    4
    Performance (Bearing technology)
    HYB
    Power (Hold time)
    16 ms
    Power (Power factor)
    0.9
    Power (Power Factor Correction (PFC) type)
    Active
    Ports & interfaces (Floppy drive power connector)
    1
    Ports & interfaces (Number of EPS connectors)
    2
    Ports & interfaces (PCI Express connector)
    Yes
    Ports & interfaces (PCI Express power connectors (12+4 pin))
    1
    Ports & interfaces (PCI Express power connectors (12+4 pin) cable length)
    700 mm
    Performance (ATX version)
    3.1

    Quick Compare

    Product
    		 GIGABYTE GP-UD750GM PG5 V2 750W 80+ Gold GIGABYTE GP-UD750GM PG5 V2 750W 80+ Gold Power Supply|SEASONIC|ATX|PC|100 - 240 V|750 W|SRP-CGC751-A5A32SF Power Supply|SEASONIC|ATX|PC|100 - 240 V|750 W|SRP-CGC751-A5A32SF GIGABYTE POWER SUPPLY 850W 80+ Gold GIGABYTE POWER SUPPLY 850W 80+ Gold Power Supply|BE QUIET|ATX|PC|200 - 240 V|750 W|BP012EU Power Supply|BE QUIET|ATX|PC|200 - 240 V|750 W|BP012EU
    Availability
    Price
    €89.59
    €90.06
    €90.27
    €90.45
    Description
    		 The GIGABYTE UD750GM PG5 V2 is a reliable power supply, delivering 750 W to support high-performance systems. With compliance to ATX12V 3.1/EPS12V standards and an efficiency rating of 80 PLUS Gold, this power supply offers energy savings without compromising performance. Designed with fully modular cable management, it allows for easier installation and better airflow within the case. 750 W | 100 - 240 V | 80 PLUS certification 80 PLUS Gold | PC | ATX | Fan diameter 120 mm | Package type Box GIGABYTE POWER SUPPLY 850W 80+ Gold 750 W | 200 - 240 V | Efficiency 90 % | 80 PLUS certification 80 PLUS Bronze | PC | ATX | Noise level 33.4 dB | Fan diameter 120 mm | Weight 2.04 kg | Package type Box
    Dimensions (WxDxH)
    		 15 cm x 14 cm x 8.6 cm 15 cm x 14 cm x 8.6 cm
    Device type
    		 Power supply - active Power Factor Correction (PFC) - internal Power supply - active Power Factor Correction (PFC) - internal
    Input voltage
    		 AC 100-240 V AC 100-240 V
    Output voltage
    		 +3.3, +5, 12 V, +5Vsb V +3.3, +5, 12 V
    Output current
    		 +3.3V - 20 A +5V - 20 A +12V - 62.5 A -12V - 0.3 A +5VSB - 3 A +3.3V - 20 A +5V - 20 A +12V - 70.8 A -12V - 0.3 A +5VSB - 3 A
    Garantija
    		 84 24
    PRODUCT DESCRIPTION
    		 Gigabyte UD750GM PG5 V2 - power supply - 750 Watt Gigabyte P850GM - power supply - 850 Watt
    Category Code
    		 PSU PSU
    Unit Box Height
    		 0.185
    Unit Box Length
    		 0.115
    Unit Box Width
    		 0.24
    Vendor Homepage
    		 https://seasonic.com/core-gc-atx-3-1/ https://www.bequiet.com/en/download/products
    Cooling System
    		 120 mm fan 120 mm fan
    Model name
    		 CORE GC-750 ATX 3.1
    80 PLUS certification
    		 80 PLUS GOLD 80 PLUS GOLD
    Manufacturer Warranty
    		 5-year warranty
    Specification Compliance
    		 ATX12V 3.1/ EPS12V ATX12V 2.31
    Power Capacity
    		 750 Watt 850 Watt
    Output connectors
    		 1 x power 24 pin ATX with detachable 4 pin section 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 1 x 16 pin PCI Express power 4 x 8 pin PCI Express power with detachable 2 pin section 8 x 15 pin Serial ATA power 3 x 4 PIN internal power 1 x power 24 pin ATX with detachable 4 pin section 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 4 x 8 pin PCI Express power with detachable 2 pin section 8 x 15 pin Serial ATA power 3 x 4 PIN internal power 1 x 4 PIN mini-power connector
    Modular Cable Management
    		 Yes Yes
    Units per Shipping Box
    		 5 1
    Unit Calculated Weight
    		 2.61 kg 2.4 kg
    Unit Calculated Volume
    		 0.00672 cubm 0.005 cubm
    CnCode
    		 85044095
    Summary
    		 Seasonic CORE GC-750 ATX 3.1. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 600 mm. Purpose: PC, Power supply uni be quiet! System Power 11 750W. Total power: 750 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certificatio
    Weight & dimensions (Weight)
    		 2040 g
    Weight & dimensions (Width)
    		 150 mm 150 mm
    Weight & dimensions (Depth)
    		 140 mm 86 mm
    Weight & dimensions (Height)
    		 86 mm 140 mm
    Packaging data (Package width)
    		 195 mm
    Packaging data (Package depth)
    		 268 mm
    Packaging data (Package height)
    		 97 mm
    Packaging data (Package weight)
    		 2400 g
    Packaging content (Cables included)
    		 AC
    Design (Product colour)
    		 Black Black
    Packaging data (Package type)
    		 Box Box
    Power (AC input frequency)
    		 50/60 Hz 50 Hz
    Power (AC input voltage)
    		 100 - 240 V 200 - 240 V
    Certificates (Certification)
    		 CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA, Energy Star, RoHS, REACH, WEEE, ErP Lot 6
    Operational conditions (Operating relative humidity (H-H))
    		 15 - 65 %
    Operational conditions (Operating temperature (T-T))
    		 0 - 40 C
    Power (Input current)
    		 10 - 5 A 4 A
    Design (Cooling type)
    		 Active Active
    Design (Number of fans)
    		 1 fan(s) 1 fan(s)
    Design (Fan diameter)
    		 120 mm 120 mm
    Logistics data (Products per shipping (inner) case)
    		 6 pc(s)
    Certificates (Compliance certificates)
    		 BSMI/CB/CE/China Compulsory Certification (CCC)/cTUVus/EAC/REACH/RoHS/UKCA/WEEE CB/CE/RoHS/T V mark/UKCA/WEEE
    Power (Combined power (+12V))
    		 744 W 750 W
    Power (Combined power (+3.3V))
    		 100 W 120 W
    Power (Combined power (+5V))
    		 100 W 120 W
    Power (Combined power (+5Vsb))
    		 12.5 W 15 W
    Power (Combined power (-12V))
    		 3.6 W 3.6 W
    Power (Max output current (+12V))
    		 62 A
    Power (Max output current (+3.3V))
    		 20 A 20 A
    Power (Max output current (+5V))
    		 20 A 20 A
    Power (Max output current (+5Vsb))
    		 2.5 A 3 A
    Power (Max output current (-12V))
    		 0.3 A 0.3 A
    Power (Power protection features)
    		 Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush/Under voltage
    Power (Total power)
    		 750 W 750 W
    Ports & interfaces (Cabling type)
    		 Non-Modular Non-Modular
    Ports & interfaces (Motherboard power cable length)
    		 550 mm
    Ports & interfaces (Motherboard power connector)
    		 20+4 pin ATX 20+4 pin ATX
    Ports & interfaces (Number of SATA power connectors)
    		 2 6
    Ports & interfaces (Peripheral (Molex) power cable length)
    		 600 mm
    Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
    		 1 1
    Ports & interfaces (SATA power cable length)
    		 600 mm
    Performance (80 PLUS certification)
    		 80 PLUS Gold 80 PLUS Bronze
    Performance (Mean time between failures (MTBF))
    		 100000 h 100000 h
    Performance (Power supply unit (PSU) form factor)
    		 ATX ATX
    Performance (Purpose)
    		 PC PC
    Design (On/off switch)
    		 Yes Yes
    Power (Efficiency)
    		 90 %
    Ports & interfaces (CPU P4 connector (4-pin))
    		 1
    Ports & interfaces (CPU power cable length)
    		 600 mm
    Ports & interfaces (CPU power connector (4+4 pin))
    		 Yes Yes
    Ports & interfaces (EPS power connector (8-pin))
    		 Yes Yes
    Ports & interfaces (PCI Express power cable length)
    		 550 mm
    Ports & interfaces (PCI Express power connectors (6+2 pin))
    		 2 3
    Performance (Bearing technology)
    		 Ball bearing Rifle
    Performance (Noise level)
    		 33.4 dB
    Power (Hold time)
    		 17.34 ms
    Power (Power factor)
    		 0.98
    Ports & interfaces (PCI Express connector)
    		 Yes
    Performance (ATX version)
    		 3.1 3.1
    Ports & interfaces (ATX power connector (20+4 pin))
    		 Yes
    Power (Max output current (+12V1))
    		 62.5 A
    Power (Number of +12V rail(s))
    		 1
    Performance (EPS version)
    		 2.92
    Design (Fan speed)
    		 0 - 2100 RPM
    Certificates (Waste Electrical and Electronic Equipment (WEEE) compliance)
    		 Yes
    Technical details (Sustainability certificates)
    		 ENERGY STAR/ErP ENERGY STAR/ErP
    Logistics data (Shipping (inner) case gross weight)
    		 15600 g
    Logistics data (Shipping (inner) case height)
    		 218 mm
    Logistics data (Shipping (inner) case length)
    		 556 mm
    Logistics data (Shipping (inner) case width)
    		 311 mm
    Other features (Cable ties included)
    		 Yes
    Other features (Screws included)
    		 Yes
    Ports & interfaces (PCI Express power connectors (12-pin))
    		 1
