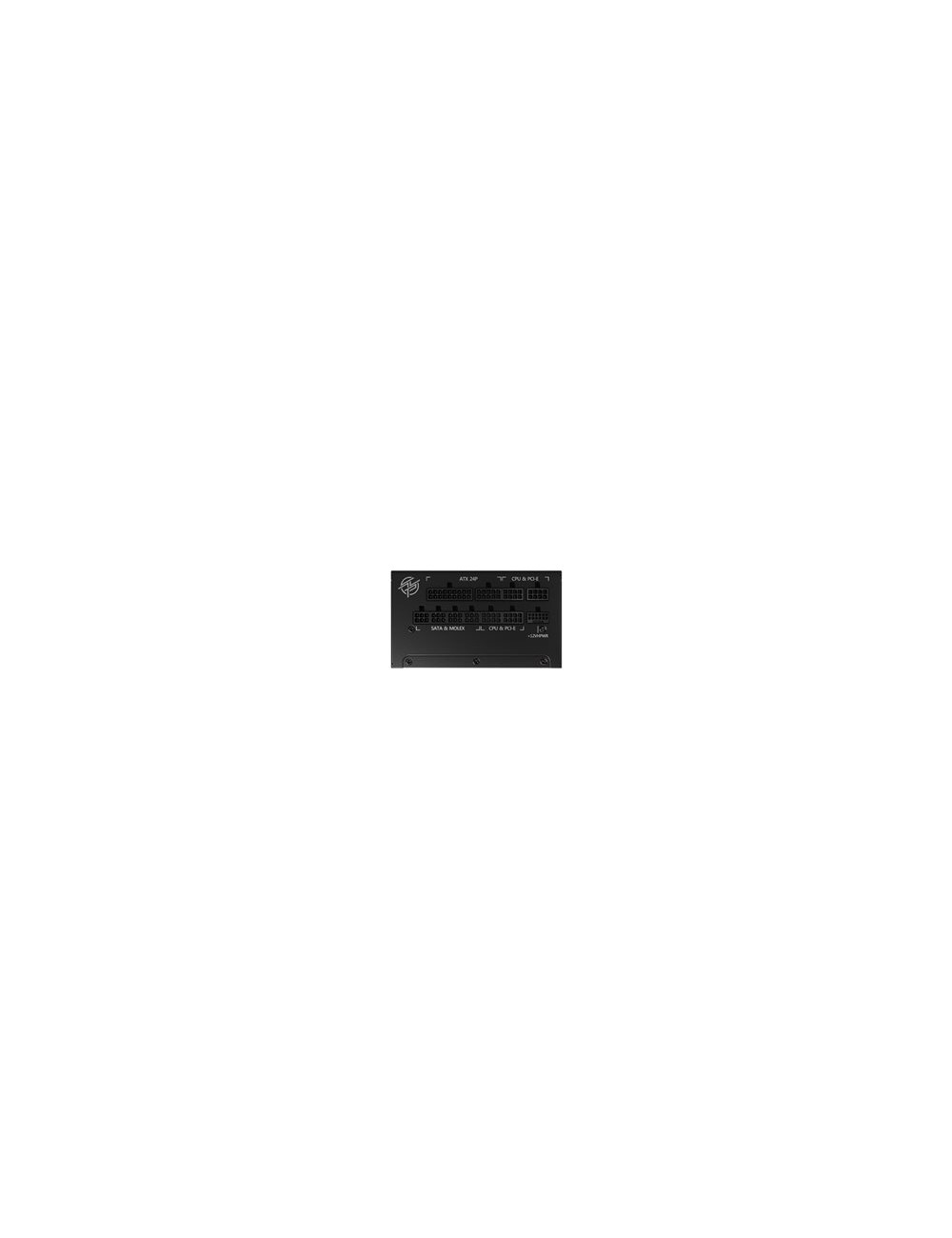

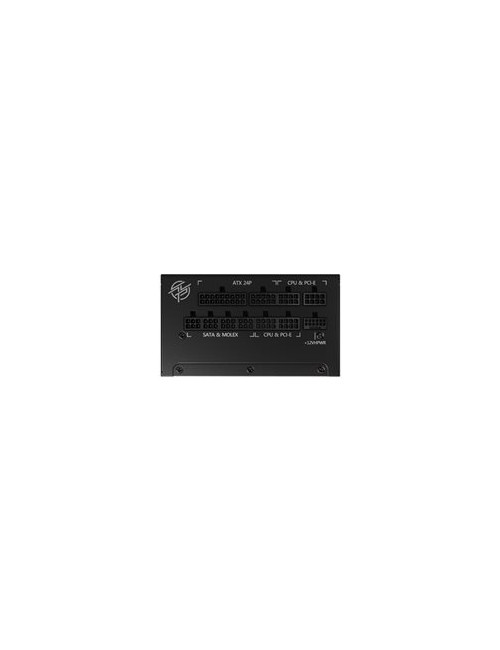

MSI MPG A850G PCIE5 850W PSU
    MSI

    MSI MPG A850G PCIE5 850W PSU

    €123.18
    Tax included
    The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
    Quantity

    Add to favorites Add to compare
    • Full modular design
    • 80 PLUS Gold certified for high efficiency
    • 100% Japanese 105°C capacitor
    • Active PFC design
    • Industrial-level protection with OVP, OCP, OPP, OTP, SCP, UVP
    • LLC Half Bridge Topology with DC-DC module design

    Product Details

    MPG A850G PCIE5
    16 Items

    Data sheet

    Dimensions (WxDxH)
    15 cm x 15 cm x 8.6 cm
    Weight
    3.24 kg
    Device type
    Power supply - active Power Factor Correction (PFC) - internal
    Input voltage
    AC 100-240 V
    Output voltage
    +3.3, +5, 12 V
    Output current
    +3.3V - 22 A +5V - 22 A -12V - 0.3 A +12V - 70.8 A +5VSB - 3 A
    PRODUCT DESCRIPTION
    MSI MPG A850G PCIE5 - power supply - 850 Watt
    Included Accessories
    Screws
    Cooling System
    135 mm fan
    80 PLUS certification
    80 PLUS GOLD
    Manufacturer Warranty
    10 years warranty
    Specification Compliance
    ATX12V / EPS12V
    Power Capacity
    850 Watt
    Output connectors
    1 x power 24 pin ATX 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 1 x 12+4 pin PCI Express 5.0 power 650 W 6 x 8 pin PCI Express power with detachable 2 pin section 8 x 15 pin Serial ATA power 4 x 4 PIN internal power 1 x 4 PIN internal pow
    Modular Cable Management
    Yes
