Gigabyte

Power Supply|GIGABYTE|GP-P550SS ICE|550 Watts|Efficiency 80 PLUS SILVER|PFC Active|MTBF 100000 hours|GP-P550SSICE

€45.66

Tax included

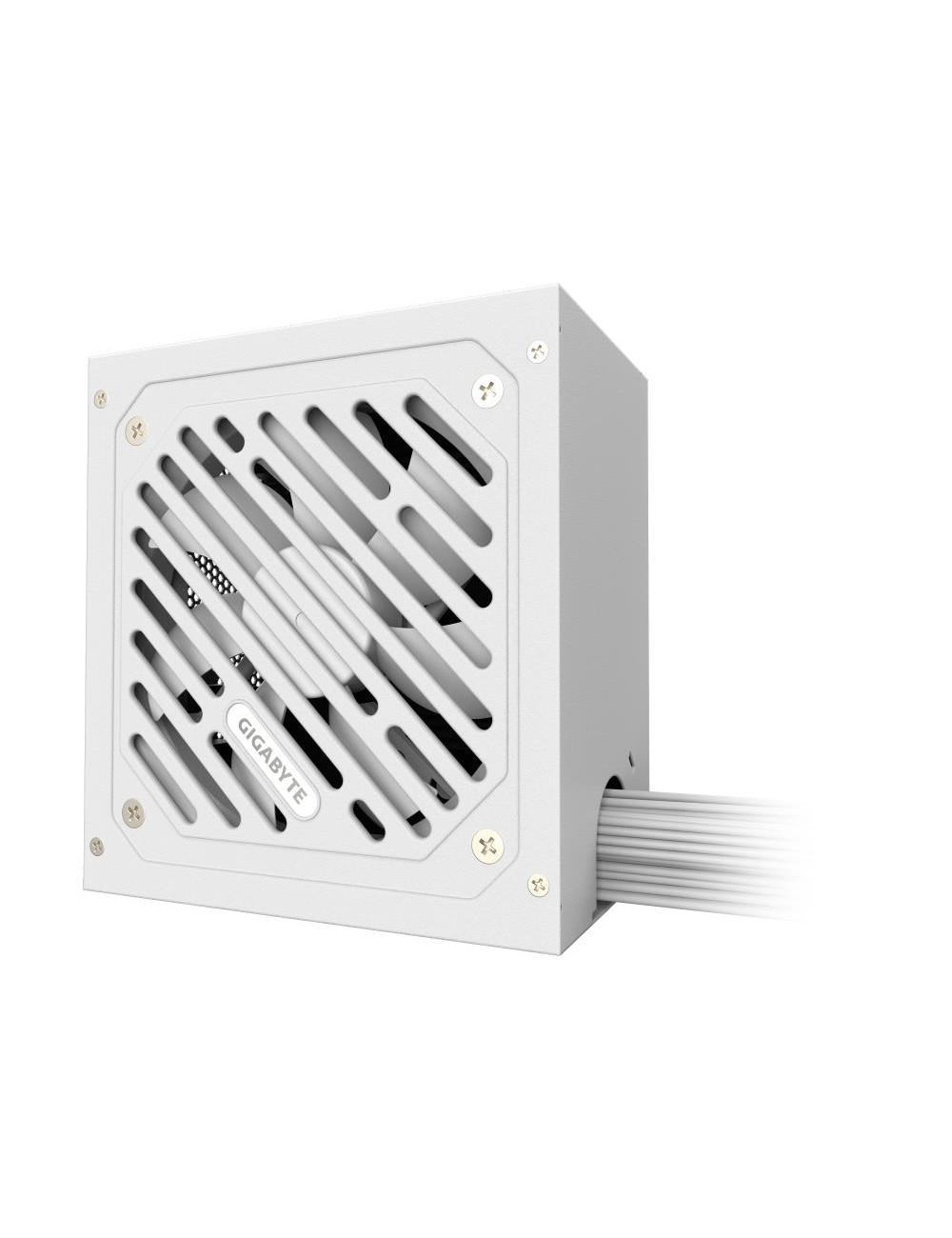

GIGABYTE P550SS ICE

+ Ice white aesthetics
+ 80 PLUS Silver certified
+ Support Intel ATX 3.0 standard
+ 120mm Fluid Dynamic Bearing (FDB) Fan
+ Flat cable design
+ Powerful single +12V rail
+ OVP/OPP/SCP/UVP/OCP/OTP protection

80 PLUS SILVER CERTIFIED
The 80 Plus Silver certification (230V EU) guarantees a 90% efficiency rate at a 50% load, resulting in reduced power wastage, diminished heat generation, and minimized fan noise.

Support Intel ATX 3.0 standard
The P550SS ICE can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.

120MM FLUID DYNAMIC BEARING(FDB) FAN
High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan will detect the current power usage and temperature, automatically adjust the fan speed to minimize the noise.

RELIABLE FLAT CABLE DESIGN
The utilization of flat cables minimizes clutter while enhancing the thermal performance of the chassis.

PROTECTION
To guarantee the stable operation of your entire computer system under any circumstances, we have incorporated a range of protective features including OCP, OTP, OVP, OPP, UVP, and SCP. Moreover, we have obtained safety certifications from various countries to ensure the consistent and secure functioning of your system.

Product Details

Reference GP-P550SS ICE

In stock 50 Items

Data sheet

Colour: White
Garantija: 36
Category Code: PSU
Unit Net Weight: 2 kg
Vendor Homepage: www.gigabyte.com/Power-Supply/GP-P550SS-ICE kf
Dimensions: 150 x 140 x 86 mm
PFC: Active
PSU: ATX 3.0
PSU Output Power: 550 Watts
Efficiency: 80 PLUS SILVER
Model name: GP-P550SS ICE
MTBF: 100000 hours
PSU features: For gaming
CnCode (CnCode): 85044095
