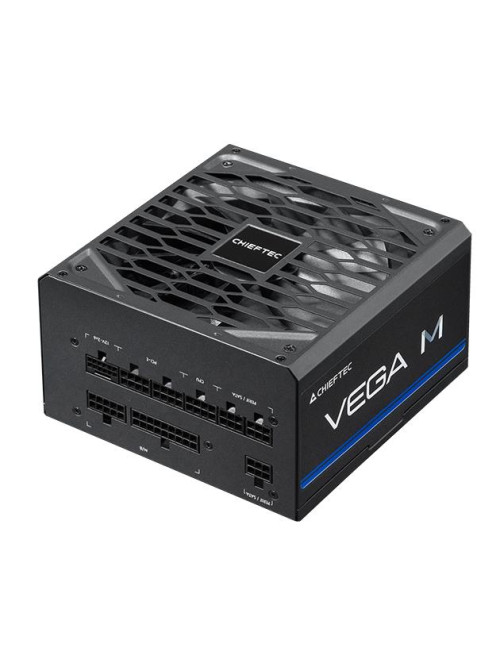

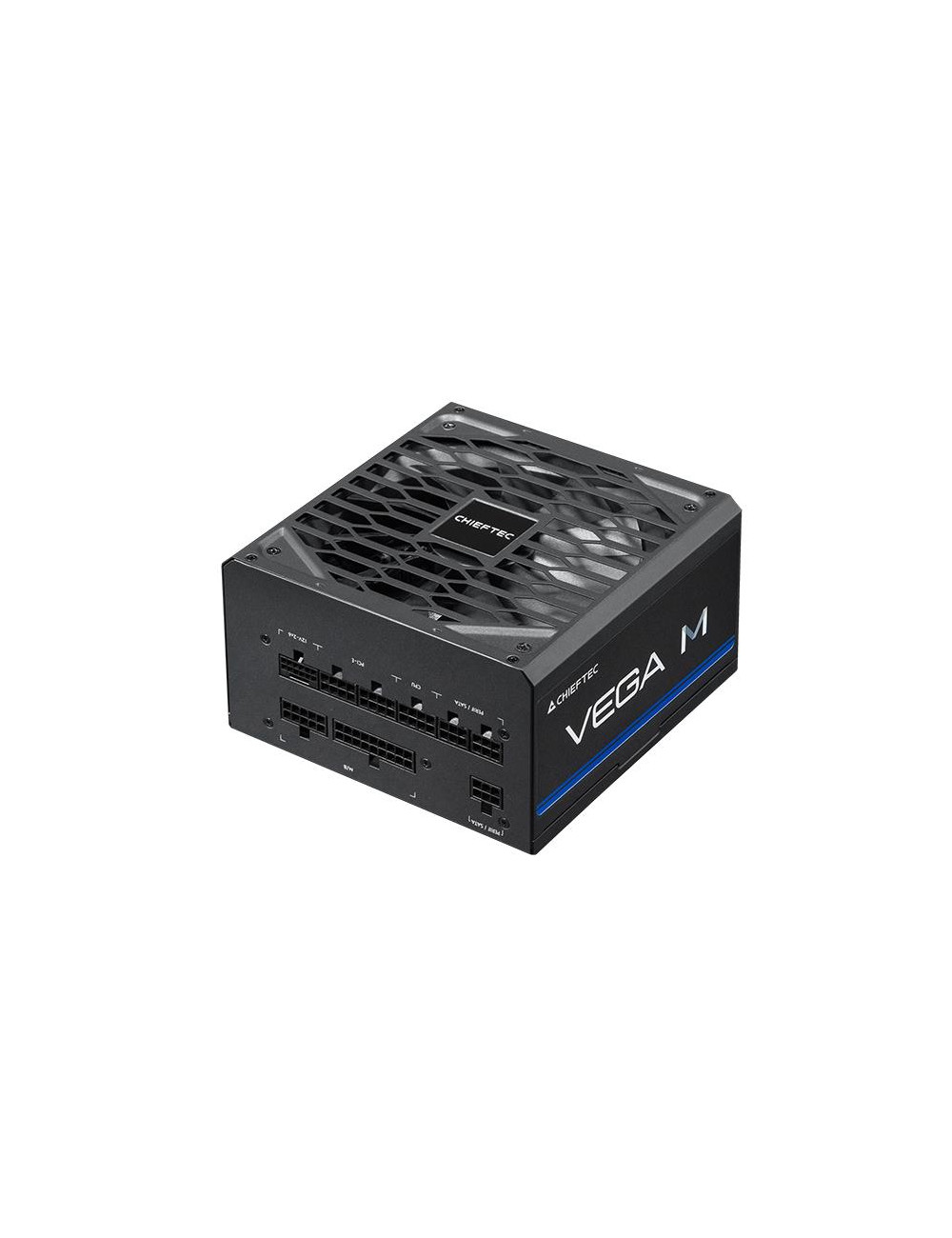

Power Supply|CHIEFTEC|PPG-850-C|850 Watts|Efficiency 80 PLUS GOLD|PFC Active|PPG-850-C
    CHIEFTEC

    Power Supply|CHIEFTEC|PPG-850-C|850 Watts|Efficiency 80 PLUS GOLD|PFC Active|PPG-850-C

    €88.48
    Tax included
    PPG-850-C|ATX 3.1|850 Watts|Cooling System 13.5cm fan|80 PLUS GOLD|PFC Active|Colour Black
    Quantity

    Add to favorites Add to compare
    The CHIEFTEC Vega M Series power supply is built to Intel’s ATX 12V 3.1 standard and supports PCIe GEN5 with 80PLUS Gold certified efficiency. It prioritizes a competitive price-to-performance ratio up to 850W while maintaining the trusted Chieftec quality. The Vega M Series features LLC Half-Bridge converter with DC-to-DC technology to provide enhanced power efficiency and stability.

    The full-modular design with extra- long black cables make it suitable for mainstream gamers to build their system, even in larger PC cases. Additionally, its 135mm fluid dynamic bearing (FDB) silent fan optimizes the balance between cooling performance and noise levels.

    The Vega Series is your trusted reliable choice for all computing needs incorporating all necessary modern protection and safety features.

    Product Details

    PPG-850-C
    100 Items

    Data sheet

    Colour
    Black
    Garantija
    24
    Category Code
    PSU
    Vendor Homepage
    www.chieftec.eu/products-detail/626/VEGA_M/628/PPG-850-C
    Cooling System
    13.5cm fan
    Dimensions
    150 mm x 150 mm x 85 mm
    PFC
    Active
    PSU
    ATX 3.1
    PSU Output Power
    850 Watts
    Efficiency
    80 PLUS GOLD
    Model name
    PPG-850-C
    MODEL
    ATX 850W
    CnCode (CnCode)
    85044095
    Units per Shipping Box
    1
    Product Net Weight
    1.7 kg
    Unit Calculated Weight
    2.05 kg
    Unit Calculated Volume
    0.00414 cubm
