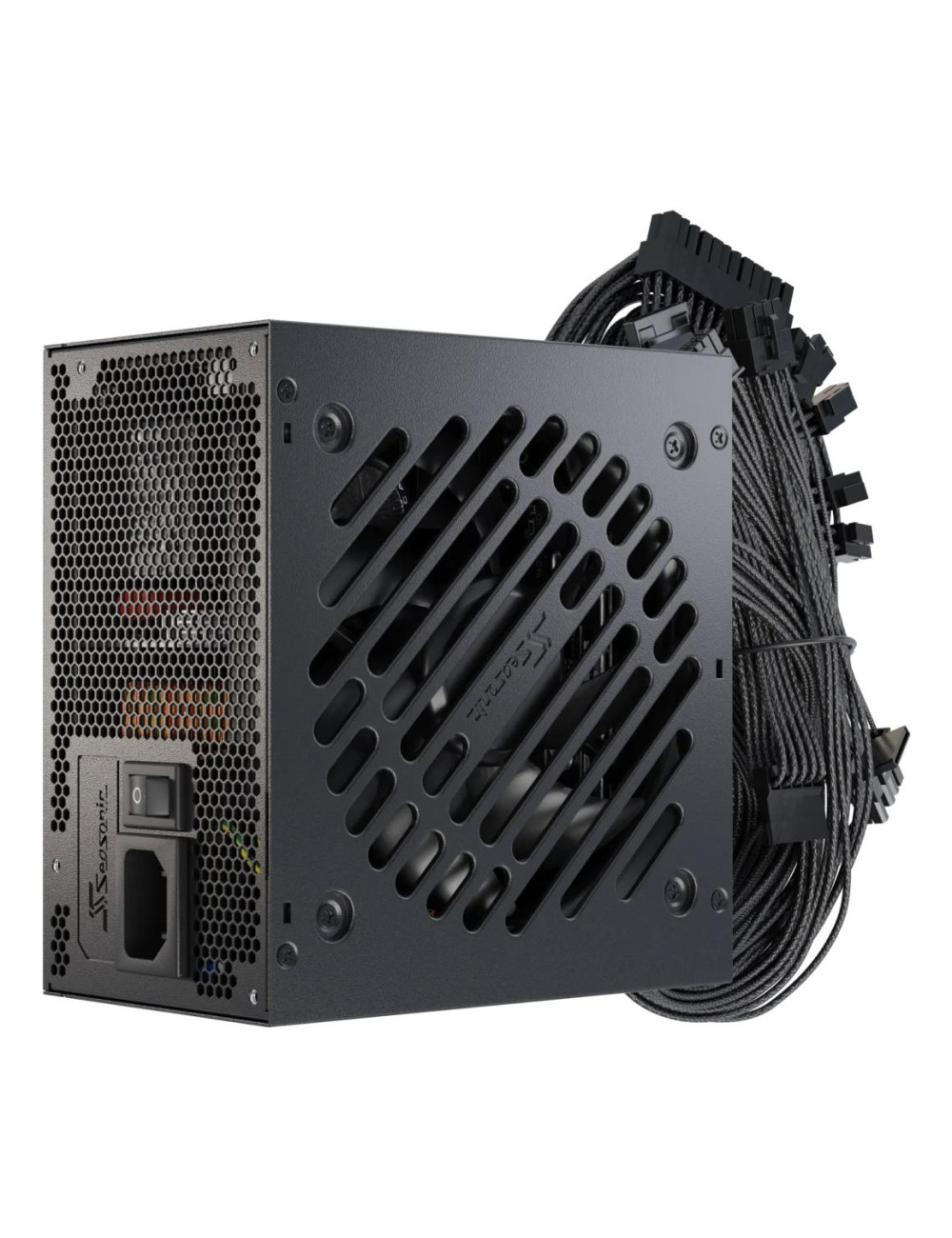

Power Supply|SEASONIC|ATX|PC|100 - 240 V|750 W|SRP-CBC751-A5A51JF
    SEASONIC

    Power Supply|SEASONIC|ATX|PC|100 - 240 V|750 W|SRP-CBC751-A5A51JF

    €69.58
    Tax included
    750 W | 100 - 240 V | 80 PLUS certification 80 PLUS Bronze | PC | ATX | Fan diameter 120 mm
    Quantity

    Add to favorites Add to compare

    CORE BC – Power Made Simple

    The Seasonic CORE BC Series delivers reliable performance and modern ATX 3.1 compliance at an essential value. Designed for everyday builders and gamers, it embodies Seasonic’s trusted quality in a compact 140 mm design with a durable scratch-resistant finish.

    With 80 PLUS® Bronze efficiency, Smart and Silent Fan Control (S2FC), and a 120 mm HDB fan, it ensures cool, quiet, and stable operation. The CORE BC-750 and CORE BC-850 include a 12V-2×6 PCIe Gen 5.1 cable, ready for the latest GPUs, while the CORE BC-650 meets all ATX 3.1 requirements with traditional connectors.

    Built on decades of engineering excellence, the CORE BC Series delivers the quiet efficiency, reliability, and durability that define every Seasonic power supply.

    Next-Gen and Legacy GPU Cable
    Includes native 12V-2x6 and 2× 8-pin cables for maximum compatibility

    S2FC - Intelligent Fan Control Technology
    The Smart and Silent Fan Control (S2FC) system intelligently regulates the power supply’s fan speed to achieve the ideal balance between cooling efficiency and silent operation. By dynamically adjusting the fan curve according to temperature, it ensures that your system remains quiet during low-to-medium usage and effectively cooled when performance demands increase.

    Product Details

    SEASONIC
    SRP-CBC751-A5A51JF
    100 Items

    Data sheet

    Garantija
    84
    Category Code
    PSU
    Unit Box Height
    0.185
    Unit Box Length
    0.114
    Unit Box Width
    0.24
    Vendor Homepage
    https://seasonic.com/core-bc/
    Units per Shipping Box
    5
    Unit Calculated Weight
    2.43 kg
    Unit Calculated Volume
    0.00648 cubm
    Summary
    Seasonic CORE BC-750 ATX 3.1. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, CPU power cable length: 60 cm. Purpose: PC, Power supply unit
    Weight & dimensions (Width)
    150 mm
    Weight & dimensions (Depth)
    140 mm
    Weight & dimensions (Height)
    86 mm
    Design (Product colour)
    Black
    Power (AC input frequency)
    50/60 Hz
    Power (AC input voltage)
    100 - 240 V
    Certificates (Certification)
    CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA, Energy Star, RoHS, REACH, WEEE, ErP Lot 6
    Operational conditions (Operating temperature (T-T))
    0 - 40 C
    Power (Input current)
    11 - 5.5 A
    Design (Cooling type)
    Active
    Design (Number of fans)
    1 fan(s)
    Design (Fan diameter)
    120 mm
    Certificates (Compliance certificates)
    BSMI/CB/CCC/CE/cTUVus/EAC/REACH/RoHS/UKCA/WEEE
    Power (Combined power (+12V))
    744 W
    Power (Combined power (+3.3V))
    100 W
    Power (Combined power (+5Vsb))
    12.5 W
    Power (Combined power (-12V))
    3.6 W
    Power (Max output current (+12V))
    62 A
    Power (Max output current (+3.3V))
    20 A
    Power (Max output current (+5V))
    20 A
    Power (Max output current (+5Vsb))
    2.5 A
    Power (Max output current (-12V))
    0.3 A
    Power (Power protection features)
    Over current/Over power/Over voltage/Short circuit
    Power (Total power)
    750 W
    Ports & interfaces (Cabling type)
    Non-Modular
    Ports & interfaces (Motherboard power cable length)
    550 mm
    Ports & interfaces (Motherboard power connector)
    20+4 pin ATX
    Ports & interfaces (Number of SATA power connectors)
    6
    Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
    3
    Performance (80 PLUS certification)
    80 PLUS Bronze
    Performance (Mean time between failures (MTBF))
    100000 h
    Performance (Power supply unit (PSU) form factor)
    ATX
    Performance (Purpose)
    PC
    Design (On/off switch)
    Yes
    Ports & interfaces (CPU power cable length)
    600 mm
    Ports & interfaces (CPU power connector (4+4 pin))
    Yes
    Ports & interfaces (PCI Express power connectors (6+2 pin))
    4
    Performance (Bearing technology)
    Sleeve
    Ports & interfaces (PCI Express connector)
    Yes
    Ports & interfaces (ATX power connector (20+4 pin))
    Yes
    Ports & interfaces (EPS power connector (4+4 pin))
    Yes
    Design (Fan location)
    Top
    Technical details (Sustainability certificates)
    ENERGY STAR
