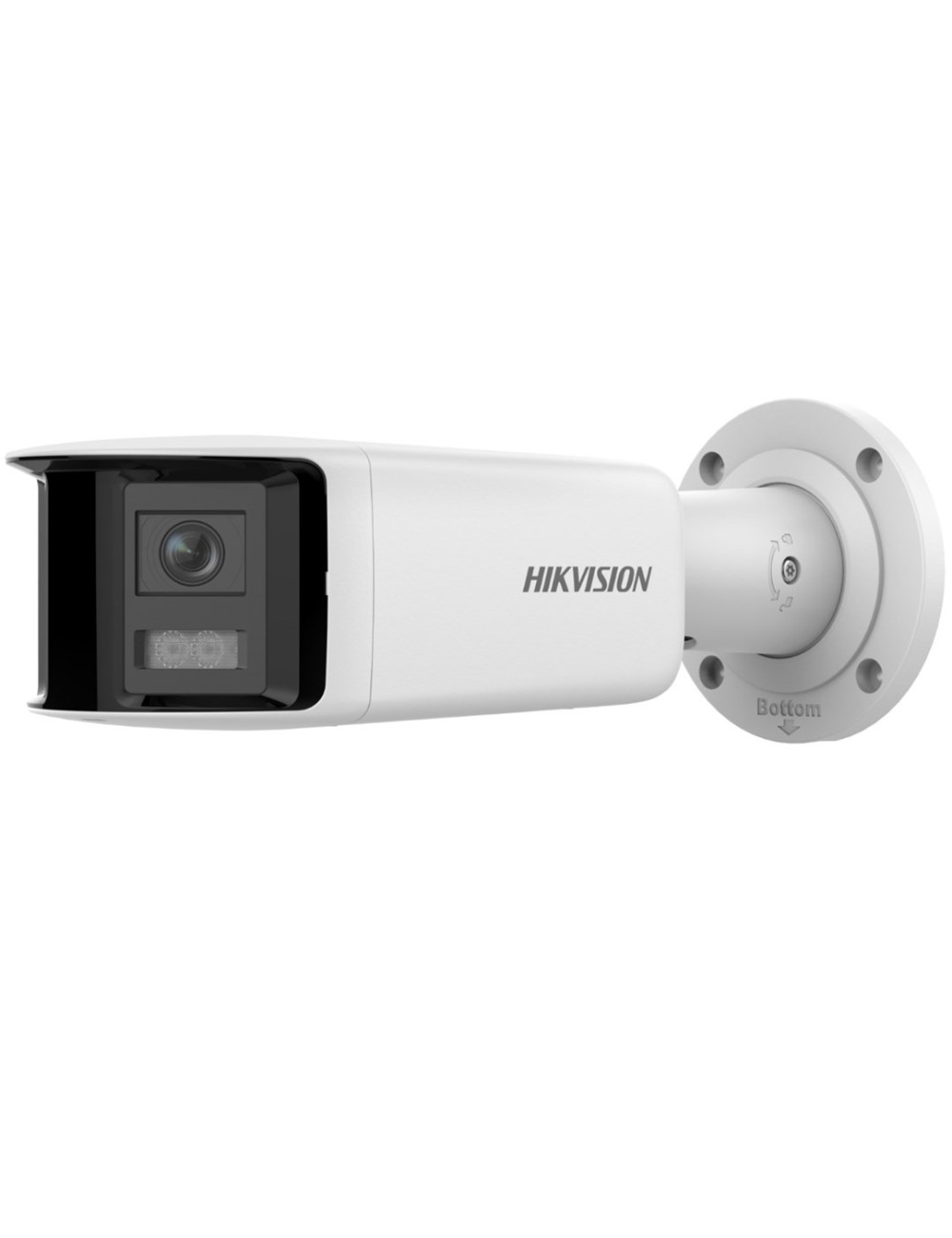

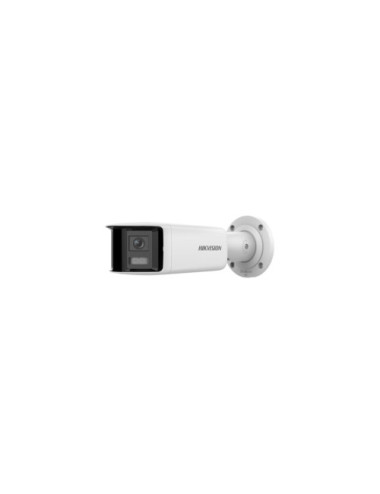

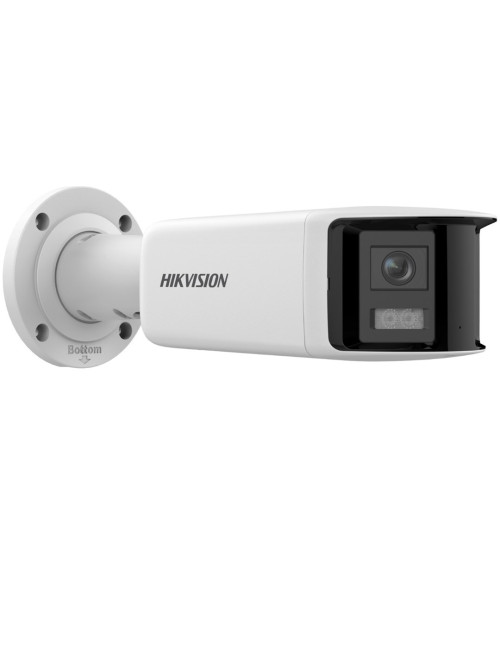

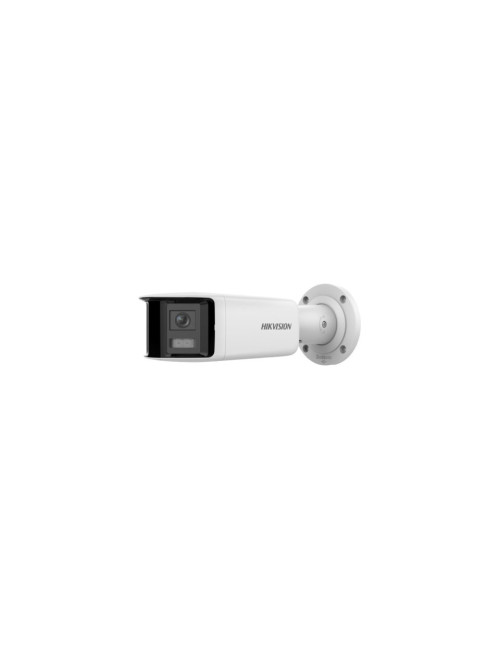

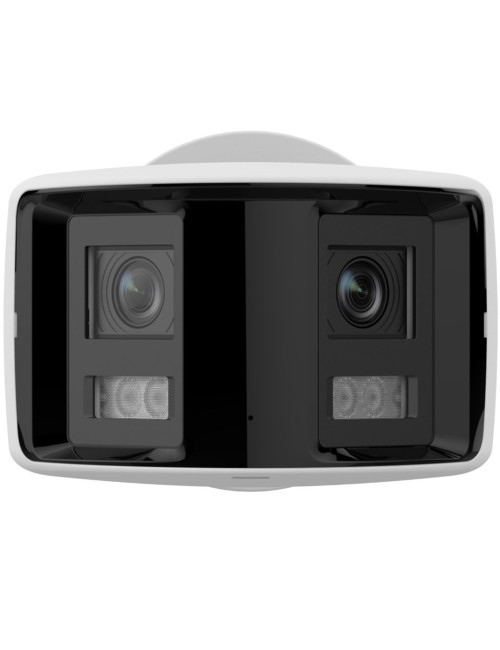

Hikvision Panoramic Bullet DS-2CD2T46G2P-ISU/SL(2.8mm) 4MP

Product Details

Reference WLONONWCRGLAL

In stock 8 Items

Data sheet

Type

IP security camera

Width

118.6 mm

Height

78 mm

Connectivity technology

Wired

Weight

1.4 kg

Package depth

190 mm

Package height

180 mm

Package width

405 mm

Package weight

2.1 kg

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Wall

Form factor

Bullet

Built-in microphone

Yes

Bluetooth

No

Bit rate

32 Kbps - 8 Mbps

Noise reduction

Yes

Protection features

Waterproof

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSDXC

Maximum memory card size

256 GB

Audio formats supported

MP3

Signal-to-Noise Ratio (SNR)

52 dB

Power consumption (max)

10.5 W

Built-in speaker(s)

Yes

Placement supported

Outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Number of languages

33

Audio output channels

1 channels

Security algorithms

EAP-MD5

Ethernet LAN

Yes

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of Users

32 user(s)

Web-based management

Yes

Quality of Service (QoS) support

Yes

Reset button

Yes

Password protection

Yes

Languages support

Multi

Frame Rate

25 fps

Product colour

White

Tilt angle range

0 - 90°

Fixed focal length

2.8 mm

LED type

IR

Night vision

Yes

Total megapixels

4 MP

Fixed focus

Yes

Optical sensor size

25.4 / 2.5 mm (1 / 2.5")

Pan range

0 - 355°

Dynamic range

120 dB

Video compression formats

H.264+

Angle of rotation

360°

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Night vision distance

40 m

Number of lenses

1

Day/night mode

Yes

Built-in HDD

No

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1.6

Lens viewing angle, horizontal

180°

Number of sensors

2

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Heartbeat

Yes

Digital watermark

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Weatherproof

Yes

Alarm input/output

Yes

IP address filtering

Yes

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Highlight Compensation (HLC)

Yes

Live view

Yes

Power consumption (Power over Ethernet (PoE))

12.5 W

HTTPS encryption

Yes

Behavior analysis

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Image quality adjustment

Brightness

Lens mount interface

M12

Number of simultaneous live view channels

6 channels

User access level

Administrator, Operator, User

Built-in light

Yes

Audio input channels

1 channels

Detect distance

37 m

Observe distance

15 m

Pixel counter

Yes

Alarm output channels

1

Alarm input channels

1
