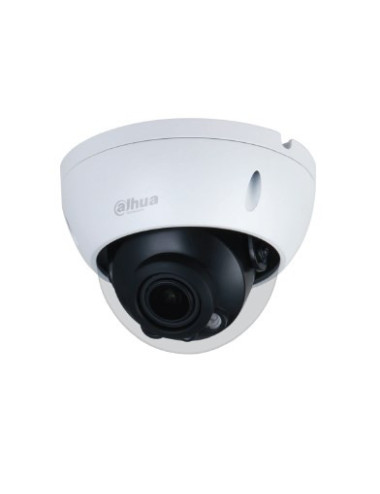

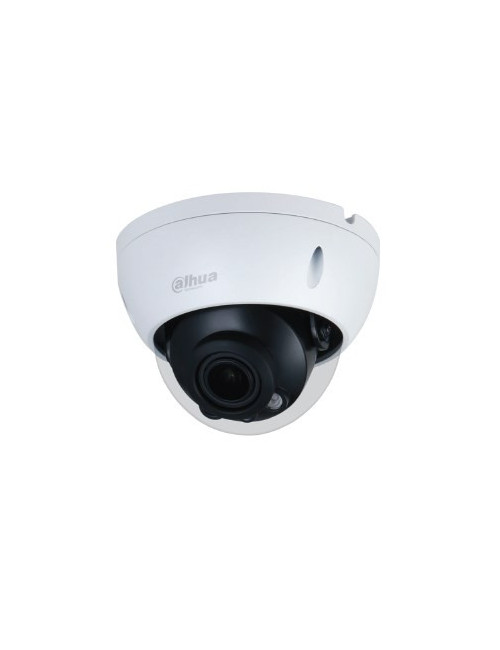

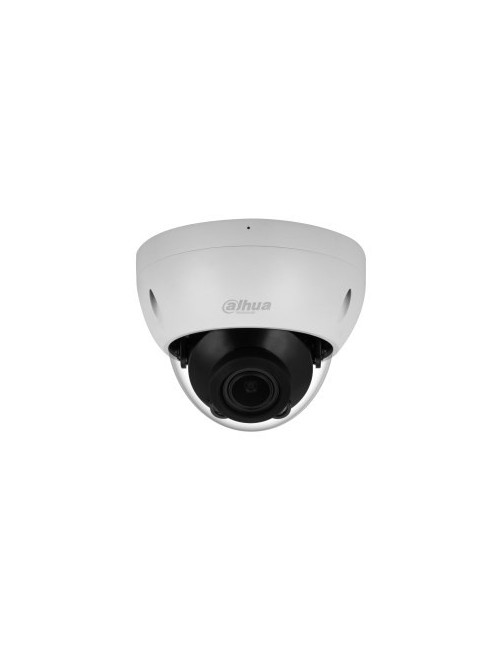

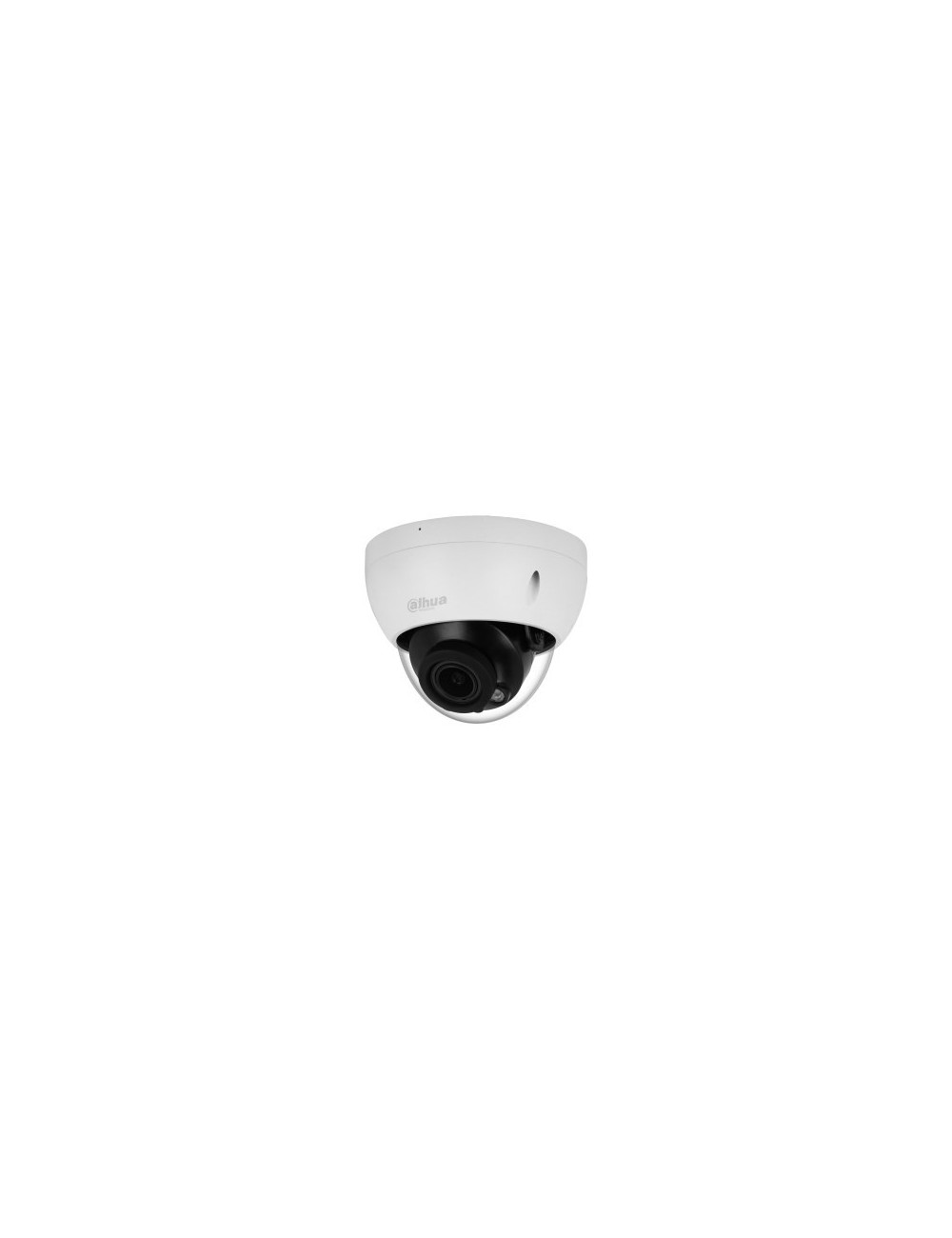

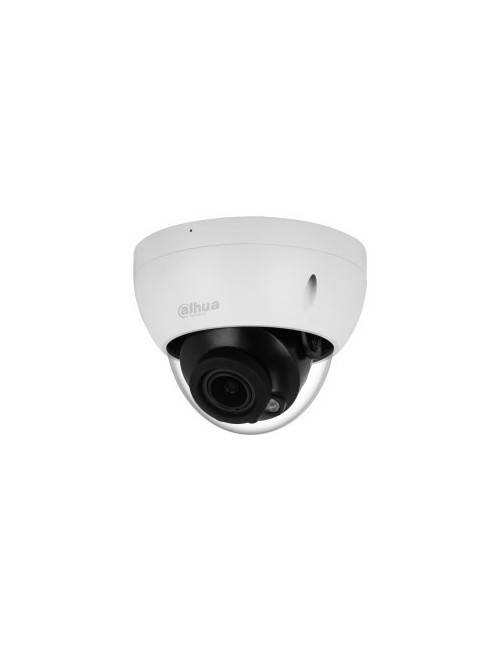

Dahua Technology WizSense IPC-HDBW2441R-ZAS-27135 security camera Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling

Product Details

Reference WLONONWCRCOD2

In stock 12 Items

Data sheet

Type

IP security camera

Height

93.4 mm

Connectivity technology

Wired

Weight

520 g

Package weight

680 g

Power source type

DC, PoE

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-40 - 60 °C

Mounting type

Ceiling

Form factor

Dome

Built-in microphone

Yes

Bluetooth

No

Bit rate

12 kbps–6144 kbps

Noise reduction

Yes

Mobile operating systems supported

iOS

Sensor type

CMOS

Wi-Fi

No

Internal memory

128 MB

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

256 GB

Audio formats supported

G.711 μ-law

Signal-to-Noise Ratio (SNR)

56 dB

Power consumption (max)

6.5 W

Power consumption (typical)

2.3 W

Maximum resolution

2688 x 1520 pixels

Built-in speaker(s)

Yes

Placement supported

Outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Audio output channels

1.0 channels

Housing material

Metal

Ethernet LAN

Yes

Supported graphics resolutions

352 x 288

Diameter

12.2 cm

International Protection (IP) code

IP67

Flash memory

128 MB

Number of Users

6 user(s)

Supported network protocols

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP

Product colour

White

Tilt angle range

0 - 75°

Focal length range

2.7 - 13.5 mm

Web browser

No

LED type

IR

Night vision

Yes

Total megapixels

4 MP

Optical sensor size

25.4 / 2.9 mm (1 / 2.9")

White balance

Manual

Minimum illumination

0 lx

Pan range

0 - 355°

Dynamic range

120 dB

Lens viewing angle, diagonal

125 - 34°

Video compression formats

M-JPEG

Angle of rotation

355°

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Night vision distance

40 m

Day/night mode

Yes

Built-in HDD

No

Camera shutter type

Electronic

Lens viewing angle, vertical

54 - 16°

Noise reduction technology

3D noise reduction

Lens viewing angle, horizontal

104 - 29°

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Back Light Compensation (BLC)

Yes

Camera shutter speed

1/3 - 1/100000 s

Adjustment shutter speed

Auto/Manual

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Gain control type

Auto/Manual

Highlight Compensation (HLC)

Yes

Number of illumination LEDs

2

Power consumption (Power over Ethernet (PoE))

3.2 W

IK code

IK10

Identify distance (wide)

6.4 m

Recognize distance (wide)

12.8 m

Audio input channels

1.0 channels

Observe distance (wide)

25.6 m

Management software

Smart PSS; DSS; DMSS

Closest focusing distance

0.8 m

Detect distance (wide)

64 m

Identify distance (tele)

21 m

Minimum aperture number

1.5

Recognize distance (tele)

42 m

Detect distance (tele)

210 m

Observe distance (tele)

84 m

Alarm output channels

1

Alarm input channels

1

Number of Privacy masking areas

4

Warnings

The product contains electronic components; do not dispose of with the normal household waste.
