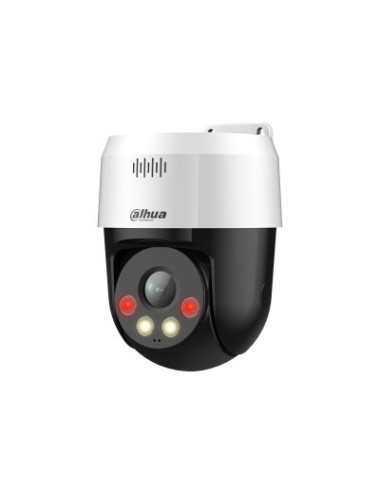

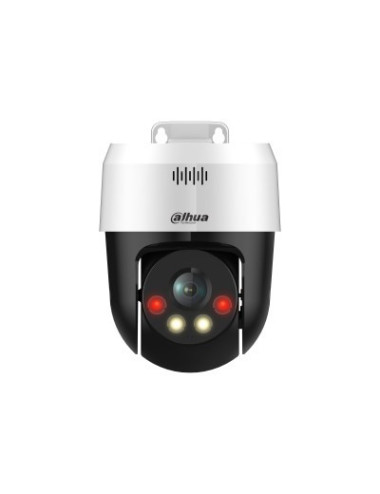

| Camera |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2592 (H) x 1944 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on) |
| S/N Ratio | ? 56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR)
30 m (98.43 ft) (warm light) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 1 (IR LED)
1 (warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360° |
| Lens |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 3.6 mm |
| Field of View |
3.6 mm: Horizontal: 78°x Vertical: 58°x Diagonal: 102° |
| Iris Type | Fixed |
| Close Focus Distance |
3.6 mm: 2.2 m (7.22 ft) |
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| | | | | |
| 3.6 mm | 78.0 m (255.91 ft) | 31.2 m ( 102.36 ft) | 15.6 m (51.18 ft) | 7.8 m (25.59 ft) |
| Professional, intelligent |
| IVS (Perimeter Protection) | Tripwire; intrusion (Support the classification and accurate detection of vehicle and human) |
| SMD 3.0 | Less false alarm, longer detection distance |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Video |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 2592 x 1944@(1 fps–20 fps)/2688 x 1520 @(1 fps–30 fps)
Sub stream: 704 x 576@(1 fps–25 fps)/704 x 480@(1 fps–30 fps)
Third stream: 1920 x 1080@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 5M (2592 x 1944); 4M (2688 x 1520/2560 x 1440); 3M (2304 x 1296); 1080p (1920 x 1080); 720p (1280 x 720); D1 (704 x 576/704 x 480); CIF (352 x 288/352 x 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 kbps–20480 kbps
H.265: 3 kbps–20480 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 x 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| Audio |
| Built-in MIC | Yes |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
| Network |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of x.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
| User/Host | 20 (Total bandwidth: 72 M) |
| Storage | FTP; SFTP; Micro SD card (Support max. 256 G); NAS |
| Browser | IE: IE8/9/11
Chrome
Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | iOS; Android |
| Certification |
| Certification | CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Port |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5 mA 3V–5 VDC |
| Alarm Output | 1 channel out: 300 mA 12 VDC |
| Power |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 1.86 W (12 VDC); 4.18 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on): 6.5 W (12 VDC) 8.8 W (PoE) |
| Environment |
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH |
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection Grade | IP67 |
| Structure |
| Casing | Metal |
| Dimensions | 110.9 mm x ?122.0 mm (4.4" x ?4.8") |
| Net Weight | 745 g (163.1 lb) |
| Gross Weight | 915 g (200.6 lb) |
