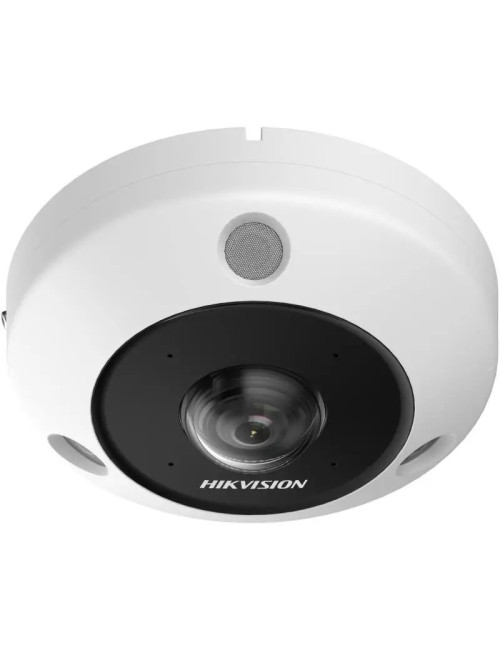

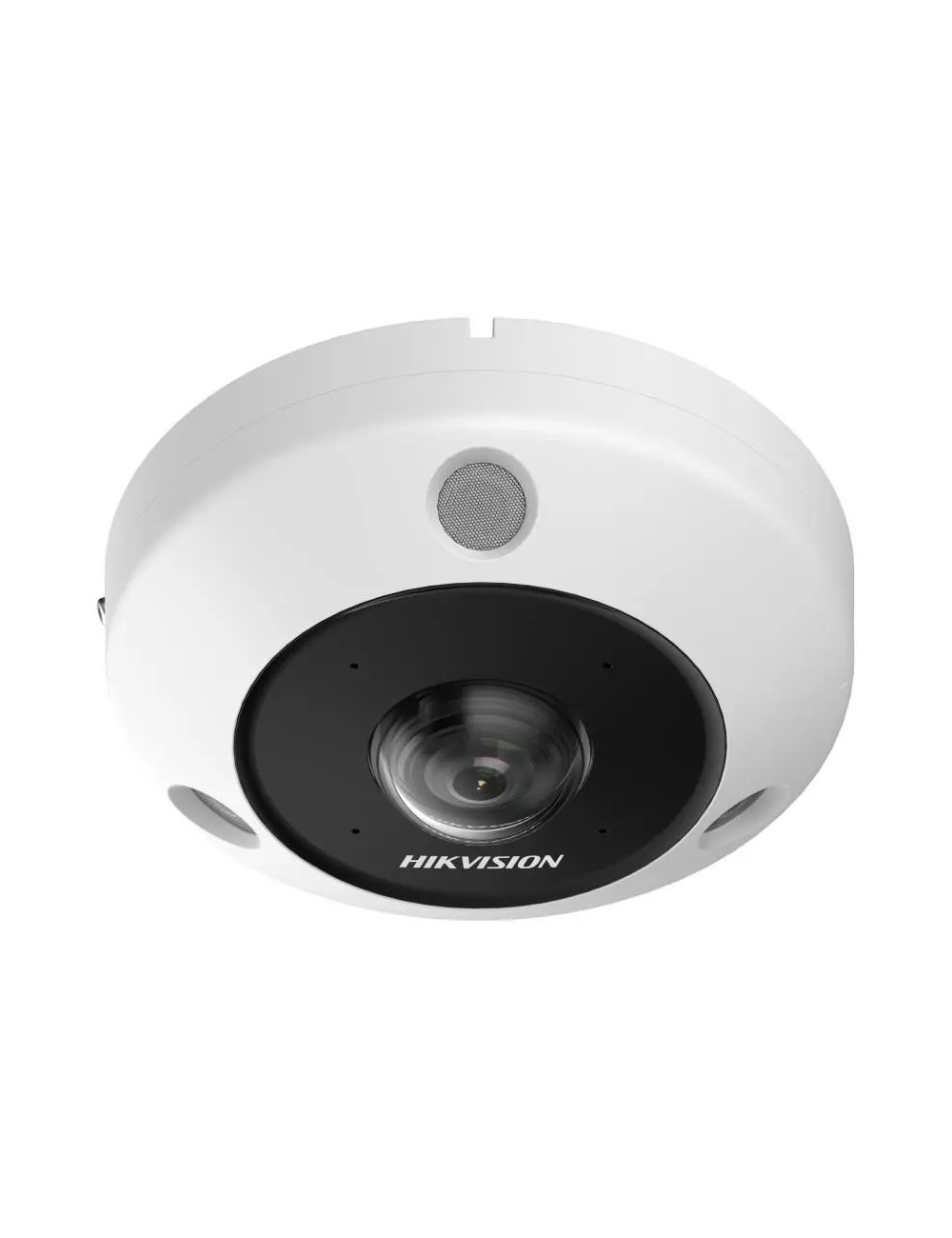

DS-2CD63C5G1-IVS(1.29mm) Kamera IP FishEye 12Mpx Hikvision

Product Details

Reference WLONONWCRPBPC

In stock 5 Items

Data sheet

Type

IP security camera

Height

59.4 mm

Connectivity technology

Wired

Weight

715 g

Package depth

230 mm

Package height

135 mm

Package width

260 mm

Package weight

1.21 kg

Power source type

DC

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-40 - 60 °C

Mounting type

Ceiling

Form factor

Dome

Built-in microphone

Yes

Bluetooth

No

Bit rate

32 Kbps - 16 Mbps

Noise reduction

Yes

Sensor type

CMOS

Wi-Fi

No

Internal memory

800 MB

Compatible memory cards

MicroSDXC

Maximum memory card size

256 GB

Power consumption (max)

11.5 W

Maximum resolution

3504 x 3504 pixels

Built-in speaker(s)

Yes

Placement supported

Indoor & outdoor

Card reader integrated

Yes

Number of languages

33

Audio output channels

1.0 channels

Housing material

Metal

Networking standards

IEEE 802.3af

Security algorithms

EAP-PEAP

Ethernet LAN

Yes

Supported graphics resolutions

1600 x 1280

Diameter

14 cm

International Protection (IP) code

IP67

Flash memory

2048 MB

Ethernet interface type

Fast Ethernet

Number of Users

32 user(s)

Quality of Service (QoS) support

Yes

Reset button

Yes

Password protection

Yes

Languages support

Multi

Frame Rate

30 fps

Product colour

White

Fixed focal length

1.29 mm

Web browser

Yes

LED type

IR

Night vision

Yes

Total megapixels

12 MP

Motion sensor

Yes

PTZ control

Yes

Optical sensor size

25.4 / 1.8 mm (1 / 1.8")

Minimum illumination

0 lx

Video compression formats

H.264+

DC output current

1 A

DC output voltage

12

Number of cameras

1

Night vision distance

15 m

Number of lenses

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

180°

Noise reduction technology

3D noise reduction

Smart IR

Yes

Digital Wide Dynamic Range (DWDR)

Yes

Region of Interest (ROI) encoding

Yes

Maximum aperture number

2.2

Lens viewing angle, horizontal

180°

Number of sensors

1

Infra-red wavelength

850 nm

Alert notification type

E-mail

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Heartbeat

Yes

Digital watermark

Yes

Back Light Compensation (BLC)

Yes

Active tampering alarm

Yes

Alarm input/output

Yes

IP address filtering

Yes

Intelligent Video Surveillance (IVS) system features

Scene change

Camera shutter speed

1 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Gain control type

Auto

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Live view

Yes

Power consumption (Power over Ethernet (PoE))

12.5 W

HTTPS encryption

Yes

Image quality adjustment

Sharpness

IK code

IK10

Digest authentication

Yes

Password reset via email

Yes

Number of simultaneous live view channels

20 channels

User access level

Administrator, Operator, User

Audio input channels

1.0 channels

Detect distance

27.9 m

Observe distance

11.1 m

Recognize distance

5.6 m

Identify distance

2.8 m

Audio codecs

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Bit rate range

8 - 320 Kbit/s

Alarm output channels

2

Alarm input channels

2

RS-485 ports

1

Sample rates

8 - 48 kHz

Network access storage (NAS)

Yes

Flash log

Yes
