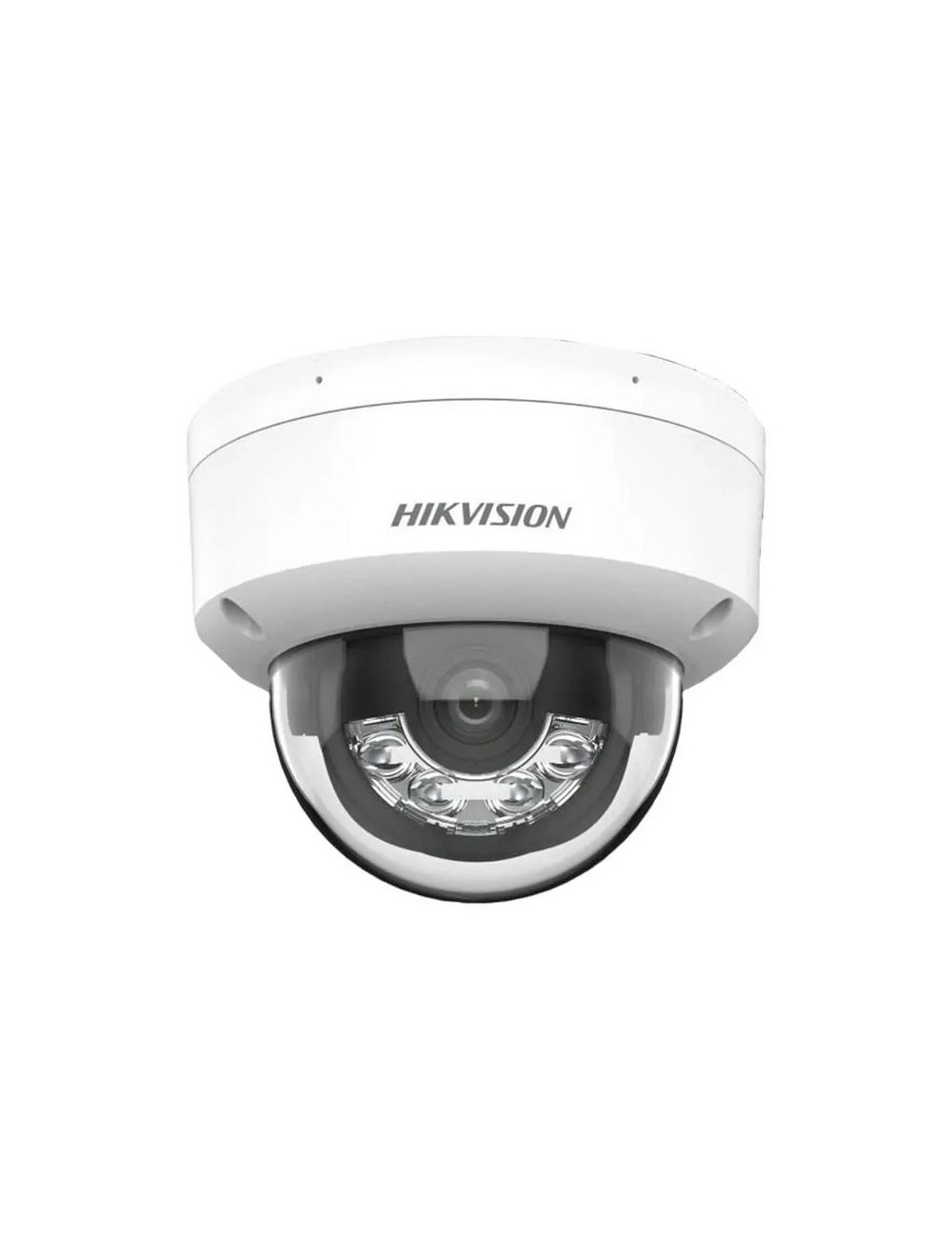

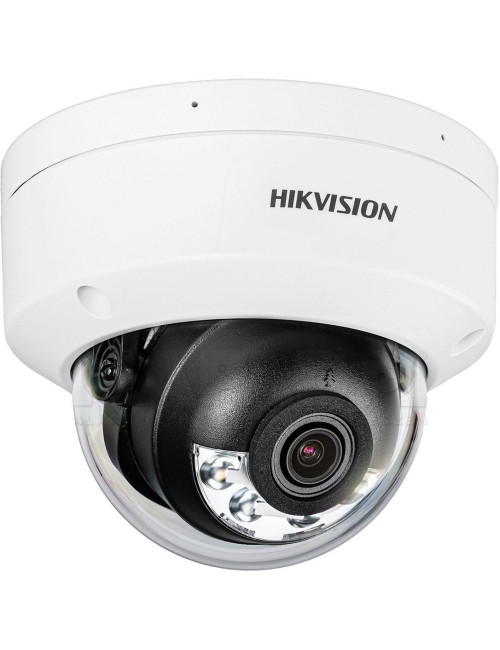

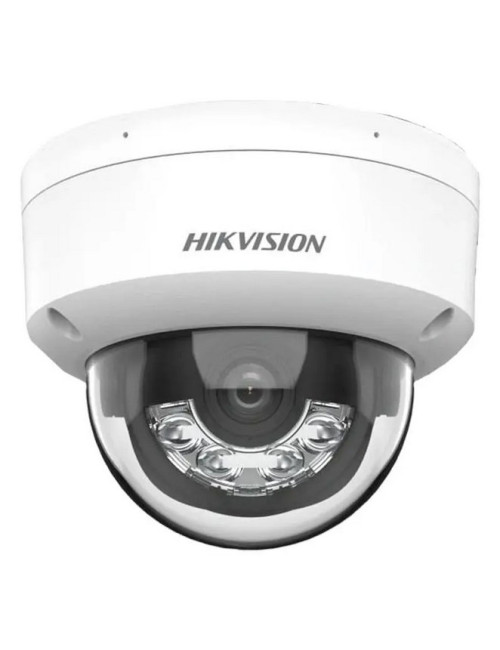

DS-2CD2183G2-LIS2U(2.8mm) Kamera IP

Product Details

Reference WLONONWCRDCY8

In stock 5 Items

Data sheet

Type

IP security camera

Height

97.6 mm

Connectivity technology

Wired

Weight

600 g

Package depth

150 mm

Package height

141 mm

Package width

150 mm

Package weight

840 g

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Ceiling/wall

Form factor

Dome

Built-in microphone

Yes

Bluetooth

No

Bit rate

32 Kbps - 16 Mbps

Noise reduction

Yes

Protection features

Dust resistant

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

microSDHC

Maximum memory card size

512 GB

Signal-to-Noise Ratio (SNR)

52 dB

Power consumption (max)

7.8 W

Maximum resolution

3840 x 2160 pixels

Placement supported

Indoor & outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Number of languages

33

Audio output channels

1.0 channels

Housing material

Aluminium

Networking standards

IEEE 802.3af

Security algorithms

TLS

Ethernet LAN

Yes

Supported graphics resolutions

3200 x 1800

Diameter

12.2 cm

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of Users

32 user(s)

Reset button

Yes

Password protection

Yes

Languages support

Multi

Frame Rate

30 fps

Product colour

White

Tilt angle range

0 - 75°

Fixed focal length

2.8 mm

Web browser

Yes

Number of microphones

2

Video recording

Yes

LED type

IR/White

Night vision

Yes

Total megapixels

8 MP

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Minimum illumination

0 lx

Pan range

0 - 355°

Dynamic range

120 dB

Lens viewing angle, diagonal

127°

Video compression formats

H.265+

Angle of rotation

355°

DC output current

0.65 A

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Night vision distance

30 m

Number of lenses

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

59°

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1.6

Lens viewing angle, horizontal

108°

Number of sensors

1

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Heartbeat

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Active tampering alarm

Yes

Alarm input/output

Yes

Terminal block port

Yes

IP address filtering

Yes

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Gain control type

Auto

Highlight Compensation (HLC)

Yes

Live view

Yes

Power consumption (Power over Ethernet (PoE))

9.5 W

HTTPS encryption

Yes

Behavior analysis

Line crossing detection

IK code

IK10

Digest authentication

Yes

Password reset via email

Yes

Number of simultaneous live view channels

6 channels

User access level

Administrator, Operator, User

Audio input channels

1.0 channels

Detect distance

84 m

Observe distance

33 m

Recognize distance

16 m

Identify distance

8 m

Pixel counter

Yes

Audio codecs

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Bit rate range

8 - 320 Kbit/s

Alarm output channels

1

Alarm input channels

1

Compliance certificates

Low Voltage Directive (LVD)

Number of Privacy masking areas

8

Sample rates

8 - 48 kHz

Automatic Network Replenishment (ANR)

Yes

Warnings

Avoid direct contact with water to prevent electrical damage.

Audit log

Yes
