DAHUA

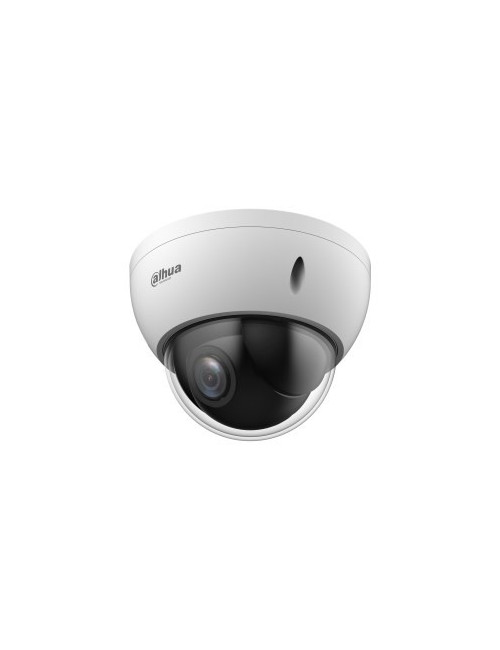

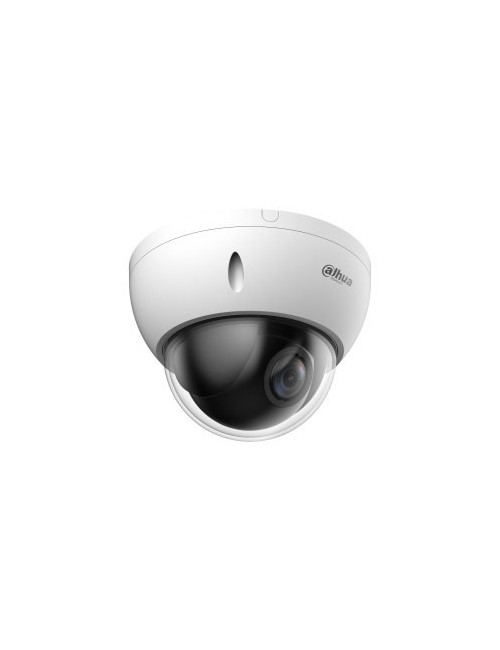

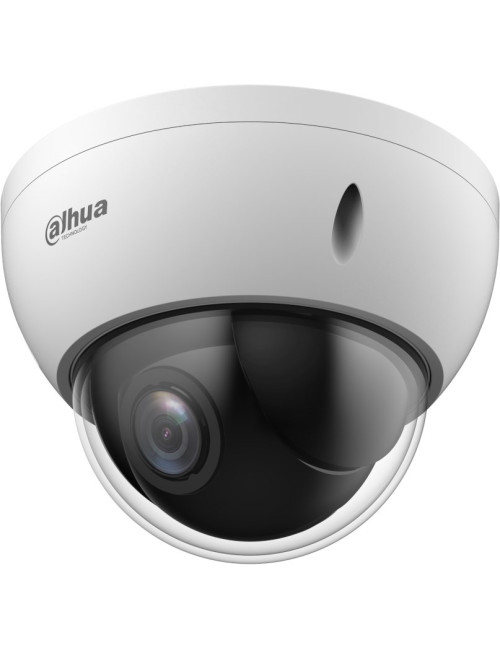

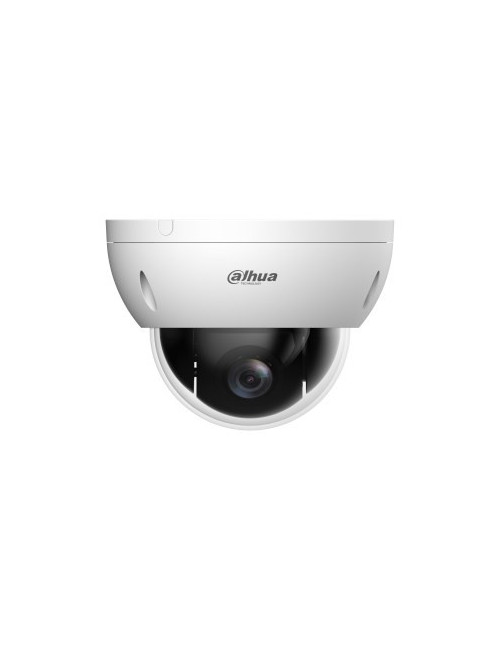

    DAHUA SD22204DB-GNY IP CAMERA

    €210.71
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    WLONONWCRABXS
    5 Items

    Data sheet

    Type
    IP security camera
    Package type
    Box
    Height
    89 mm
    Connectivity technology
    Wired
    Weight
    500 g
    Package weight
    700 g
    Power source type
    DC
    Storage relative humidity (H-H)
    0 - 95%
    Operating temperature (T-T)
    -30 - 60 °C
    Operating relative humidity (H-H)
    0 - 95%
    Storage temperature (T-T)
    -30 - 60 °C
    Mounting type
    Ceiling
    Form factor
    Dome
    Bluetooth
    No
    Bit rate
    448K - 8192Kbps, 5120K - 10240Kbps
    Noise reduction
    Yes
    Mobile operating systems supported
    Android
    Sensor type
    CMOS
    Wi-Fi
    No
    Internal memory
    256 MB
    Compatible memory cards
    MicroSD (TransFlash)
    Maximum memory card size
    512 GB
    Signal-to-Noise Ratio (SNR)
    55 dB
    Power consumption (max)
    6.1 W
    Power consumption (typical)
    2.3 W
    Maximum resolution
    1920 x 1080 pixels
    Placement supported
    Indoor & outdoor
    Card reader integrated
    Yes
    Ethernet LAN (RJ-45) ports
    1
    DC-in jack
    Yes
    Networking standards
    IEEE 802.3af
    Ethernet LAN
    Yes
    Focus
    Motorized/Manual
    Supported graphics resolutions
    704 x 480
    Zoom capability
    Yes
    Diameter
    12.2 cm
    International Protection (IP) code
    IP66
    Digital zoom
    16x
    Ethernet interface type
    Fast Ethernet
    Supported video modes
    1080p
    Optical Zoom
    4x
    Number of Users
    20 user(s)
    Web-based management
    Yes
    Quality of Service (QoS) support
    Yes
    Frame Rate
    30 fps
    Product colour
    White
    Tilt angle range
    0 - 90°
    Focal length range
    2.8 - 12 mm
    Web browser
    Yes
    LED type
    IR
    Night vision
    Yes
    Total megapixels
    2 MP
    PTZ control
    Yes
    Optical sensor size
    25.4 / 2.8 mm (1 / 2.8")
    White balance
    Indoor
    Minimum illumination
    0.005 lx
    Pan range
    0 - 355°
    Lens viewing angle, diagonal
    117.7°
    Video compression formats
    H.264
    DC output current
    1 A
    DC output voltage
    12
    Video motion detection
    Yes
    Number of cameras
    1
    Camera pan control
    Yes
    Camera tilt control
    Yes
    Day/night mode
    Yes
    Preset points
    Yes
    Built-in HDD
    No
    Camera shutter type
    Electronic
    Lens viewing angle, vertical
    53.4°
    Noise reduction technology
    2D noise reduction, 3D noise reduction
    Digital Wide Dynamic Range (DWDR)
    Yes
    Region of Interest (ROI) encoding
    Yes
    Maximum aperture number
    3
    Lens viewing angle, horizontal
    99.1°
    Wide Dynamic Range (WDR)
    Yes
    Progressive scan
    Yes
    Back Light Compensation (BLC)
    Yes
    Video streaming
    Yes
    ROM capacity
    128 MB
    Camera shutter speed
    1/1 - 1/30000 s
    Number of effective pixels (H x V)
    1920 x 1080 pixels
    Bit rate control
    Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
    Gain control type
    Auto/Manual
    Highlight Compensation (HLC)
    Yes
    IK code
    IK10
    Streaming method
    Unicast
    Pan speed
    100 °/sec
    Closest focusing distance
    1.5 m
    Detect distance
    165.5 m
    Observe distance
    65.4 m
    Recognize distance
    33.1 m
    Identify distance
    16.6 m
    Tilt speed
    60 °/sec
    Minimum aperture number
    1.6
    Pan preset speed
    100 °/sec
    PTZ modes
    5 Pattern
    PTZ protocols
    Pelco-P/D

    Quick Compare

    Product
    		 Hikvision IP Camera DS-2CD2347G3-LIS2UY/SL DS-2CD2543G2-IS 2.8mm EN IP Camera IP CAMERA DAHUA IPC-HFW3441T-AS-P-0210B KAMERA IP TIOC 3.0 DAHUA IPC-HDW3849H-AS-PV-0280B-S5
    Availability
    Price
    €198.80
    €198.89
    €199.06
    €200.13
    Description
    Type
    		 IP security camera IP security camera IP security camera
    Width
    		 90.7 mm
    Height
    		 115.4 mm 90.4 mm 110.9 mm
    Connectivity technology
    		 Wired Wired Wired
    Weight
    		 820 g 820 g 750 g
    Package depth
    		 170 mm
    Package height
    		 160 mm
    Package width
    		 170 mm
    Package weight
    		 1.2 kg 1.09 kg 920 g
    Power source type
    		 DC, PoE DC, PoE DC, PoE
    Storage relative humidity (H-H)
    		 0 - 95%
    Manual
    		 Yes Yes
    Operating temperature (T-T)
    		 -30 - 60 °C -40 - 60 °C -40 - 60 °C
    Operating relative humidity (H-H)
    		 0 - 95% 0 - 95% 0 - 95%
    Storage temperature (T-T)
    		 -30 - 60 °C -40 - 60 °C
    Mounting type
    		 Ceiling Ceiling/wall Ceiling
    Form factor
    		 Turret Bullet Dome
    Built-in microphone
    		 Yes Yes Yes
    Bluetooth
    		 No No No
    Bit rate
    		 32 Kbps to 8 Mbps 3 Kbp - 8192Kbps 3 Kbps - 16384 Kbps
    Noise reduction
    		 Yes Yes
    Mobile operating systems supported
    		 iOS iOS
    Length
    		 249.3 mm
    Sensor type
    		 CMOS CMOS CMOS
    Wi-Fi
    		 No No No
    Internal memory
    		 128 MB
    Compatible memory cards
    		 microSDHC MicroSD (TransFlash) MicroSD (TransFlash)
    Maximum memory card size
    		 512 GB 256 GB 2 GB
    Audio formats supported
    		 G.711 G.711 A-law
    Signal-to-Noise Ratio (SNR)
    		 52 dB 56 dB 56 dB
    Power consumption (max)
    		 15.5 W 8.6 W
    Power consumption (typical)
    		 4.5 W
    Maximum resolution
    		 2688 x 1520 pixels 2688 x 1520 pixels 3840 x 2160 pixels
    Built-in speaker(s)
    		 Yes
    Placement supported
    		 Indoor & outdoor Indoor & outdoor Indoor & outdoor
    Card reader integrated
    		 Yes Yes Yes
    Ethernet LAN (RJ-45) ports
    		 1 1 1
    Audio output channels
    		 1.0 channels 1.0 channels
    DC-in jack
    		 Yes
    Housing material
    		 Metal Metal Metal
    Networking standards
    		 IEEE 802.3af
    Security algorithms
    		 HTTPS
    Ethernet LAN
    		 Yes Yes Yes
    Supported graphics resolutions
    		 2688 x 1520 704 x 576 704 x 480
    Diameter
    		 13.8 cm 12.2 cm
    International Protection (IP) code
    		 IP67 IP67 IP67
    Ethernet interface type
    		 Fast Ethernet Fast Ethernet Fast Ethernet
    Supported video modes
    		 1520p 720p
    Video formats supported
    		 H.265+ H.265+ H.264+
    Number of Users
    		 32 user(s) 20 user(s) 20 user(s)
    Quality of Service (QoS) support
    		 Yes Yes
    Reset button
    		 Yes
    Frame Rate
    		 30 fps 30 fps 30 fps
    Product colour
    		 White White Black
    Tilt angle range
    		 0 - 75° 0 - 90° 0 - 78°
    Focal length range
    		 2.1 mm
    Fixed focal length
    		 2.8 mm 2.8 mm
    Web browser
    		 Yes Yes
    Video recording
    		 Yes
    Voice codecs
    		 G.711a
    Image stabilizer
    		 Yes
    LED type
    		 IR/White IR IR
    Night vision
    		 Yes Yes Yes
    Total megapixels
    		 4 MP 4 MP 8 MP
    Fixed focus
    		 Yes
    Optical sensor size
    		 25.4 / 1.8 mm (1 / 1.8") 25.4 / 2.7 mm (1 / 2.7") 25.4 / 2.7 mm (1 / 2.7")
    White balance
    		 Street lamp Custom modes
    Minimum illumination
    		 0 lx 0 lx 0.0004 lx
    Pan range
    		 0 - 360° 0 - 360° 0 - 360°
    Dynamic range
    		 130 dB 120 dB
    Lens viewing angle, diagonal
    		 138.5° 175° 125°
    Video compression formats
    		 H.265+ H.264
    Angle of rotation
    		 360° 360° 360°
    DC output current
    		 1.29 A
    DC output voltage
    		 12 12 12
    Video motion detection
    		 Yes Yes Yes
    Number of cameras
    		 1 1 1
    Camera pan control
    		 Yes
    Camera tilt control
    		 Yes
    Night vision distance
    		 30 m 20 m 30 m
    Number of lenses
    		 1 1 1
    Day/night mode
    		 Yes Yes Yes
    Infrared (IR) cut-off filter
    		 Yes Yes
    Built-in HDD
    		 No No No
    Camera shutter type
    		 Electronic Electronic
    Lens viewing angle, vertical
    		 57.6° 75° 55°
    Noise reduction technology
    		 3D noise reduction 3D noise reduction 3D noise reduction
    Smart IR
    		 Yes Yes Yes
    Digital Wide Dynamic Range (DWDR)
    		 Yes
    Region of Interest (ROI) encoding
    		 Yes Yes Yes
    Maximum aperture number
    		 1 2 1
    Lens viewing angle, horizontal
    		 111.1° 170° 106°
    Number of sensors
    		 1 1 1
    Infra-red wavelength
    		 850 nm
    Built-in siren
    		 Yes
    Wide Dynamic Range (WDR)
    		 Yes Yes
    Progressive scan
    		 Yes Yes Yes
    Mirror
    		 Yes Yes Yes
    Heartbeat
    		 Yes
    Anti-flicker
    		 Yes
    Back Light Compensation (BLC)
    		 Yes Yes Yes
    Video streaming
    		 Yes Yes Yes
    Alarm input/output
    		 Yes Yes Yes
    IP address filtering
    		 Yes
    Intelligent Video Surveillance (IVS) system features
    		 Tripwire
    ROM capacity
    		 512 MB 256 MB
    Camera shutter speed
    		 1 - 1/100000 s 1/3 - 1/100000 s 1/3 - 1/100000 s
    Adjustment shutter speed
    		 Auto/Manual Auto/Manual
    Bit rate control
    		 Constant Bit Rate (CBR), Variable Bit Rate (VBR) Constant Bit Rate (CBR), Variable Bit Rate (VBR) Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
    Gain control type
    		 Auto/Manual Auto/Manual
    Privacy masking
    		 Yes Yes
    Highlight Compensation (HLC)
    		 Yes Yes Yes
    Number of illumination LEDs
    		 2 1
    Live view
    		 Yes
    Cloud-managed
    		 Yes
    Power consumption (Power over Ethernet (PoE))
    		 17 W 5.8 W
    HTTPS encryption
    		 Yes
    Digest authentication
    		 Yes
    Password reset via email
    		 Yes
    Streaming method
    		 Multicast Multicast
    Number of simultaneous live view channels
    		 6 channels
    User access level
    		 Administrator, Operator, User
    Identify distance (wide)
    		 5.2 m 6.6 m
    Recognize distance (wide)
    		 10.4 m 13.2 m
    Built-in light
    		 Yes
    Audio input channels
    		 1.0 channels 1.0 channels
    Observe distance (wide)
    		 20.8 m 26.4 m
    Management software
    		 iVMS-4200,Hik-Connect,Hik-Central Smart PSS, DSS, DMSS Smart PSS, DSS, DMSS
    Closest focusing distance
    		 0.6 m 1.5 m
    Detect distance
    		 61 m
    Observe distance
    		 24 m
    Recognize distance
    		 12 m
    Identify distance
    		 6 m
    Detect distance (wide)
    		 52 m 66 m
    Pixel counter
    		 Yes
    Human and vehicle targets classification
    		 Yes
    Bit rate range
    		 8 - 320 Kbit/s
    Alarm output channels
    		 1 1
    Alarm input channels
    		 1 1
    Number of Privacy masking areas
    		 4 4
    Sample rates
    		 8 - 48 kHz
    Automatic Network Replenishment (ANR)
    		 Yes
    Network access storage (NAS)
    		 Yes
    Warnings
    		 The product contains electronic components; do not dispose of with the normal household waste.
    Audit log
    		 Yes
