Product Details
Data sheet

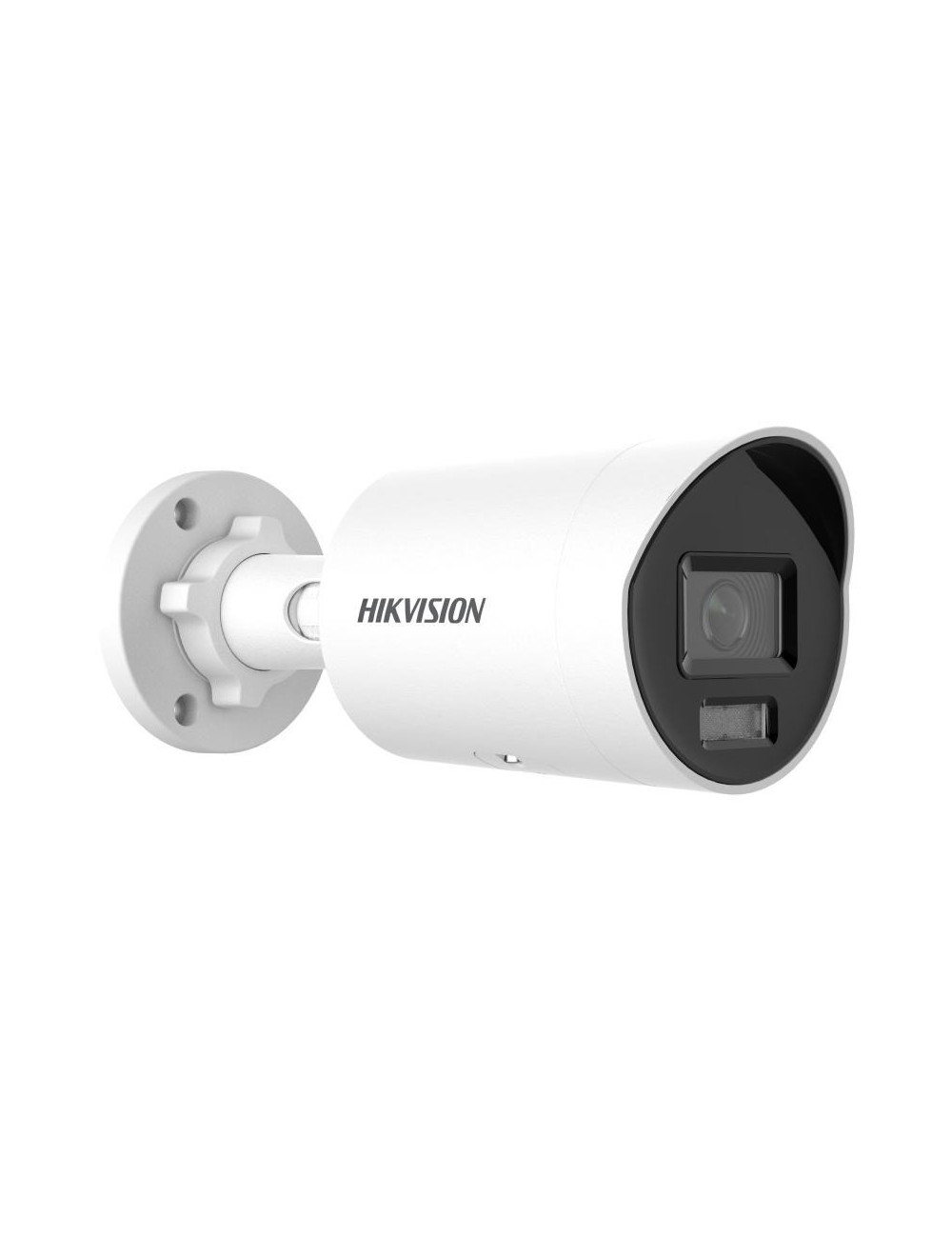

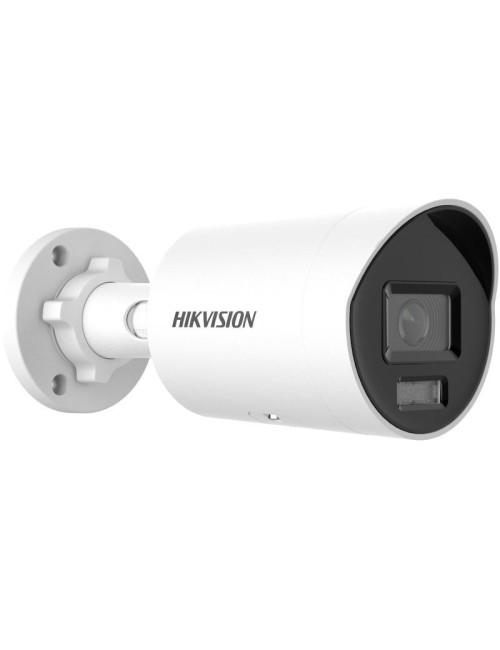

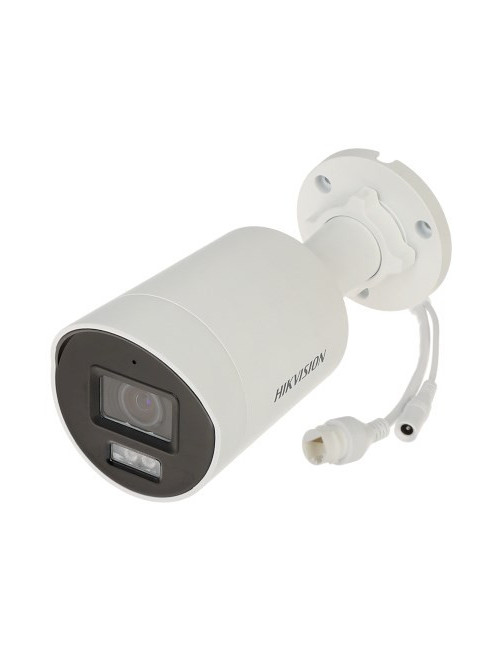

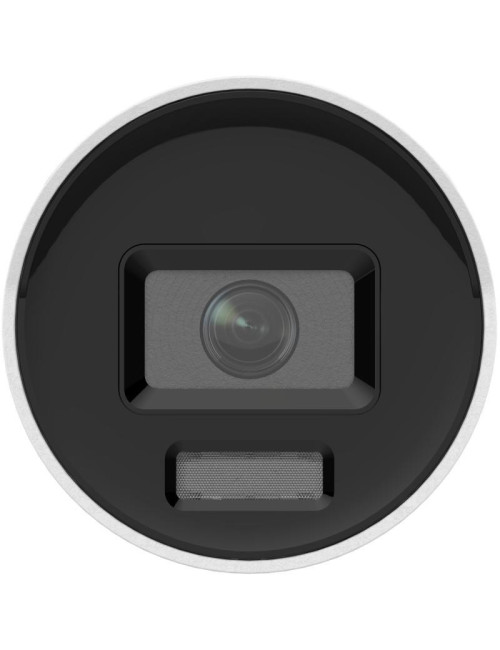

- Type
- IP security camera
- Connectivity technology
- Wired
- Weight
- 525 g
- Package depth
- 120 mm
- Package height
- 117 mm
- Package width
- 234 mm
- Package weight
- 750 g
- Power source type
- DC, PoE
- Storage relative humidity (H-H)
- 0 - 95%
- Operating temperature (T-T)
- -30 - 60 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage temperature (T-T)
- -30 - 60 °C
- Mounting type
- Wall
- Form factor
- Bullet
- Built-in microphone
- Yes
- Bluetooth
- No
- Bit rate
- 32 Kbps - 8 Mbps
- Noise reduction
- Yes
- Protection features
- Dust resistant
- Length
- 179.2 mm
- Sensor type
- CMOS
- Wi-Fi
- No
- Compatible memory cards
- MicroSD (TransFlash)
- Maximum memory card size
- 512 GB
- Audio formats supported
- PCM
- Signal-to-Noise Ratio (SNR)
- 52 dB
- Power consumption (max)
- 5.5 W
- Maximum resolution
- 2688 x 1520 pixels
- Placement supported
- Outdoor
- Card reader integrated
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Number of languages
- 33
- Housing material
- Metal
- Security algorithms
- EAP-MD5
- Ethernet LAN
- Yes
- Supported graphics resolutions
- 640 x 480 (VGA)
- Diameter
- 7.44 cm
- International Protection (IP) code
- IP67
- Ethernet interface type
- Fast Ethernet
- Number of Users
- 32 user(s)
- Web-based management
- Yes
- Quality of Service (QoS) support
- Yes
- Reset button
- Yes
- Password protection
- Yes
- Languages support
- Multi
- Frame Rate
- 30 fps
- Product colour
- White
- Tilt angle range
- 0 - 90°
- Sustainability compliance
- Yes
- Fixed focal length
- 4 mm
- LED type
- IR
- Night vision
- Yes
- Total megapixels
- 4 MP
- Fixed focus
- Yes
- Optical sensor size
- 25.4 / 1.8 mm (1 / 1.8")
- Minimum illumination
- 0 lx
- Pan range
- 0 - 360°
- Dynamic range
- 130 dB
- Lens viewing angle, diagonal
- 108.2°
- Video compression formats
- H.264
- Angle of rotation
- 360°
- DC output current
- 0.45 A
- DC output voltage
- 12
- Video motion detection
- Yes
- Number of cameras
- 1
- Night vision distance
- 40 m
- Number of lenses
- 1
- Privacy protection
- Yes
- Day/night mode
- Yes
- Infrared (IR) cut-off filter
- Yes
- Built-in HDD
- No
- Lens viewing angle, vertical
- 45.5°
- Noise reduction technology
- 3D noise reduction
- Region of Interest (ROI) encoding
- Yes
- Maximum aperture number
- 1
- Lens viewing angle, horizontal
- 89.2°
- Number of sensors
- 1
- Infra-red wavelength
- 850 nm
- Wide Dynamic Range (WDR)
- Yes
- Progressive scan
- Yes
- Mirror
- Yes
- Heartbeat
- Yes
- Digital watermark
- Yes
- Back Light Compensation (BLC)
- Yes
- Video streaming
- Yes
- Active tampering alarm
- Yes
- IP address filtering
- Yes
- Camera shutter speed
- 1/3 - 1/100000 s
- Bit rate control
- Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Privacy masking
- Yes
- Highlight Compensation (HLC)
- Yes
- Live view
- Yes
- Power consumption (Power over Ethernet (PoE))
- 7 W
- HTTPS encryption
- Yes
- Behavior analysis
- Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
- Image quality adjustment
- Saturation
- Lens mount interface
- M16
- Digest authentication
- Yes
- Password reset via email
- Yes
- Iris
- Yes
- Number of simultaneous live view channels
- 6 channels
- User access level
- Administrator, Operator, User
- Built-in light
- Yes
- Detect distance
- 75 m
- Observe distance
- 30 m
- Recognize distance
- 15 m
- Identify distance
- 7 m
- Pixel counter
- Yes
- Human and vehicle targets classification
- Yes
- Client interoperability
- iVMS-4200, Hik-Connect, Hik-Central
- Bit rate range
- 8 - 320 Kbit/s
- Compliance certificates
- CB
- Number of Privacy masking areas
- 4
- Sample rates
- 8 - 48 kHz
- Automatic Network Replenishment (ANR)
- Yes
- Network access storage (NAS)
- Yes
- Audit log
- Yes
