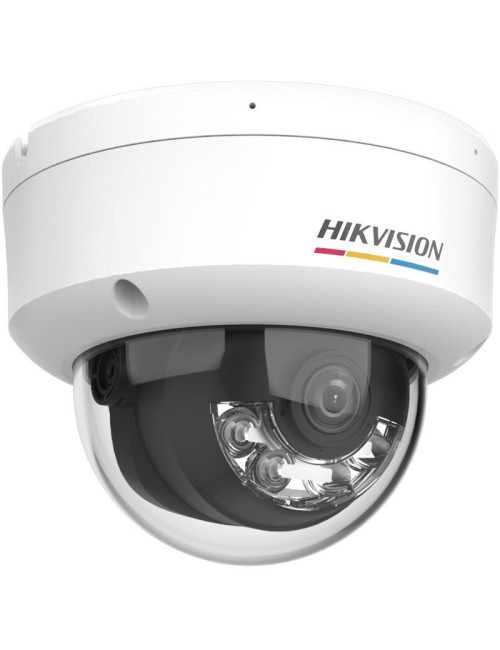

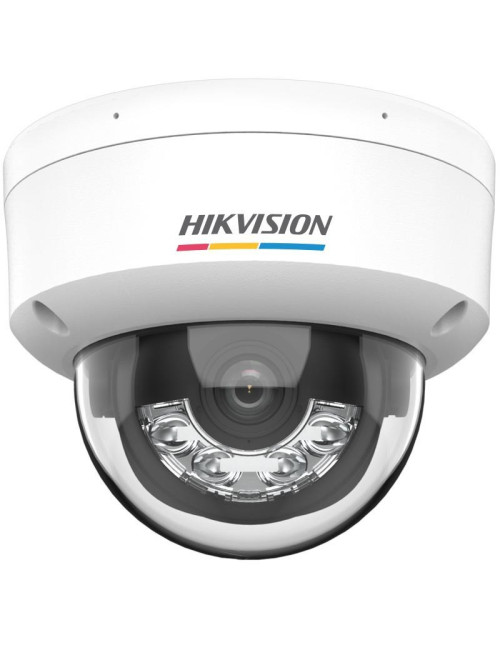

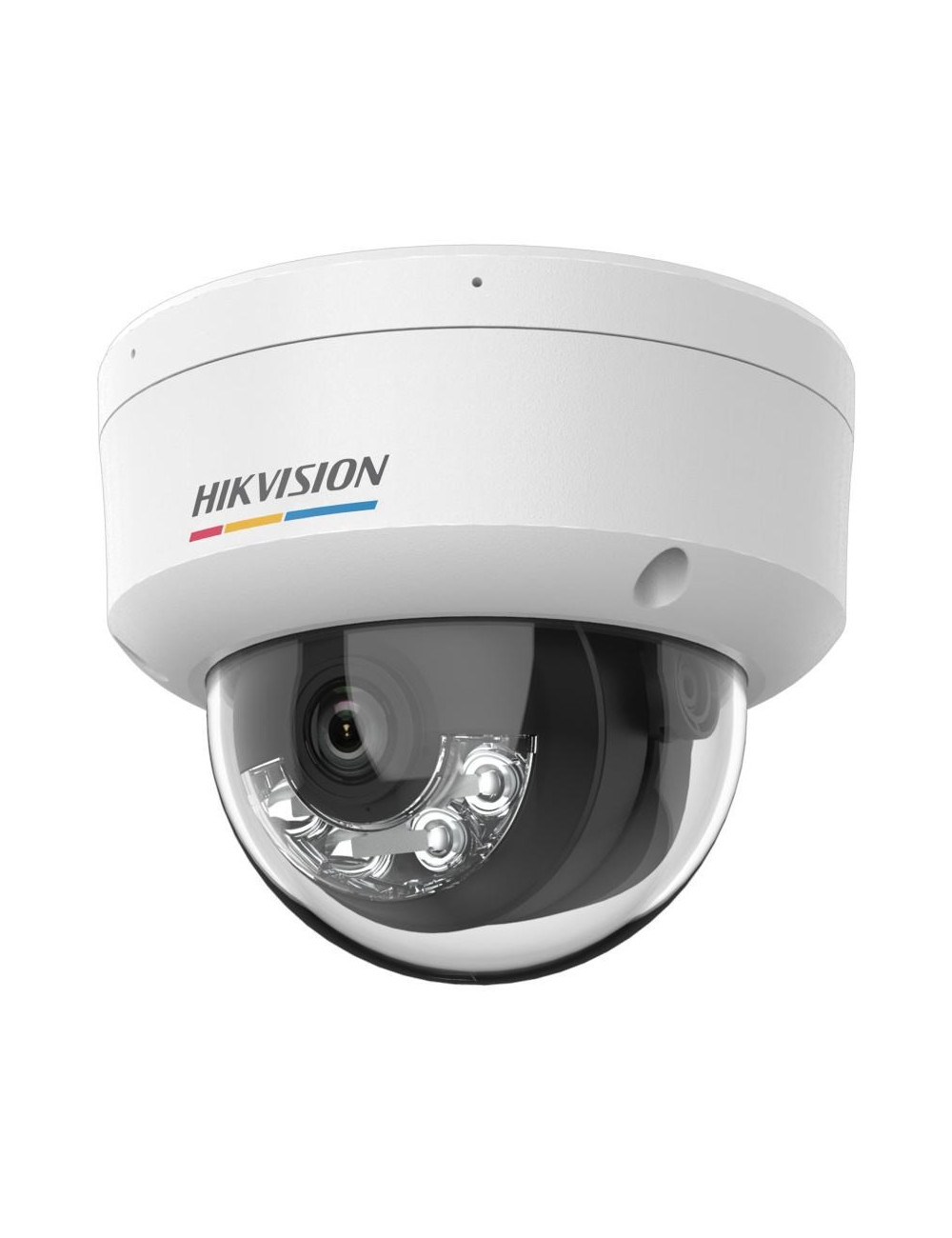

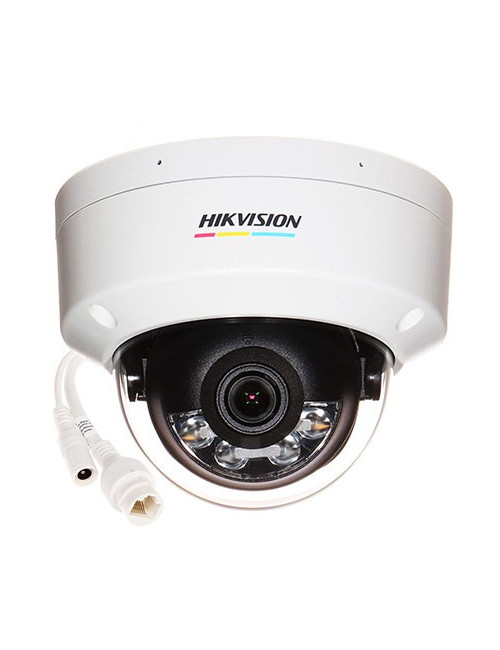

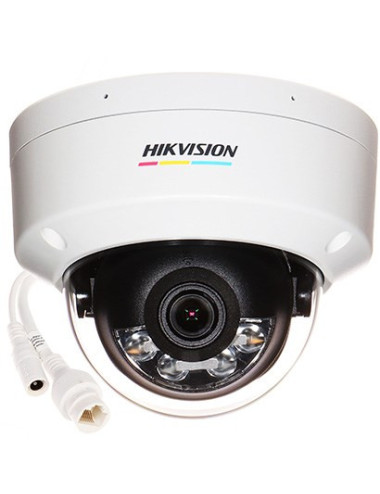

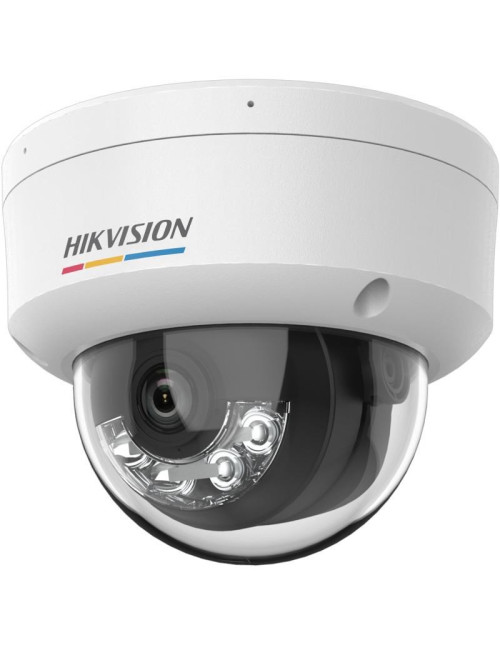

HIKVISION IP Camera DS-2CD1167G2H-LIU (2.8mm)

Product Details

Reference WLONONWCRJCDR

In stock 7 Items

Data sheet

Type

IP security camera

Height

97.6 mm

Connectivity technology

Wired

Weight

550 g

Package depth

150 mm

Package height

141 mm

Package width

150 mm

Package weight

800 g

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Manual

Yes

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Ceiling

Form factor

Dome

Built-in microphone

Yes

Bit rate

32 Kbps - 16 Mbps

Noise reduction

Yes

Sensor type

CMOS

Audio formats supported

MP2L2

Signal-to-Noise Ratio (SNR)

52 dB

Power consumption (max)

6.6 W

Maximum resolution

3200 x 1800 pixels

Placement supported

Indoor & outdoor

Ethernet LAN (RJ-45) ports

1

Number of languages

2

DC-in jack

Yes

Housing material

Metal

Networking standards

IEEE 802.3af

Ethernet LAN

Yes

Supported graphics resolutions

1920 x 1080 (HD 1080)

Diameter

12.2 cm

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Supported video modes

480p

Video formats supported

H.265+

Number of Users

32 user(s)

Quality of Service (QoS) support

Yes

Supported network protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP

Password protection

Yes

Languages support

Ukrainian

Frame Rate

20 fps

Product colour

White

Tilt angle range

0 - 75°

Fixed focal length

2.8 mm

Video recording

Yes

LED type

IR/White

Night vision

Yes

Total megapixels

6 MP

Fixed focus

Yes

Optical sensor size

25.4 / 2.4 mm (1 / 2.4")

White balance

Manual

Minimum illumination

0 lx

Pan range

0 - 355°

Dynamic range

120 dB

Lens viewing angle, diagonal

143°

Video compression formats

H.264

Angle of rotation

355°

DC output current

0.55 A

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Night vision distance

30 m

Number of lenses

1

Privacy protection

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

60°

Noise reduction technology

3D noise reduction

Smart IR

Yes

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1

Lens viewing angle, horizontal

115°

Number of sensors

1

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Heartbeat

Yes

Digital watermark

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Live view

Yes

Power consumption (Power over Ethernet (PoE))

8 W

Image quality adjustment

Sharpness

IK code

IK08

Digest authentication

Yes

Password reset via email

Yes

Number of simultaneous live view channels

6 channels

User access level

Administrator, Operator, User

Detect distance

64 m

Observe distance

25 m

Recognize distance

12 m

Identify distance

6 m

Human and vehicle targets classification

Yes

Bit rate range

16 - 160 Kbit/s

Number of Privacy masking areas

4

Sample rates

8 - 16 kHz

Audit log

Yes
