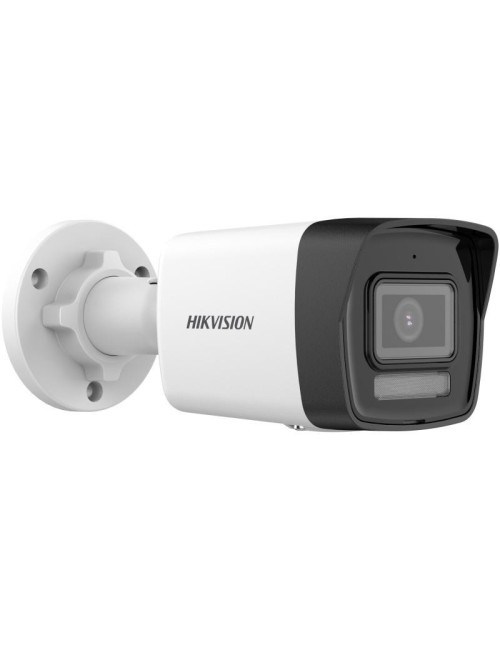

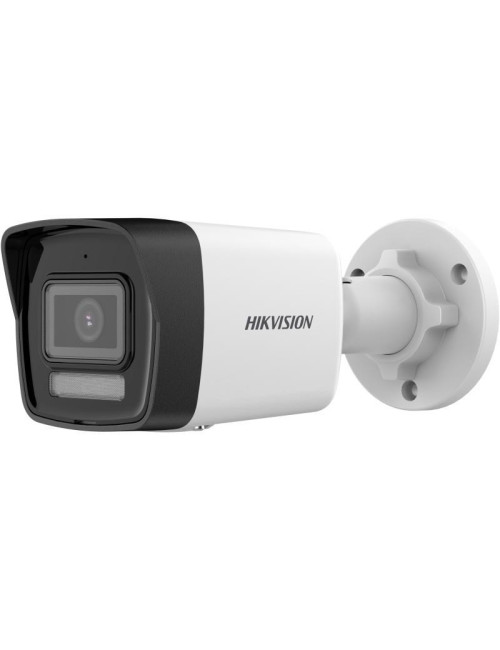

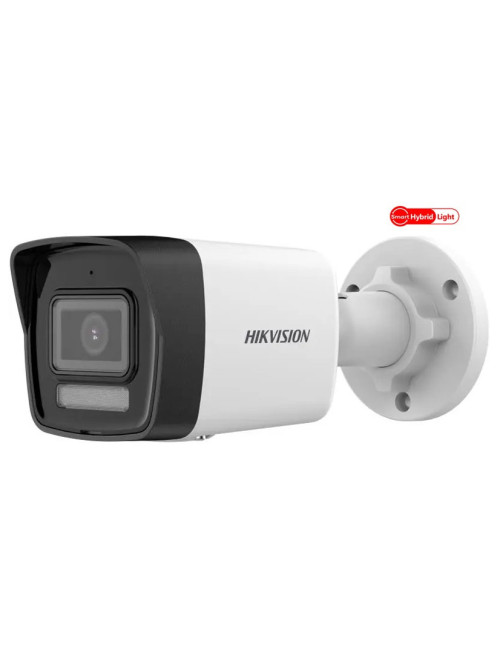

IP camera Hikvision DS-2CD1043G2-LIU(2.8mm)

Product Details

Reference WLONONWCR5428

In stock 10 Items

Data sheet

Type

IP security camera

Width

66 mm

Height

69.1 mm

Depth

170.8 mm

Connectivity technology

Wired

Weight

270 g

Package depth

121 mm

Package height

118 mm

Package width

216 mm

Package weight

481 g

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Manual

Yes

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Ceiling/wall

Form factor

Bullet

Built-in microphone

Yes

Noise reduction

Yes

Sensor type

CMOS

Audio formats supported

MP2L2

Signal-to-Noise Ratio (SNR)

52 dB

Power consumption (max)

5 W

Maximum resolution

2560 x 1440 pixels

Placement supported

Indoor & outdoor

Ethernet LAN (RJ-45) ports

1

Number of languages

2

Housing material

Plastic

Networking standards

IEEE 802.3af

Ethernet LAN

Yes

Supported graphics resolutions

640 x 480 (VGA)

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Supported video modes

360p

Video formats supported

H.265

Number of Users

32 user(s)

Supported network protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

Password protection

Yes

Languages support

Ukrainian

Frame Rate

25 fps

Product colour

White

Tilt angle range

0 - 90°

Fixed focal length

2.8 mm

Video recording

Yes

LED type

IR/White

Night vision

Yes

Total megapixels

4 MP

Optical sensor size

25.4 / 3 mm (1 / 3")

White balance

Auto

Minimum illumination

0 lx

Pan range

0 - 360°

Dynamic range

120 dB

Lens viewing angle, diagonal

114°

Video compression formats

H.265+

Angle of rotation

360°

DC output current

0.4 A

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

30 m

Number of lenses

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

54°

Noise reduction technology

3D noise reduction

Maximum aperture number

1.6

Lens viewing angle, horizontal

98°

Number of sensors

1

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Heartbeat

Yes

Back Light Compensation (BLC)

Yes

Camera shutter speed

1/100000 - 1/3 s

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Live view

Yes

Power consumption (Power over Ethernet (PoE))

6.5 W

Image quality adjustment

Sharpness

Digest authentication

Yes

Password reset via email

Yes

Number of simultaneous live view channels

6 channels

User access level

Administrator, Operator, User

Built-in light

Yes

Detect distance

63 m

Observe distance

25 m

Recognize distance

12 m

Identify distance

6 m

Bit rate range

16 - 160 Kbit/s

Number of Privacy masking areas

4

Sample rates

8 - 16 kHz

Audit log

Yes
