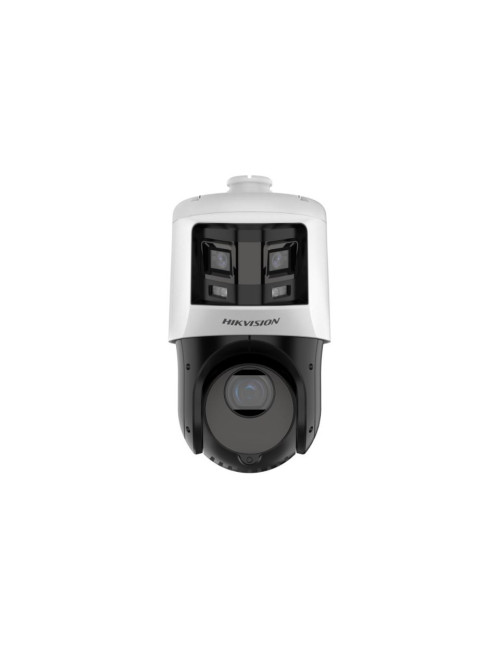

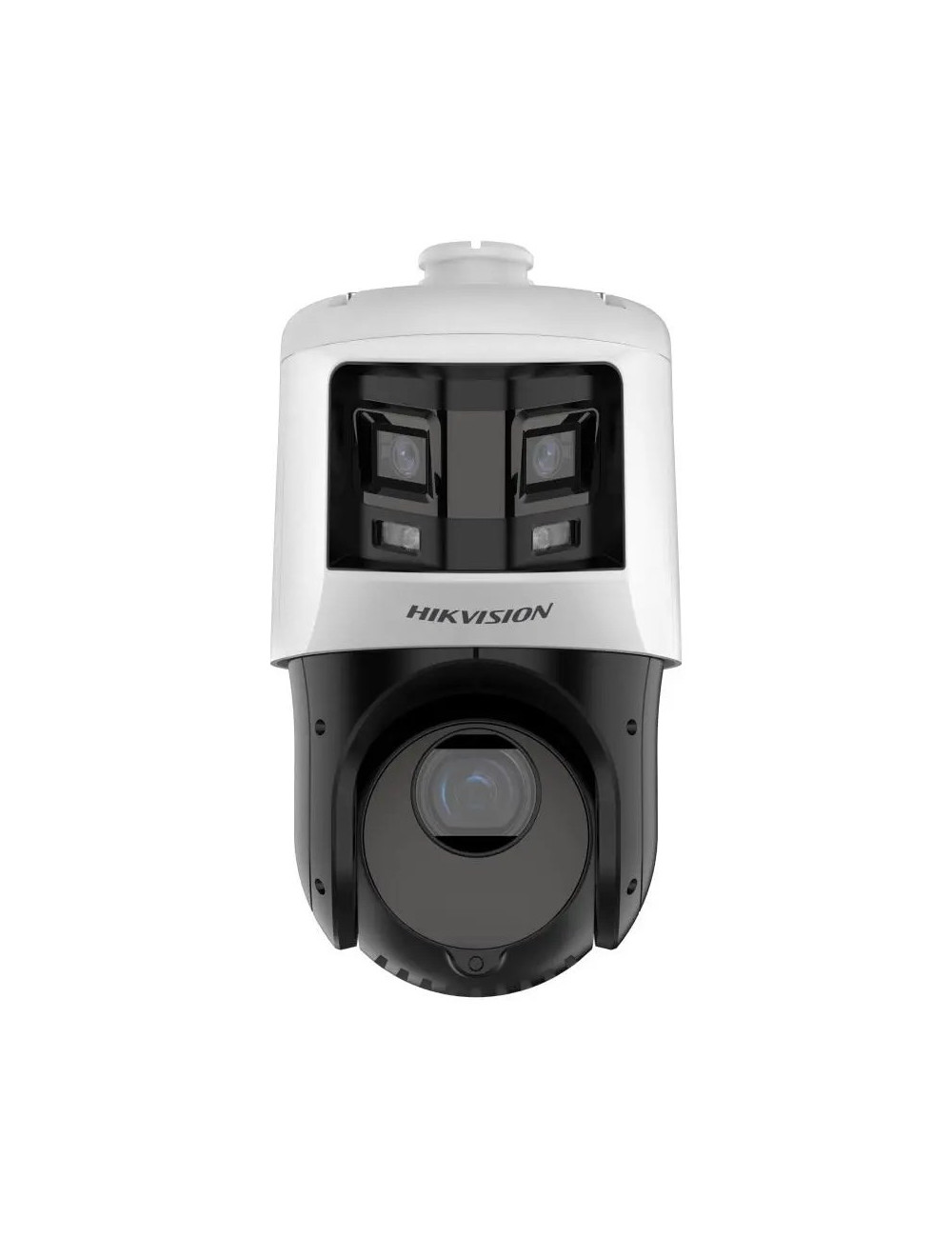

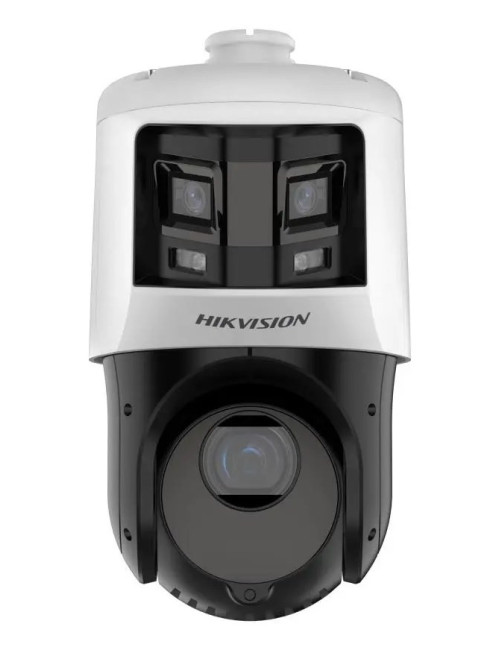

IP Camera: Hikvision DS-2SE4C425MWG-E/26(F0)

Product Details

Reference WLONONWCRGHAG

In stock 3 Items

Data sheet

Type

IP security camera

Height

302.6 mm

Connectivity technology

Wired

Weight

2.4 kg

Power source type

AC, DC, PoE

Operating temperature (T-T)

-30 - 65 °C

Operating relative humidity (H-H)

0 - 90%

Mounting type

Ceiling

Form factor

Bullet

Built-in microphone

Yes

Bluetooth

No

Bit rate

32 Kbps - 16 Mbp

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

256 GB

Audio formats supported

G.711

Power consumption (max)

24 W

Maximum resolution

3632 x 1632 pixels

Placement supported

Indoor & outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Audio output channels

1.0 channels

Ethernet LAN

Yes

Focus

Motorized/Manual

Supported graphics resolutions

1280 x 720 (HD 720)

Zoom capability

Yes

Diameter

16.6 cm

International Protection (IP) code

IP66

Digital zoom

16x

Auto focus

Yes

Optical Zoom

25x

Number of Users

32 user(s)

Quality of Service (QoS) support

Yes

Reset button

Yes

Browser supported

IE11+,Chrome57+,Firefox52+,Safari12+,Edge79.0.309.65+

Password protection

Yes

Product colour

Black

Tilt angle range

-15 - 90°

Focal length range

4.8 - 120 mm

Web browser

Yes

LED type

IR

Night vision

Yes

Total megapixels

10 MP

PTZ control

Yes

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

White balance

Indoor

Minimum illumination

0 lx

Pan range

0 - 360°

Dynamic range

120 dB

Lens viewing angle, diagonal

61.5 - 2.8°

Video compression formats

M-JPEG

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

30 m

Privacy protection

Yes

Day/night mode

Yes

Preset points

Yes

Built-in HDD

No

Lens viewing angle, vertical

33 - 1.4°

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1.6

Lens viewing angle, horizontal

55 - 2.4°

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Digital watermark

Yes

Back Light Compensation (BLC)

Yes

Fog proof

Yes

Active tampering alarm

Yes

Alarm input/output

Yes

IP address filtering

Yes

Intelligent Video Surveillance (IVS) system features

Region entrance detection

Camera shutter speed

1 - 1/30000 s

Number of effective pixels (H x V)

2560 x 1440 pixels

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Fixed focal length (panoramic camera)

2.8 mm

Minimum illumination (panoramic camera)

0 lx

Signal-to-Noise Ratio (SNR) (panoramic camera)

52 dB

Live view

Yes

HTTPS encryption

Yes

Behavior analysis

Line crossing detection

Image quality adjustment

Brightness

Password reset via email

Yes

Number of simultaneous live view channels

20 channels

User access level

Administrator, Operator, User

Built-in light

Yes

Pan speed

80 °/sec

Audio input channels

1.0 channels

Identify distance (tele)

220 m

B/W night vision distance

100 m

Client interoperability

iVMS-4200,Hik-Connect

Recognize distance (tele)

440 m

Detect distance (tele)

2200 m

Observe distance (tele)

873 m

Bit rate range

8 - 320 Kbit/s

Pan preset speed

80 °/sec

PTZ modes

Preset point

Tilt preset speed

80 °/sec

Alarm output channels

1

Alarm input channels

1

Preset programs quantity

300

Viewing angle, horizontal (panoramic camera)

180°

Number of Privacy masking areas

24

Sample rates

8 - 48 kHz

Automatic Network Replenishment (ANR)

Yes

3D positioning

Yes

Optical sensor size (panoramic camera)

25.4 / 2.5 mm (1 / 2.5")

Viewing angle, vertical (panoramic camera)

80°

Maximum resolution (panoramic camera)

3632 x 1632 pixels

Sensor type (panoramic camera)

CMOS

PTZ status display

Yes

Preset freezing function

Yes

Zoom speed

3.6 s

Maximum aperture number (panoramic camera)

1
