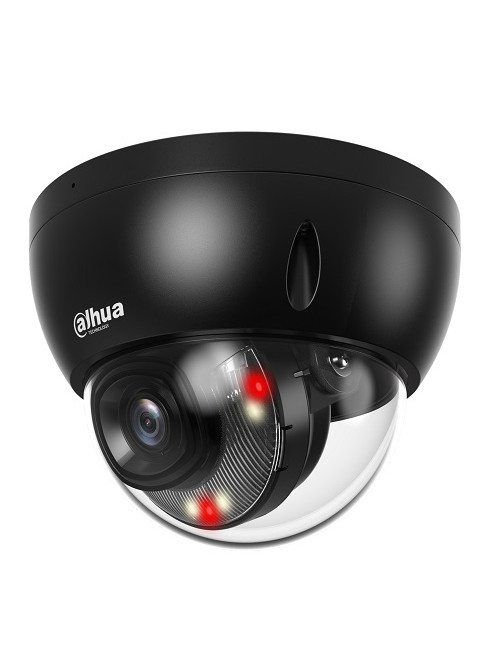

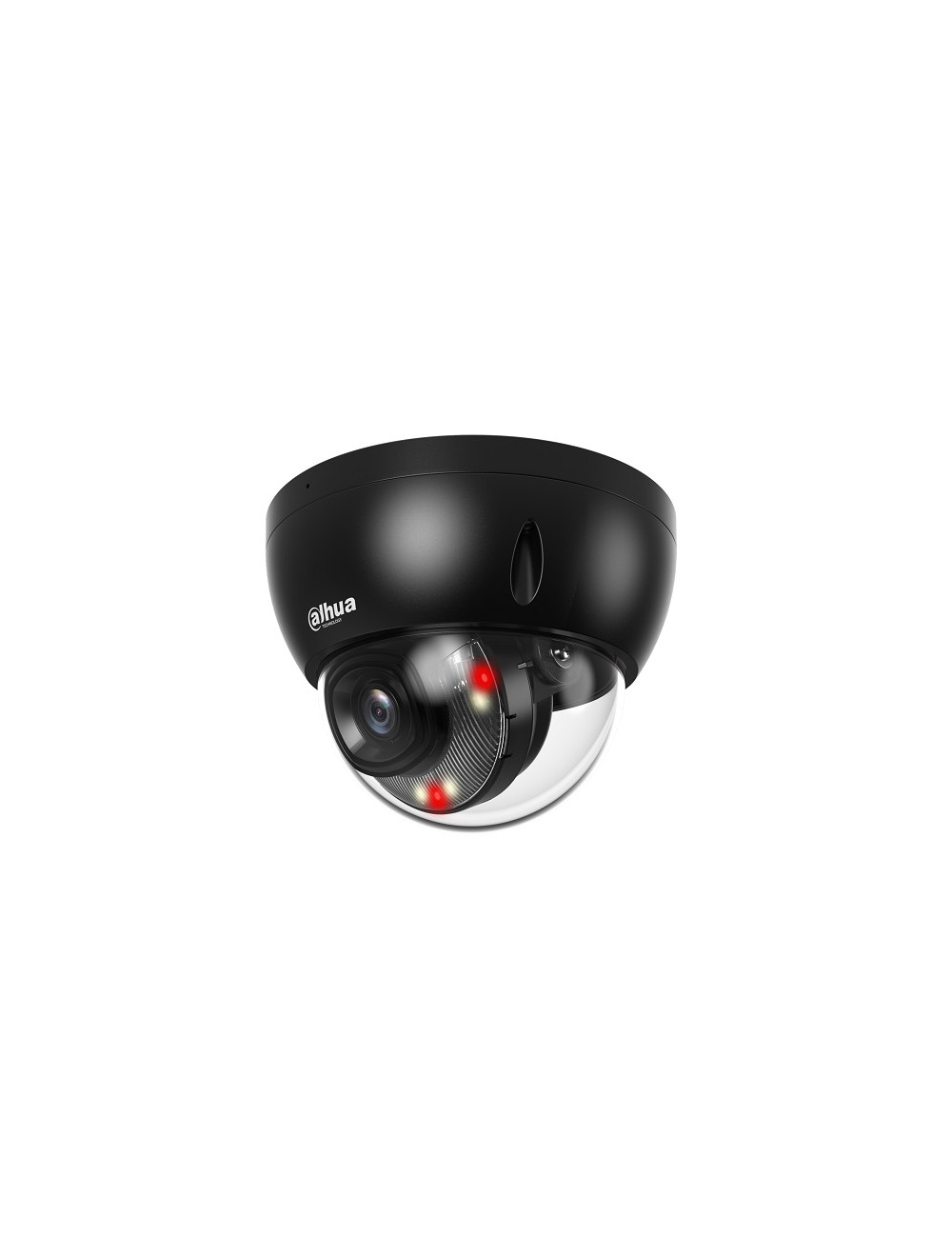

IP network camera 4MP HDBW2449E-S-IL 2.8mm Black
    DAHUA TECHNOLOGY CO., LTD

    IP network camera 4MP HDBW2449E-S-IL 2.8mm Black

    €150.54
    Tax included
    Quantity

    Add to favorites Add to compare

    Camera

    Image Sensor

    1/2.9" CMOS

    Max. Resolution

    2688 (H) x 1520 (V)

    ROM

    128 MB

    RAM

    128 MB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual 1/3 s–1/100,000 s

    Min. Illumination

    0.006 lux@F1.6 (Color, 30 IRE);
    0.0006 lux@F1.6 (B/W, 30 IRE);
    0 lux (Illuminator on)

    S/N Ratio

    >56 dB

    Illumination Distance

    Up to 30 m (98.43 ft) (IR)
    Up to 30 m (98.43 ft) (Warm light)

    Illuminator On/Off Control

    Auto;Manual

    Illuminator Number

    3 (IR LED); 4 (Warm light)

    Angle Adjustment

    Pan: 0°–355°;
    Tilt: 0°–65°;
    Rotation: 0°–355°

    Lens

    Lens Type

    Fixed-focal

    Lens Mount

    M12

    Focal Length

    2.8 mm

    Max. Aperture

    F1.6

    Field of View

    2.8 mm: H: 101°; V: 54°; D: 120°

    Iris Control

    Fixed

    Close Focus Distance

    2.8 mm: 1.1 m (3.61 ft)

    DORI Distance

    LensDetectObserveRecognizeIdentify
    2.8 mm 63.6 m
    ( 208.66 ft)    		 25.4 m
    ( 83.33 ft)    		 12.7 m
    ( 41.67 ft)    		 6.4 m

    ( 21.00 ft)



    *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

    Intelligence

    IVS (Perimeter Protection)

    Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

    SMD

    SMD Plus

    Smart Search

    Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

    Video

    Video Compression

    H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

    Smart Codec

    Smart H.265+; Smart H.264+

    Video Frame Rate

    Main stream: 2688 x 1520 @ (1–20 fps)/2560 x 1440@(1–25/30 fps)
    Sub stream: 704 x 576@(1–25 fps)/704 x 480@(1–30 fps)
    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

    Streaming Capability

    2 streams

    Resolution

    4M (2688 x 1520/2560 x 1440); 3M (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720);D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)

    Bit Rate Control

    VBR;CBR

    Video Bit Rate

    H.264: 32 kbps–6144 kbps;
    H.265: 12 kbps–6144 kbps

    Day/Night

    Auto(ICR)/Color/B/W

    BLC

    Yes

    HLC

    Yes

    WDR

    120 dB

    White Balance

    Auto; natural; street lamp; outdoor; manual; regional custom

    Gain Control

    Auto/Manual

    Noise Reduction

    3D NR

    Motion Detection

    OFF/ON (4 areas, rectangular)

    Region of Interest (RoI)

    Yes (4 areas)

    Smart Illumination

    Yes

    Smart Dual Light

    Yes

    Image Rotation

    0°/90°/180°/270° (Support 90°/270° with 2688 x1520 resolution and lower)

    Mirror

    Yes

    Privacy Masking

    4 areas

    Audio

    Built-in MIC

    Yes, built-in Mic

    Audio Compression

    G.711a; G.711Mu; PCM; G.726

    Alarm

    Alarm Event

    No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

    Network

    Network Port

    RJ-45 (10/100 Base-T)

    SDK and API

    Yes

    Network Protocol

    IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

    Interoperability

    ONVIF (Profile S & Profile G & Profile T); CGI

    User/Host

    6 (Total bandwidth: 36 M)

    Storage

    FTP; SFTP; Micro SD card (support max. 256 GB)

    Browser

    IE; Chrome; Firefox

    Management Software

    Smart PSS Lite; DSS; DMSS; DoLynk Care

    Mobile Client

    iOS;Android

    Security

    Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade

    Certification

    Certifications

    CE-LVD: EN62368-1;
    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

    Power

    Power Supply

    12 VDC/PoE (802.3af)

    Power Consumption

    Basic: 2.4 W (12 VDC), 3 W (PoE);
    Max.: 6.6 W (12 VDC), 7.9 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity)

    Environment

    Operating Temperature

    –40 °C to +60 °C (–40 °F to +140 °F)

    Operating Humidity

    ?95%(RH), non-condensing

    Storage Temperature

    –40 °C to +60 °C (–40 °F to +140 °F)

    Storage Humidity

    ?95%(RH), non-condensing

    Protection

    IP67; IK10

    Structure

    Casing Material

    Metal

    Product Dimensions

    81.0 mm x Ø109.9 mm (3.19" x Ø4.33")

    Net Weight

    0.35 kg (0.77 lb)

    Gross Weight

    0.50 kg (1.10 lb)

    Product Details

    HDBW2449EILB
    50 Items
