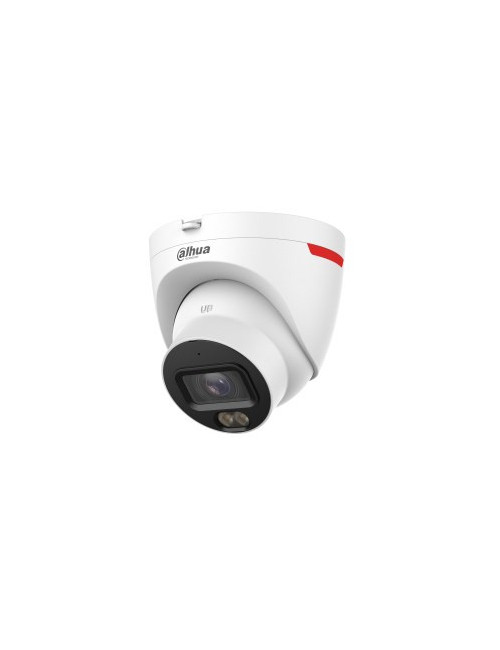

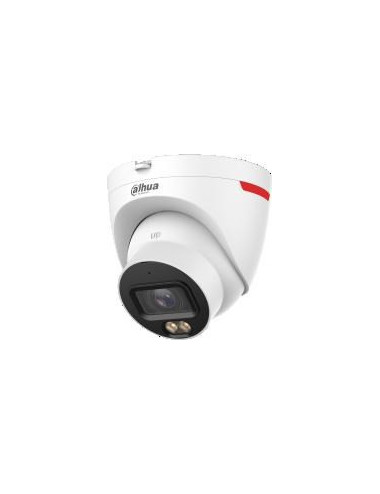

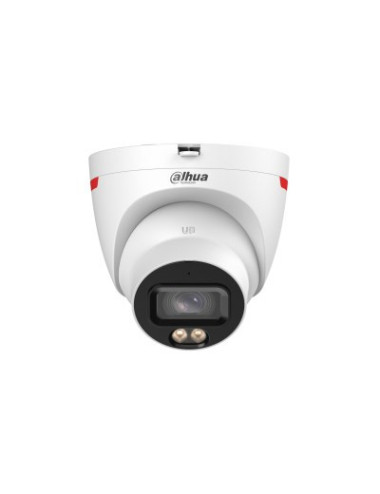

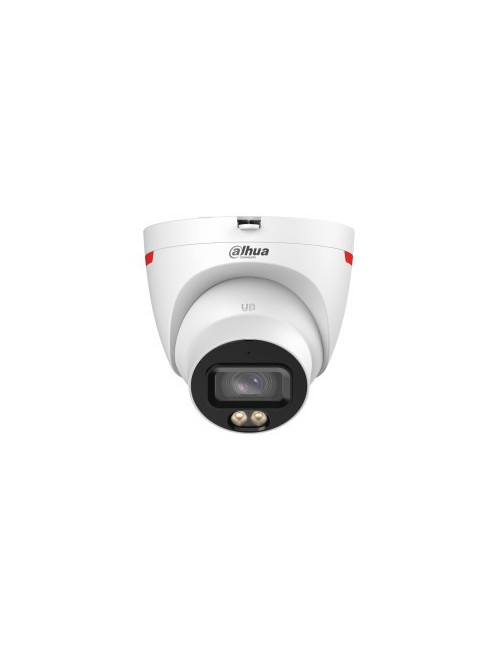

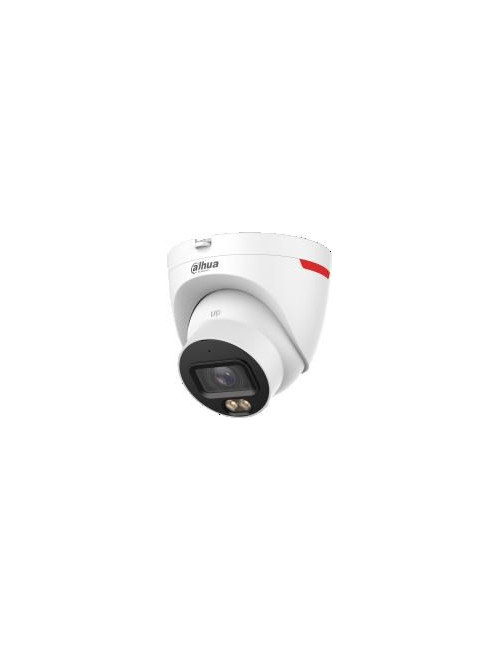

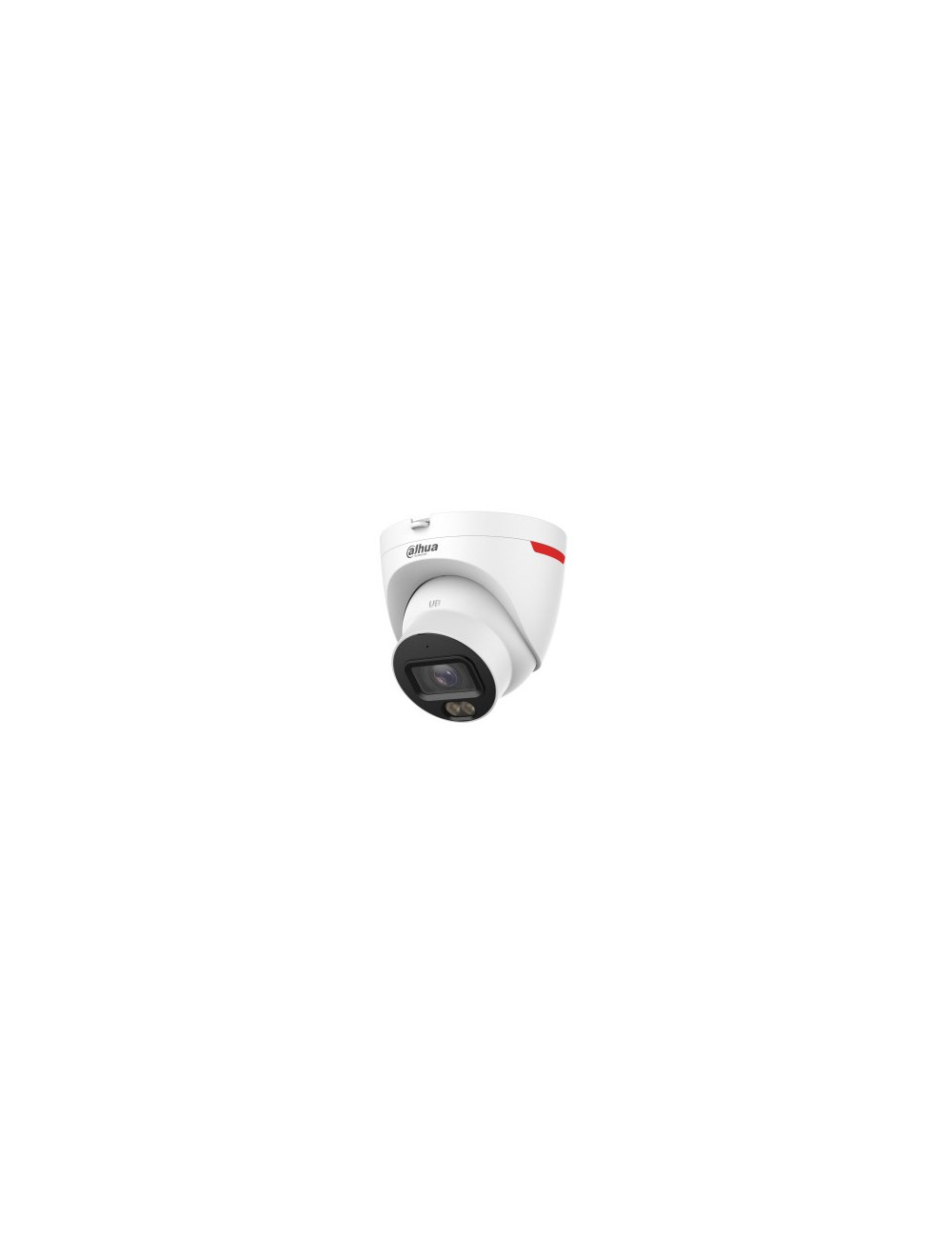

IP Camera DAHUA IPC-HDW2249T-S-LED-0280B-PRO

Product Details

Reference WLONONWCRMSW6

In stock 21 Items

Data sheet

Type

IP security camera

Height

109.5 mm

Connectivity technology

Wired

Weight

400 g

Package weight

570 g

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-40 - 60 °C

Mounting type

Ceiling/Wall/Pole

Form factor

Turret

Bluetooth

No

Bit rate

H.264: 32 Kbps–6144 Kbps; H.265: 12 Kbps–6144 Kbps

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

256 GB

Signal-to-Noise Ratio (SNR)

65 dB

Power consumption (max)

5.7 W

Power consumption (typical)

1.5 W

Maximum resolution

1920 x 1080 pixels

Placement supported

Outdoor

Ethernet LAN (RJ-45) ports

1

DC-in jack

Yes

Housing material

Plastic

Ethernet LAN

Yes

Supported graphics resolutions

704 x 480

Diameter

11 cm

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Supported video modes

1080p

Number of Users

20 user(s)

Frame Rate

30 fps

Product colour

White

Tilt angle range

0 - 78°

Fixed focal length

2.8 mm

Web browser

Yes

RAM capacity

256 MB

LED type

White

Night vision

Yes

Total megapixels

2 MP

Optical sensor size

25.4 / 2.9 mm (1 / 2.9")

Minimum illumination

0.0002 lx

Pan range

0 - 360°

Dynamic range

120 dB

Lens viewing angle, diagonal

119°

Video compression formats

M-JPEG

Angle of rotation

360°

DC output voltage

12

Number of cameras

1

Night vision distance

30 m

Day/night mode

Yes

Built-in HDD

No

Camera shutter type

Electronic

Lens viewing angle, vertical

53°

Lens viewing angle, horizontal

101°

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Back Light Compensation (BLC)

Yes

ROM capacity

128 MB

Camera shutter speed

1/3 – 1/100000

Highlight Compensation (HLC)

Yes

Number of illumination LEDs

2

Power consumption (Power over Ethernet (PoE))

1.9 W

Built-in light

Yes

Management software

Smart PSS Lite; DSS; DMSS

Closest focusing distance

1.1 m

Detect distance

47.1 m

Observe distance

18.9 m

Recognize distance

9.4 m

Identify distance

4.7 m

Minimum aperture number

1

Number of Privacy masking areas

4
