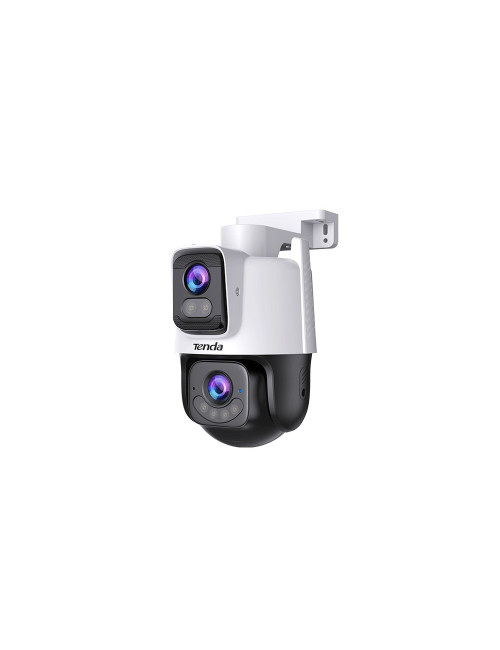

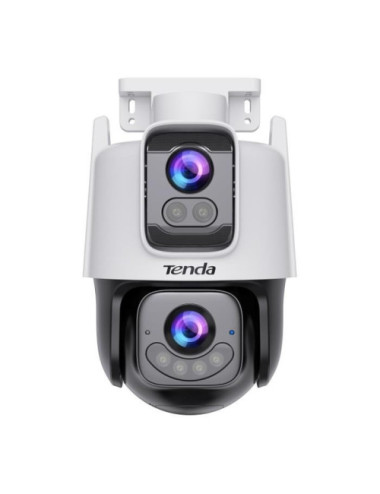

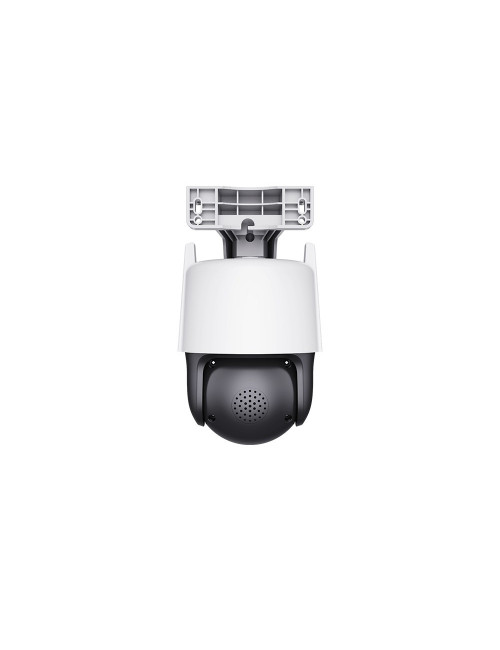

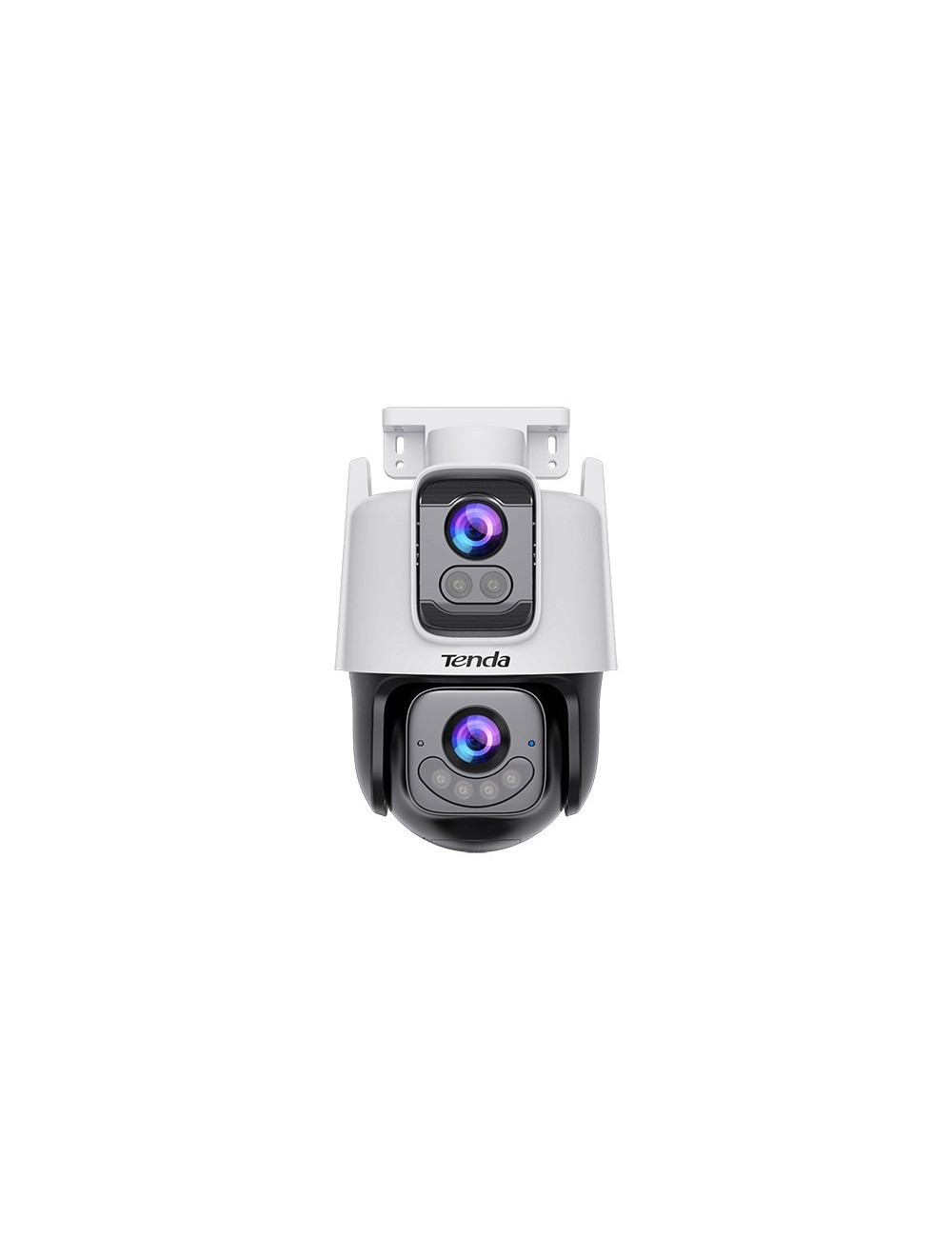

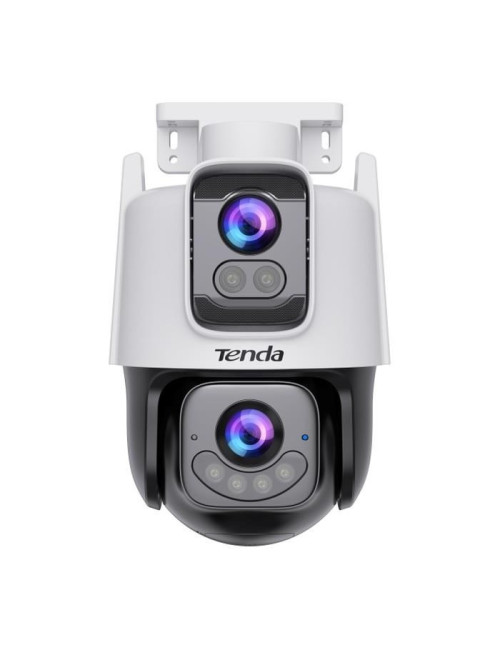

Tenda RH9-WCA security camera Turret IP security camera Outdoor 2304 x 1296 pixels Ceiling/Wall/Pole

Product Details

Data sheet

Type

IP security camera

Width

122 mm

Height

203 mm

Depth

62 mm

Connectivity technology

Wired & Wireless

Weight

527 g

Package depth

145 mm

Package height

193 mm

Package width

240 mm

Package weight

802 g

Power source type

DC

Storage relative humidity (H-H)

3 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

10 - 95%

Storage temperature (T-T)

-40 - 70 °C

Mounting type

Ceiling/Wall/Pole

Form factor

Turret

Built-in microphone

Yes

Bluetooth

No

Noise reduction

Yes

Sensor type

CMOS

Wi-Fi

Yes

Compatible memory cards

MicroSD (TransFlash)

Wi-Fi standards

Wi-Fi 4 (802.11n)

Maximum memory card size

512 GB

Maximum resolution

2304 x 1296 pixels

Built-in speaker(s)

Yes

Placement supported

Outdoor

Ethernet LAN (RJ-45) ports

1

Housing material

Plastic

Security algorithms

WPA

Ethernet LAN

Yes

Supported graphics resolutions

1280 x 720 (HD 720)

International Protection (IP) code

IP65

Antenna type

Internal

Ethernet interface type

Fast Ethernet

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets

Reset button

Yes

Mounting kit

Yes

Product colour

White

Tilt angle range

0 - 90°

Fixed focal length

4 mm

Web browser

Yes

Voice codecs

AAC

LED type

IR

Night vision

Yes

Total megapixels

6 MP

PTZ control

Yes

Optical sensor size

25.4 / 3 mm (1 / 3")

Pan range

0 - 355°

DC output voltage

12

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

30 m

Number of lenses

2

Built-in HDD

No

Noise reduction technology

3D noise reduction

Digital Wide Dynamic Range (DWDR)

Yes

Maximum aperture number

1.6

Infra-red wavelength

850 nm

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Highlight Compensation (HLC)

Yes

Fixed focal length (panoramic camera)

6 mm

Mounting brackets included

Yes

Compliance certificates

UKCA

Number of Privacy masking areas

4

Viewing angle, vertical (4mm lens)

44.7°

Viewing angle, diagonal (6mm lens)

60.4°

Viewing angle, horizontal (6mm lens)

51.8°

Viewing angle, horizontal (4mm lens)

82.3°

Viewing angle, diagonal (4mm lens)

97.4°

Viewing angle, vertical (6mm lens)

28.2°
