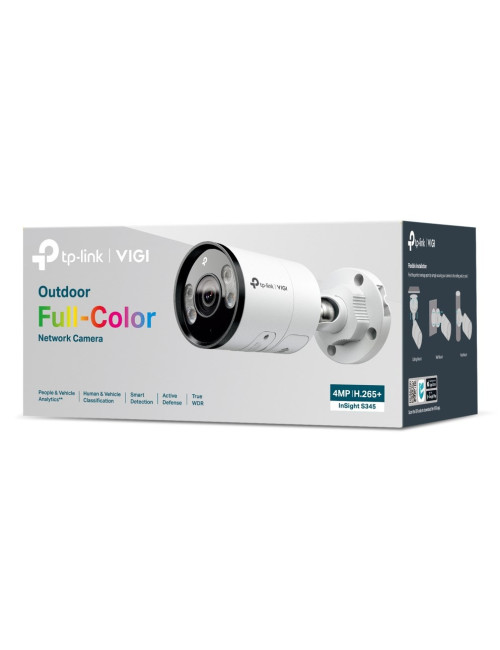

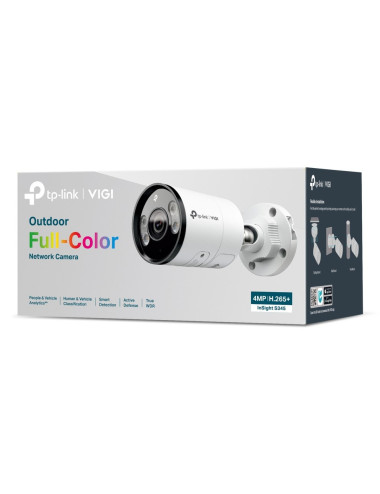

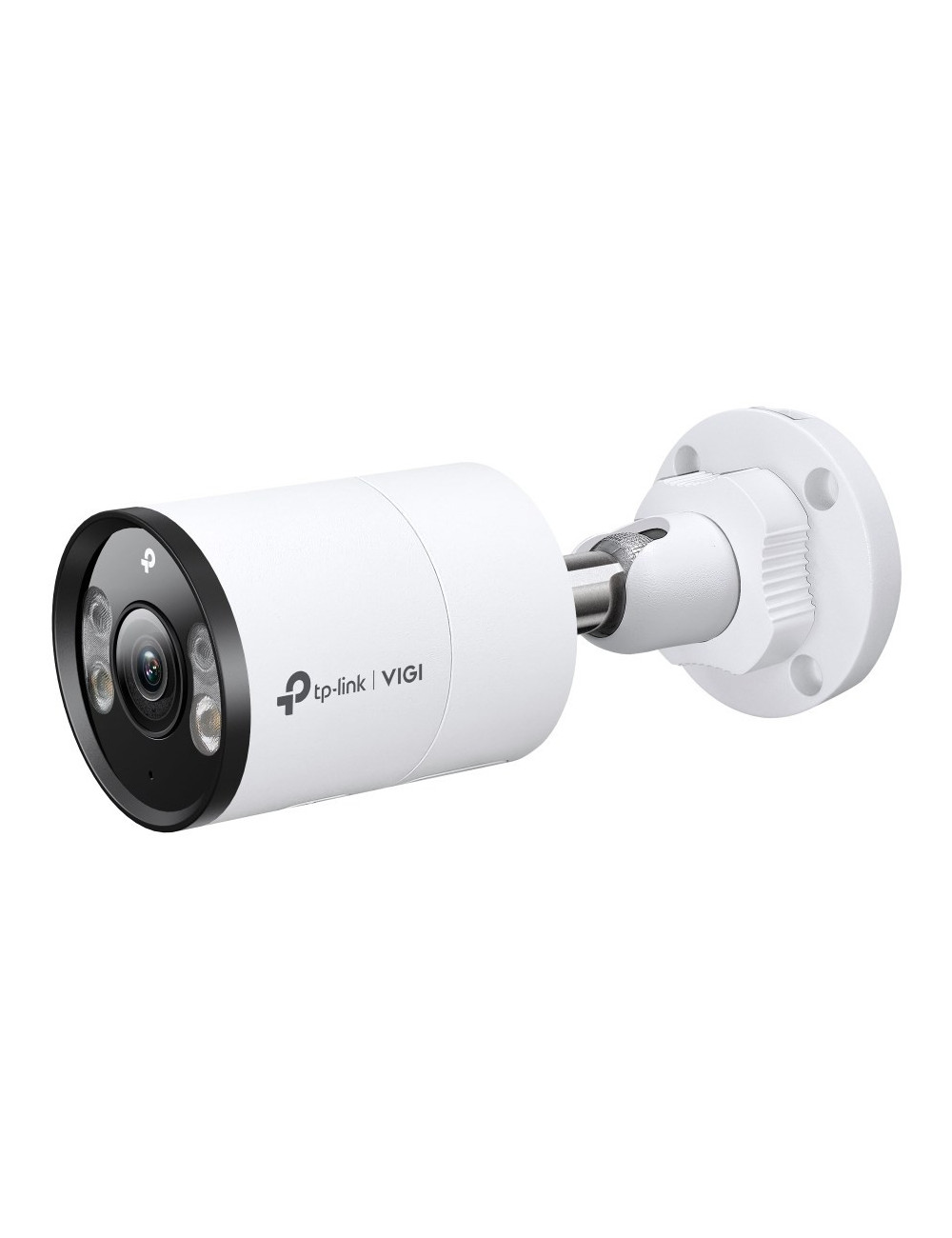

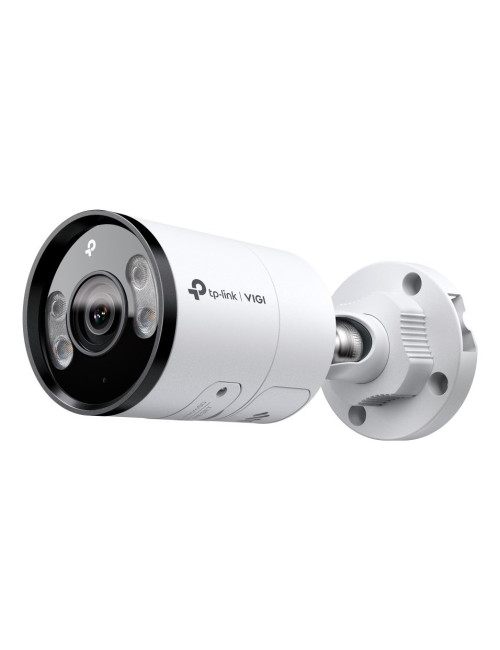

TP-LINK TPLINK IP Camera InSight S345 (6mm)

Product Details

Reference WLONONWCRMOE8

In stock 6 Items

Data sheet

Type

IP security camera

Package type

Box

Width

74 mm

Height

74 mm

Connectivity technology

Wired

Weight

525 g

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Manual

Yes

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-40 - 60 °C

Mounting type

Wall

Form factor

Bullet

Built-in microphone

Yes

Bluetooth

No

Sample rate

8 kHz

Bit rate

Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps

Protection features

Waterproof

Length

184 mm

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

512 GB

Audio system

2-way

Audio formats supported

G.711 A-law

Maximum operating distance

120 m

Maximum resolution

2688 x 1520 pixels

Built-in speaker(s)

Yes

Placement supported

Outdoor

Ethernet LAN (RJ-45) ports

1

Audio output channels

1.0 channels

Housing material

Metal

Networking standards

IEEE 802.3af

Ethernet LAN

Yes

Supported graphics resolutions

2048 x 1280

International Protection (IP) code

IP67

Web-based management

Yes

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

Reset button

Yes

Password protection

Yes

Mounting kit

Yes

Product colour

White

Tilt angle range

0 - 90°

Fixed focal length

6 mm

Web browser

Yes

Number of microphones

1

Video recording

Yes

Screws included

Yes

LED type

IR/White

Night vision

Yes

Total megapixels

4 MP

Motion sensor

Yes

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Minimum illumination

0 lx

Dynamic range

120 dB

Lens viewing angle, diagonal

60,8°

Video compression formats

H.265+

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Remote viewing

Yes

Lens viewing angle, vertical

29°

Digital Wide Dynamic Range (DWDR)

Yes

Maximum aperture number

1.6

Lens viewing angle, horizontal

52,7°

Built-in siren

Yes

Alert notification type

Push notification

Audio detection

Yes

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Back Light Compensation (BLC)

Yes

Weatherproof

Yes

IP address filtering

Yes

Camera shutter speed

1/3 to 1/10000

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Highlight Compensation (HLC)

Yes

Live view

Yes

Cloud-managed

Yes

Power consumption (Power over Ethernet (PoE))

10.7 W

HTTPS encryption

Yes

Image quality adjustment

Contrast

Audio input channels

1.0 channels

Detect distance

120 m

Observe distance

50 m

Recognize distance

24 m

Identify distance

12 m

Human and vehicle targets classification

Yes

Drilling template included

Yes

Bit rate range

0 - 64 Kbit/s
