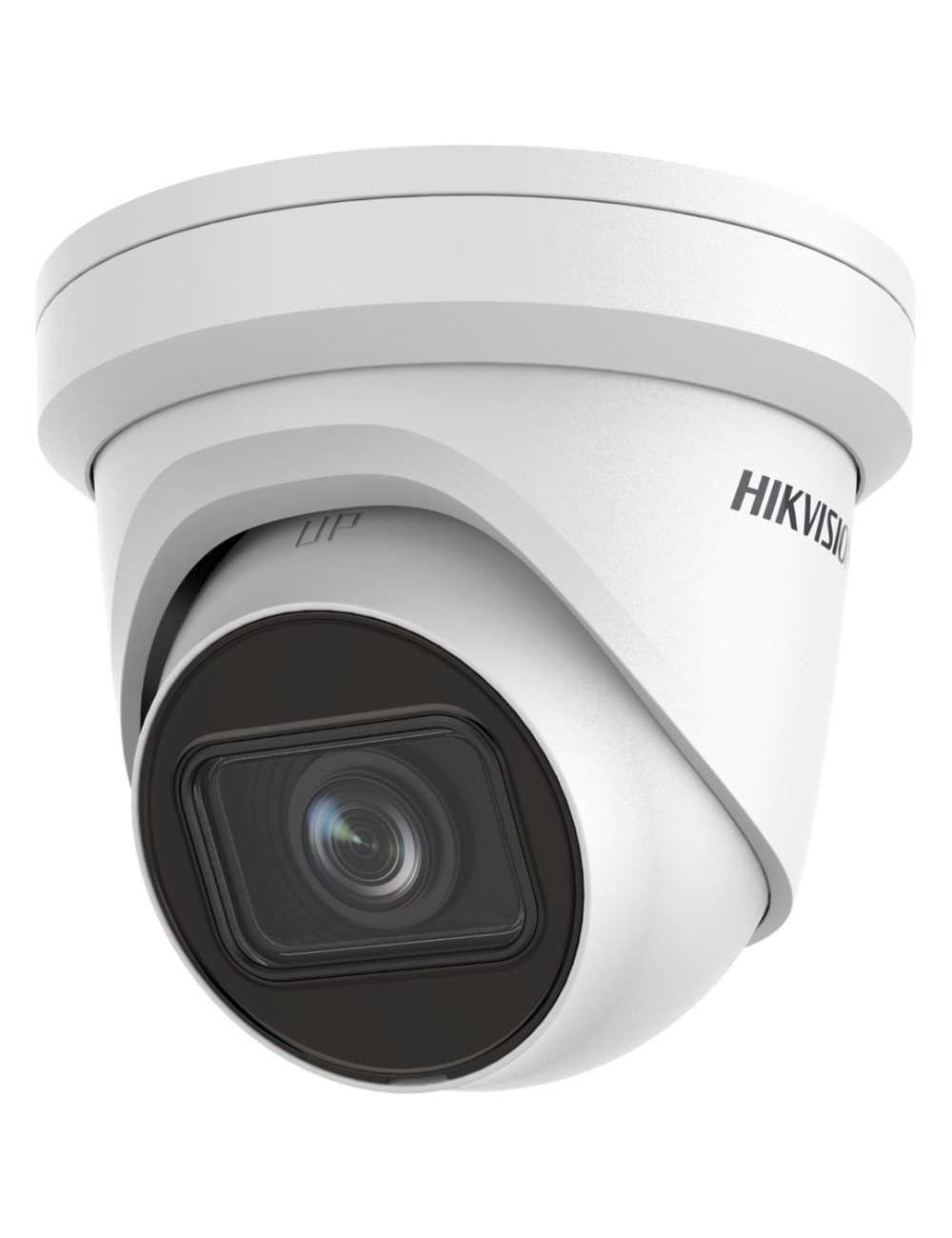

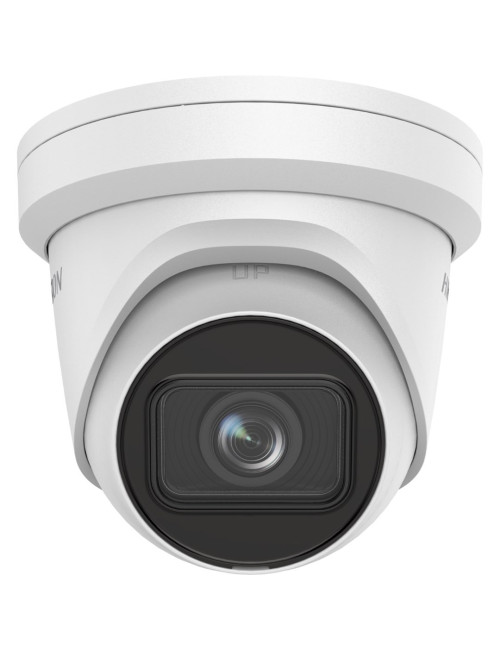

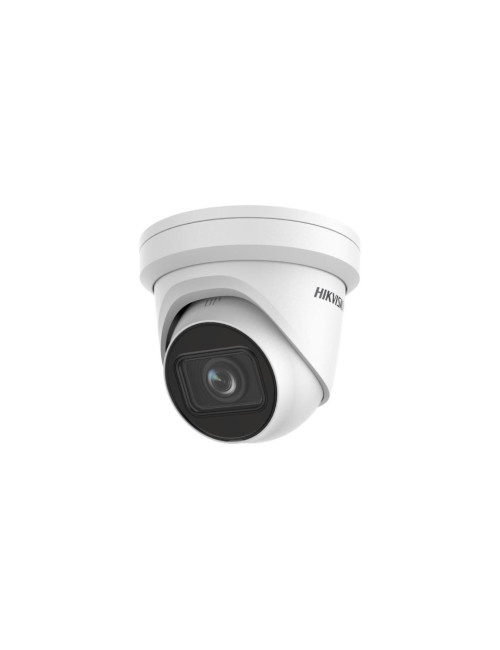

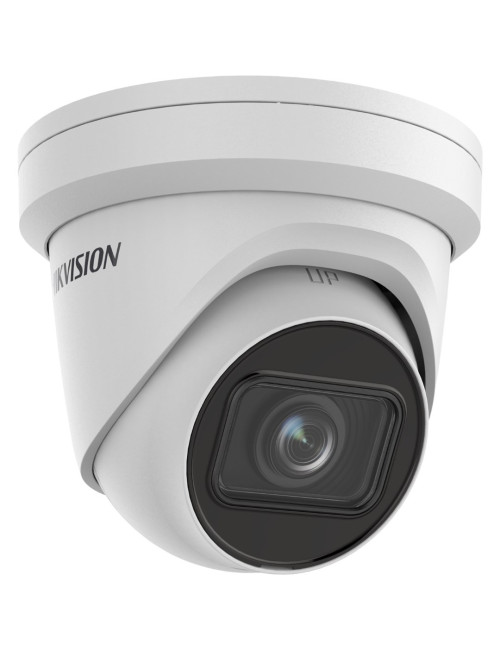

Hikvision Turret IR DS-2CD2H83G2-IZS(2.8-12mm) 8MP

Product Details

Reference WLONONWCRDZGP

In stock 13 Items

Data sheet

Type

IP security camera

Height

126 mm

Connectivity technology

Wired

Weight

830 g

Package depth

121 mm

Package height

118 mm

Package width

216 mm

Package weight

1.16 kg

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Ceiling/wall

Form factor

Dome

Bluetooth

No

Sample rate

48 kHz

Bit rate

32 Kbps - 16 Mbps

Noise reduction

Yes

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

256 GB

Audio formats supported

MP3

Maximum resolution

3840 x 2160 pixels

Placement supported

Outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Number of languages

33

Housing material

Aluminium

Networking standards

IEEE 802.1x

Security algorithms

HTTPS

Ethernet LAN

Yes

Supported graphics resolutions

2688 x 1520

Diameter

13.8 cm

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of Users

32 user(s)

Web-based management

Yes

Quality of Service (QoS) support

Yes

Reset button

Yes

Password protection

Yes

Languages support

French

Frame Rate

30 fps

Product colour

Black

Tilt angle range

0 - 75°

Focal length range

2.8 - 12 mm

Voice codecs

G.711alaw

LED type

IR

Night vision

Yes

Total megapixels

8 MP

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Pan range

0 - 360°

Lens viewing angle, diagonal

131°

Video compression formats

H.265+

Angle of rotation

360°

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

40 m

Number of lenses

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

56°

Noise reduction technology

3D noise reduction

Maximum aperture number

1.6

Lens viewing angle, horizontal

108°

Number of sensors

1

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Heartbeat

Yes

Anti-flicker

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

IP address filtering

Yes

Intelligent Video Surveillance (IVS) system features

Face detection

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Power consumption (Power over Ethernet (PoE))

12.5 W

HTTPS encryption

Yes

Behavior analysis

Intrusion detection, Line crossing detection

Image quality adjustment

Contrast

IK code

IK10

Warnings

The product contains electronic components; do not dispose of with the normal household waste.
