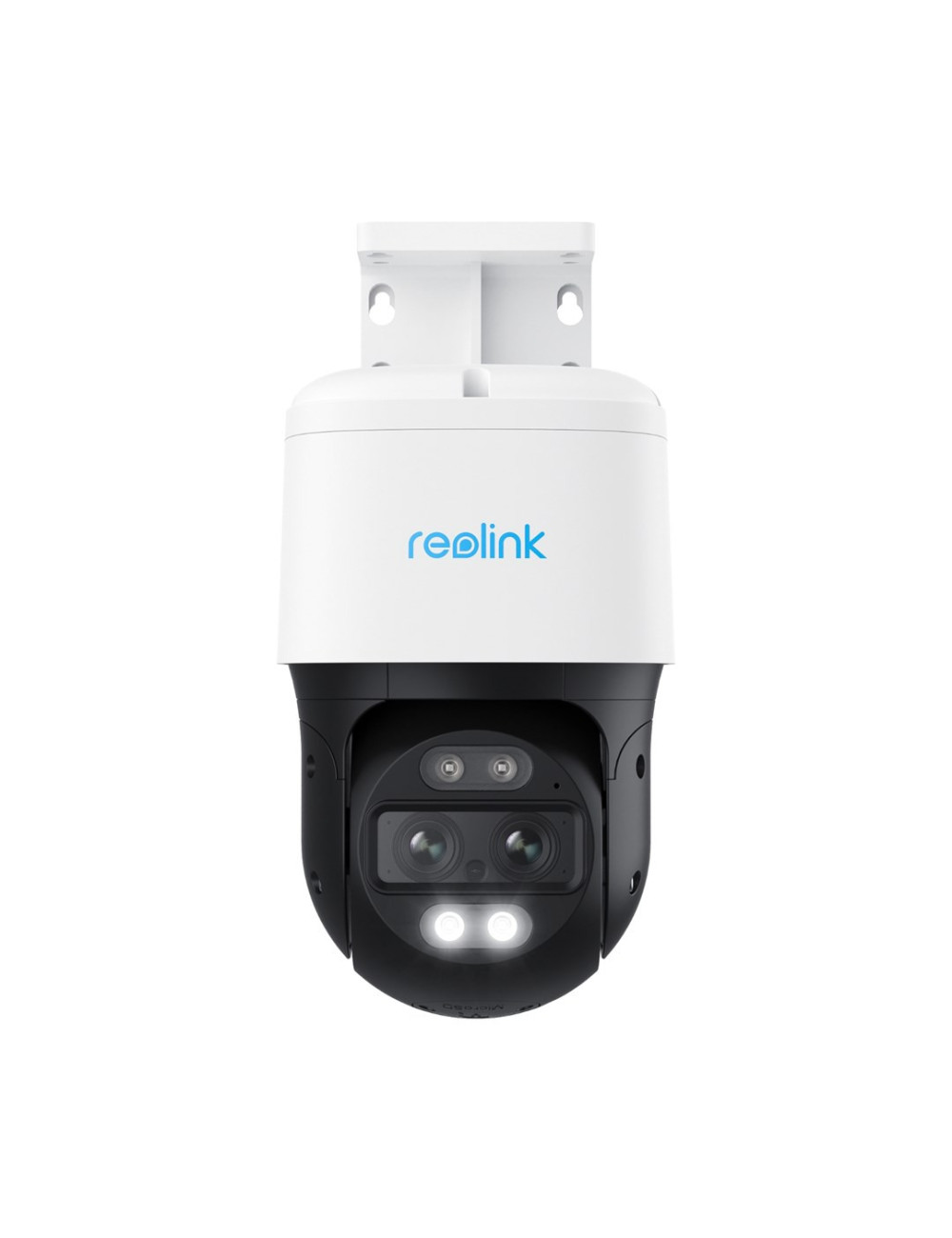

Reolink TrackMix Series P760 - 4K Outdoor Camera, Dual View, Auto-Zoom Tracking, PoE Connection, Color Night Vision

Product Details

Data sheet

Mac operating systems supported

Yes

Type

IP security camera

Windows operating systems supported

Yes

Width

228.2 mm

Height

129 mm

Depth

147 mm

Connectivity technology

Wired

Weight

1.21 kg

Package depth

270 mm

Package height

190 mm

Package width

205 mm

Package weight

1.76 kg

Power source type

DC, PoE

Cables included

LAN (RJ-45)

Operating temperature (T-T)

-10 - 55 °C

Operating relative humidity (H-H)

10 - 90%

Mounting type

Ceiling/wall

Form factor

Dome

Built-in microphone

Yes

Bluetooth

No

Mobile operating systems supported

Android

Protection features

Weatherproof

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

256 GB

Audio system

2-way

Power consumption (max)

12 W

Maximum resolution

3840 x 2160 pixels

Built-in speaker(s)

Yes

Placement supported

Indoor & outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Networking standards

IEEE 802.1af

Ethernet LAN

Yes

Supported graphics resolutions

3840 x 2160

Supported video modes

2160p

Colour Temperature

6500 K

Number of Users

20 user(s)

Supported network protocols

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Reset button

Yes

Luminous flux

450 lm

Frame Rate

25 fps

Mounting kit

Yes

Product colour

Black

Tilt angle range

0 - 90°

Video recording

Yes

Screws included

Yes

LED type

IR

Night vision

Yes

Total megapixels

8 MP

Optical sensor size

25.4 / 3 mm (1 / 3")

Pan range

0 - 355°

Video compression formats

H.264

DC output current

2 A

DC output voltage

12, 48

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

30 m

Day/night mode

Yes

Built-in HDD

No

Maximum aperture number

1.6

Number of sensors

2

Infra-red wavelength

850 nm

Number of illumination LEDs

2

User access level

Administrator, User

Built-in light

Yes

Pan speed

90 °/sec

Tilt speed

60 °/sec

Warnings

Avoid direct contact with water to prevent electrical damage.
