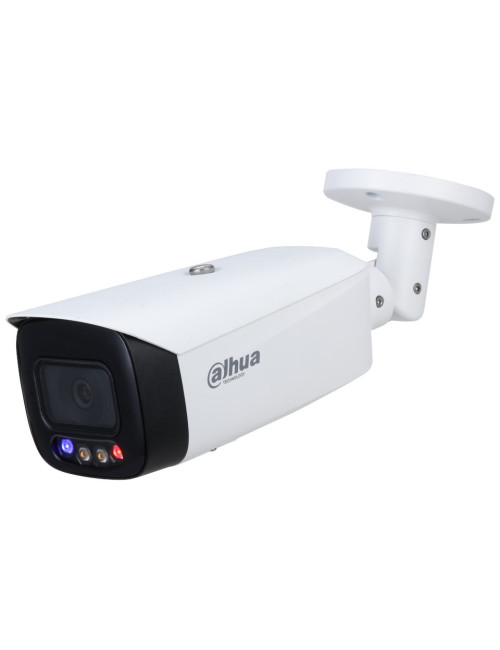

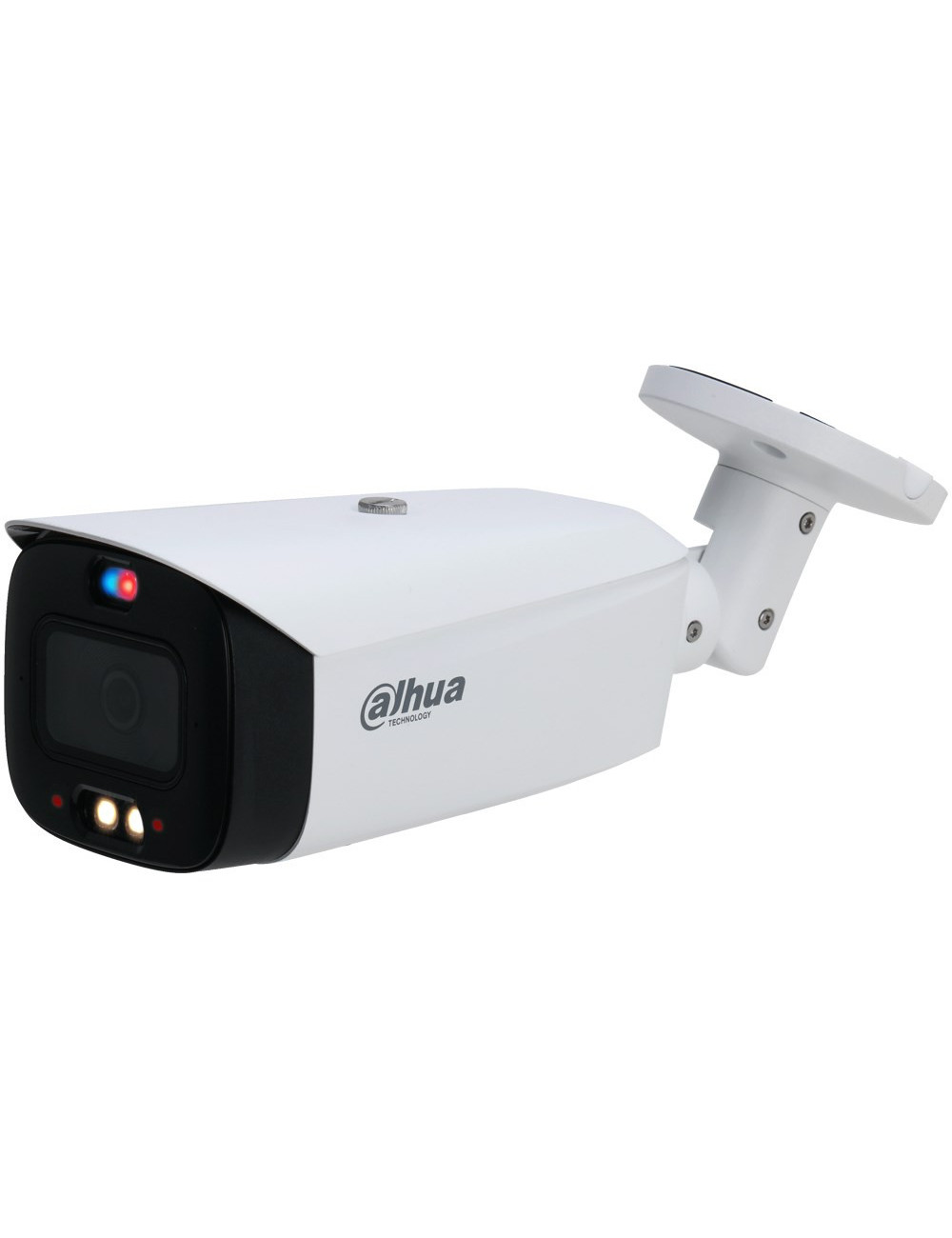

IP CAMERA DAHUA IPC-HFW3849T1-AS-PV-0280B-S4 TIOC 2.0

Product Details

Reference WLONONWCRGLCC

In stock 13 Items

Data sheet

Type

IP security camera

Width

94.4 mm

Depth

84.7 mm

Connectivity technology

Wired

Weight

1 kg

Package weight

1.23 kg

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-40 - 60 °C

Mounting type

Ceiling/wall

Form factor

Bullet

Built-in microphone

Yes

LED indicators

Alarm

Bluetooth

No

Bit rate

H.264: 32 Kbps–8192 Kbps, H.265: 12 Kbps–8192 Kbps

Noise reduction

Yes

Length

288.4 mm

Sensor type

CMOS

Wi-Fi

No

Internal memory

512 MB

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

256 GB

Power consumption (max)

7.6 W

Power consumption (typical)

4.5 W

Maximum resolution

3840 x 2160 pixels

Placement supported

External / Internal

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Housing material

Plastic

Networking standards

IEEE 802.3af

Ethernet LAN

Yes

Supported graphics resolutions

352 x 288

Alarm clock

Yes

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Sound Effects

Yes

Number of Users

20 user(s)

Maximum frame rate

30 fps

Quality of Service (QoS) support

Yes

Frame Rate

30 fps

Product colour

White

Tilt angle range

0 - 90°

Light effects

Yes

Fixed focal length

2.8 mm

Number of microphones

2

Speakerphone

Yes

Voice commands

Yes

Voice codecs

G.711a

LED type

IR / White light LED

Night vision

Yes

Total megapixels

8 MP

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

White balance

Outdoor

Minimum illumination

0.004 lx

Pan range

0 - 360°

Lens viewing angle, diagonal

125°

Video compression formats

H.264

Angle of rotation

360°

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

30 m

Number of lenses

1

Day/night mode

Yes

Built-in HDD

No

Lens viewing angle, vertical

55°

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1

Lens viewing angle, horizontal

106°

Number of sensors

1

Wide Dynamic Range (WDR)

120 dB

Progressive scan

Yes

Mirror

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Alarm input/output

Yes

IP address filtering

Yes

Intelligent Video Surveillance (IVS) system features

Tripwire

ROM capacity

128 MB

Camera shutter speed

1/3 - 1/100000 s

Adjustment shutter speed

Auto/Manual

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Gain control type

Auto/Manual

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Number of illumination LEDs

4

Two-way talk

Yes

Power consumption (Power over Ethernet (PoE))

9.1 W

Streaming method

Multicast

Identify distance (wide)

9.1 m

Recognize distance (wide)

18.2 m

Observe distance (wide)

36.4 m

Closest focusing distance

2 m

Detect distance (wide)

91 m

Audio RCA outputs

1

RCA input

1

Number of Privacy masking areas (panoramic camera)

8

Warnings

The product contains electronic components; do not dispose of with the normal household waste.
