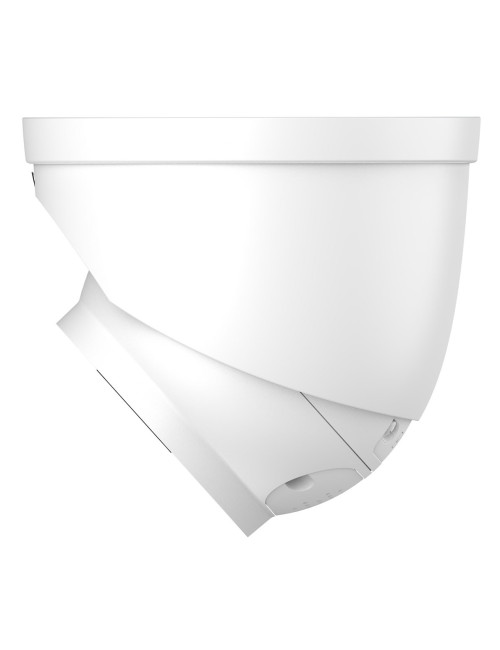

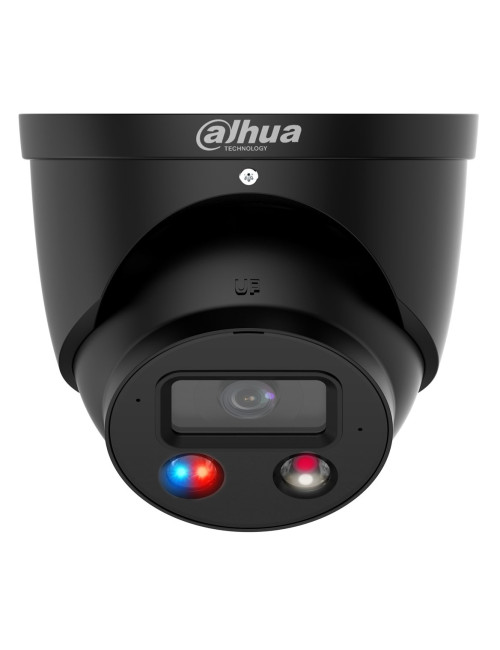

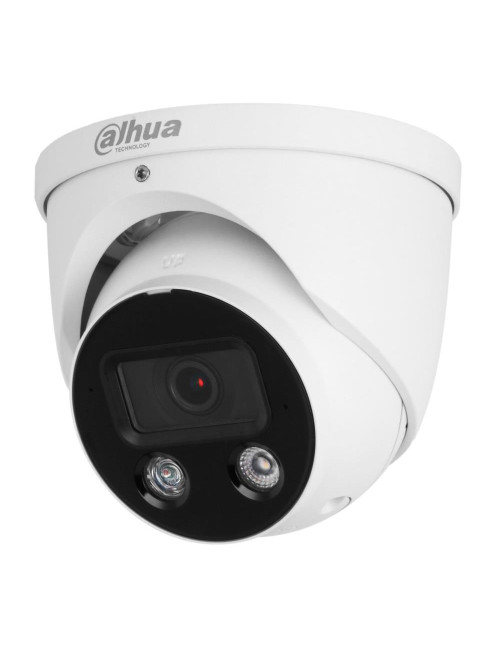

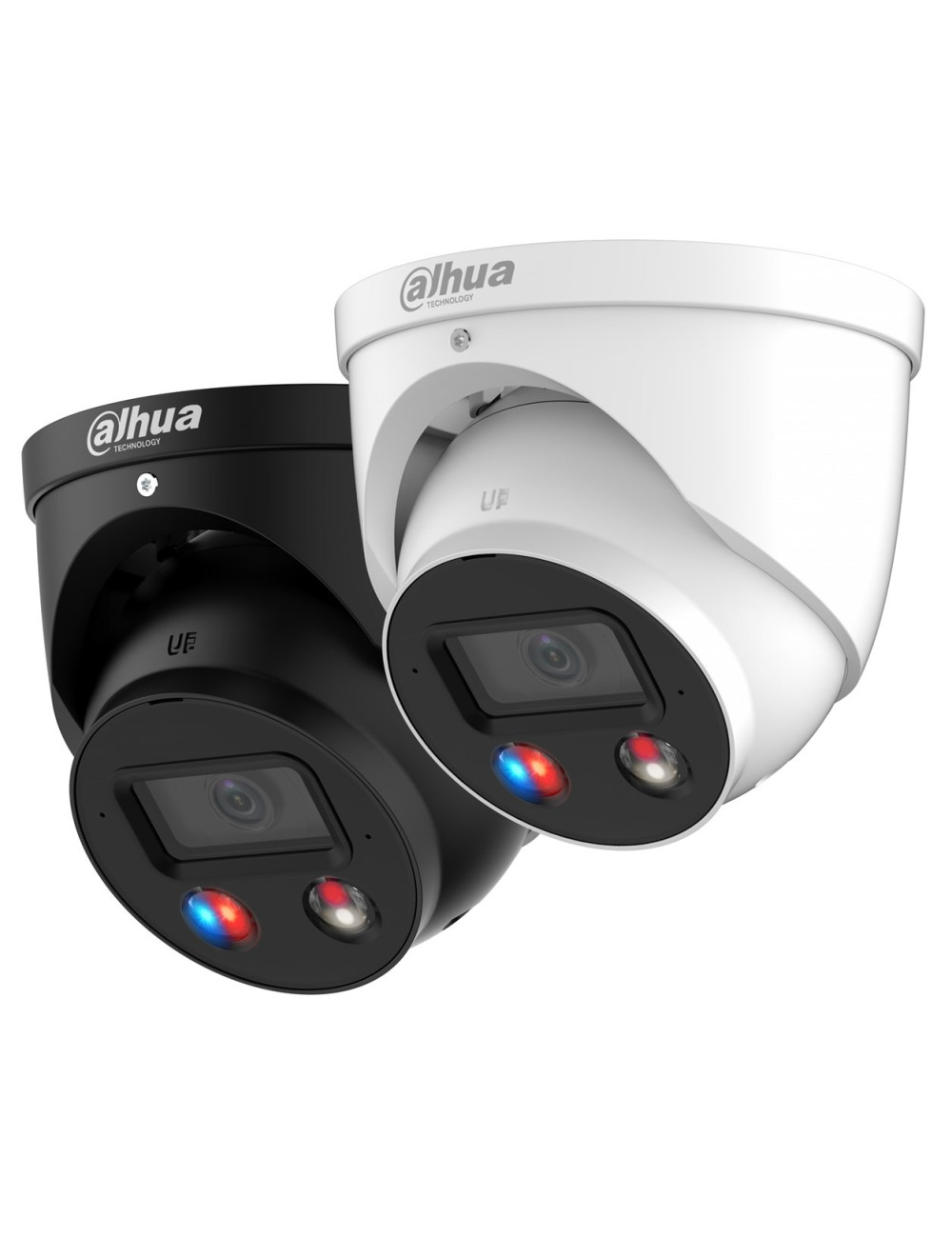

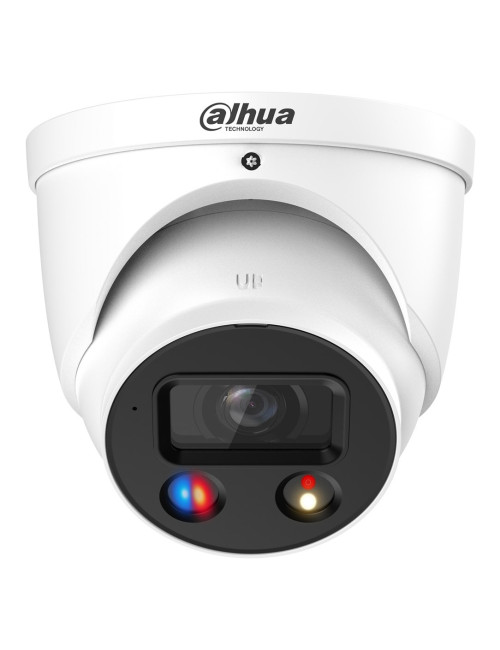

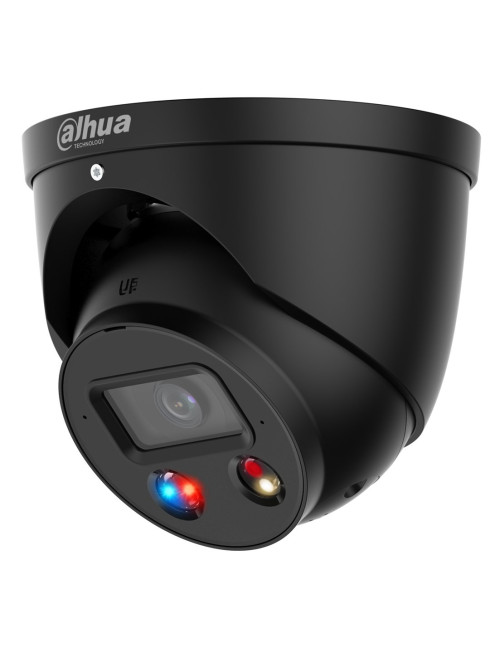

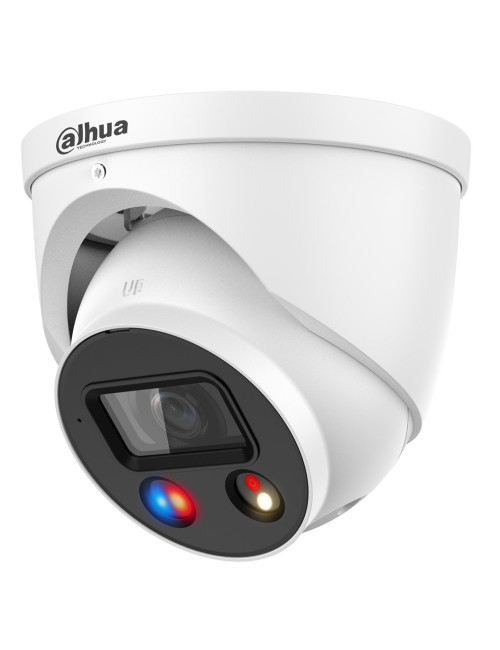

KAMERA IP TIOC 3.0 DAHUA IPC-HDW3849H-AS-PV-0280B-S5

Product Details

Reference WLONONWCRCOE8

In stock 4 Items

Data sheet

Type

IP security camera

Height

110.9 mm

Connectivity technology

Wired

Weight

750 g

Package weight

920 g

Power source type

DC, PoE

Manual

Yes

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Mounting type

Ceiling

Form factor

Dome

Built-in microphone

Yes

Bluetooth

No

Bit rate

3 Kbps - 16384 Kbps

Noise reduction

Yes

Mobile operating systems supported

Android

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

2 GB

Signal-to-Noise Ratio (SNR)

56 dB

Power consumption (max)

8.6 W

Power consumption (typical)

4.5 W

Maximum resolution

3840 x 2160 pixels

Placement supported

Indoor & outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Audio output channels

1.0 channels

DC-in jack

Yes

Housing material

Metal

Networking standards

IEEE 802.3af

Security algorithms

HTTPS

Ethernet LAN

Yes

Supported graphics resolutions

1280 x 720 (HD 720)

Diameter

12.2 cm

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Supported video modes

960p

Video formats supported

H.265+

Number of Users

20 user(s)

Quality of Service (QoS) support

Yes

Frame Rate

30 fps

Product colour

Black

Tilt angle range

0 - 78°

Fixed focal length

2.8 mm

Web browser

Yes

Voice codecs

PCM

LED type

IR

Night vision

Yes

Total megapixels

8 MP

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

White balance

Natural

Minimum illumination

0.0004 lx

Pan range

0 - 360°

Lens viewing angle, diagonal

125°

Video compression formats

M-JPEG

Angle of rotation

360°

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

30 m

Number of lenses

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Camera shutter type

Electronic

Lens viewing angle, vertical

55°

Noise reduction technology

3D noise reduction

Smart IR

Yes

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1

Lens viewing angle, horizontal

106°

Number of sensors

1

Built-in siren

Yes

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Alarm input/output

Yes

IP address filtering

Yes

Intelligent Video Surveillance (IVS) system features

Tripwire

ROM capacity

256 MB

Camera shutter speed

1/3 - 1/100000 s

Adjustment shutter speed

Auto/Manual

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Gain control type

Auto/Manual

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Number of illumination LEDs

1

Power consumption (Power over Ethernet (PoE))

5.8 W

HTTPS encryption

Yes

Streaming method

Multicast

Identify distance (wide)

6.6 m

Recognize distance (wide)

13.2 m

Audio input channels

1.0 channels

Observe distance (wide)

26.4 m

Management software

Smart PSS, DSS, DMSS

Closest focusing distance

1.5 m

Detect distance (wide)

66 m

Warnings

Avoid direct contact with water to prevent electrical damage.
