Prekė detaliau
Charakteristikos

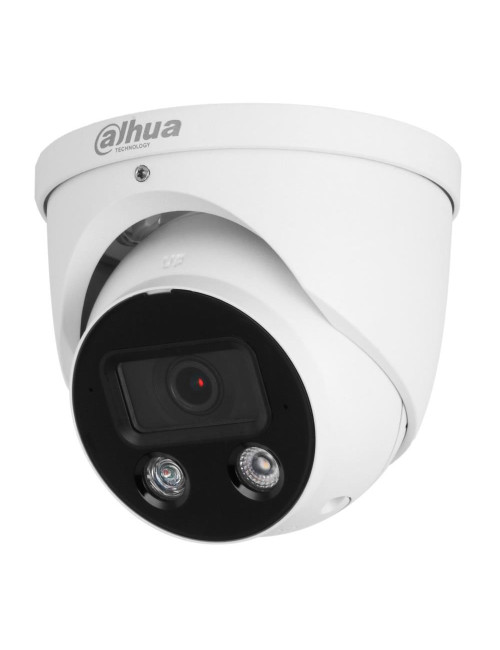

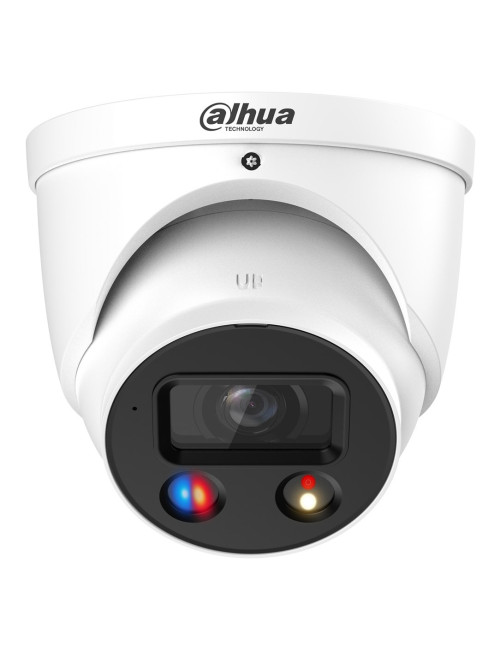

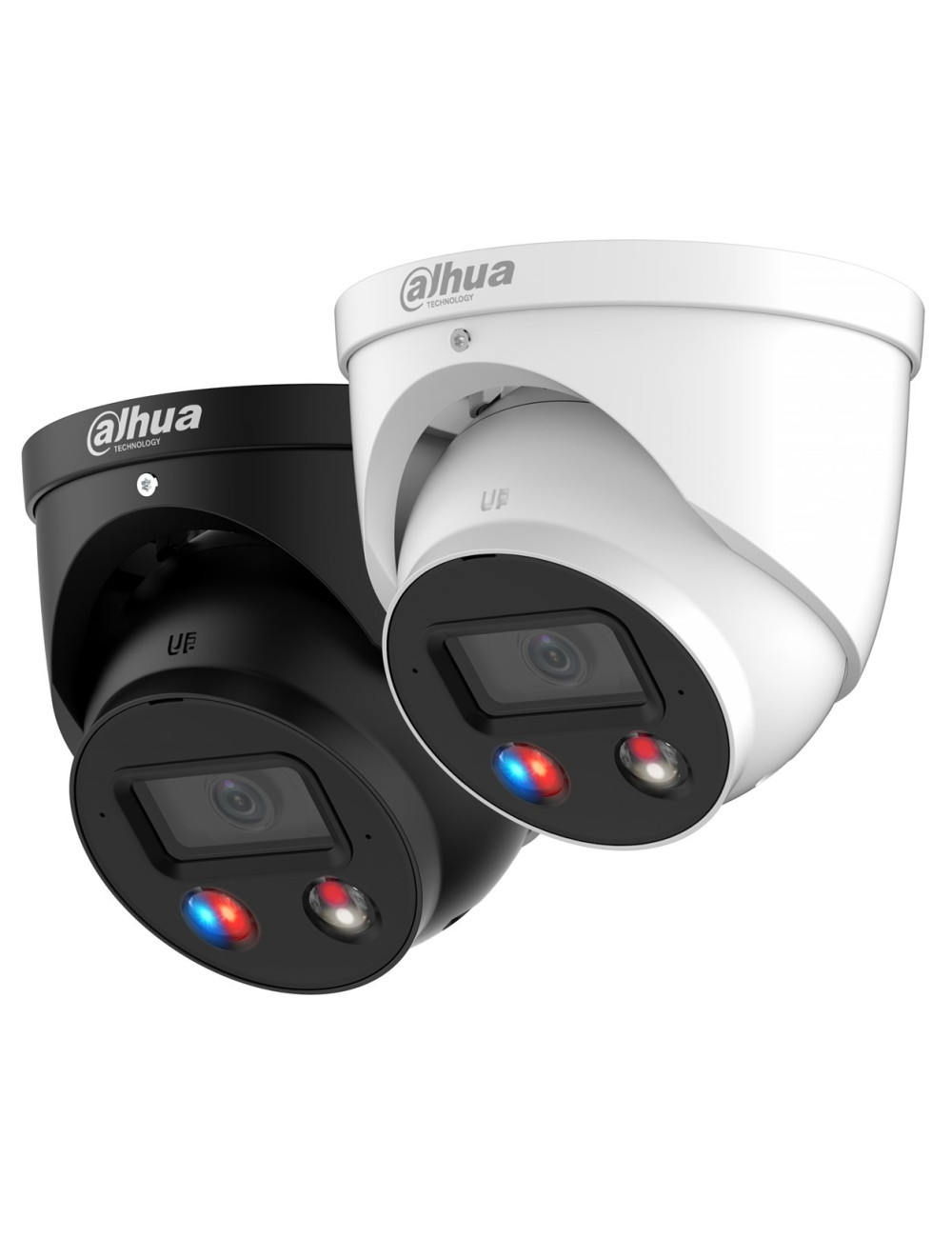

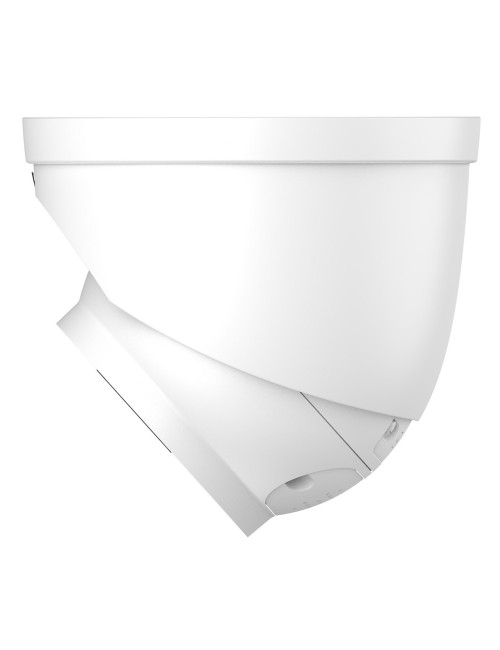

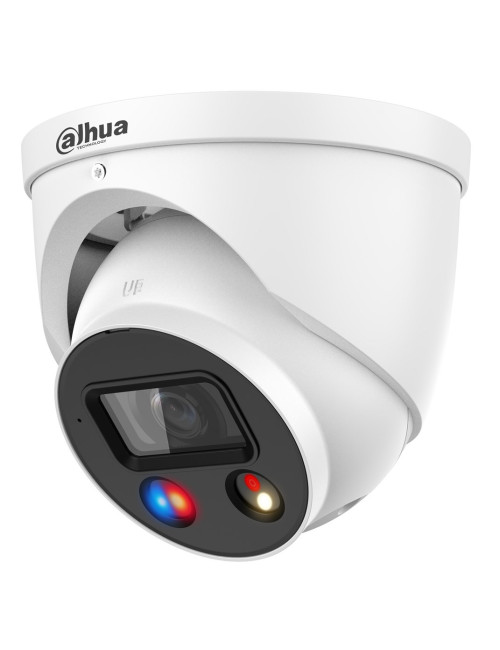

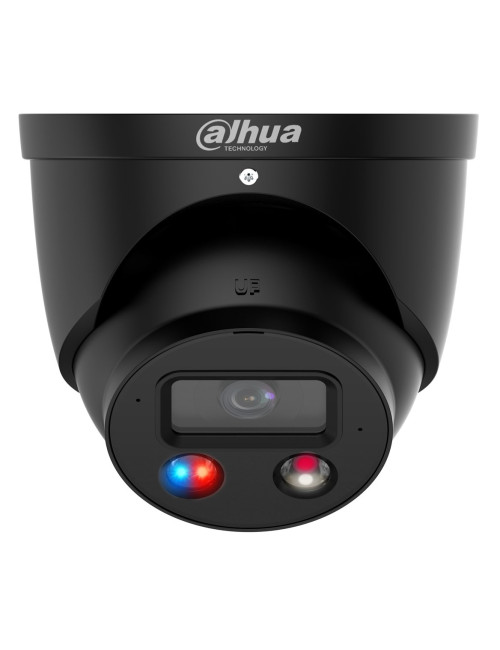

- Type
- IP security camera
- Height
- 110.9 mm
- Connectivity technology
- Wired
- Weight
- 750 g
- Package weight
- 920 g
- Power source type
- DC, PoE
- Manual
- Yes
- Operating temperature (T-T)
- -40 - 60 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Mounting type
- Ceiling
- Form factor
- Dome
- Built-in microphone
- Yes
- Bluetooth
- No
- Bit rate
- 3 Kbps - 16384 Kbps
- Noise reduction
- Yes
- Mobile operating systems supported
- Android
- Sensor type
- CMOS
- Wi-Fi
- No
- Compatible memory cards
- MicroSD (TransFlash)
- Maximum memory card size
- 2 GB
- Signal-to-Noise Ratio (SNR)
- 56 dB
- Power consumption (max)
- 8.6 W
- Power consumption (typical)
- 4.5 W
- Maximum resolution
- 3840 x 2160 pixels
- Placement supported
- Indoor & outdoor
- Card reader integrated
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Audio output channels
- 1.0 channels
- DC-in jack
- Yes
- Housing material
- Metal
- Networking standards
- IEEE 802.1x
- Security algorithms
- HTTPS
- Ethernet LAN
- Yes
- Supported graphics resolutions
- 1920 x 1080 (HD 1080)
- Diameter
- 12.2 cm
- International Protection (IP) code
- IP67
- Ethernet interface type
- Fast Ethernet
- Supported video modes
- 1520p
- Video formats supported
- H.264+
- Number of Users
- 20 user(s)
- Quality of Service (QoS) support
- Yes
- Frame Rate
- 30 fps
- Product colour
- White
- Tilt angle range
- 0 - 78°
- Fixed focal length
- 2.8 mm
- Web browser
- Yes
- Voice codecs
- PCM
- LED type
- IR
- Night vision
- Yes
- Total megapixels
- 8 MP
- Optical sensor size
- 25.4 / 2.7 mm (1 / 2.7")
- White balance
- Custom modes
- Minimum illumination
- 0.0004 lx
- Pan range
- 0 - 360°
- Lens viewing angle, diagonal
- 125°
- Video compression formats
- H.264
- Angle of rotation
- 360°
- DC output voltage
- 12
- Video motion detection
- Yes
- Number of cameras
- 1
- Camera pan control
- Yes
- Camera tilt control
- Yes
- Night vision distance
- 30 m
- Number of lenses
- 1
- Day/night mode
- Yes
- Infrared (IR) cut-off filter
- Yes
- Built-in HDD
- No
- Camera shutter type
- Electronic
- Lens viewing angle, vertical
- 55°
- Noise reduction technology
- 3D noise reduction
- Smart IR
- Yes
- Region of Interest (ROI) encoding
- Yes
- Maximum aperture number
- 1
- Lens viewing angle, horizontal
- 106°
- Number of sensors
- 1
- Built-in siren
- Yes
- Wide Dynamic Range (WDR)
- Yes
- Progressive scan
- Yes
- Mirror
- Yes
- Back Light Compensation (BLC)
- Yes
- Video streaming
- Yes
- Alarm input/output
- Yes
- IP address filtering
- Yes
- Intelligent Video Surveillance (IVS) system features
- Tripwire
- ROM capacity
- 256 MB
- Camera shutter speed
- 1/3 - 1/100000 s
- Adjustment shutter speed
- Auto/Manual
- Bit rate control
- Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Gain control type
- Auto/Manual
- Privacy masking
- Yes
- Highlight Compensation (HLC)
- Yes
- Number of illumination LEDs
- 1
- Power consumption (Power over Ethernet (PoE))
- 5.8 W
- HTTPS encryption
- Yes
- Streaming method
- Multicast
- Identify distance (wide)
- 6.6 m
- Recognize distance (wide)
- 13.2 m
- Audio input channels
- 1.0 channels
- Observe distance (wide)
- 26.4 m
- Management software
- Smart PSS, DSS, DMSS
- Closest focusing distance
- 1.5 m
- Detect distance (wide)
- 66 m
- Warnings
- Avoid direct contact with water to prevent electrical damage.
