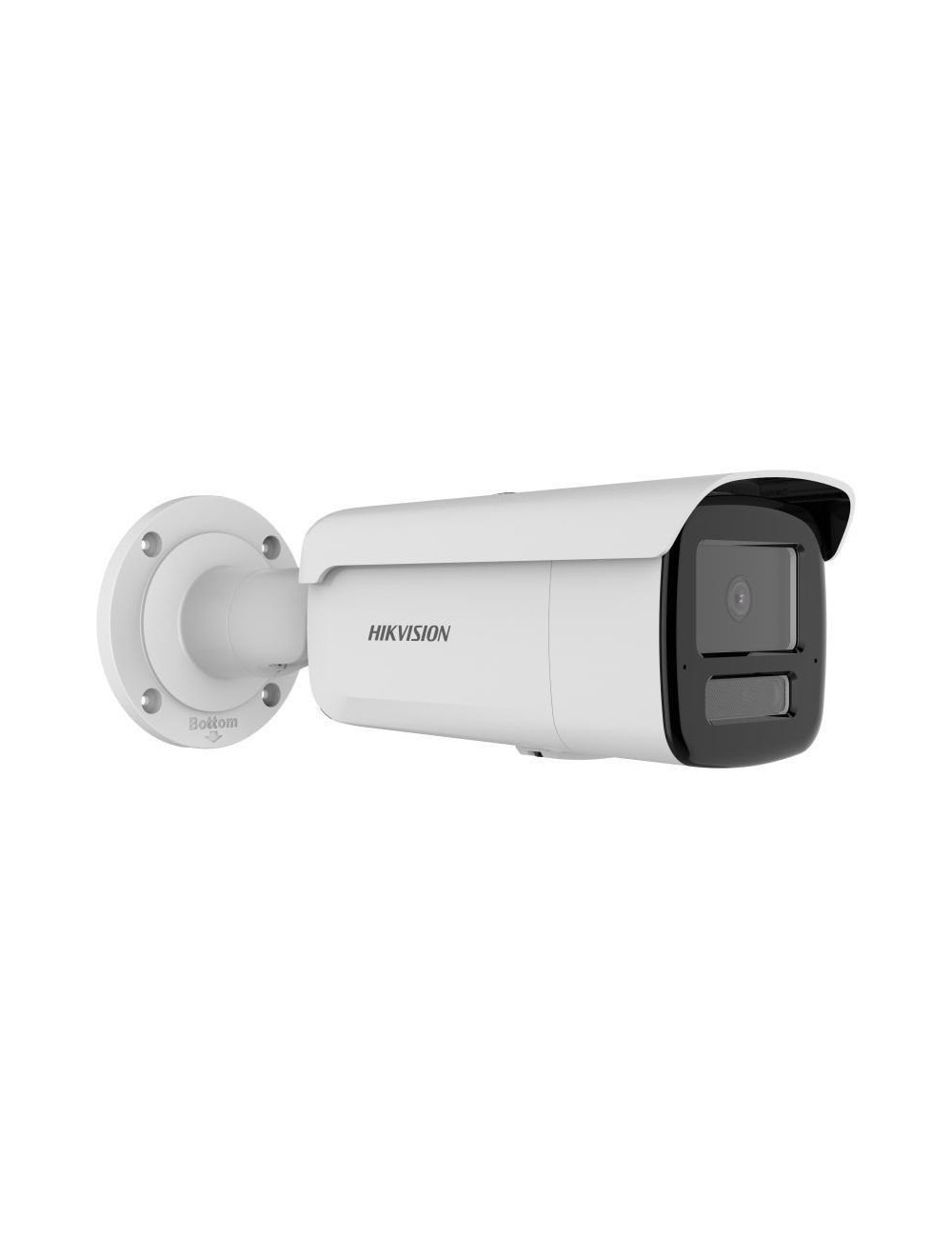

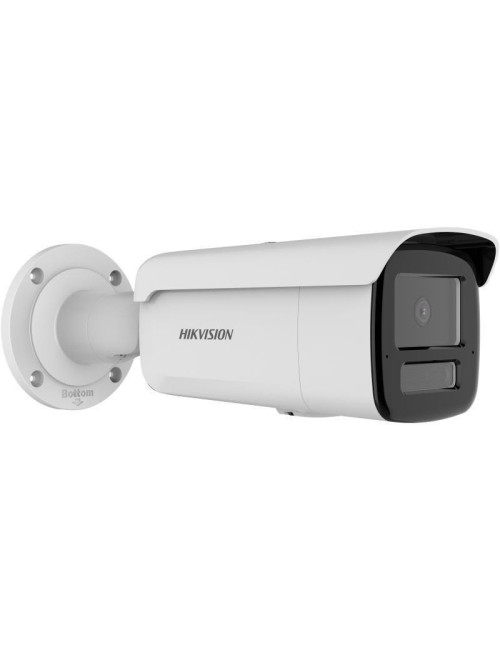

Kamera IP Hikvision DS-2CD2T63G2-4LI (2.8mm)

Product Details

Reference CIPHIKKAM0740

In stock 2 Items

Data sheet

Type

IP security camera

Width

88.7 mm

Height

93 mm

Depth

286.7 mm

Connectivity technology

Wired

Weight

1.15 kg

Package depth

155 mm

Package height

156 mm

Package width

386 mm

Package weight

1.64 kg

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Built-in microphone

Yes

Bit rate

32 Kbps - 16 Mbps

Sensor type

CMOS

Compatible memory cards

MicroSDXC

Maximum memory card size

512 GB

Signal-to-Noise Ratio (SNR)

52 dB

Ethernet LAN (RJ-45) ports

1

Number of languages

33

Housing material

Metal

Ethernet LAN data rates

10,100 Mbit/s

Ethernet LAN

Yes

International Protection (IP) code

IP67

Power Over Ethernet (PoE)

Yes

Number of Users

32 user(s)

Maximum frame rate

30 fps

Web-based management

Yes

Quality of Service (QoS) support

Yes

Password protection

Yes

Languages support

Finnish

Product colour

White

Tilt angle range

0 - 90°

Sustainability certificates

REACH

Face detection

Yes

Power management

DC 12 V

LED type

IR

Night vision

Yes

Total megapixels

6 MP

Optical sensor size

25.4 / 2.4 mm (1 / 2.4")

Minimum illumination

0.005 lx

Pan range

0 - 360°

Lens viewing angle, diagonal

127°

Video compression formats

H.264

Angle of rotation

360°

DC output current

0.87 A

Video motion detection

Yes

Number of cameras

1

Night vision distance

80 m

Number of lenses

1

Day/night mode

Yes

Lens viewing angle, vertical

55°

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1.6

Lens viewing angle, horizontal

105°

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

120 dB

Progressive scan

Yes

Mirror

Yes

Heartbeat

Yes

IP address filtering

Yes

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Highlight Compensation (HLC)

Yes

HTTPS encryption

Yes

Behavior analysis

Intrusion detection, Line crossing detection

Identify distance (wide)

7 m

Detect distance (wide)

76 m

PoE standard

IEEE 802.3af

Client interoperability

ONVIF (Profile S / Profile G), ISAPI, SDK, ISUP

Warnings

Avoid direct contact with water to prevent electrical damage.
